Coefficient of Friction Test Fixtures
If you have a special application please let us know.
We are here to help. Please feel free to call or email (
All fixtures are not listed
. Please contact our office if you don't find what you need.
Compressor 16 Bar (232 PSI)
Flexural or Bending
Friction Test Fixtures
Rope Yarn Wire & Thread
Terminal, Chuck, Pin & Threads
Wedge Grips 10 - 50 kN
Wedge Grips - Capstan
Wedge Grips -Heavy Duty
WT62-M and WT62-F

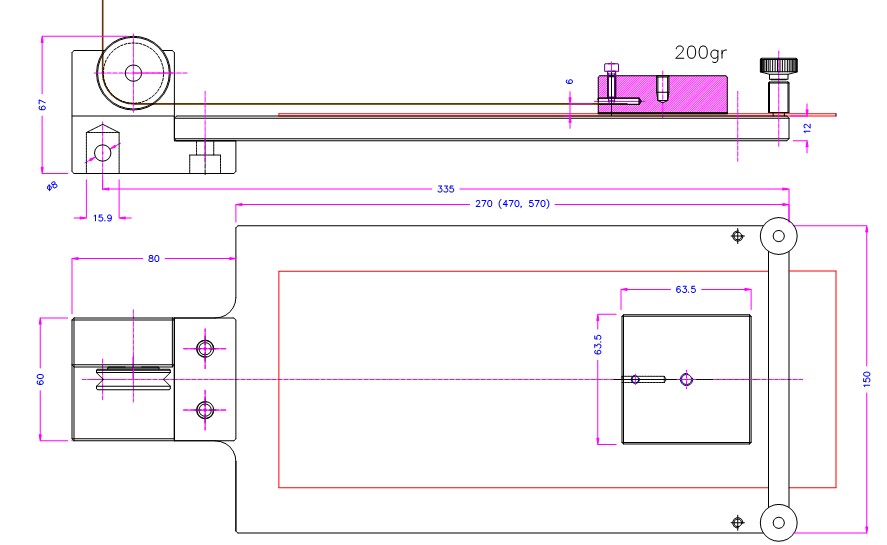

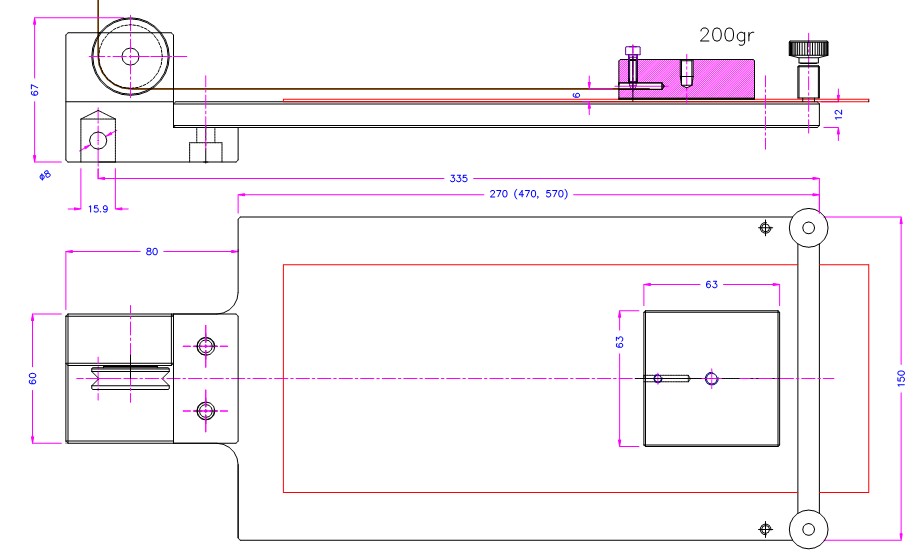

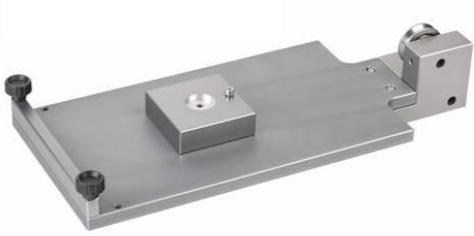

Coefficient of Friction Test Fixture
Connection: 5/8" Socket (other connections possible,
Click Here for Adapters Page
Fixture to test friction coefficient
Pulley with ball bearing to minimize friction
Tensile force: Up to 500 N
270x150 mm (WT62-M or WT62-F)
470x150 mm (WT62-M-P470 or WT62-F-P470)
570x150 mm (WT62-M-P570 or WT62-M-P570)
ASTM-D1894, TAPPI T549

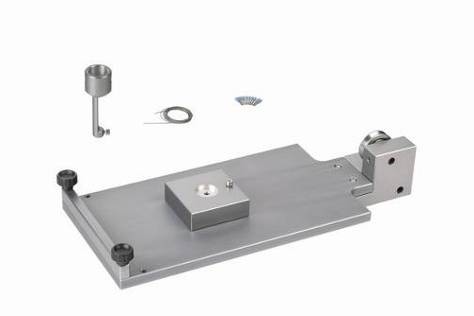

Fixture including 200 g weight (covered with cellular rubber).
Fixture including 200 g weight (covered with felt).

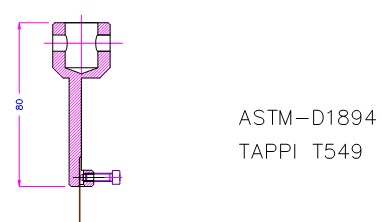

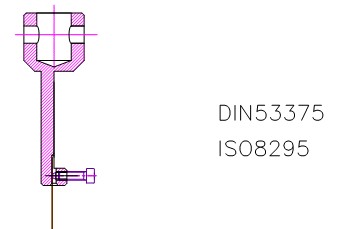

Options for Upper Fixture
WT62-159 upper fixture with 15.9 mm coupling, weight: 0.038 kg
WT62-200 upper fixture with 20 mm coupling, weight: 0.030 kg

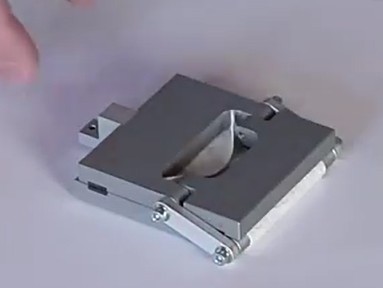

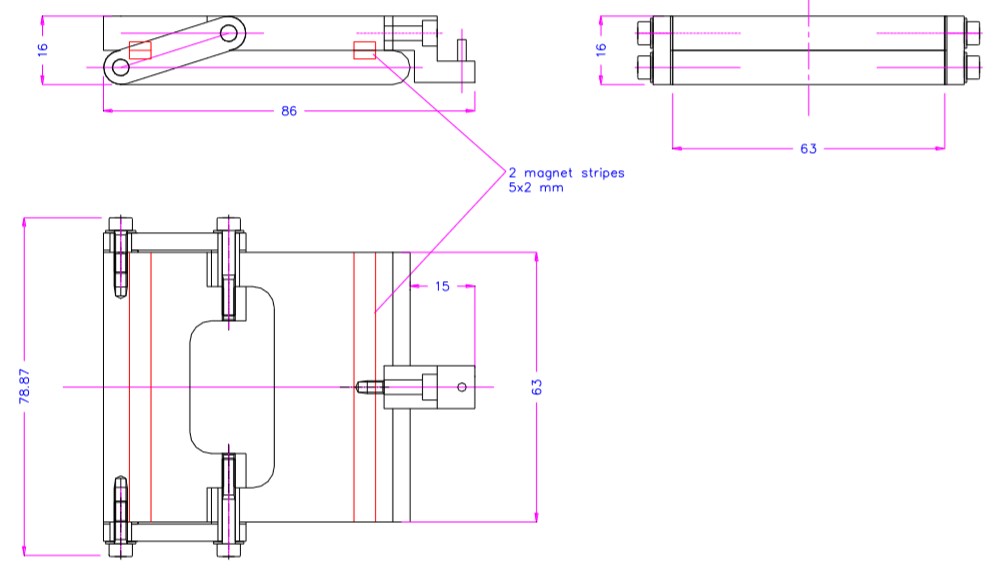

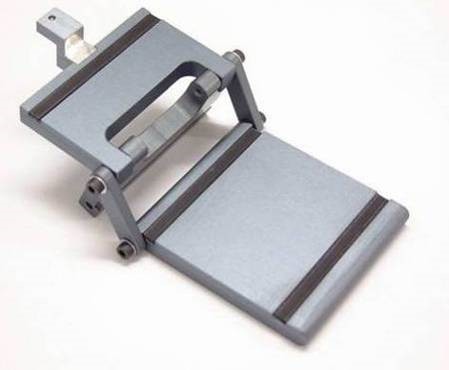

WT62-HS (Optional Accessory)
Folding Magnet Fastener
Designed to keep thin samples (like foils, paper) secure in place
Weight: 200 g

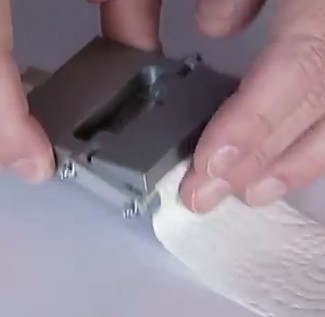

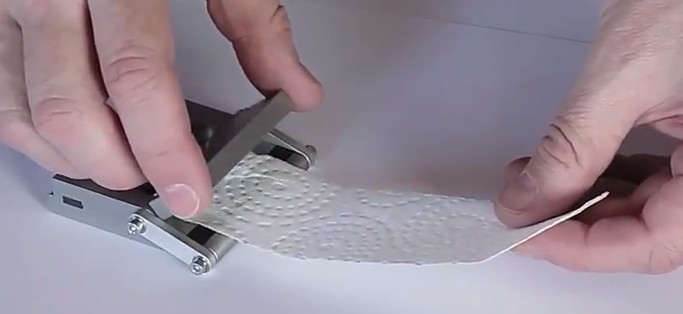

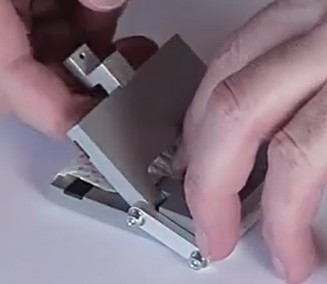

Step One: Open front and insert sample
Step Two: shut the "front" door
(The internal magnet will "snap")

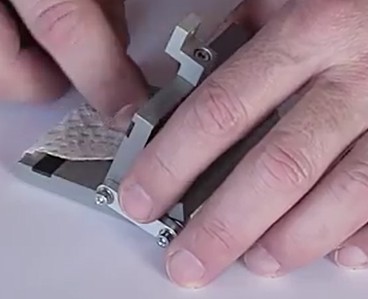

Step Three: Pull sample around the
bottom and open the back door.

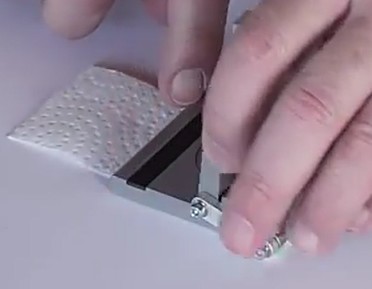

Step Four: Tuck the sample in the
back and hold it tight through the top.
Step Five: Shut the back door
while holding the sample tight.
Now the Sample is securely held in the sled and ready to test.
To remove the sample simply open the back and front doors.

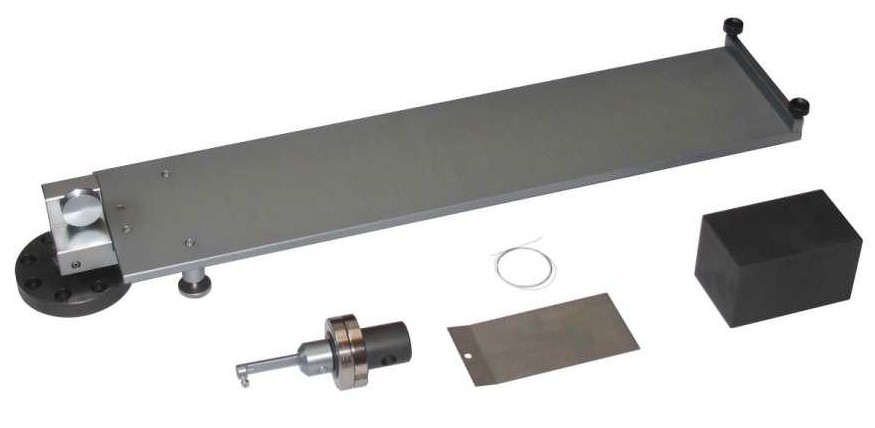

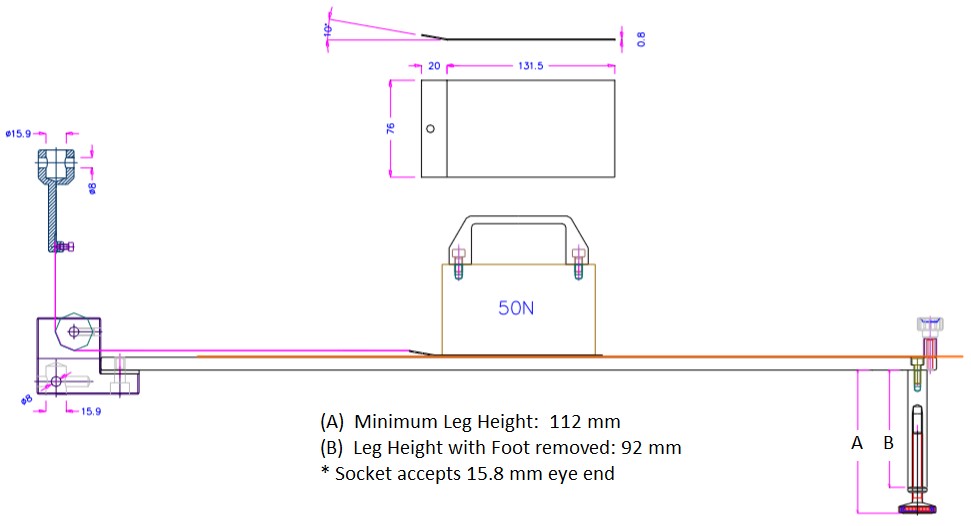

Peel fixture for ISO 21182
Sled weight, 50 N
