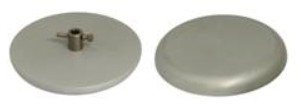

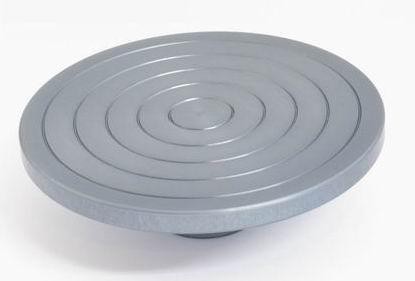

WT23-A Round Anodized Aluminum Compression Platen

Temperature range: -70C - +180C
For Soft Samples, Cardboards, Plastics, etc.

Sold in pairs (2 each per part number), grip pins are included.
Available female connections [mm]: 15.9 (standard), 19.1, 20, 30, 31.8, 32, 36, 40 and custom.
Available male connections [mm] 15.8, 20, 31.7... and custom.
Please specify model number for diameter and connection type.

Model #           Diameter    Approximate Weight Each

WT23-A-56             56 mm                  0.1kg
WT23-A-96             96 mm                  0.3kg
WT23-A-116         116 mm                  0.4kg
WT23-A-156         156 mm                  0.6kg
WT23-A-196         196 mm                  1.2kg
WT23-A-246         246 mm                  1.5kg
WT23-A-296         296 mm                  3.3kg





WT23-S Round Steel Compression Platen
Temperature range: 0C - +350C (Shown below)
Nickel plated: -70C - +350C (on request)
For hard materials, steel, plastics, stone etc.
Max capacity depends on the size of coupling.

Sold in Pairs (2 each per part number), Grip Pins are included.
Available female connections [mm]: 15.9 Standard , 19.1, 20, 30, 31.8, 32, 36, 40 and custom (See diagram above).
Available male connections [mm] 15.8, 20, 31.7... and custom (see diagram above).
We can assist with product selection for your type of machine.

Model #       Diameter    Approximate Weight

WT23-S-56          56 mm                  0.1kg
WT23-S-96          96 mm                  0.3kg
WT23-S-116      116 mm                  0.4kg
WT23-S-156      156 mm                  0.6kg
WT23-S-196      196 mm                  1.2kg
WT23-S-246      246 mm                  1.5kg
WT23-S-296      296 mm                  3.3kg



Connection (B) can be either male or female.
Please specify when ordering.
Size of Compression Plates

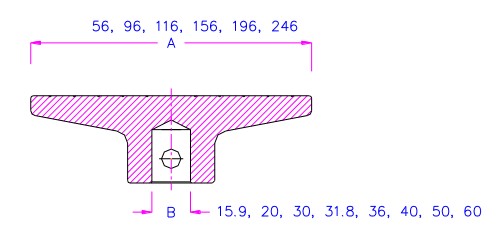

Plate dimensions ("A" Below) are determined by Model Number.
For Connection Sizes
Please specify connection size
("B" Below) when ordering.
Anodized Aluminum

Steel Version

Male Thread Solution

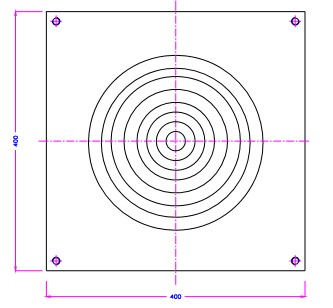

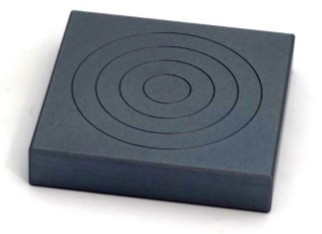

WT36-A   Rectangle Aluminum compression platen
For soft samples, cardboards, plastics, etc.
Temperature range: -70C - +180C
Anodized aluminum
Max capacity depends on the size of coupling
Scope of supply 1 pair

Model #                   Dimensions               Approximate Weight Each
WT36-A-50-50              50 x 50mm                               0.20 kg
WT36-A-100-100         100 x 100mm                            0.52 kg
WT36-A-120-120         120 x 120mm                            0.78 kg
WT36-A-120-180         120 x 180mm                            1.14 kg
WT36-A-125-250         125 x 250mm                            1.73 kg
WT36-A-150-150         150 x 150mm                            1.23 kg
WT36-A-150-300         150 x 300mm                            2.35 kg
WT36-A-200-200         200 x 200mm                            2.10 kg
WT36-A-250-250         250 x 250mm                            3.40 kg
WT36-A-300-300         300 x 300mm                            4.35 kg
WT36-A-350-350         350 x 350mm                            6.60 kg
WT36-A-400-400         400 x 400mm                            8.70 kg
Further dimensions and versions on request

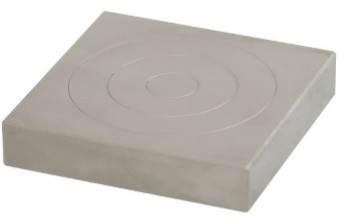

WT36-S  Rectangle Steel compression platen
For hard materials, steel, plastics, stone etc.
Hardened steel 58HRC
Max capacity depends on the size of coupling
Scope of supply 1 plate


Model #                   Dimensions               Approximate Weight Each

WT36-S-100-100         100 x 100mm                           1.54 kg
WT36-S-196-196         196 x 196mm                           6.60 kg
WT36-S-246-246         246 x 246mm                         10.40 kg
WT36-S-296-296         296 x 296mm                         13.60 kg
WT36-S-396-396         396 x 396mm                         33.00 kg
Further dimensions and versions on request

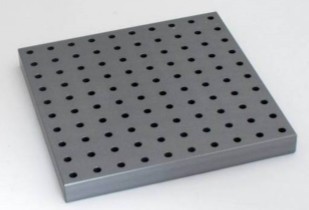

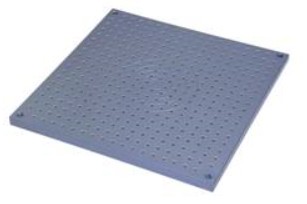

WT36-A-P   Rectangle Perforated Platen
Anodized aluminum
Suitable for foam testing.
Diameter of holes: 6 mm spaced 20 mm
Temperature range : 0C - +180C
Max capacity depends on the size of coupling
Scope of supply 1 plate

Model #                               Dimensions               Approximate Weight Each

WT36-A-P-150-150-P6x20       150 x 150mm                             1.10kg
WT36-A-P-200-200-P6x20       200 x 200mm                             1.95kg
WT36-A-P-400-400-P6x20       400 x 400mm                             8.20 kg
Further dimensions and versions on request





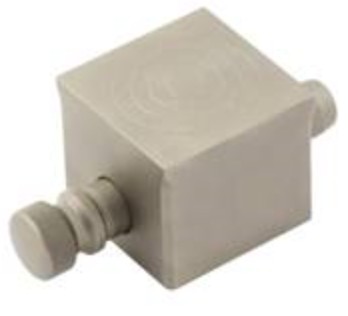

Made to fit almost any machine!
Please specify above connection in millimeters when ordering.
Click here for Adapter Options
Click here for Adapter Options
Click here for Adapter Options
Click Here for Sales or Support
Return to Top

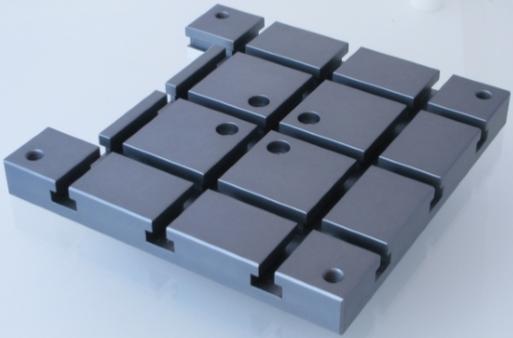

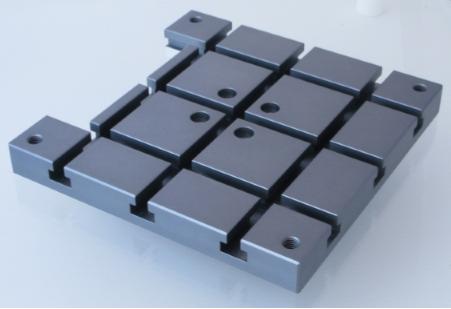

WT36T Series Slotted Plates ( See each type below)

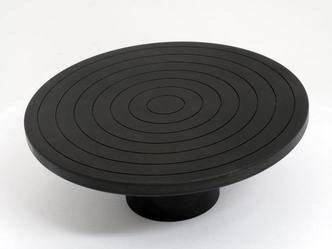

Speical with Rotating Table
Special for single column machines
.

Special Version

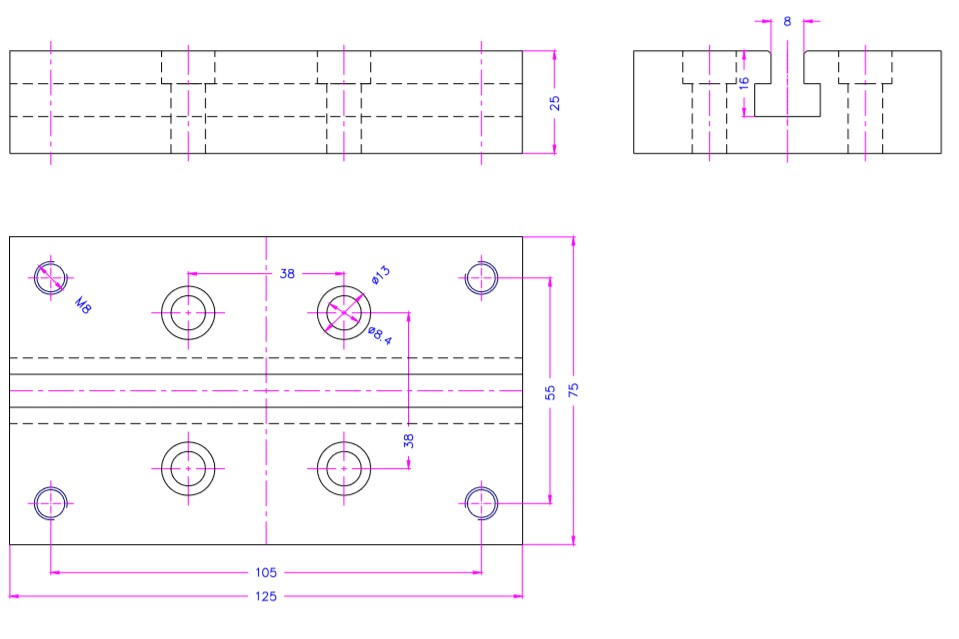

75 x 125 mm with bolt pattern

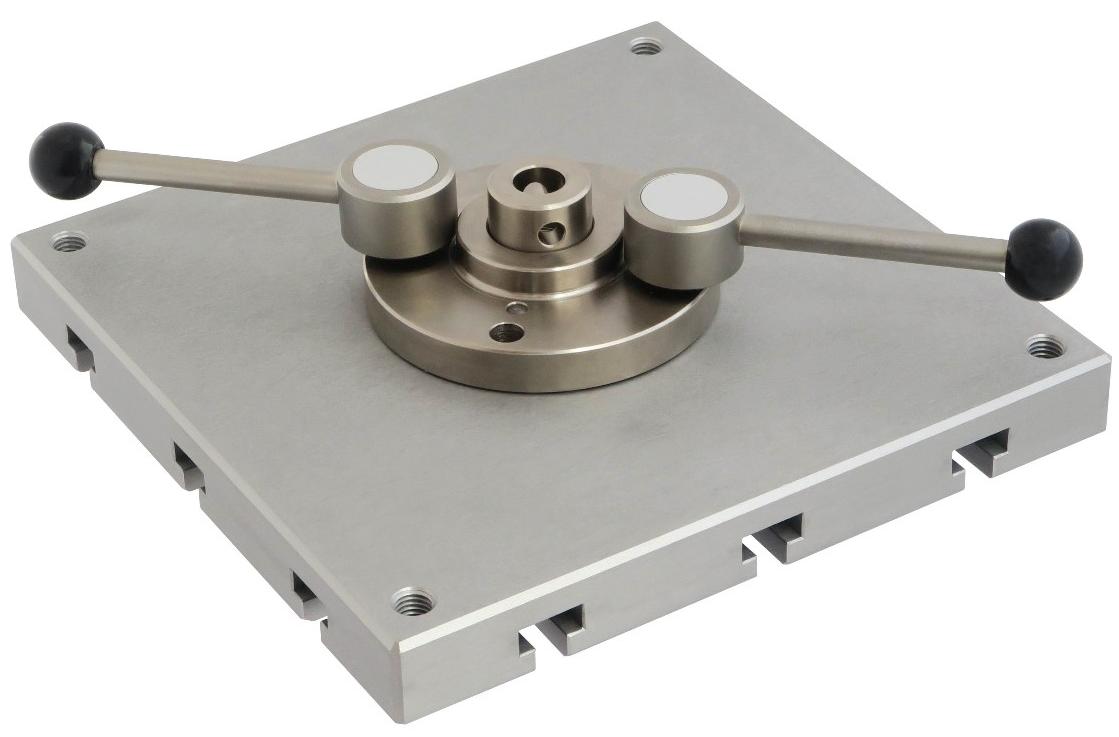

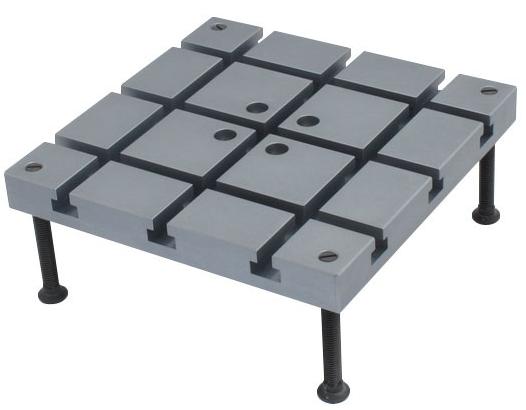

    SLOTTED TABLES FOR TEST MACHINES



    Locate upper fixtures with links below:

WT36T - 75 x 125

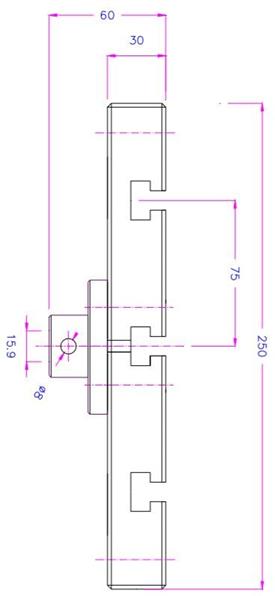

Part Number: WT36T-250
WT36T - 75 x 125 - 4H
Plate with "through hole" bolt pattern (without adapter to fit machine).

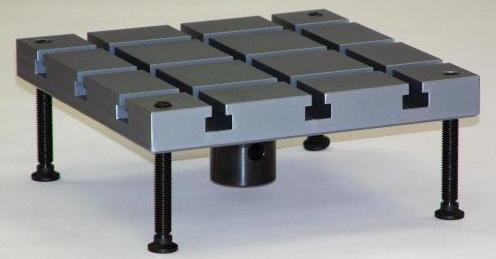

    SLOTTED TABLES FOR TEST MACHINES


    Locate upper fixtures with links below:

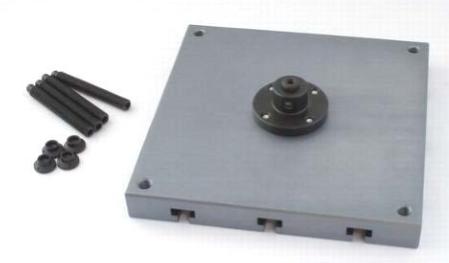

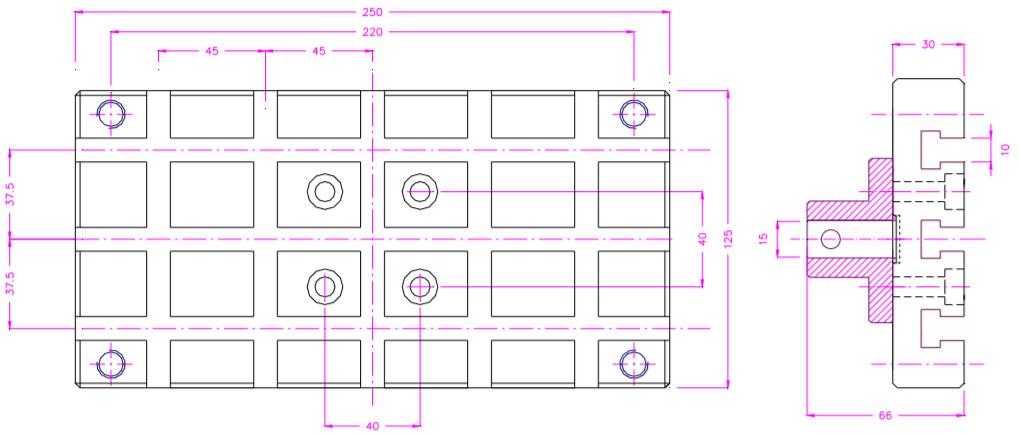

Shown at right: WT36T-125x250-ST
Slotted Table, 125 x 250 mm, Steel
WT36T - 125 x 250 - ST
Note: Shown with 15mm coupling.  We have adapters for other size couplings.

    SLOTTED TABLES FOR TEST MACHINES


    Locate upper fixtures with links below:

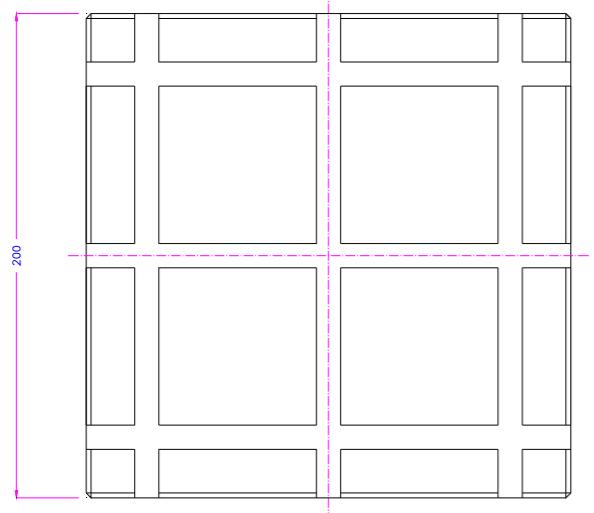

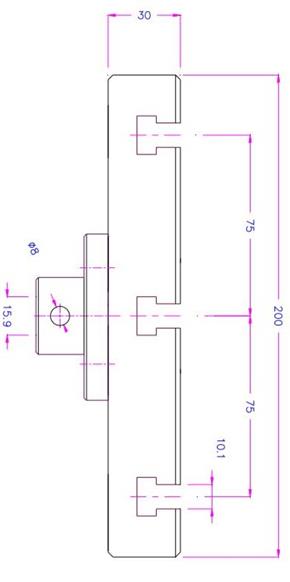

WT36T-200 x 200 mm
Note: Shown with 15.9 mm coupling.  We have adapters for other size couplings.

    SLOTTED TABLES FOR TEST MACHINES


    Locate upper fixtures with links below:

WT36T - 200 - 4H
Plate with "through hole" bolt pattern (without adapter to fit machine).

    SLOTTED TABLES FOR TEST MACHINES


    Locate upper fixtures with links below:

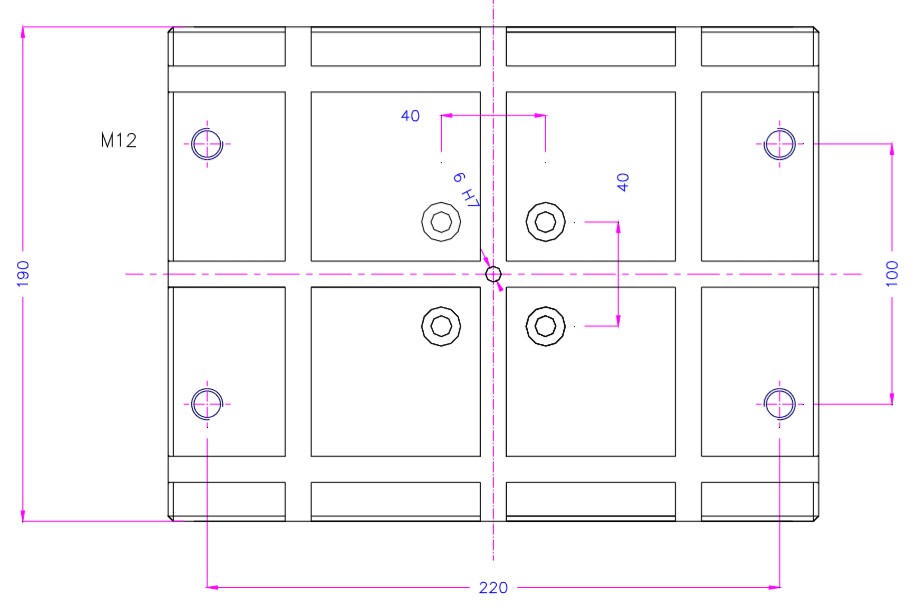

WT36T - 190 - 250 mm
Note: Shown with 15.9 mm coupling.  We have adapters for other size couplings.
Special Version

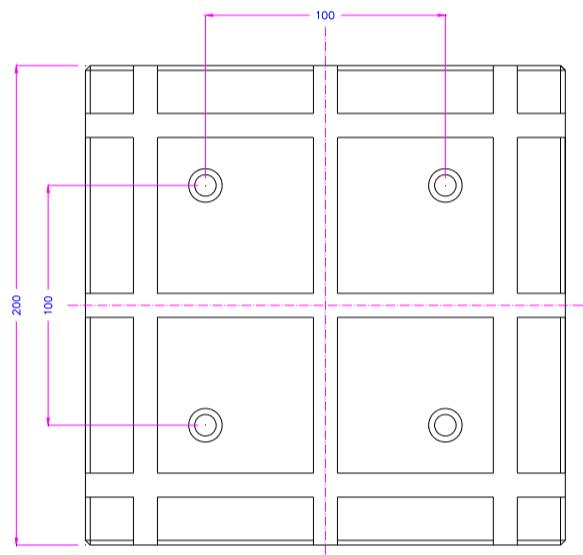

200 x 200 mm with bolt pattern

    SLOTTED TABLES FOR TEST MACHINES


    Locate upper fixtures with links below:

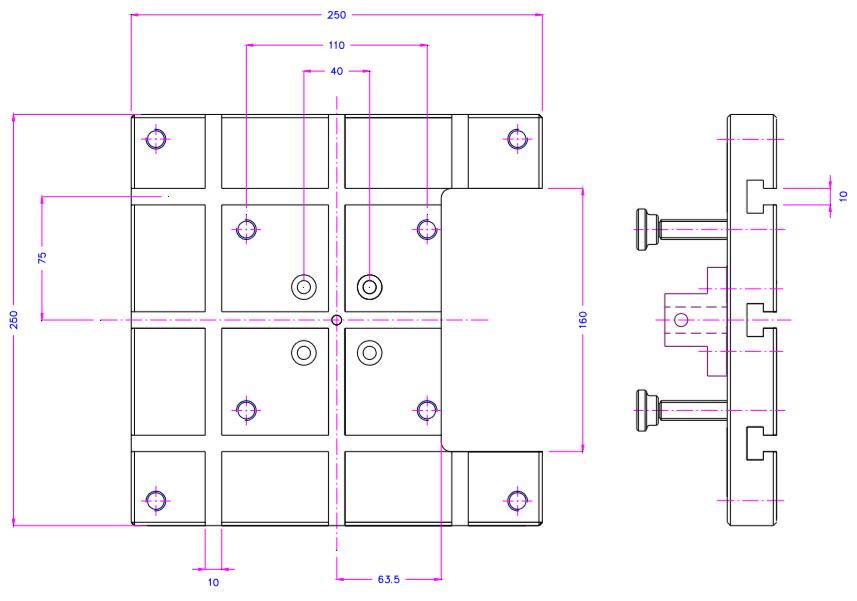

WT36T - 250 - AL - Z3  (for single column machines)
Note: Shown with 15.9 mm coupling.  We have adapters for other size couplings.

WT36T - 250 - AL - Z3
WT36T - 190 - 250
WT36T - 200 - 4H
WT36T-200 x 200
WT36T - 125 x 250 - ST
WTJump to Item (Click Below)












    SLOTTED TABLES FOR TEST MACHINES


    Locate upper fixtures with links below:

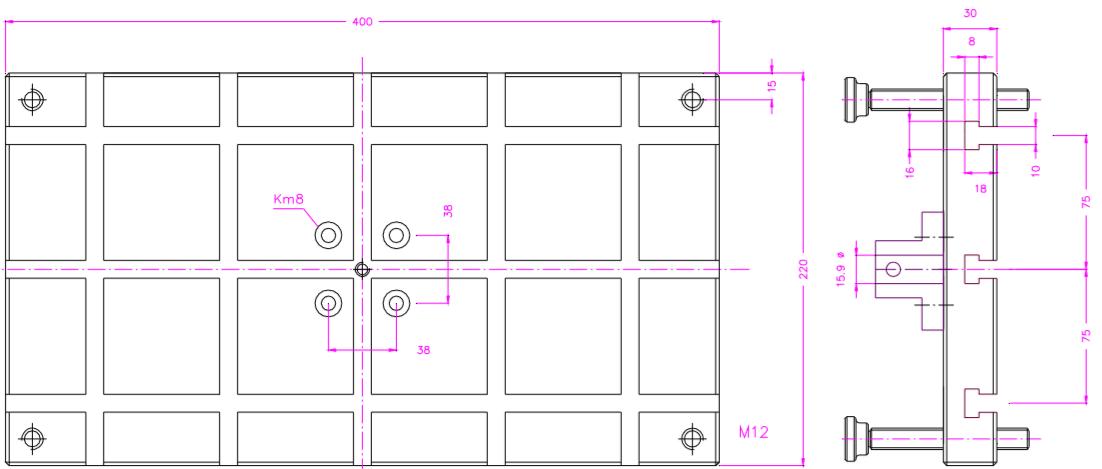

WT36T - 400 x 220 mm  (Aluminum, also available in Steel)
Note: Shown with 15.9 mm coupling.  We have adapters for other size couplings.

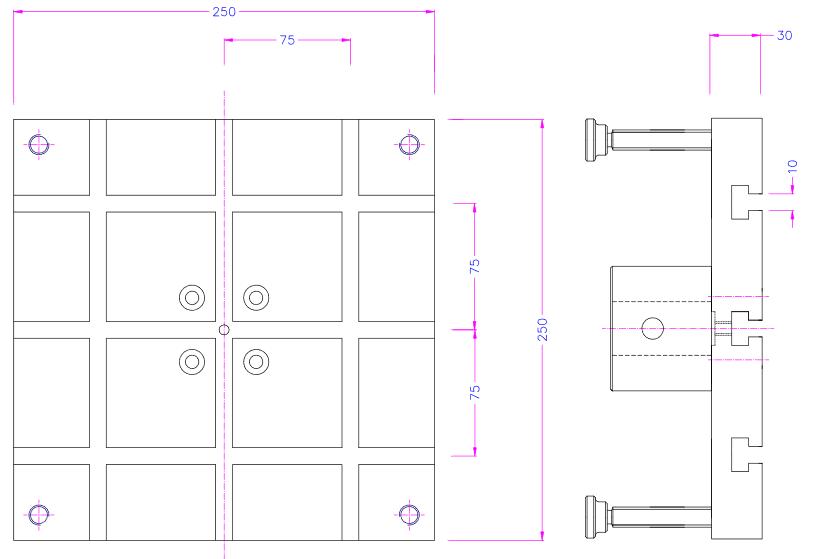

WT36T - 250 x 250 mm
Note: Shown with 15.9 mm coupling.  We have adapters for other size couplings.
    SLOTTED TABLES FOR TEST MACHINES


    Locate upper fixtures with links below:

WT36T - 250 - ASP
(Custom Cut)

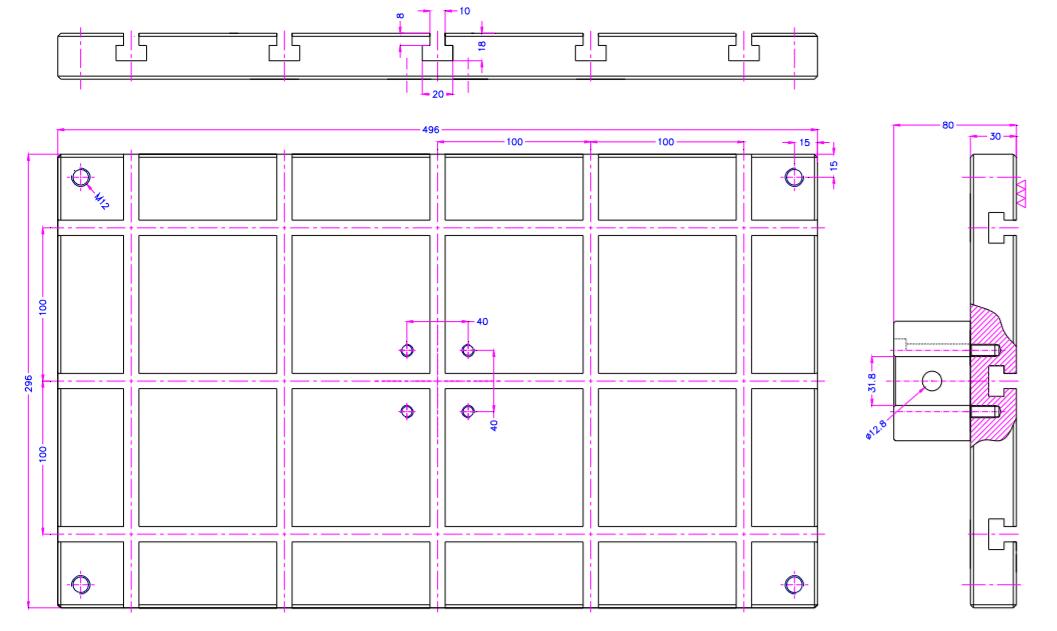

WT36T - 296 x 496 - 4H
Note: Shown with 31.8 mm coupling.  We have adapters for other size couplings.


    SLOTTED TABLES FOR TEST MACHINES


    Locate upper fixtures with links below:

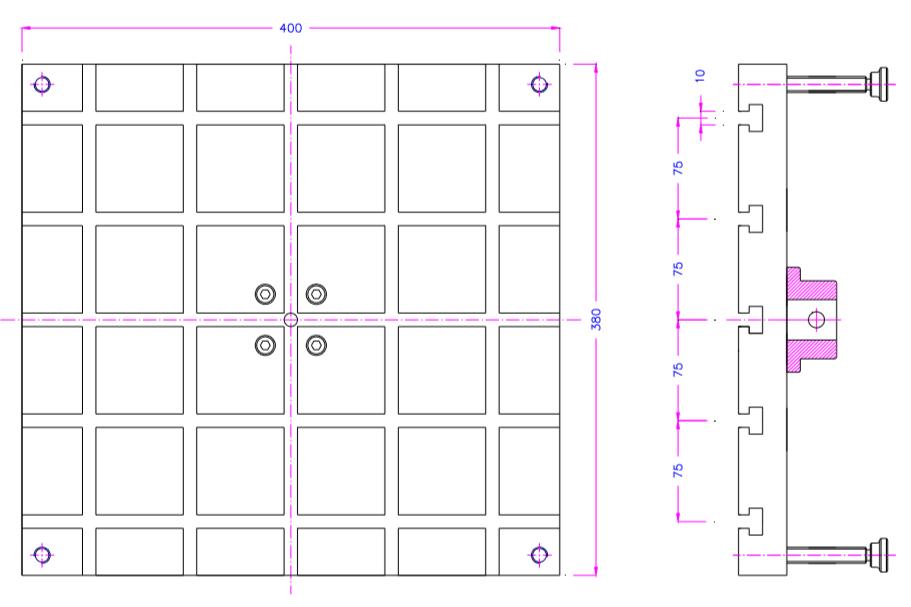

WT36T - 400 x 380 mm
Note: Shown with 31.8 mm coupling.  We have adapters for other size couplings.
    SLOTTED TABLES FOR TEST MACHINES


    Locate upper fixtures with links below:

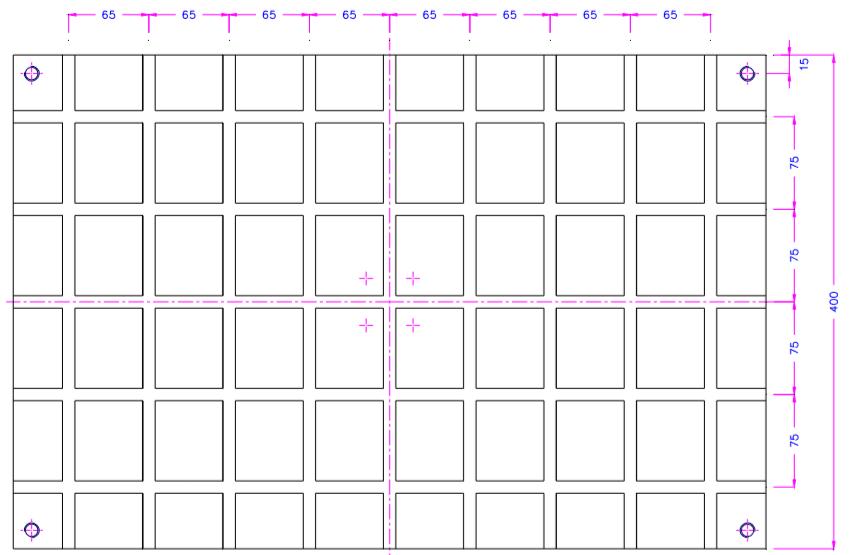

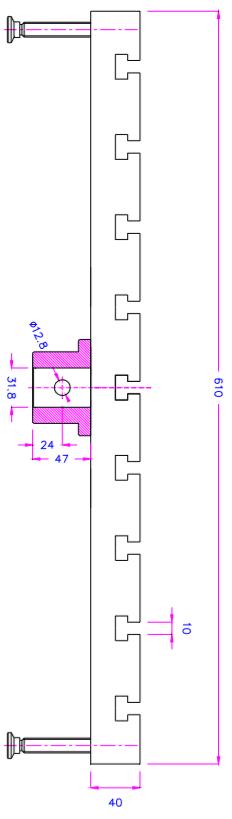

WT36T - 400 x 610 mm
Note: Shown with 31.8 mm coupling.  We have adapters for other size couplings.
    SLOTTED TABLES FOR TEST MACHINES


    Locate upper fixtures with links below:

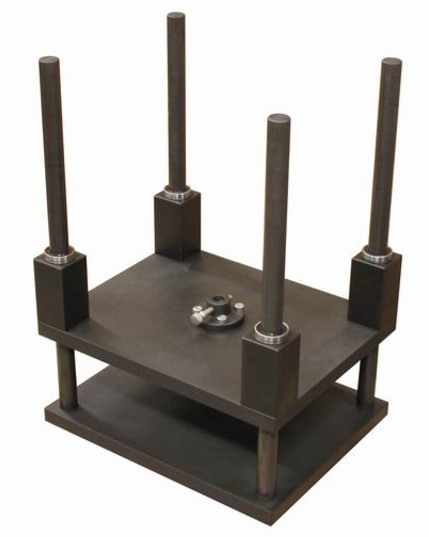

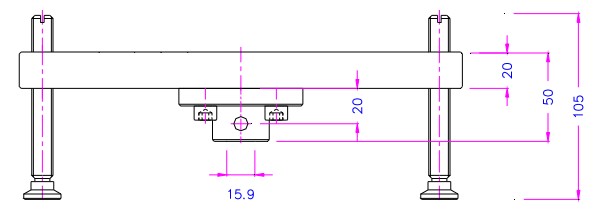

    WT141 Test Fixtures with Guides

      Example, when sample cannot be pulled along load axis

      Click here to Contact Us

      When calling ask about our "POGO" Machines
      for testing large or very large samples.

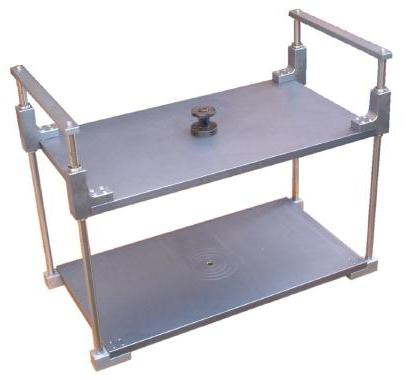

380 mm x 300 mm Compression Fixture with Guides
Testing items off center (not on load axis) will not harm Load Cell
Perfect for Crush tests of odd shaped samples

The above fixture can be used inside a test machine...
...or under one of ours!
Ask about our "POGO" machines for testing very large samples such as
boxes, mattresses or car hood etc.

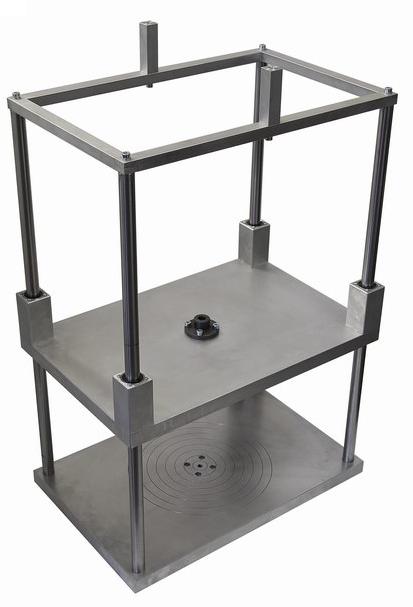

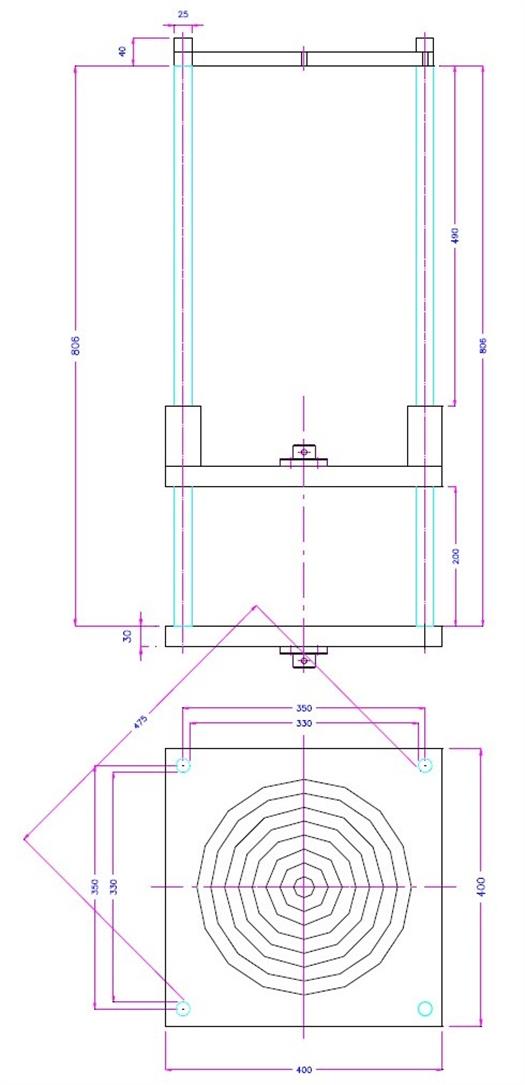

396 mm x 600 mm compression fixture with guides
Contact us for application help Click Here

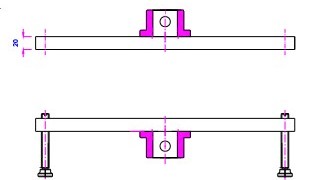

WT141 - Tension or Compression Plates with Guides
Please contact our office for application assitance

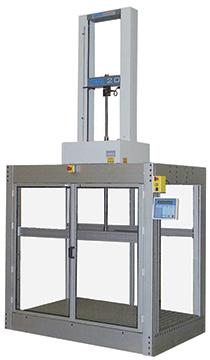

Pogo Machine with Lower Frame
