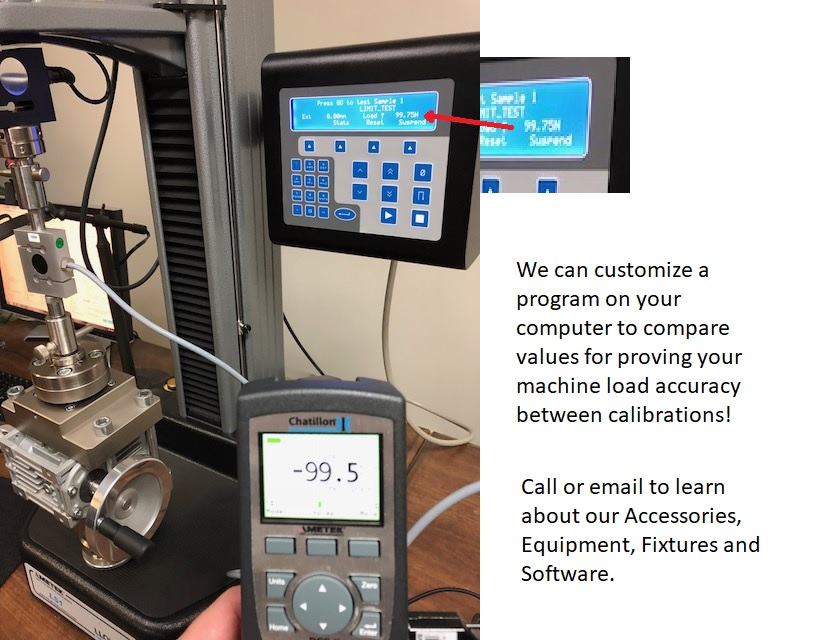

The following pictures demonstrate the WTS1286-50 being used in a single column machine with a DFSII Remote Non-Dedicated Gauge. This configuration shows the versatility of the Worm Gear Screw Jack. It can check calibration up to 50 kN... or as shown here, can also be used for light duty work.

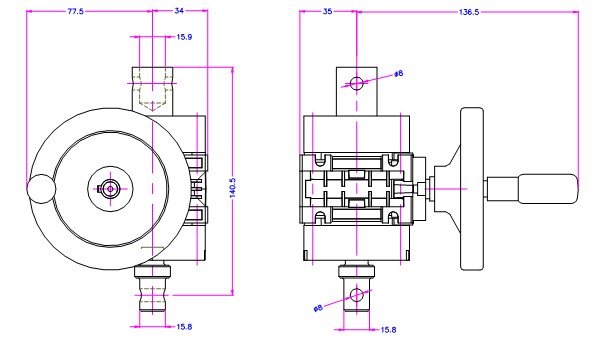

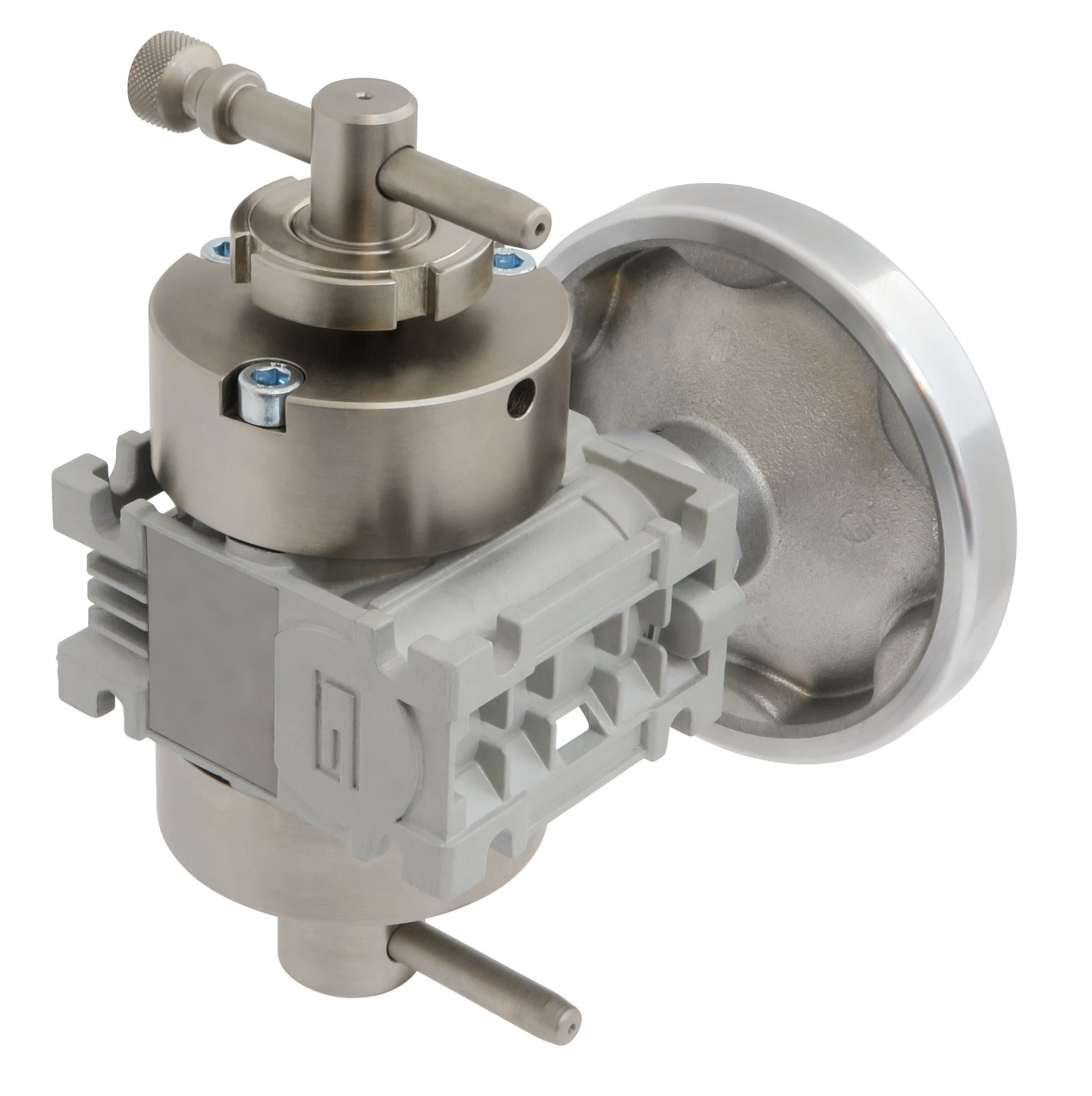

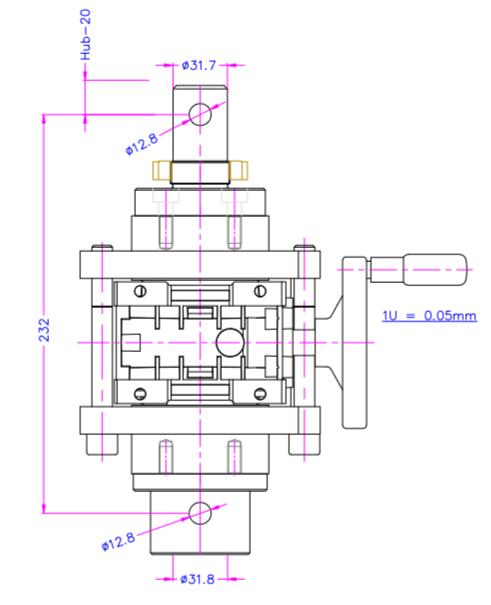

WTS1286-20 Worm Gear Screw Jack

(Please scroll down for more ...)

Maximum load 20 kN

Nickel plated steel & plastic

Shown with 15.9 mm female & 15.8 mm male couplings

(Other sizes possible, Contact Our Office)

Can be made to fit almost any force testing machine

Perfect for calibration company or for periodic check of machine

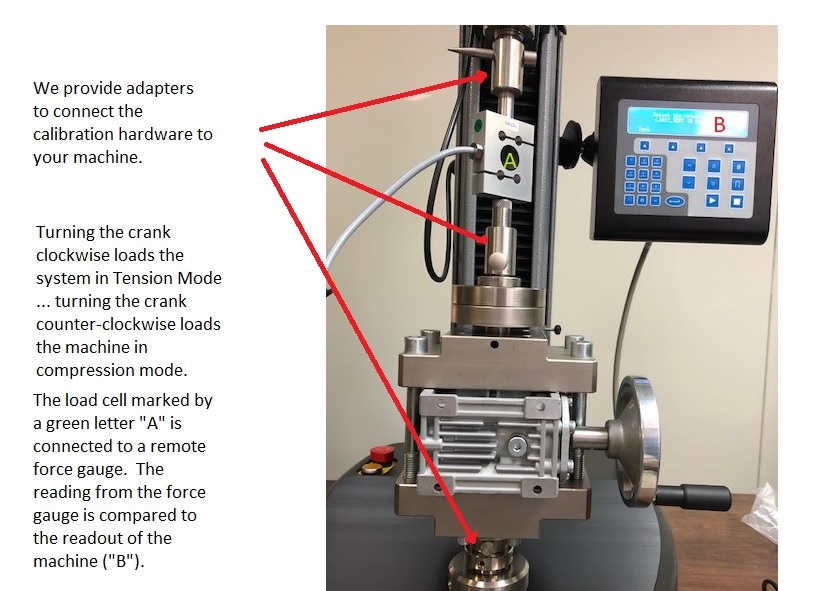

Turning the crank clockwise adds tensile force.

Counter-clockwise rotation adds compression force.

Each rotation creates 0.5 mm of movement.

Click here for pictures of setup.

The WTS1286 adapters can be changed for various Load Cells.

See our adapters page or contact us for more information.

Grip pins are included for adapter sizes according to order.

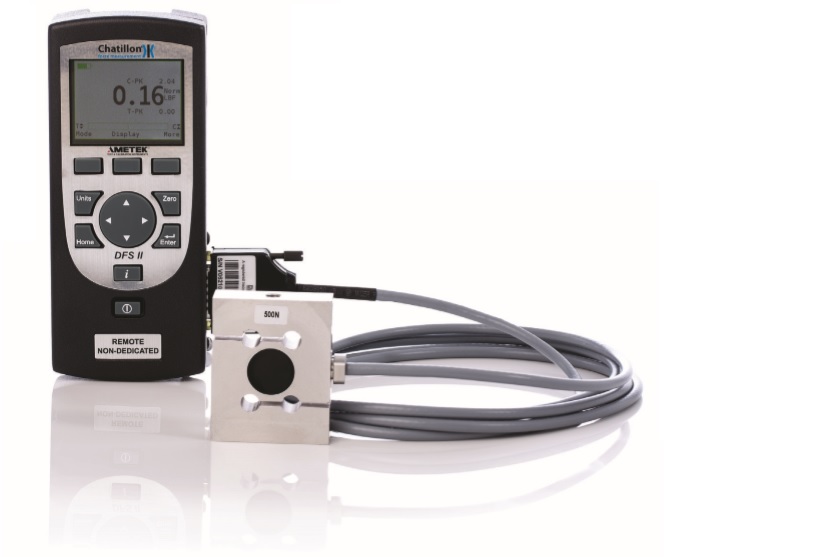

DFSII Non Dedicated Force Gauge for use with WTS1286

Ability to change load cells (use this gauge with one or more load cells)
Gauge recognizes changing of load cells automatically
Can interface with VB programming
Adapters available for many machines

Please see table below to find remote load cell sizes

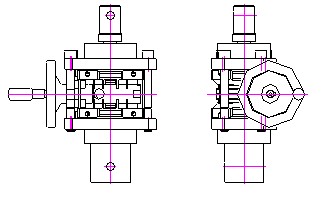

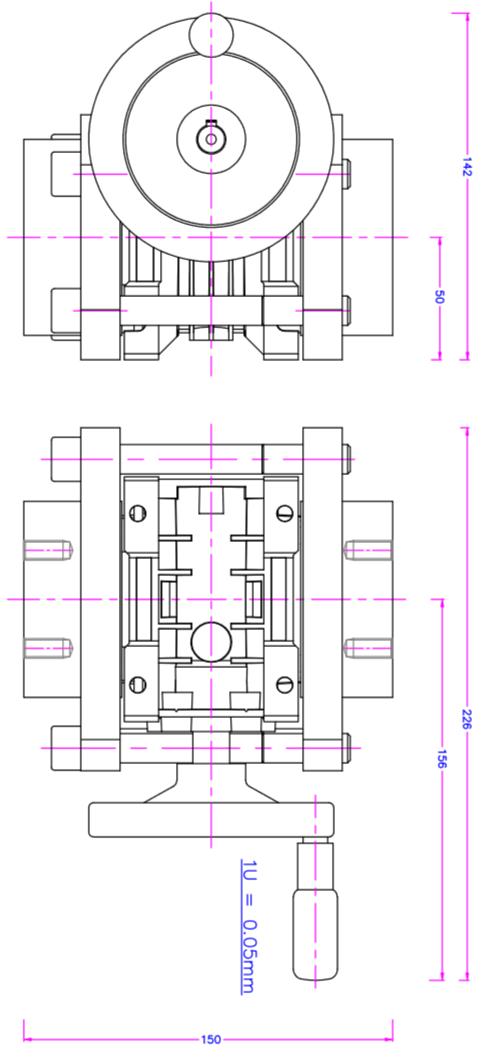

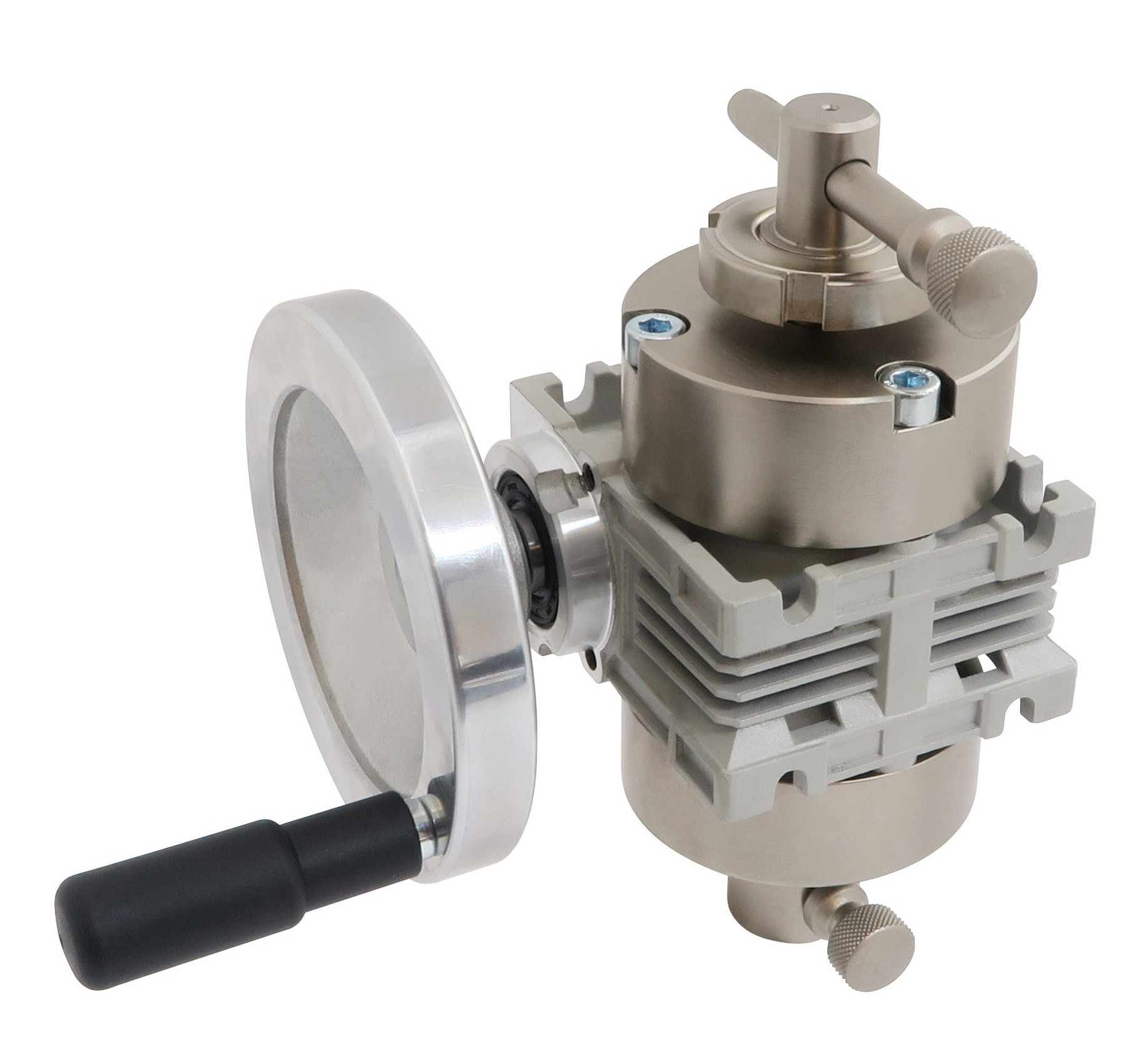

WTS1286-50 Worm Gear Screw Jack (Print below)

Maximum load 50 kN

Nickel plated steel & plastic

Multiple coupling options (Click here to Contact Us)

See prints for standard sizes (other sizes possible)

Can be made to fit almost any force testing machine

Perfect for a calibration company or for periodic check of machines

Validates load cells from very small values to 50 kN!

(Click here to see use)

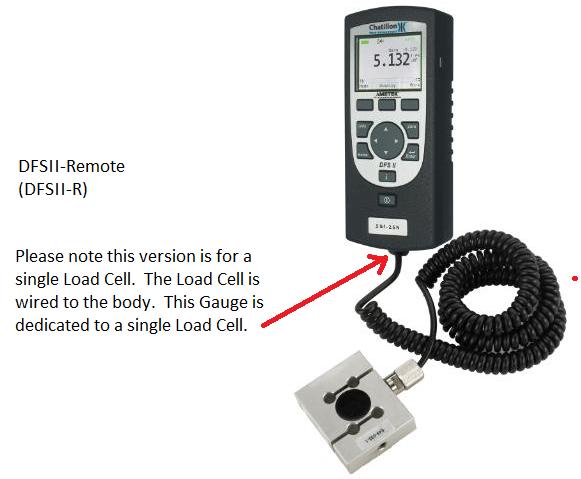

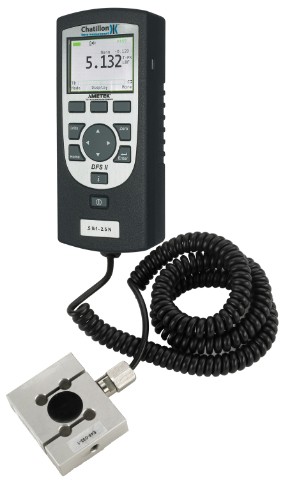

DFSII Remote Force Gauge

A single remote load cell is hard wired to body (for single load cell use)
Can interface with VB programming
Adapters available for many machine types
Recommended if only one load cell size is required

(For example, when all force ranges are checked with a single load cell)

Please use the table below to find load cell size

DFSII Remote Model Number	ozf	lbf	gf	kgf	N
DFS2-R-250g	8 x 0.002	0.5 x 0.0001	250 x 0.05	0.25 x 0.0001	2.5 x 0.0005
DFS2-R-002	32 x 0.005	2 x 0.0002	1,000 x 0.1	0.9 x 0.0001	10 x 0.0001
DFS2-R-010	160 x 0.02	10 x 0.001	5,000 x 0.5	5 x 0.0005	50 x 0.005
DFS2-R-025	400 x 0.05	25 x 0.002	10,000 x 1	10 x 0.001	100 x 0.01
DFS2-R-050	800 x 0.1	50 x 0.005	25,000 x 2	25 x 0.002	250 x 0.02
DFS2-R-100	1,600 x 0.2	100 x 0.01	50,000 x 5	50 x 0.005	500 x 0.05
DFS2-R-200	-	200 x 0.02	-	100 x 0.01	1,000 x 0.1
DFS2-R-500	-	500 x 0.05	-	250 x 0.02	2,500 x 0.2
DFS2-R-1000	-	1,000 x 0.01	-	500 x 0.05	5,000 x 0.2

DFSII Non Dedicated Remote Gauge Part Numbers	ozf	lbf	gf	kgf	N
DFS2-R-ND	(Gauge)	-	-	-	-
SLC-250g	8 x 0.002	0.5 x 0.0001	250 x 0.05	0.25 x 0.0001	2.5 x 0.0005
SLC-0002	32 x 0.005	2 x 0.0002	1,000 x 0.1	0.9 x 0.0001	10 x 0.0001
SLC-0010	160 x 0.02	10 x 0.001	5,000 x 0.5	5 x 0.0005	50 x 0.005
SLC-0025	400 x 0.05	25 x 0.002	10,000 x 1	10 x 0.001	100 x 0.01
SLC-0050	800 x 0.1	50 x 0.005	25,000 x 2	25 x 0.002	250 x 0.02
SLC-0100	1,600 x 0.2	100 x 0.01	50,000 x 5	50 x 0.005	500 x 0.05
SLC-0200	-	200 x 0.02	-	100 x 0.01	1,000 x 0.1
SLC-0500	-	500 x 0.05	-	250 x 0.02	2,500 x 0.2
SLC-1000	-	1,000 x 0.1	-	500 x 0.05	5,000 x 0.2
SLC-2000	-	2,000 x 0.2	-	-	-
SLC-5000	-	5,000 x 0.5	-	-	-
SLC-10000	-	10,000 x 1	-	-	-

DFSII Non Dedicated Remote

(DFSII-ND-R)

This gauge uses interchangeable load cells. This is ideal for checking a system with low and high capacity load cells. Useful also for using one gauge and two load cells (one for a back up) Only 1 Force Gauge is required.

The DFSII reads the load cell when powering up. To change, simply turn off the gauge, loosen two connector screws and disconnect. Plug in another CLC type load cell (tighten the connector screws) and power the gauge back on. It's simple.
