Adapters - Scroll down to see more.

There are many adapter configurations, sizes and types.
If you have a special application please let us know.
We are here to help.  Please feel free to call or email (Click Here).
Note: All adapters are not listed.  Please contact our office if you don't find what you need.



Section 1: WT187 Male Eye End to Female Eye End Adapters



Part Number
Male
End (A)
Male End
  Pin Hole (B)
Female
End (C)
Female End
Pin Hole (D)
WT187-1
8 mm
3 mm
15.9 mm
8 mm
WT187-2
8 mm
3 mm
20 mm
8 mm
WT187-3
15.8 mm
8 mm
8 mm
3 mm
WT187-4
15.8 mm
8 mm
20 mm
8 mm
WT187-5
15.8 mm
8 mm
30 mm
12 mm
WT187-6
15.8 mm
8 mm
31.8 mm
12.8 mm
WT187-7
15.8 mm
8 mm
36 mm
18 mm
WT187-8
15.8 mm
8 mm
38 mm
16 mm
WT187-9
15.8 mm
8 mm
40 mm
16 mm
The WT187 includes a male threaded center section with locking nut and grip pins.  See Example picture at left.



Section 2: WT438 Male Eye End to Female Thread Adapters



Part Number
Female Thread (A)
Male End
  Pin Hole (B)
Male
End (C)
WT438-1
M5
8 mm
15.8 mm
WT438-2
M6
8 mm
15.8 mm
WT438-3
M8
8 mm
15.8 mm
WT438-4
M10
8 mm
15.8 mm
WT438-5
M12 x 1.75
8 mm
15.8 mm
WT438-6
M14 x 2
8 mm
15.8 mm
WT438-7
M16 x 2
8 mm
15.8 mm
WT438-8
M8
8 mm
20 mm
WT438-9
M10
8 mm
20 mm
WT438-10
M12
8 mm
20 mm
WT438-10
6-32 UNC
8mm
15.8mm
WT438-11
10-32 UNF
8mm
15.8mm
WT438-12
1/4-28 UNF
8mm
15.8mm
WT438-13
5/16-18 UNF
8mm
15.8mm
WT438-14
1/2-20 UNF
8mm
15.8mm
WT438-15
3/4-10 UNF
8mm
15.8mm
WT438-16
3/4-16 UNF
8mm
15.8mm
The WT438 includes a male threaded center section with two locking nuts and 1 grip pin.  See Example picture at left.

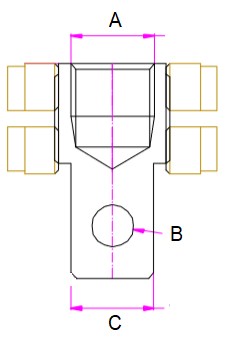

Example WT438

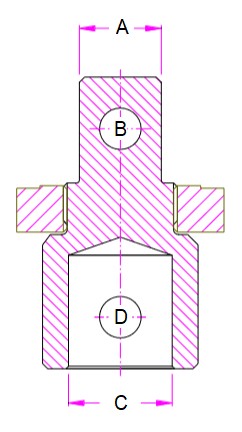

Example WT187



Section 3: WTS464 Male Eye End to Male Thread Adapters

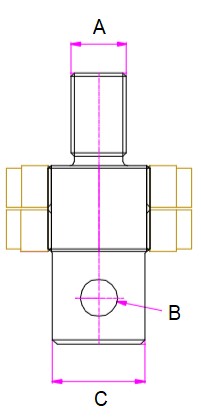

Example WTS464



Part Number
Male Thread (A)
Male End
  Pin Hole (B)
Male
End (C)
WTS464-1
M6
3 mm
8 mm
WTS464-2
M8
3 mm
8 mm
WTS464-3
M12 x 1.75
3 mm
8 mm
WTS464-4
M6
8 mm
15.8 mm
WTS464-5
M8
8 mm
15.8 mm
WTS464-6
M12 x 1.75
8 mm
15.8 mm
WTS464-7
M16 x 2
8 mm
15.8 mm
WTS464-9
M20 x 1.5
8 mm
15.8 mm
The WTS464 includes a male threaded center section with two locking nuts and 1 grip pin.  See Example picture at left.


Section 4: WTS637 Female Eye End to Female Thread Adapters
Note:  Set Screws can be used to convert to Male Threads or Contact us for even more adapter types!



Part Number
Female End
ID (A)
Female End
  Pin Hole (B)
Male
End (C)
Length
(D)
WTS637-1
8mm
3mm
M4
19mm
WTS637-2
8mm
3mm
M5
23mm
WTS637-3
15.8mm
8mm
M5
30mm
WTS637-4
20mm
8mm
M5
34mm
WTS637-5
20mm
8mm
M8
36mm
WTS637-6
30mm
12mm
M8
48mm
WTS637-7
31.7mm
12.8mm
M8
62mm
WTS637-9
36mm
18mm
M8
56mm
Click Here for Sales or Support
Return to Top

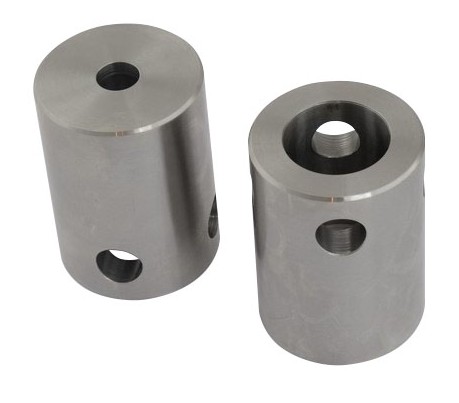

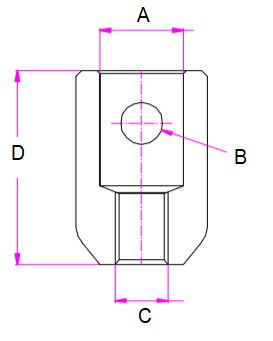

Example WTS637



.

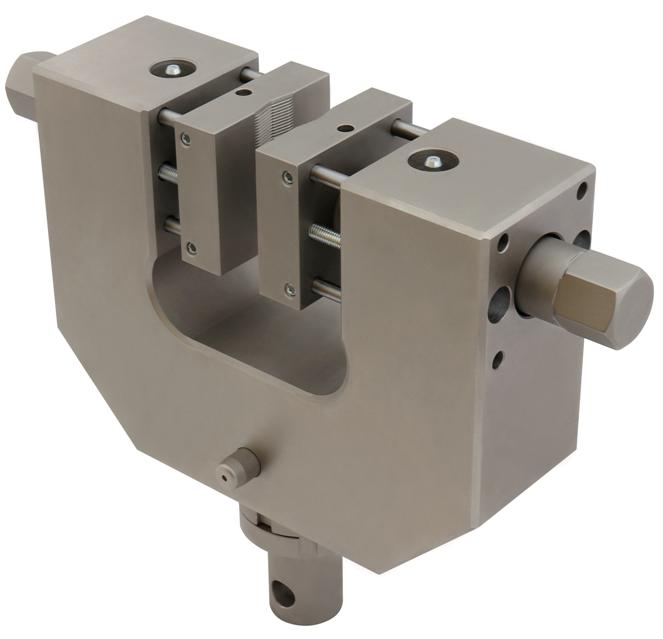

Example of use
Male to Male Eye End Adapter on  a vise Grip
Grips can be custom made to fit your machine or
(in most cases) a simple adapter will work.
