Wedge Grips 10 - 50 kN - Scroll down to see more.

For flat or round samples...  Self tightening after light use of lever (wedge action).
If you have a special application please let us know.
We are here to help.  Please feel free to call or email (Click Here).
Note: All fixtures are not listed. Please contact our office if you don't find what you need.

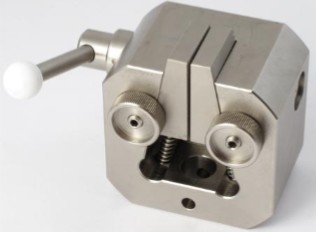

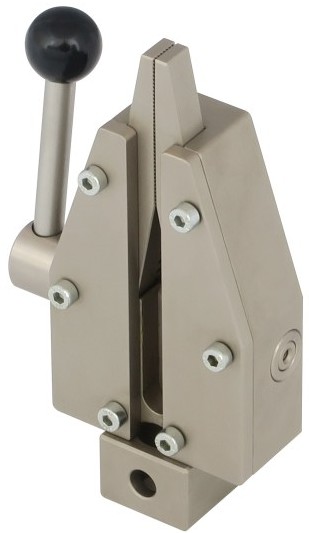

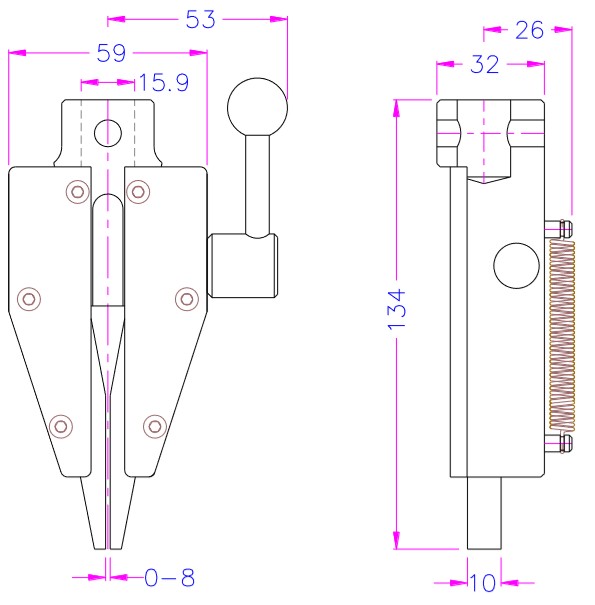

WT7 Small Wedge Grip
Tensile force up to 5 kN

Easy to use / For small metal, plastic and composite parts
Initial force on handle to start and then self tightening.



           *Other temperature ranges possible

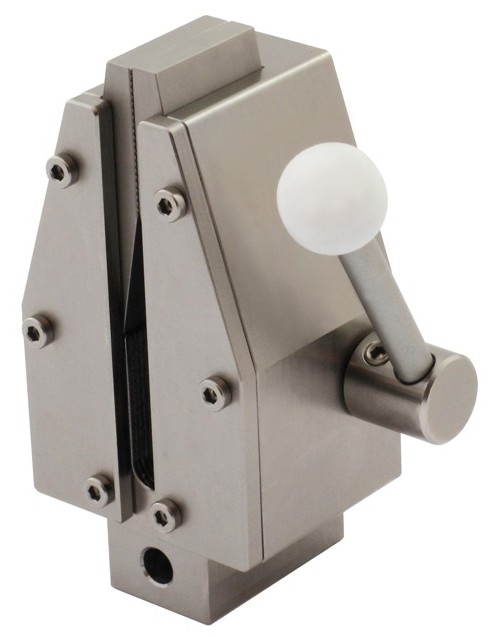

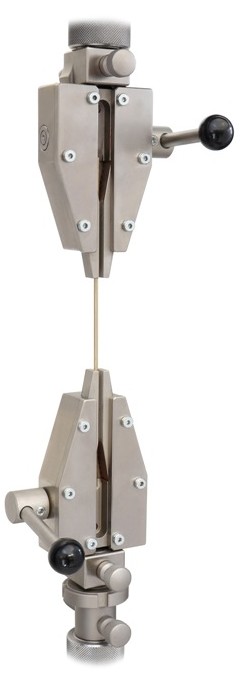

WT7 Wedge Grip
Shown with 15.9 mm Coupling


WT7 Wedge Grip
With Adapter for other machines
Click Here for Adapter Page

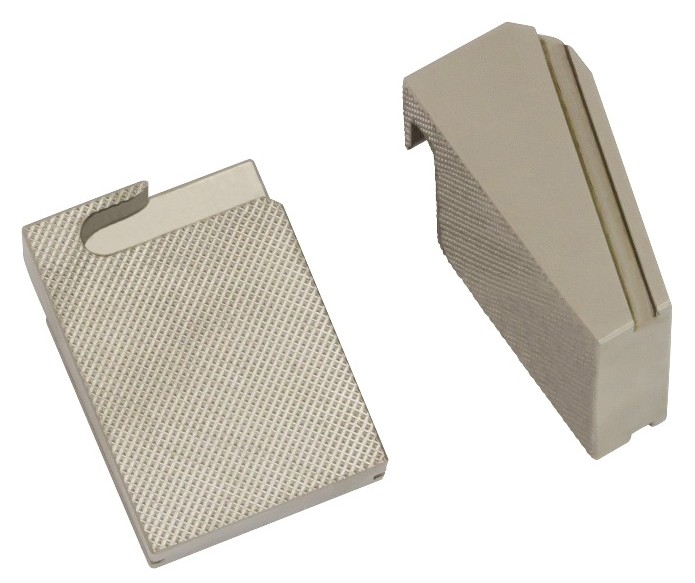

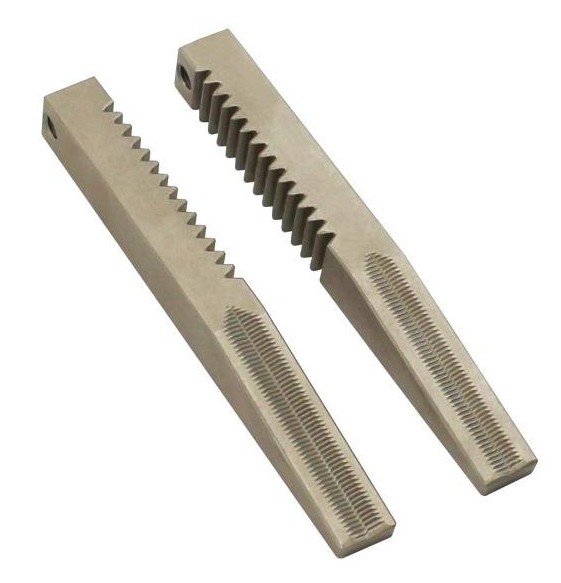

WT7 V-Notch Jaws
For round samlpes

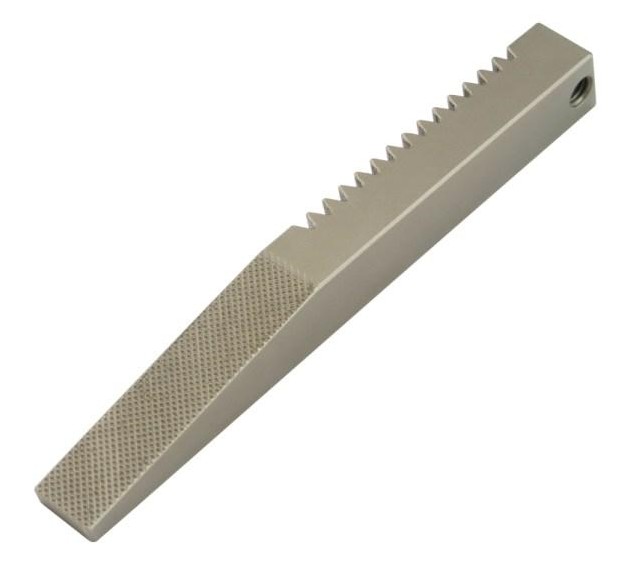

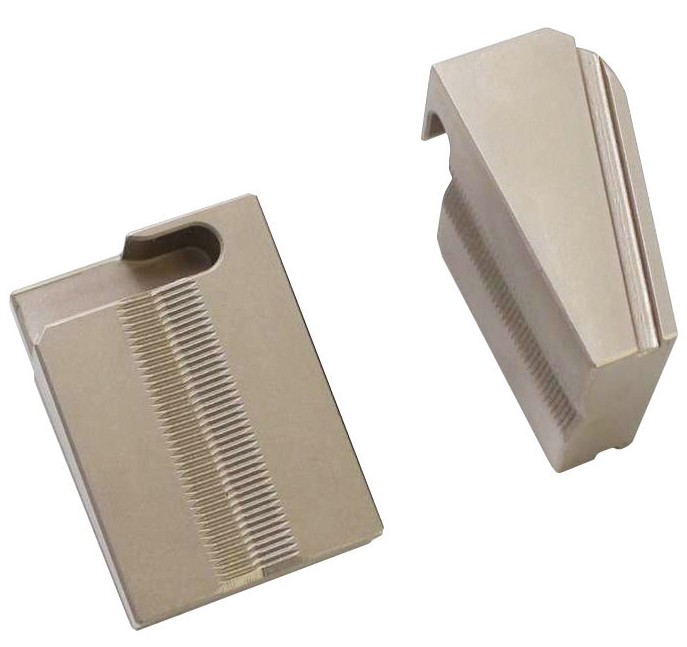

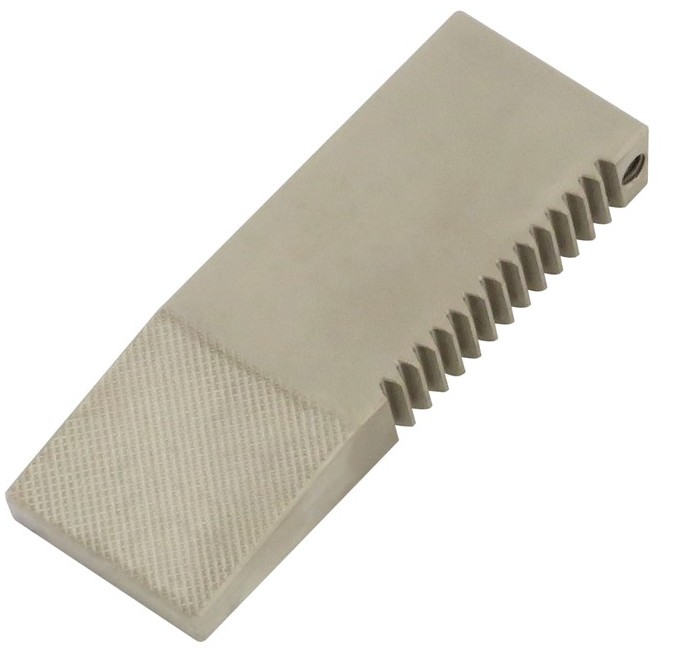

WT7 Pyramid Jaws
Flat or Component Samples


Part Number
Jaw Type
Clamp Area H x W
Opening
Weight
WT7-BV
Pyramid
40 x10 mm
0 - 8 mm
0.15 kg
WT7-BP
V - Jaws
Height 40 mm
2 8 mm
0.15 kg
WT7 Jaw Information:

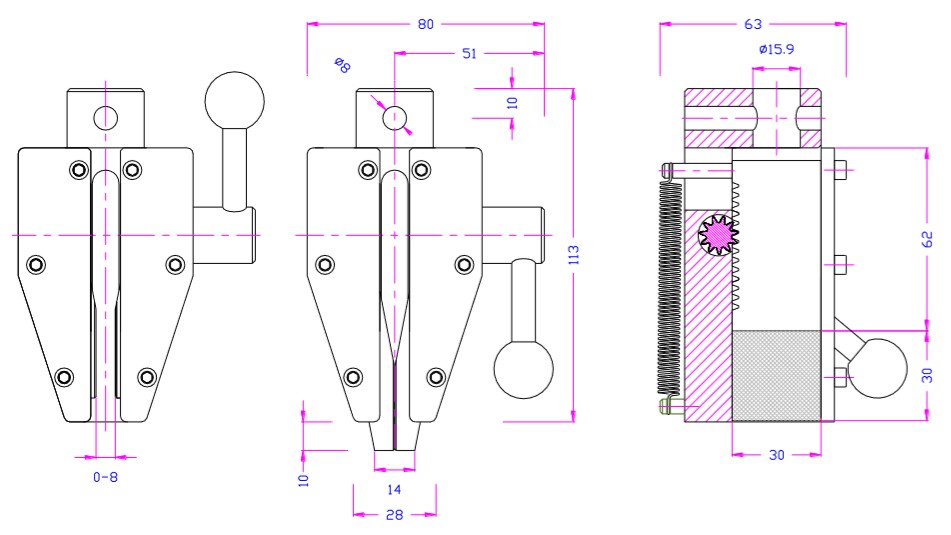

WT256 Small Wedge Grip
Tensile force up to 10 kN

Easy to use / For small metal, plastic and composite parts
Initial force on handle to start and then self-tightening.



           -70C to +280C ( WT256-T-70+280C)

Part Number
Surface
Clamp Area H x W
Opening
Weight
WT256-BV
Pyramid
30 x30 mm
0 - 8 mm
0.43 kg
WT256-BP
V - Jaws
Height 30 mm
3 8 mm
0.42 kg
WT256 Jaw Information:

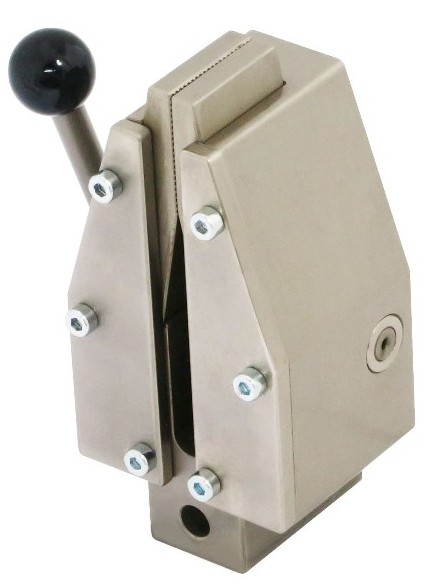

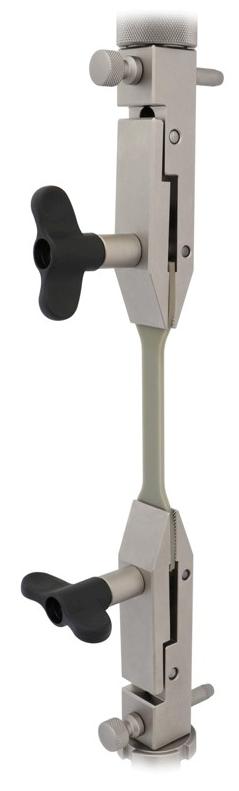

WT256 Wedge Grip
Shown with 15.9 mm Coupling
Click here for Adapter Page


WT256-T-70+280C
For -70 to 280C
Click here for Adapter Page


WT256


Closed Front (Special)
For -70 to 280C
Click here for Adapter Page


WT256-BP
Pyramid Jaw



WT256-BV
V-Notch Jaw

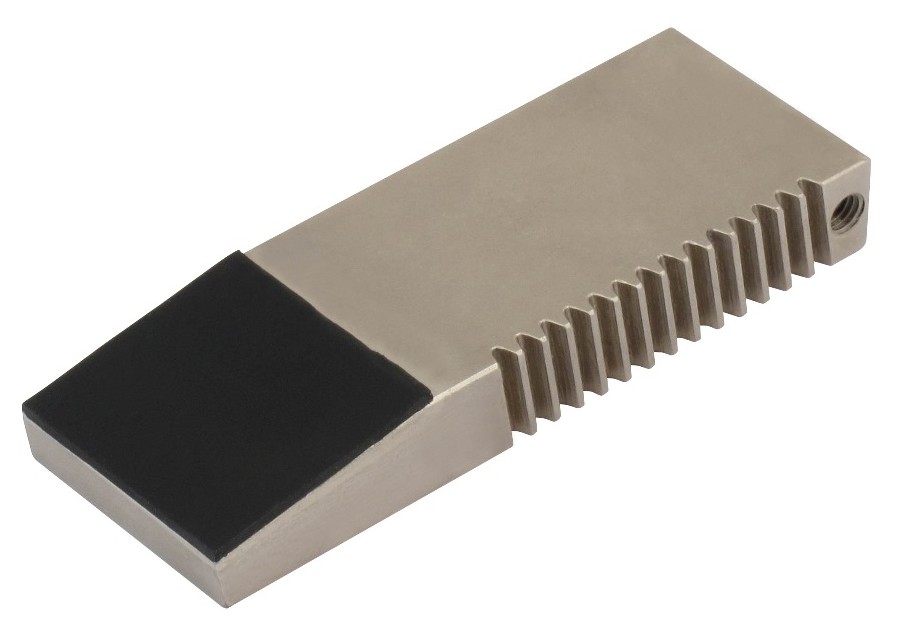

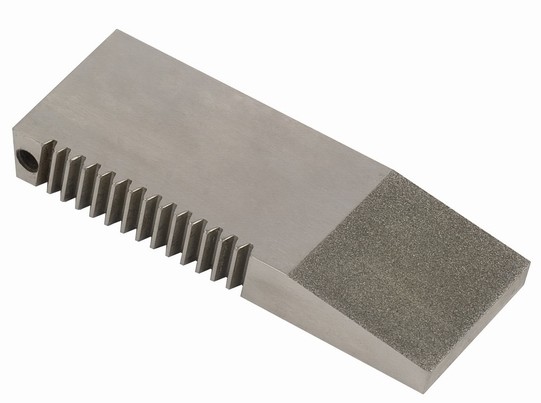

WT256-BG
Rubber Jaw



WT256-BD
Diamond Jaw




WT256-B
Blank or Smooth Jaw



WT7

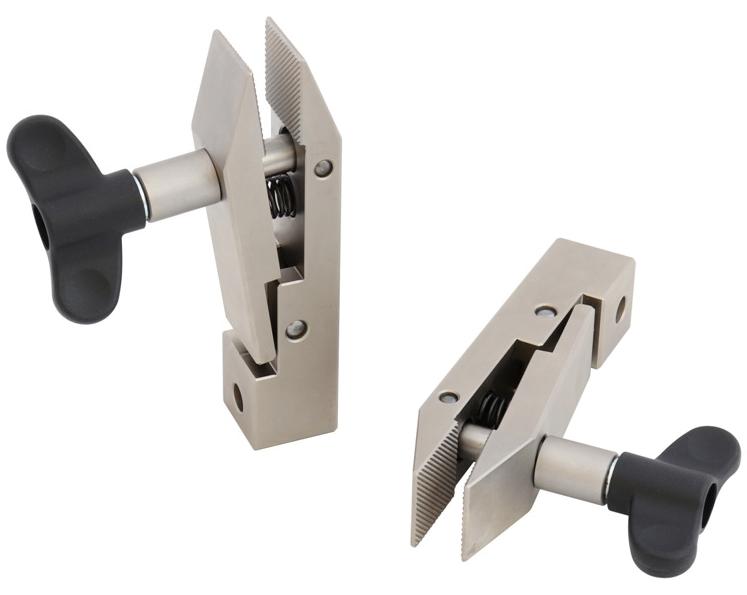

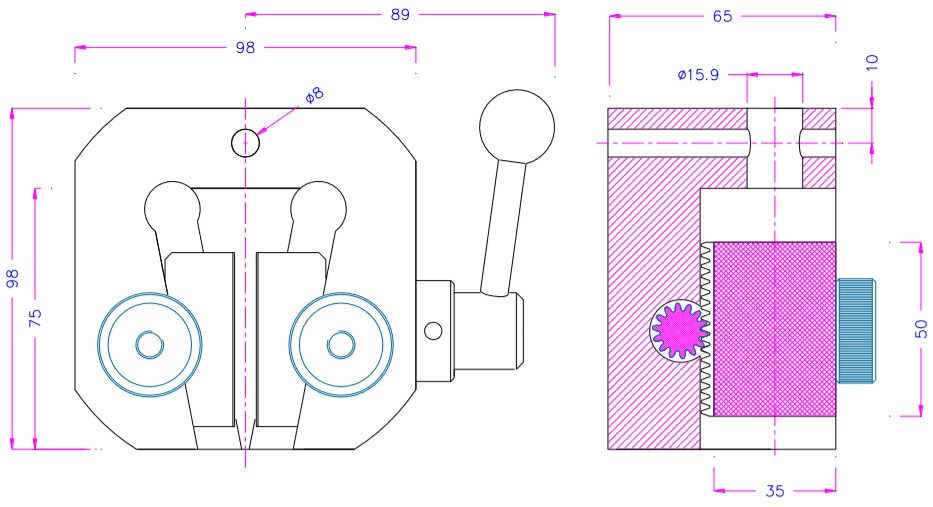

WTS622 Small Wedge Grip
Tensile force up to 10 kN

Easy to use / for small metal, plastic and composite parts
Initial force on handle to start and then self tightening.
Open design allows wide samples



Part Number
Jaw Type
Clamp Area H x W
Opening
Weight
WT256-BV
Pyramid
30 x30 mm
0 - 8 mm
0.43 kg
WT256-BP
V - Jaws
Height 30 mm
3 8 mm
0.42 kg
WTS622 Jaw Information:


WTS622-BP
Pyramid Jaws
(Standard Option)



WTS622-BV
V-Notch Jaws
(Standard Option)




Click Here for Sales or Support

Return to Top
.

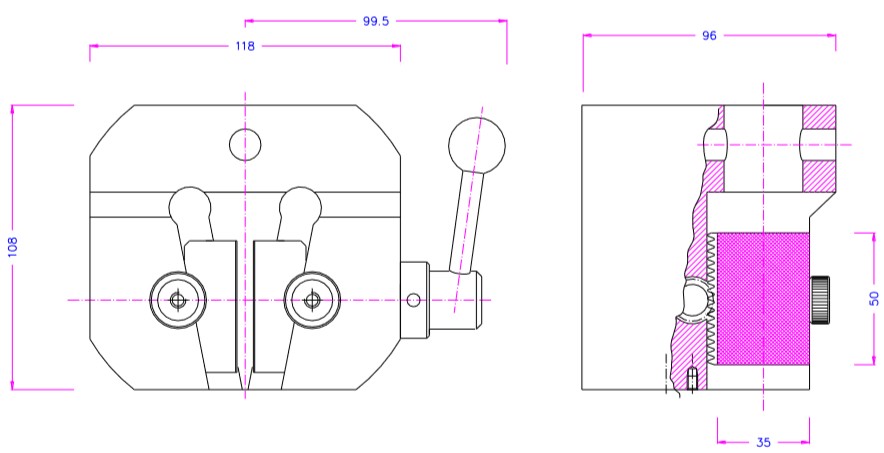

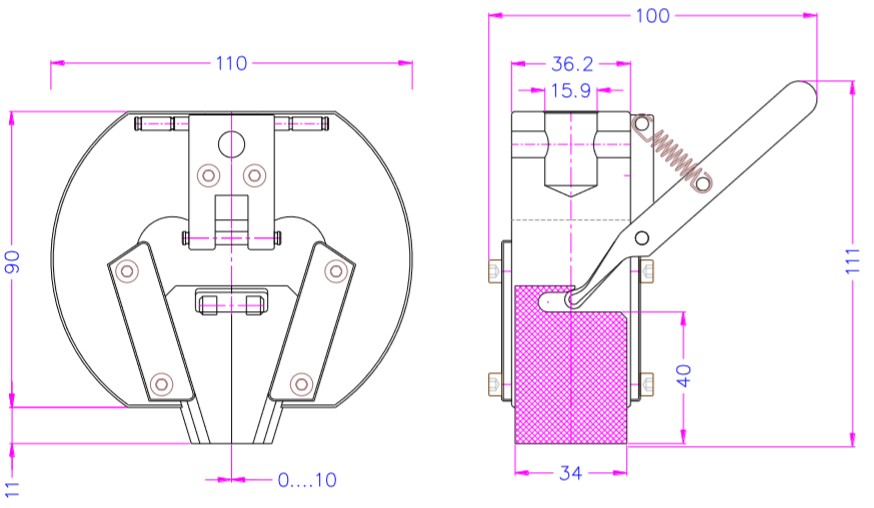

WT243-20 & WT243-50 Wedge Grip
(Scroll down for more models)
Tensile force up to 20 or 50 kN

Easy to use / multi-purpose, self-tightening grips.
Lever initiates and helps with removing samples.
Use lever to start grip force then self-tightening.



       *Other temperature ranges on request

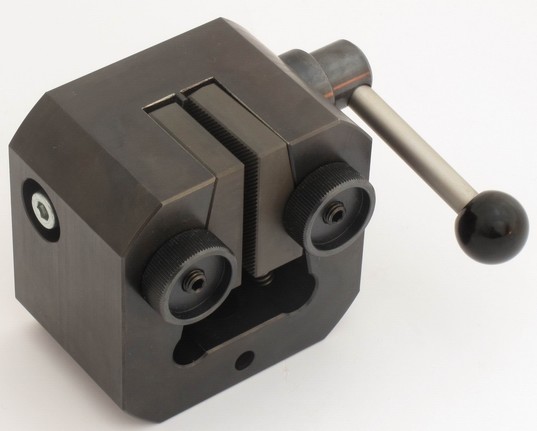

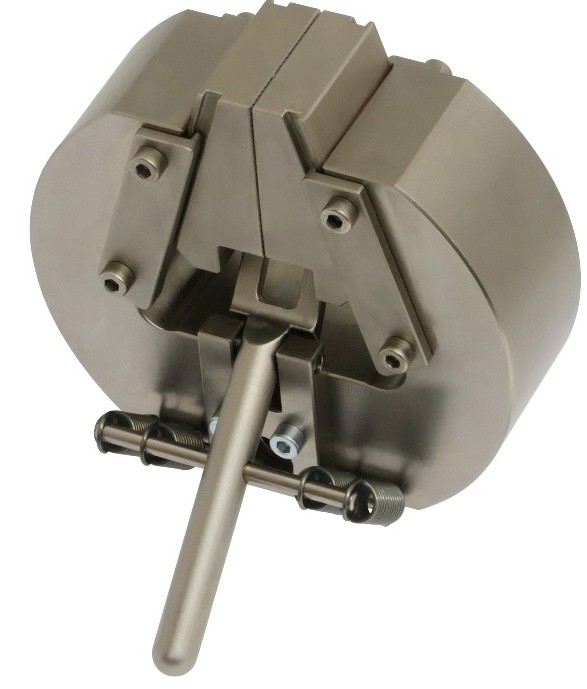

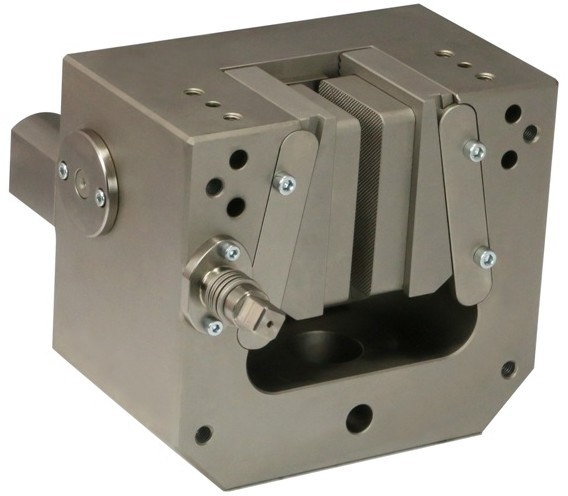

WT243-20 Wedge Grip
Shown with 15.9 mm Female Coupling

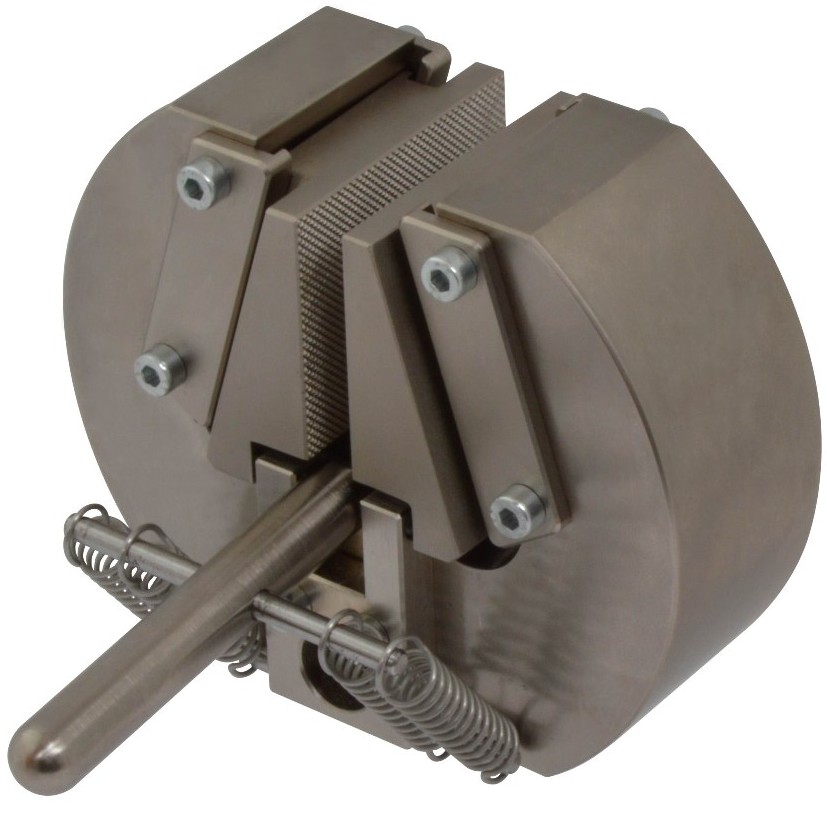

WT243-50 Wedge Grip
Shown with 31.8 mm female coupling


WT243-20


WT243-50


WT243-20-Ni Wedge Grip
Shown with 15.9 mm female coupling
Click Here for Adapter Page


Part Number
WT243-20
WT243-50
Maximum Force
20 kN
50 kN
Temperature Range
  0C - +130C  (WT243-20)
-70C - +280C  (WT243-20-Ni)
-70C - +280C  (WT243-20+TK)
0C - +130C (WT243-50)
-70C - +280C (WT243-50-Ni)
-70C - +280C (WT243-50+TK)
Body
Steel, phosphate coated  (WT243-20)
Steel, nickel plated         (WT243-20-Ni)
Steel, phosphate coated  (WT243-50)
Steel, nickel plated         (WT243-50-Ni)
Weight
3.8 kg each grip
(without jaws)
6.75 kg each grip
(without jaws)

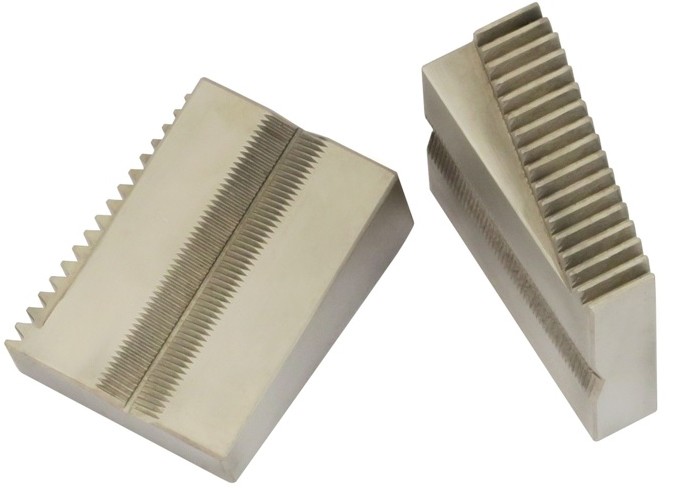

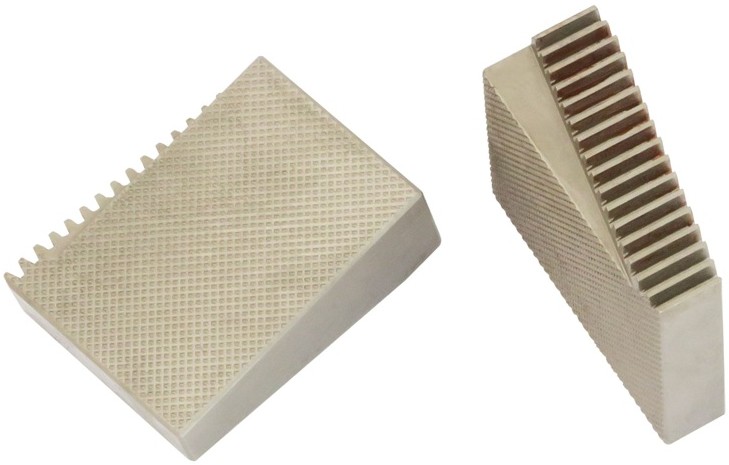

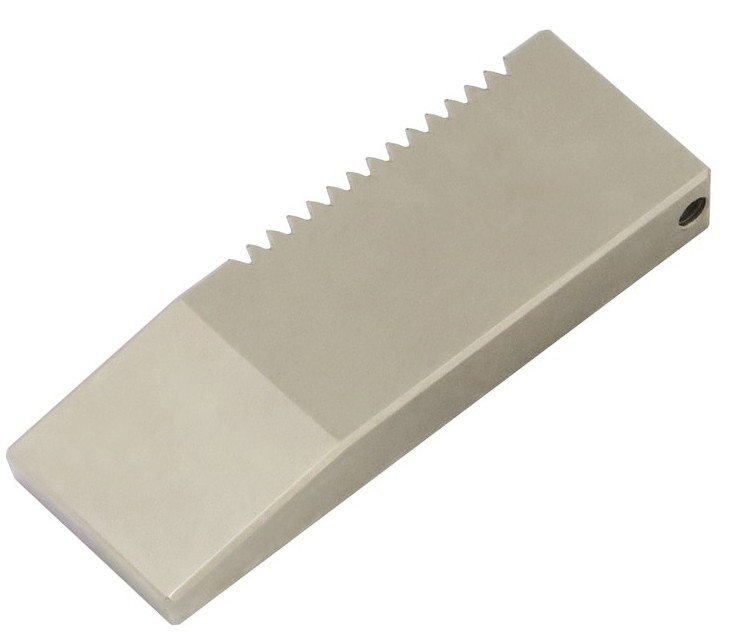

Pyramid Jaws (Cross Cut)


V Notch Jaws for Round Samples

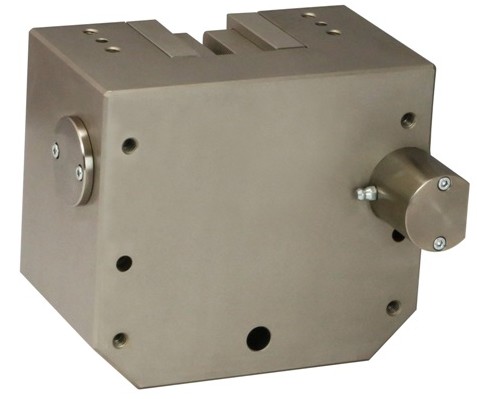

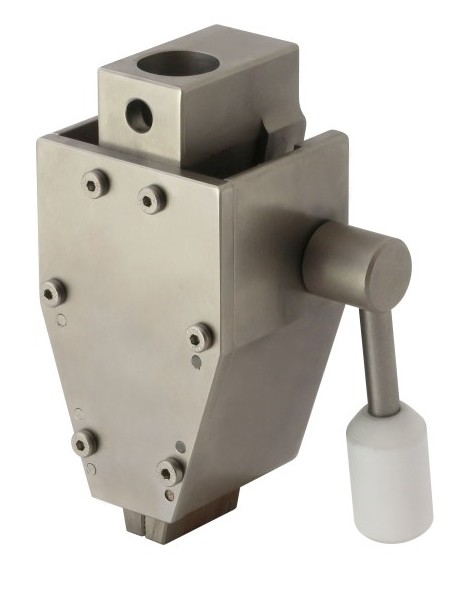

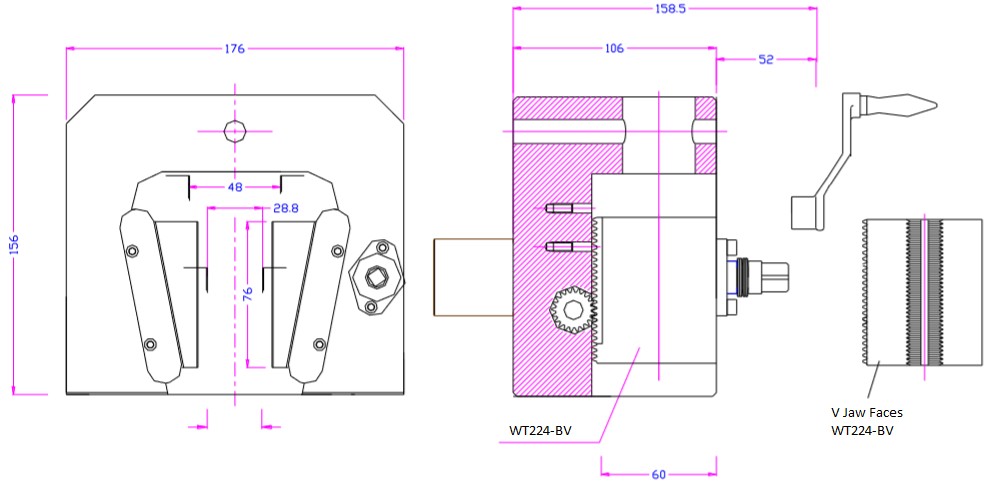

WT224 50KN Wedge Grip with Hand Crank

For Flat or Round Samples
*Temperature range: 0C +70C
Accepts Large Samples (up to 50mm opening)
Maximum Sample width: 60 mm
Tensile force: 50kN
Coupling 31.8 mm Click here for Adapter Page
Weight each Grip:  16.4 kg per grip without jaws

*Other temperature ranges possible










Part Number
Jaw Type
Area (H x W)
Opening
WT224-BP20
Pyramid
76 x 59 mm
0 - 20 mm
WT224-BP40
Pyramid
76 x 59 mm
20 - 40 mm
WT224-BP60
Pyramid
76 x 59 mm
40 - 60 mm
WT224-BV20
V - Jaws
Height 76 mm
6 20 mm
WT224-BV30
V - Jaws
Height 76 mm
16 30 mm
WT224-BV40
V - Jaws
Height 76 mm
26 40 mm
WT224-BV50
V - Jaws
Height 76 mm
36 50 mm
WT224-BV60
V - Jaws
Height 76 mm
46 60 mm
WT224 Jaw Information:


Part Number
Jaw Type
Area (H x W)
Opening
Weight Per Pair
WT224-GT
(Carrier)
-
-
1.6 kg
WT224-EBP20
Pyramid
80 x 50 mm
0 - 20 mm
1.2 kg
WT224-EBP30
Pyramid
80 x 50 mm
10 - 30 mm
0.9 kg
WT224-EBP40
Pyramid
80 x 50 mm
20 - 40 mm
0.6 kg
WT224-EBP50
Pyramid
80 x 50 mm
30 - 50 mm
0.3 kg
WT224-EBV20
V - Jaws
Height 80 mm
6 20 mm
1.2 kg
WT224-EBV30
V - Jaws
Height 80 mm
16 30 mm
0.9 kg
WT224-EBV40
V - Jaws
Height 80 mm
26 40 mm
0.6 kg
WT224 Carrier and Insert Jaw Information:

Return to Top
Return to Top
Return to Top
Return to Top
Return to Top
Fixtures for Quality Lab Testing, Research Applications, Production Testing and Much More!

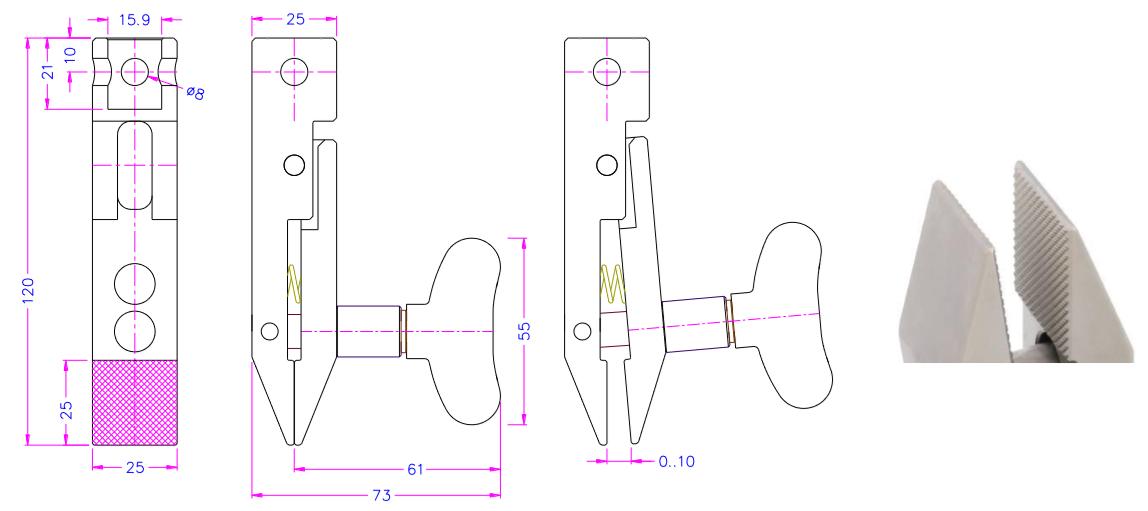

WTS470 Small Wedge Grip - 2kN

Ease of use - component or small sample testing
Will hold leads of electronic components
(Such as capaitor, resistor etc.)
Coupling 15.9mm - Other sizes Click here for Adapter Page
Clamping surface - Pyramid 25mm x 25mm
Body - Nickel plated hardened steel
* Temperature Range: 0 to +130C
Weight each Grip:  462 g per grip

*Other temperature ranges possible










Return to Top
