Wedge Grips 100 kN & Higher Capacities
(Please scroll down for other versions)

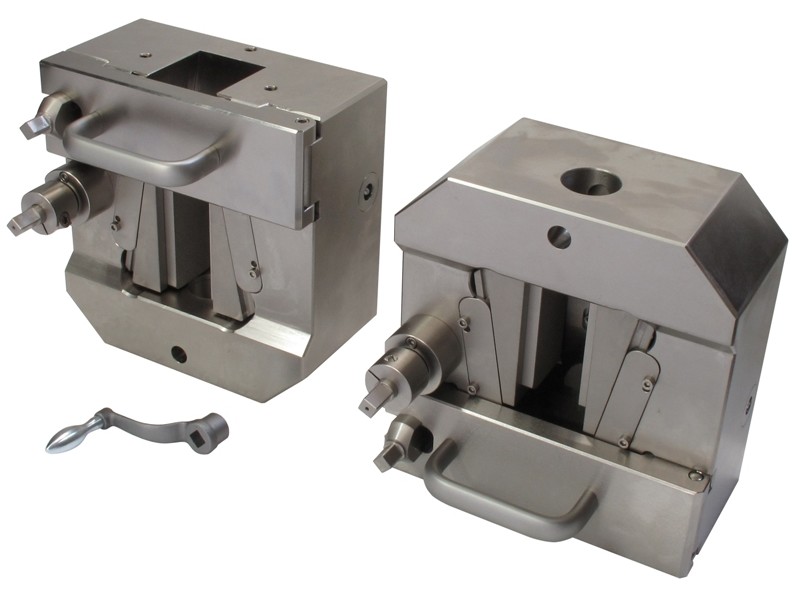

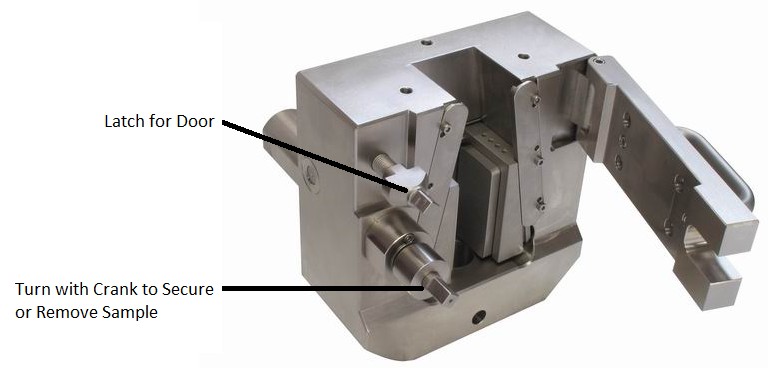

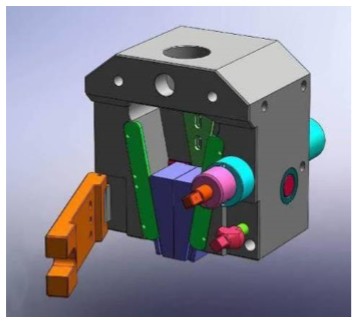

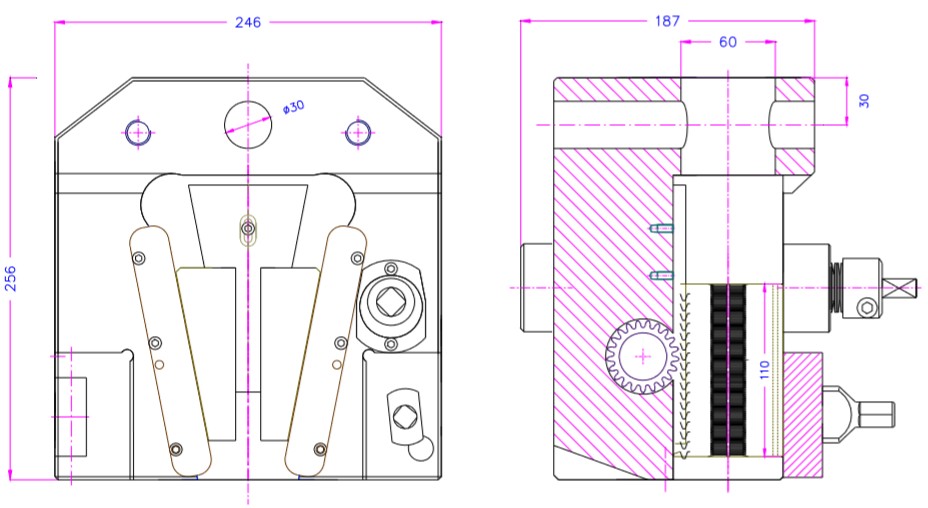

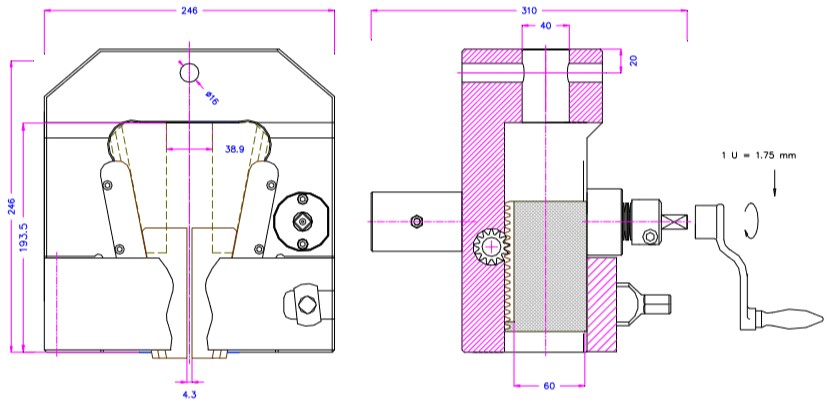

WT109-100 Wedge Grips, 100 kN

Universal grips with lower wedge angle (11) for many kinds of materials such as aluminum, copper, weak steel till 30 HRC round and flat. We do not recommend these grips for hardened or fiber samples.  Simple to use with included crank handle or cordless screwdriver (not included).











Part Number
WT109-100
Opening
* 0 - 50 mm
Coupling
* * 31.8 or 40 mm
Body
Nickel Plated Steel
Temperature Range
0 +70C
Weight
46 kg each w/o Jaws
Max Load
100 kN
*   Opening depends on Jaws Click here to see Jaw Options

* *  Other couplings possible Click here for Adpater Page
Part Number
Jaw Type
Area ( H x W )
Opening
Weight Per Pair
WT109-BP30
Pyramid jaws
60 x 110 mm
0 - 30 mm
4.28 kg
WT109-BP50
Pyramid jaws
60 x 110 mm
26 - 50 mm
3.32 kg
WT109-BV30
V-Notch
60 x 110 mm
6-30 mm
4.28 kg
WT109-BV50
V-Notch
60 x 110 mm
30-50 mm
3.28 kg

WT109-250 Wedge Grips, 250 kN

Universal grips with lower wedge angle (11) for many kinds of materials such as aluminum, copper, weak steel till 30 HRC round and flat. We do not recommend these grips for hardened or fiber samples.  Simple to use with included crank handle or cordless screwdriver (not included).











Part Number
WT109-250
Opening
* 0 - 50 mm
Coupling
* * 60 mm
Body
Nickel Plated Steel
Temperature Range
0 +70C
Weight
70 kg each w/o Jaws
Max Load
250 kN
*   Opening depends on faces Click here to see Jaw Options

* *  Other couplings possible Click Here for Adpater Page

WT109-300 Wedge Grips, 300 kN

Universal grips with lower wedge angle (11) for many kinds of materials such as aluminum, copper, weak steel till 30 HRC round and flat. We do not recommend these grips for hardened or fiber samples.  Simple to use with included crank handle or cordless screwdriver (not included).










Part Number
WT109-300
Opening
* 0 - 50 mm
Coupling
* * 60 mm
Body
Nickel Plated Steel
Temperature Range
0 +70C
Weight
75 kg each w/o Jaws
Max Load
300 kN
*   Opening depends on faces Click here to see Jaw Options

* *  Other couplings possible Click here to see our Adpater Page

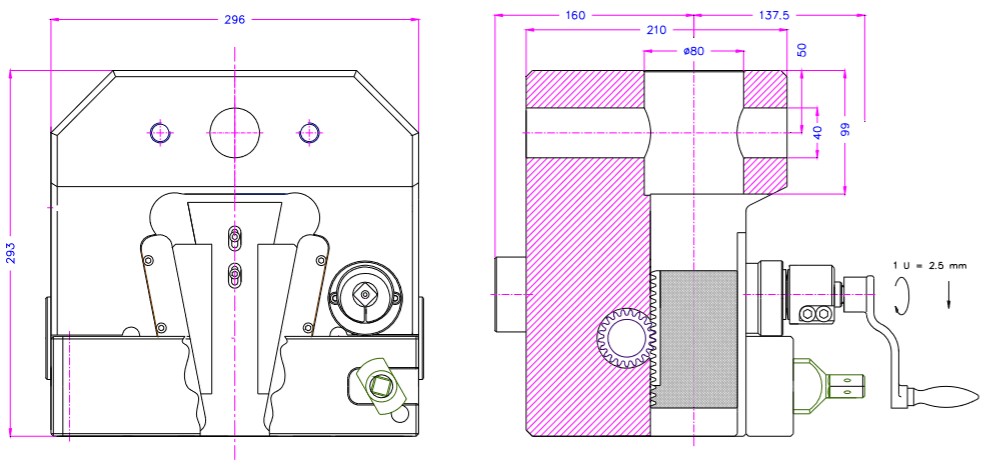

WT109-500 Wedge Grips, 500 kN

Universal grips with lower wedge angle (11) for many kinds of materials such as aluminum, copper, weak steel till 30 HRC round and flat. We do not recommend these grips for hardened or fiber samples.  Simple to use with included crank handle or cordless screwdriver (not included).










Part Number
WT109-500
Opening
* 0 - 50 mm
Coupling
* * 80 mm
Body
Nickel Plated Steel
Temperature Range
0 +70C
Weight
100 kg each w/o Jaws
Max Load
500 kN
*   Opening depends on faces Click here to see Jaw Options

* *  Other couplings possible Click Here for Adpater Page

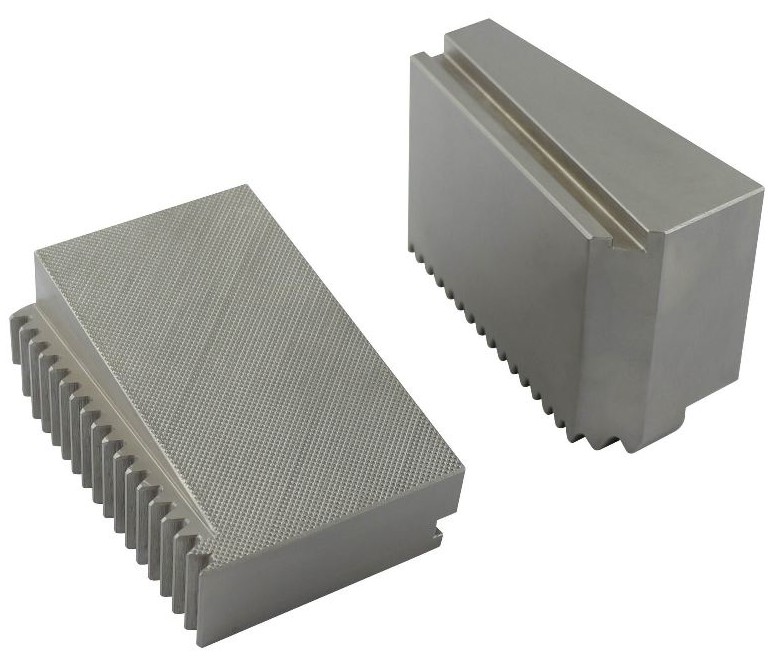

Examples of WT109 Standard Wedge Grip Jaws
Examples of WT109 Carrier & Jaws
(Used where jaw types are changed frequently)
Examples of WT109 Special Jaws
Please contact us with your requirements.

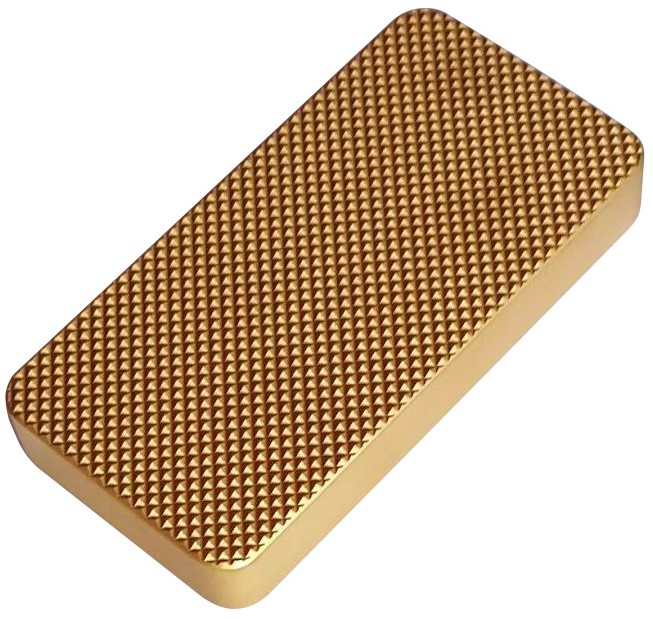

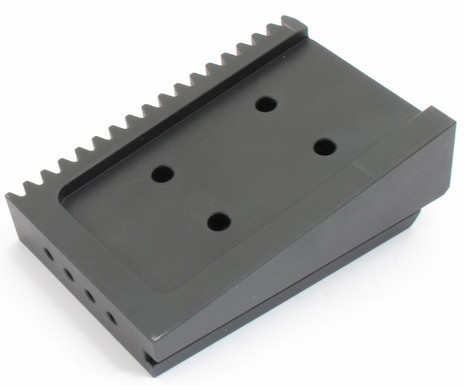

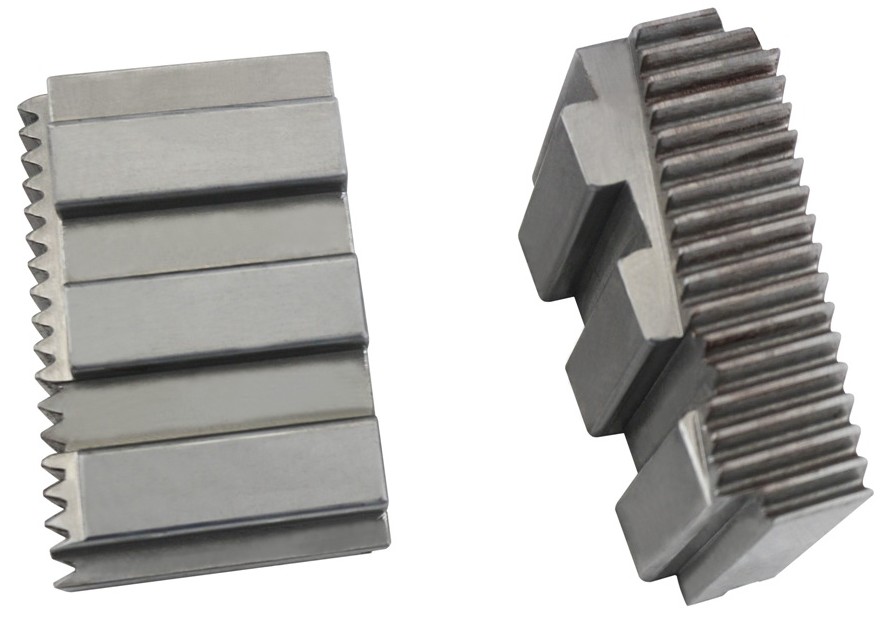

WT109-BP Pyramid
for Flat Samples

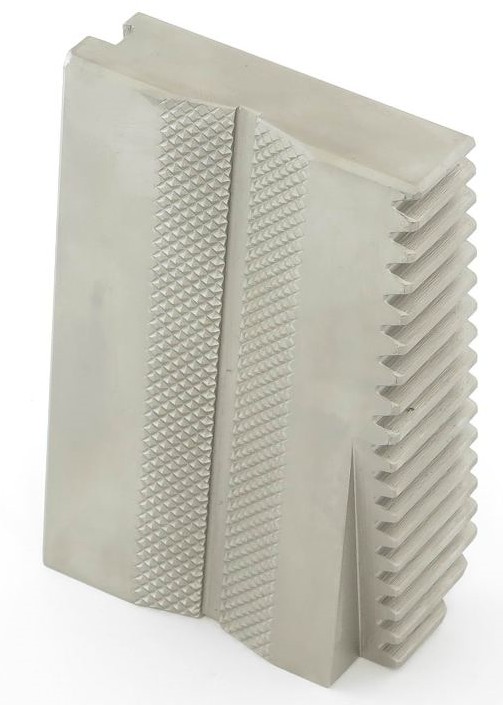

WT109-BV50 V Notch
(for Round Samples 30 - 50 mm )
WT109-BV50 V Notch
(for Round Samples 6 - 30 mm )
WT109-GT Carrier
for Insert Jaws

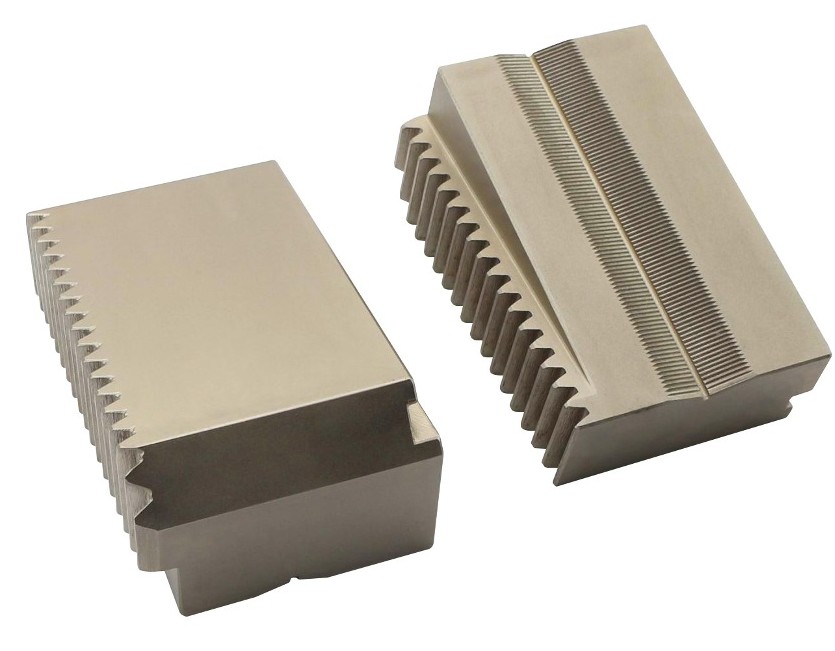

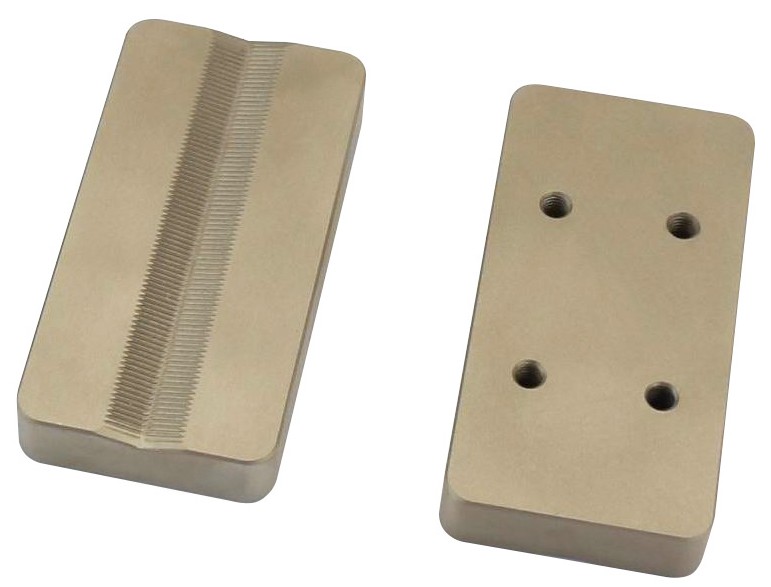

WT109-EBP Pyramid
Insert Jaws for Flat Samples

WT109-EBV V-Notch
Insert Jaws for Round Samples




WT109-BW35-A28
for Toothed Belt

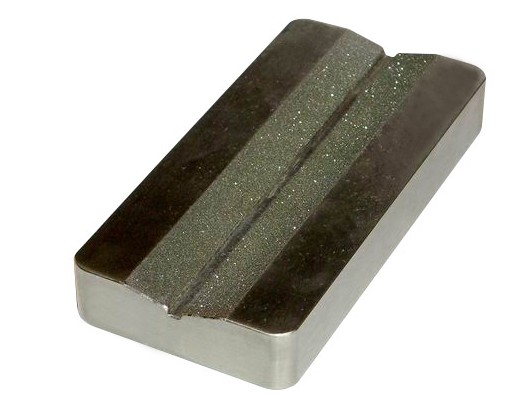

WT109-EBVD24
Diamond Coated for Round Samples

WT109-EBP15-TiNi (Insert Jaws)
Titanium nitrade coating

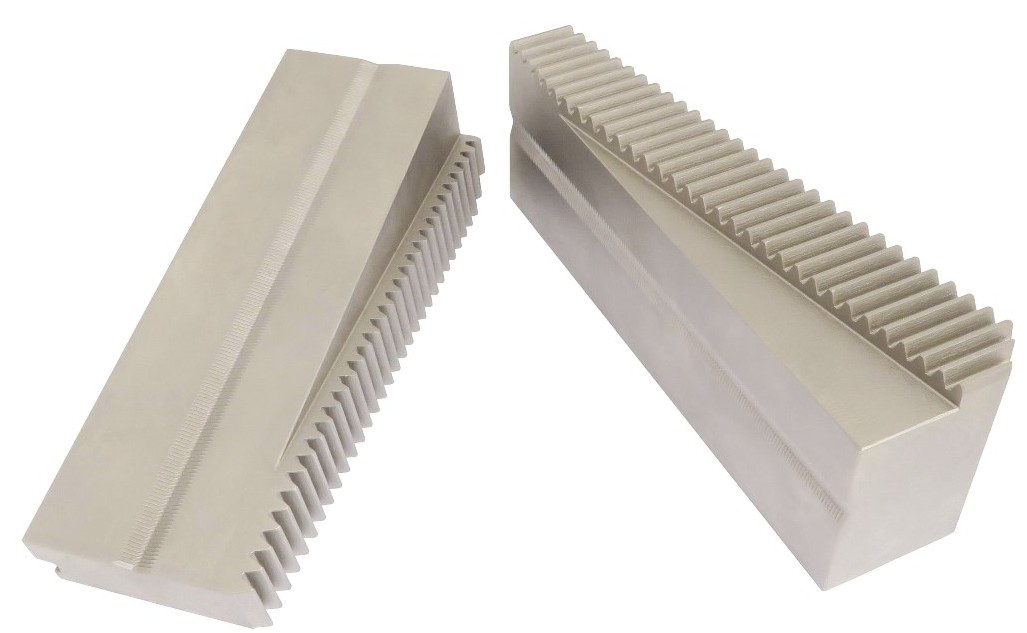

WT109-BV3-15-H200
Very long jaws for WT109


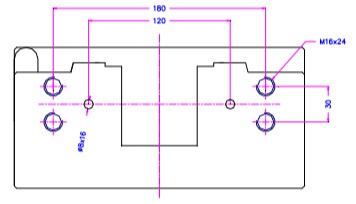

Face Options for WT109 Grips
Please contact us for special configurations.
WT109 Jaw Information:
Part numbers are for 1 set = 4 each
Part Number
Jaw Type
Area ( H x W )
Opening
Weight Per Pair
WT109-GT
Carrier
-
-
2.93 kg
WT109-EBP30
Pyramid
50 x 100 mm
0-30 mm
1.12 kg
WT109-EBP34
Pyramid
50 x 100 mm
4-34 mm
0.87 kg
WT109-EBP40
Pyramid
50 x 100 mm
10-40 mm
0.74 kg
WT109-EBP50
Pyramid
50 x 100 mm
20-50 mm
0.21 kg
WT109-EBV32
V-Notch
50 x 100 mm
5-32 mm
1.13 kg
WT109-EBV40
V-Notch
50 x 100 mm
12-40 mm
0.35 kg
WT109-EBV44
V-Notch
50 x 100 mm
16-44 mm
0.27 kg
WT109 Carrier & Insert Jaw Information:
Part numbers are for 1 set = 4 each

Accessories for WT109 Grips
Please contact us with special requests for our products.

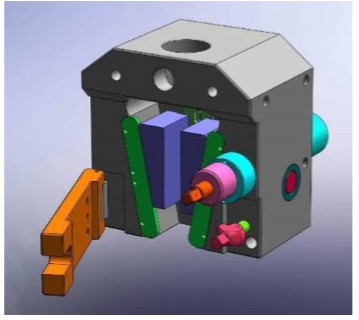

Examples of WT109-KA-M42x2
Adapters for adding other grips
without disassembling WT109
(Fit inside WT109 Grips)

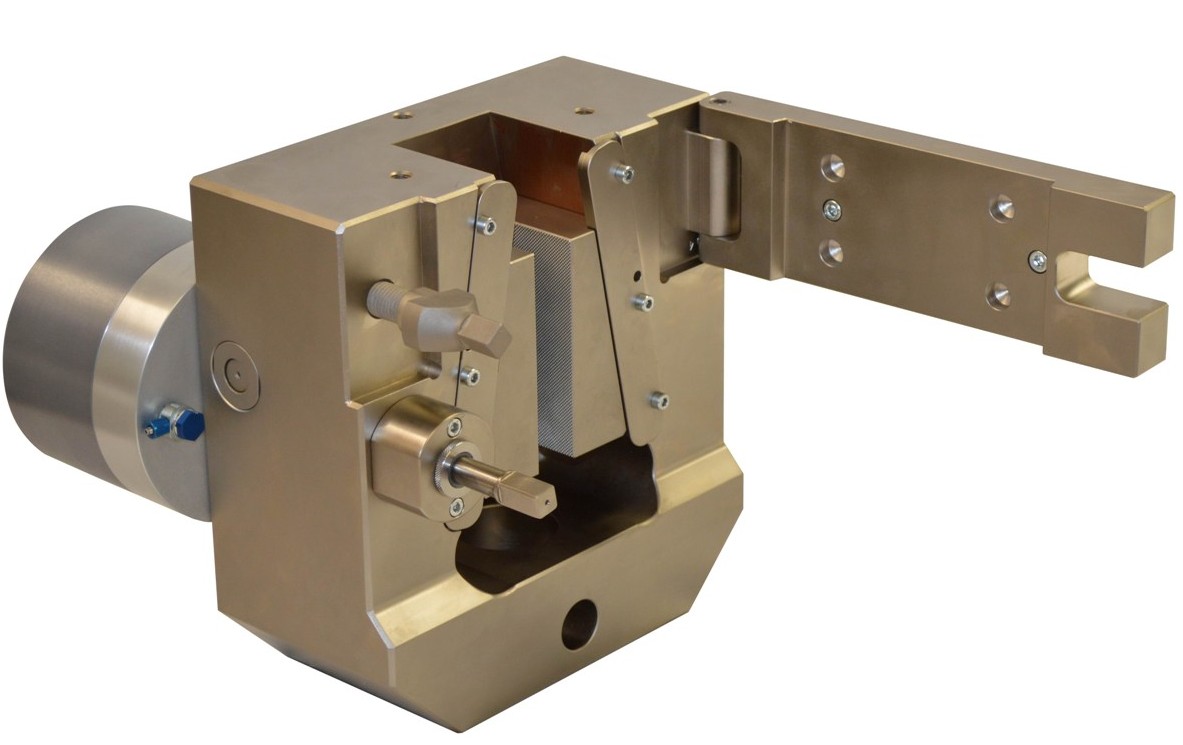

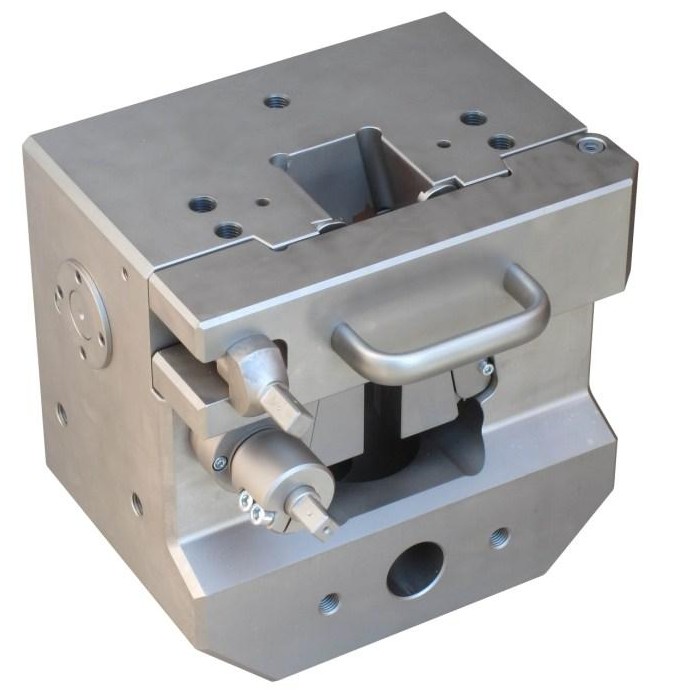

Pneumatic Version WT109-150+Ko
Shown with Pyramid Jaws
& Dual Action Cylinder
(Compressed Air opens and closes Jaws)

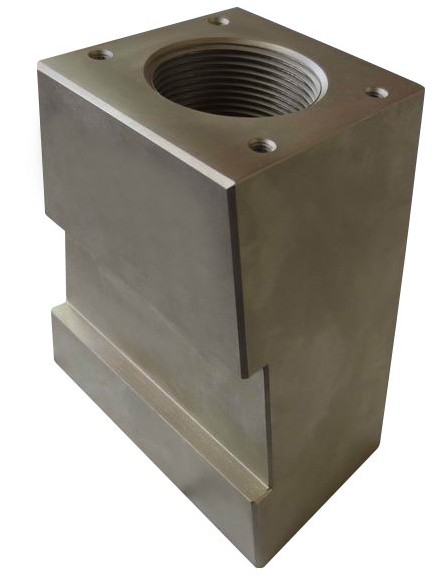

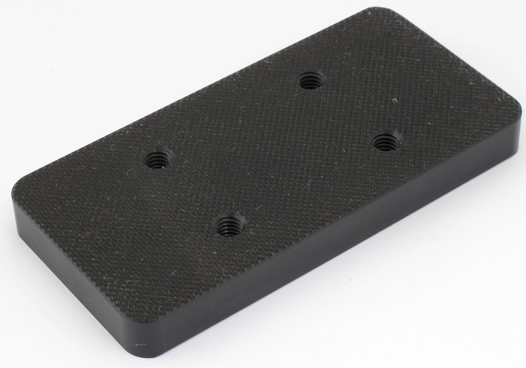

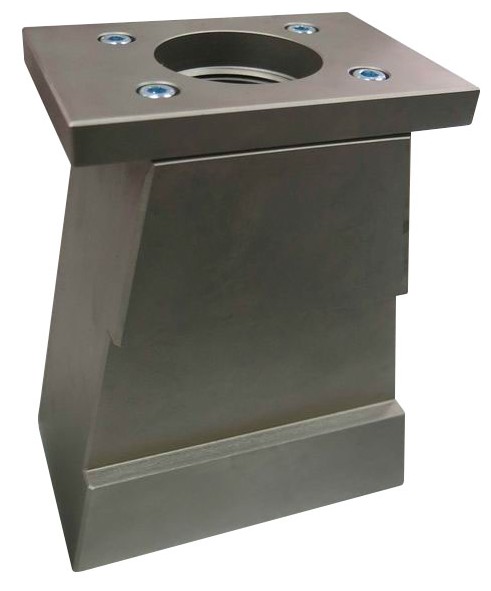

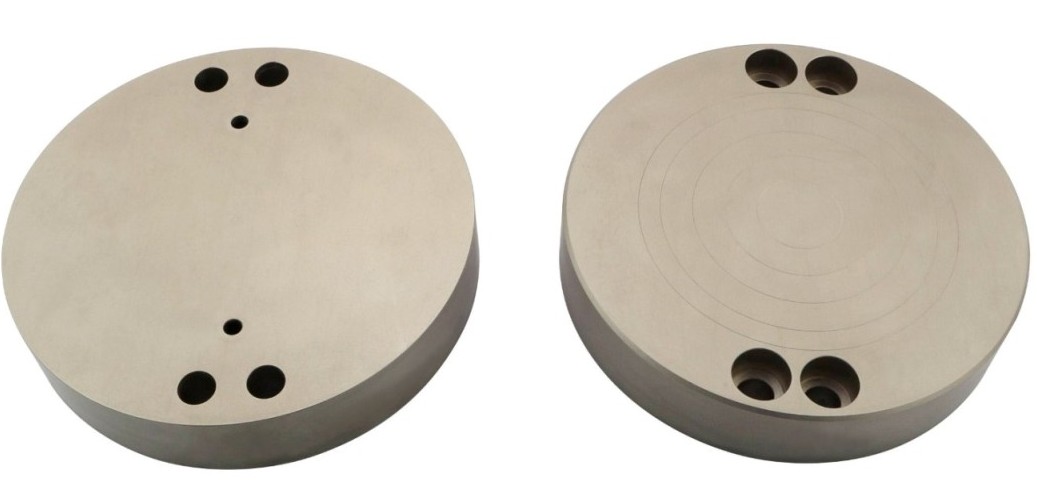

WT109-P220 Compression Plates
Mounts directly to WT109 Grips
Allows Compression testing
without removing WT109

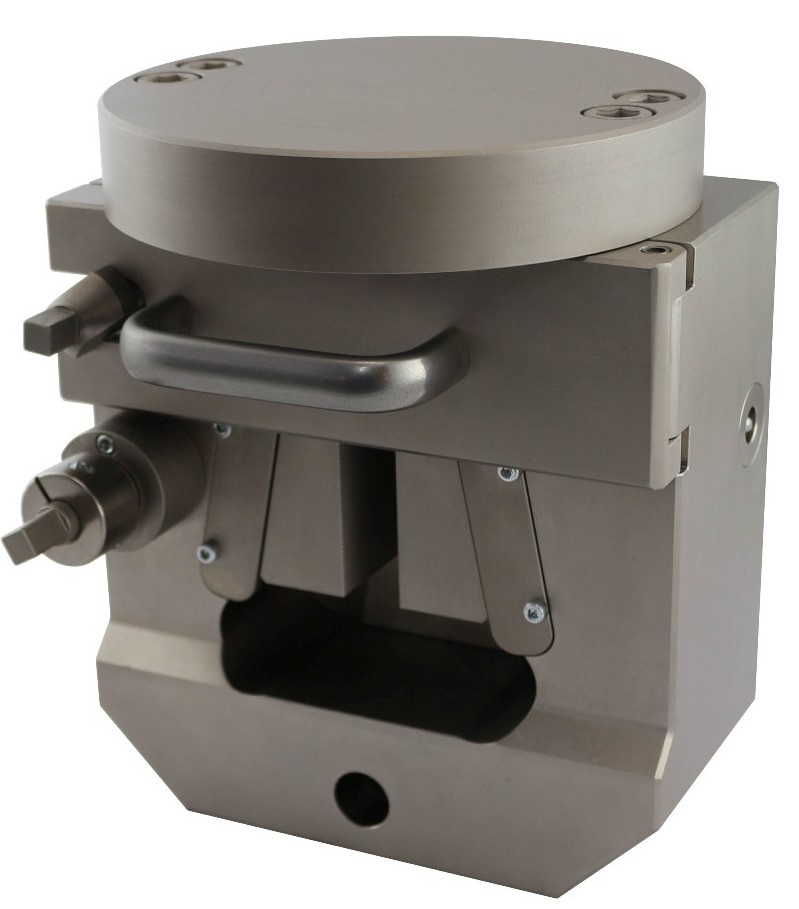

WT109-150+WT109-P220
150 kN wedge grip with special compression plate
Please contact us with your special requests.

Click Here for Sales or Support
