Wedge Grips - Capstan  20KN to 150KN - Scroll down to see more.

Capstan activated, self tightening Wedge Grips - "Open Design" to accept wide faces.
If you have a special application please let us know.
We are here to help.  Please feel free to call or email (Click Here).
Note: All fixtures are not listed. Please contact our office if you don't find what you need.





CAPTSTAN WEDGE GRIPS 20, 50, 100 and 150 kN
(Scroll down to see all)




        (faces open and close horizontally)

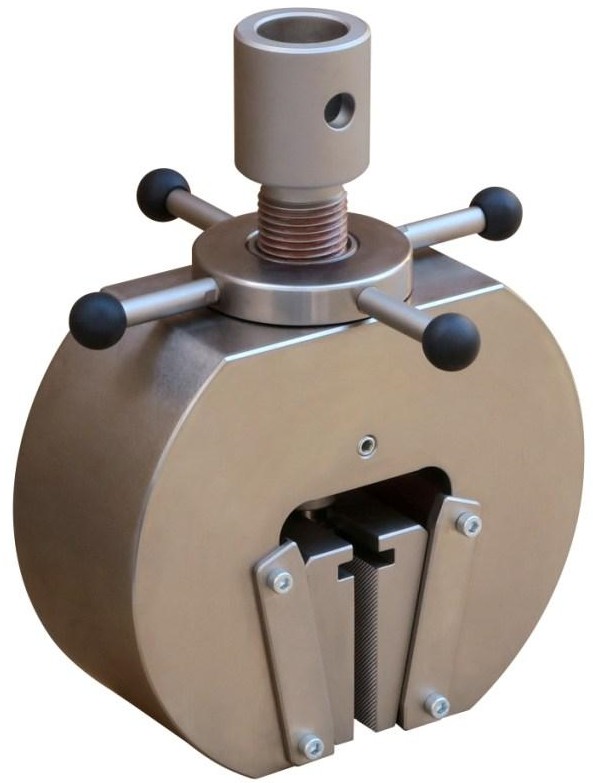

WTS527-20 Capstan Wedge Grips, 20kN Clamping Force

Temperature range: 0C +130C  (Other ranges possible)
Open design allows for wide samples (Specials are possible)
Tensile force: 20kN
Coupling 15.9 mm (Click here to see our Adapters Page)

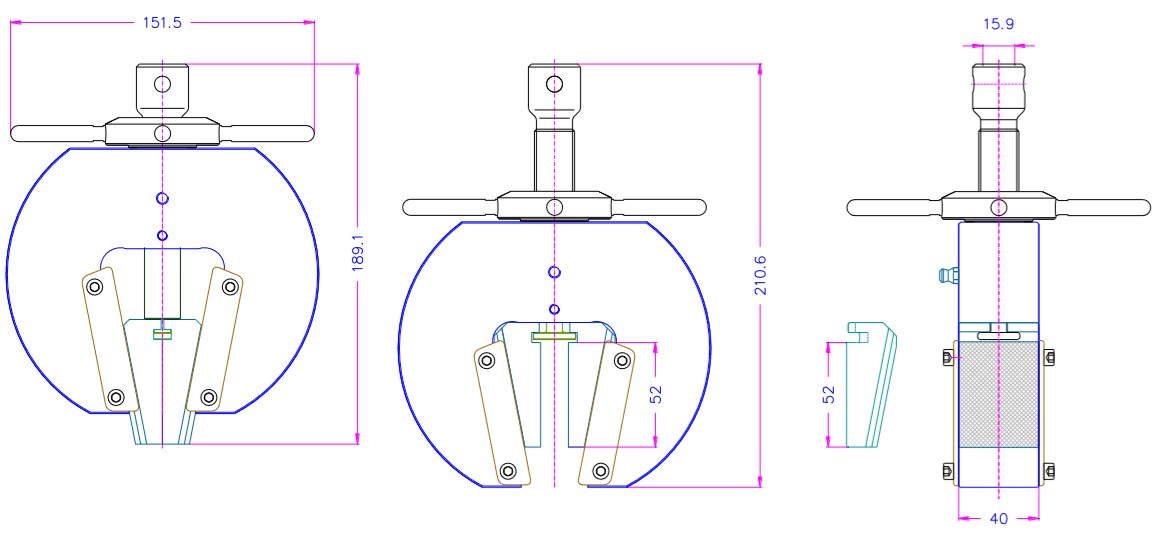

Jaw Clamping Surface (H x W) 52 x 40 mm
Weight each Grip:  5.5 kg











Part Number
Jaw Type
Weight
Per Pair
Opening

WTS527-20-BP10
Pyramid
0.74 kg
0 - 10 mm
WTS527-20-BP16
Pyramid
0.61 kg
6 - 16 mm
WTS527-20-BP22
Pyramid
0.52 kg
12 - 22 mm
WTS527-20-BV10
V - Notch
0.75 kg
3 10 mm
WTS527-20-BV16
V - Notch
0.65 kg
8 16 mm
WTS527-20-BV22
V - Notch
0.54 kg
12 22 mm

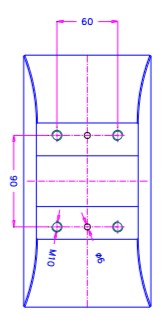

WTS527-20 Jaw Information:

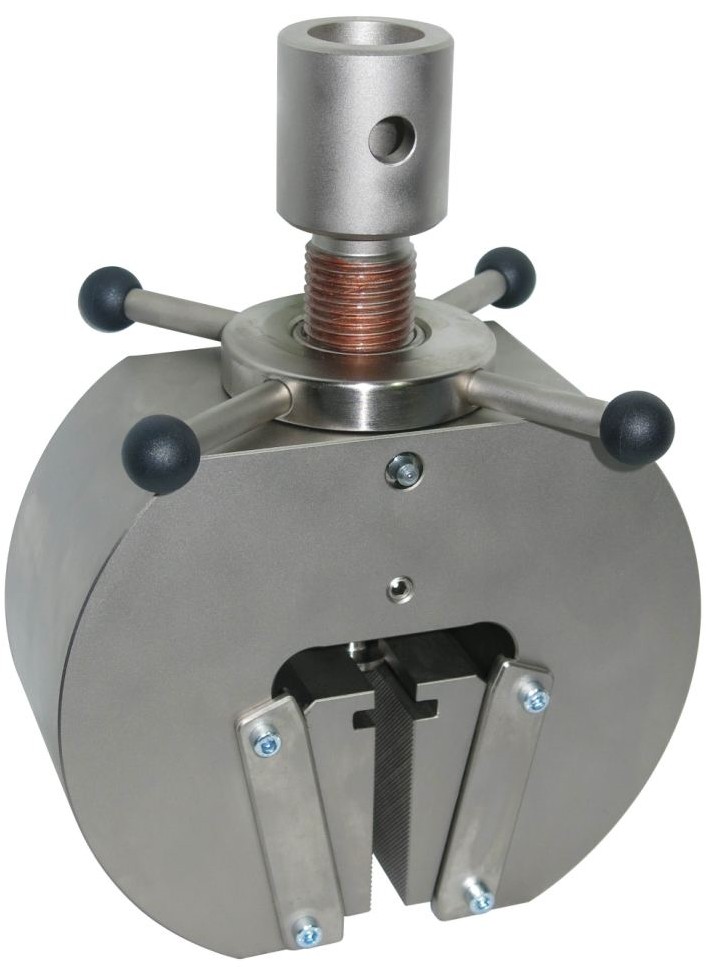

WTS527-50 Capstan Wedge Grips, 50kN Clamping Force

Temperature range: 0C +130C - Other ranges possible
Open design allows for wide samples - Specials are possible

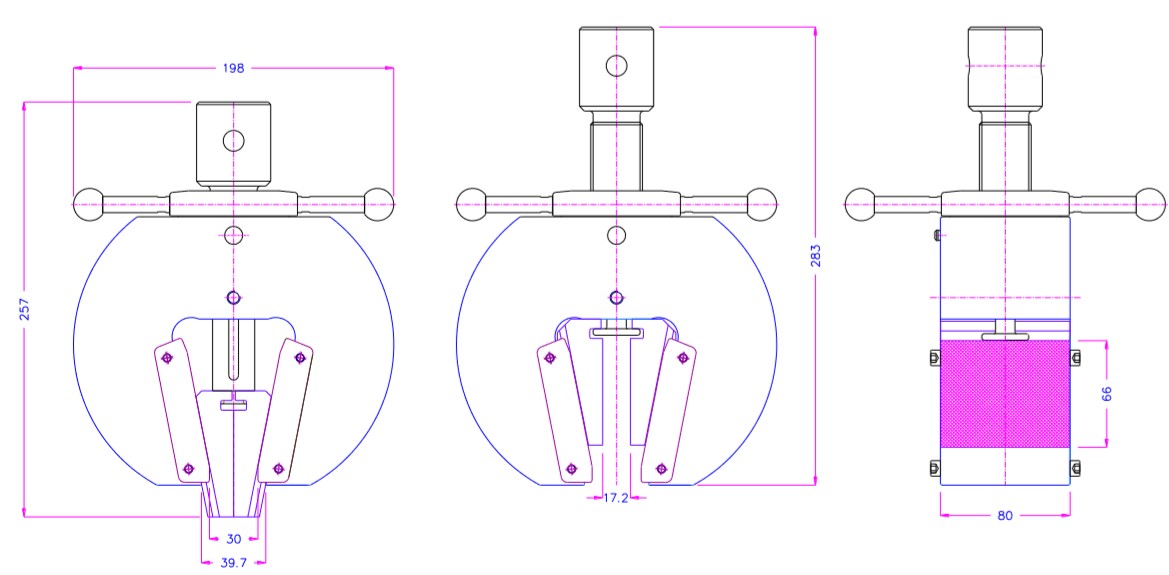

Dimensions: Height: 257-283 mm (min. max.)  Width:  198 mm
Tensile force: 50kN
Coupling Female Socket 31.8 mm Click Here for Adapter Page
Jaw Clamping Surface (H x W) 66 x 80 mm
Weight each Grip:  17 kg











Part Number
Jaw Type
Weight
Per Pair
Opening

WTS527-50-BP17
Pyramid
2.07 kg
0 - 17 mm
WTS527-50-BP30
Pyramid
1.54 kg
15 - 30 mm
WTS527-50-BV17
V - Notch
2.08 kg
5 17 mm
WTS527-20-BV30
V - Notch
1.55 kg
16 30 mm
WTS527-50 Jaw Information:

Special WTS527-45-W50
(to 45kN) 50mm Jaws
Opening 0 - 10mm

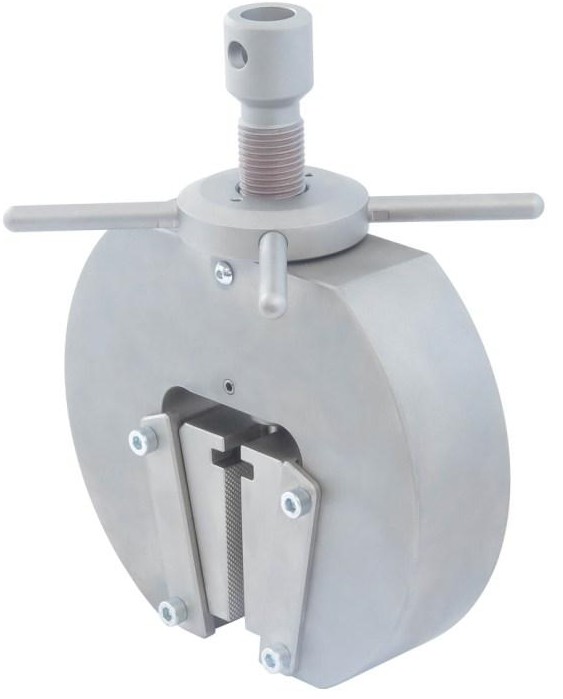

WTS527-20
52mm wide Jaws




WTS527-50-KA-M30x2 adapters are used to attach another
set of grips without removing the WTS527-50 Grips.
To use, remove faces from the WTS527-50 Grips.  Then
use a threaded adapter to add another set of grips.

                  (Click here to see our Adapters Page)

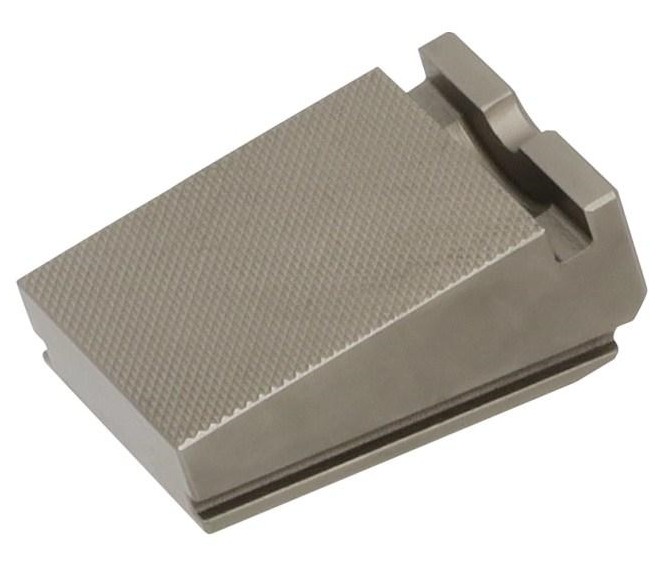

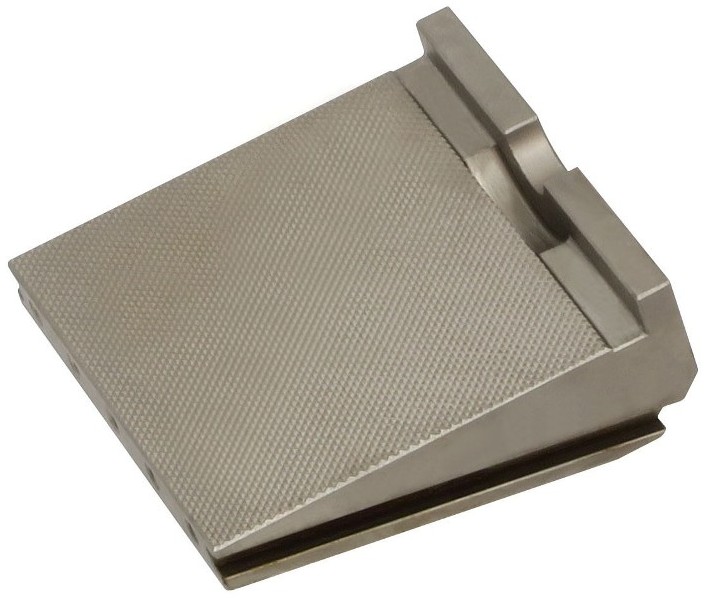

WTS527-20-BP10
Pyramid Jaws
(Cross cut)

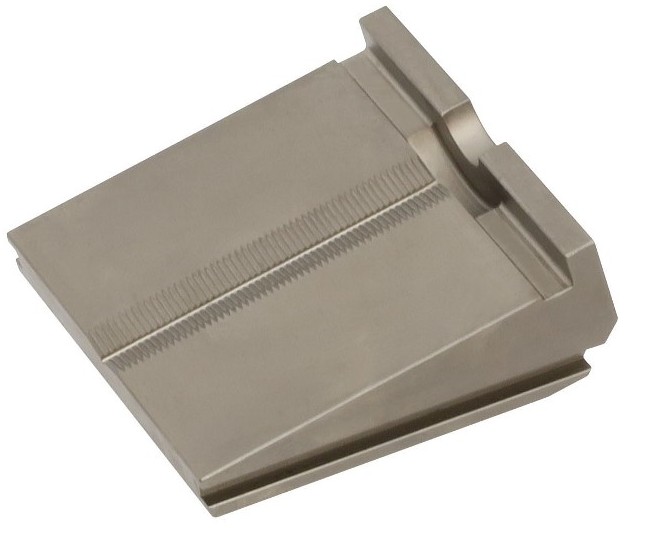

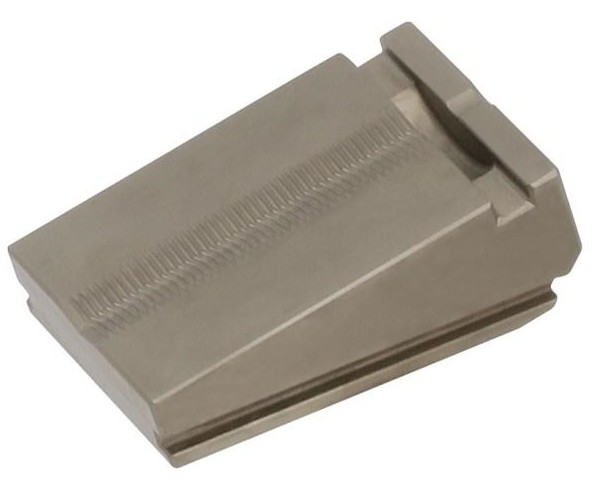

WTS527-20-BV10
V Notch Jaws
(for round samples)

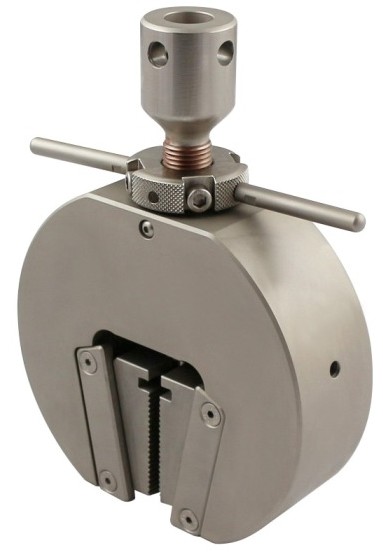

WTS527-50
50 kN Capacity
Capstan Wedge Grip
WTS527-50-KA-M30x2
Accessory to add different grip


WTS527-50-BV10
V Jaw Notch Jaws
(for round samples)



WTS527-50-BP10
Pyramid Jaws
(Cross cut)

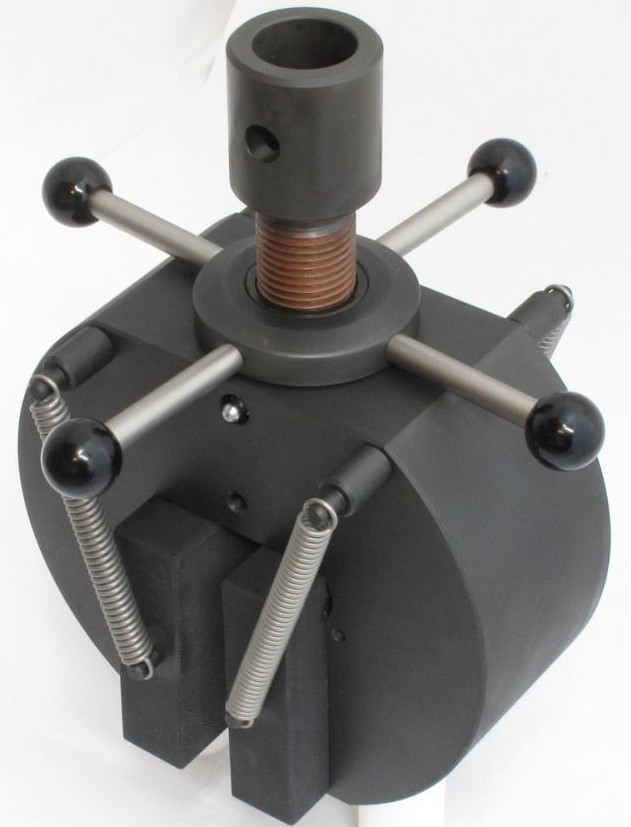

WTS527-50+BP100
with special jaws 125x100 mm

WTS527-20


WTS527-50


WTS527-100 Capstan Wedge Grips, 100kN Clamping Force

Temperature range: 0C +130C  (Other ranges possible)
Open design allows for wide samples (Specials are possible)

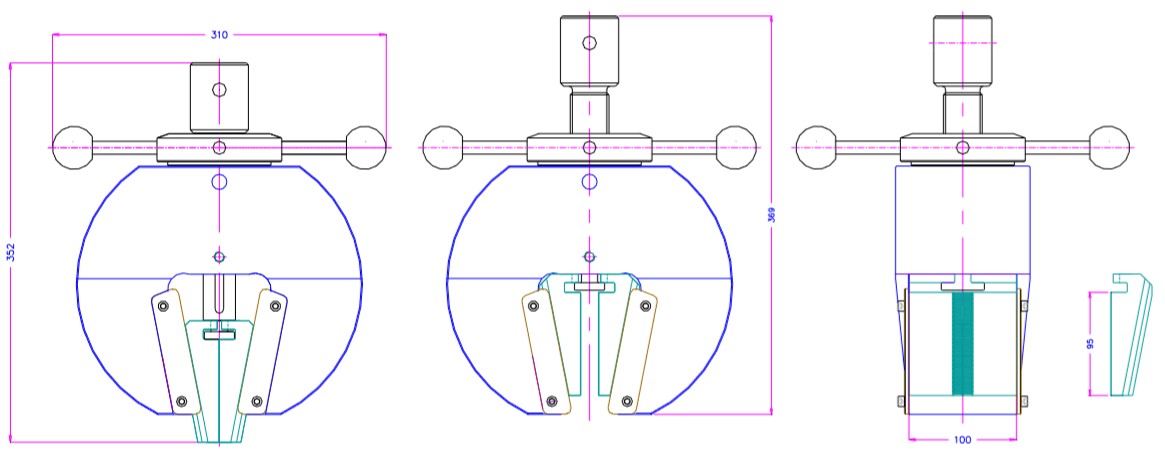

Dimensions: Height: 352-369 mm (min. max.)  Width:  310 mm
Tensile force: 100kN
Coupling Female Socket 31.8 mm (Click Here for Adapter Page)
Jaw Clamping Surface (H x W) 95 x 100 mm
Weight each Grip:  48 kg











Part Number
Jaw Type
Weight
Per Pair
Opening

WTS527-150-BP16
Pyramid
4.89 kg
0 -16 mm
WTS527-150-BP28
Pyramid
3.67 kg
17 - 28 mm
WTS527-150-BV16
V - Notch
4.93 kg
5  16 mm
WTS527-150-BV30
V - Notch
3.96 kg
17  28 mm
WTS527-100 Jaw Information:

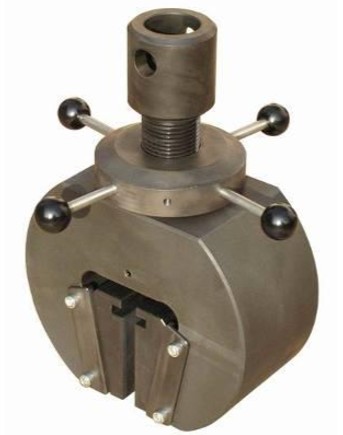

WTS527-100



WTS527-150 Capstan Wedge Grips, 100kN Clamping Force

Temperature range: 0C +130C  (Other ranges possible)
Open design allows for wide samples (Specials are possible)

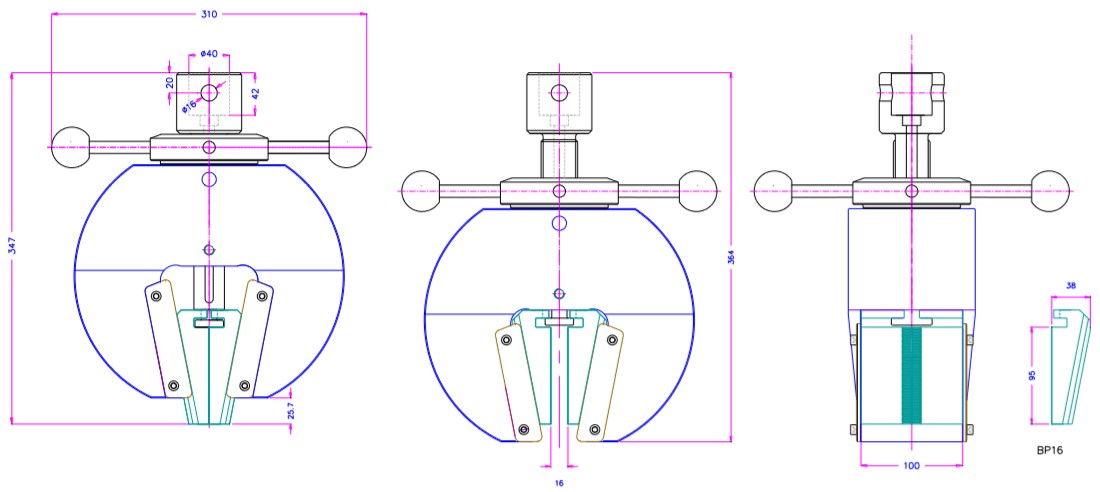

Dimensions: Height: 347-364 mm (min. max.)  Width:  310 mm
Tensile force: 150kN
Coupling Female Socket 40 mm, Other sizes possible...
Click Here for Adapter Page
Jaw Clamping Surface (H x W) 95 x 100 mm
Weight each Grip:  48 kg











Part Number
Jaw Type
Weight
Per Pair
Opening

WTS527-100-BP16
Pyramid
4.89 kg
0 -16 mm
WTS527-100-BP28
Pyramid
3.67 kg
17 - 28 mm
WTS527-100-BV16
V - Notch
4.93 kg
5  16 mm
WTS527-100-BV30
V - Notch
3.96 kg
17  28 mm
WTS527-150 Jaw Information:
