TESTERGRIPS.COM
For Wire Terminal, Chuck, Pin Vice or Threads
Use links at right or scroll down.

Wire Terminal Fixtures Upper fixtures (Click Here)
If you have a special application please let us know.
We are here to help.  Please feel free to call or email (Click Here).
Note: All fixtures are not listed. Please contact our office if you don't find what you need.


Click Here for Sales or Support

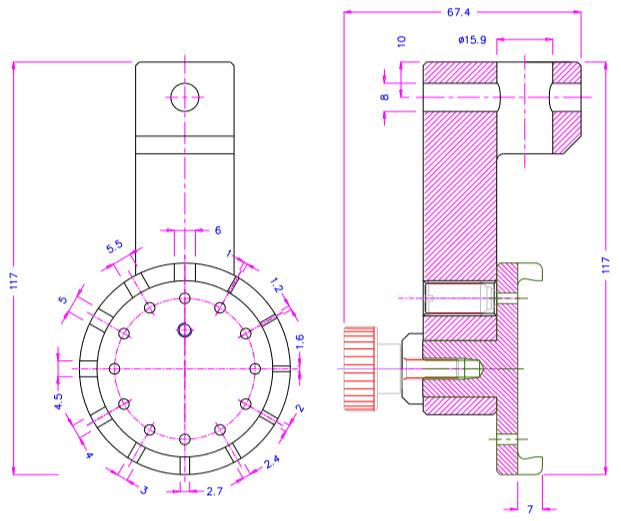

Part Number
WTS324-60
Max Force
20 kN
Coupling
15.9 mm
Slots
1, 1.2, 1.6, 2, 2.4, 2.7, 3, 4, 4.5, 5, 5.5 & 6 mm
Temperature
0 +70C
Weight Each
0.7 kg

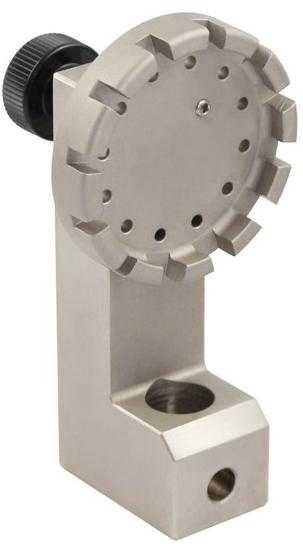

WTS314-60
Used to measure pull strength of wire terminals and connectors.
Self-aligning wheel with equally spaced slots for standard wire terminals.

(Please scroll down for other versions)
Steel Body for high strength
Standard Coupling 15.9 mm (Other uses with Adapter)
Click here to see our Adapters Page
Contact us for application support!

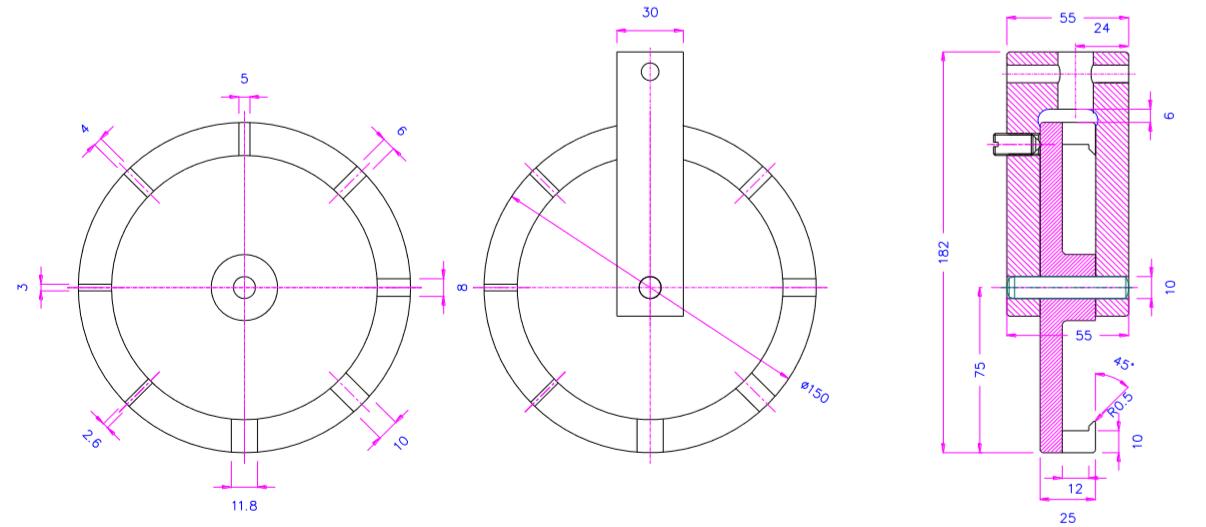

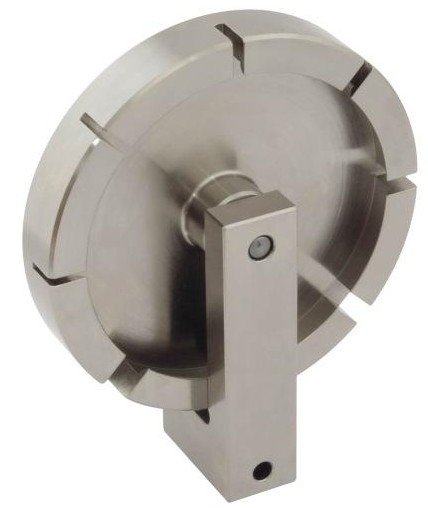

Part Number
WTS324-150-S2
Max Force
20 kN
Coupling
15.9 mm
Slots
2.6, 3, 4, 5, 6, 8, 10 & 11.8 mm
Temperature
-70 280C
Weight Each
2.9 kg
WTS314-150-S2
Click Here for Upper Fixture
Nickel Plated Steel for High Temperatures & Strength
Standard Coupling 15.9 mm (Other uses with Adapter)
Click here to see our Adapters Page
Contact us for application support!

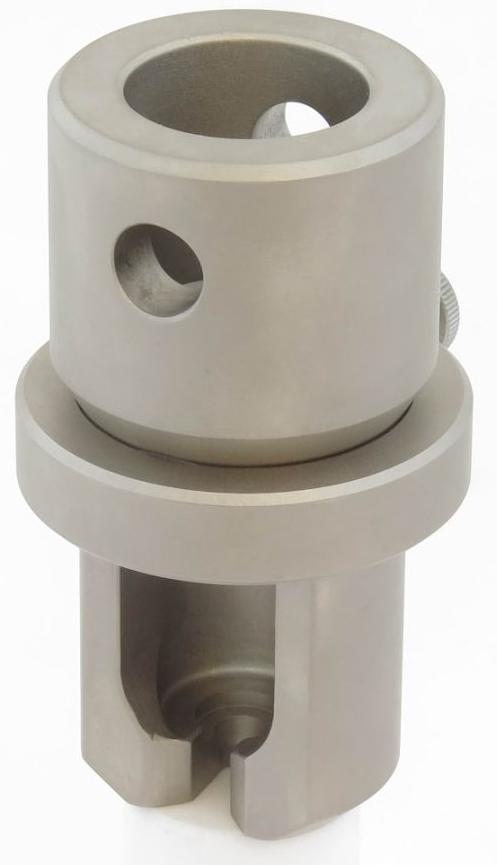

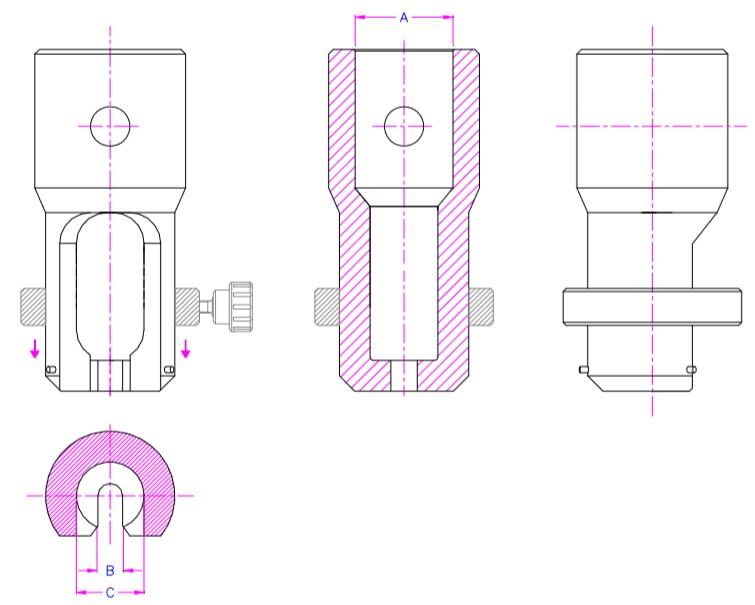

WT89 CHUCK GRIPS
For holding chuck samples, including ring to avoid widening
Steel components
See Chart for openings and standard coupling sizes
Click here to see our Adapters Page
Contact us for application support!










Part Number
Max Load
A
B
C
Weight Each Grip
WT89-159
20 kN
15.9 mm
4, 5, 6 mm
15.9 mm
2 kg
WT89-20
20 kN
20 mm
4, 5, 6, 8 mm
20 mm
4 kg
WT89-30
50 kN
30 mm
6, 8, 10, 12 mm
22 mm
8 kg
WT89-318
50 kN
31.8 mm
6, 8, 10, 12 mm
22 mm
9 kg
WT89-40
100 kN
40 mm
8, 10, 12, 16 mm
28 mm
1 kg
WT89-50
200 kN
50 mm
10, 12, 16, 20 mm
35 mm
3 kg
WT89-60
250 kN
60 mm
12, 16, 20, 24 mm
40 mm
3.5 kg
Product Selection Table
Please See Product Selection Table
(Above Right)

Return to Top
.

Jump to Item (Click Below)

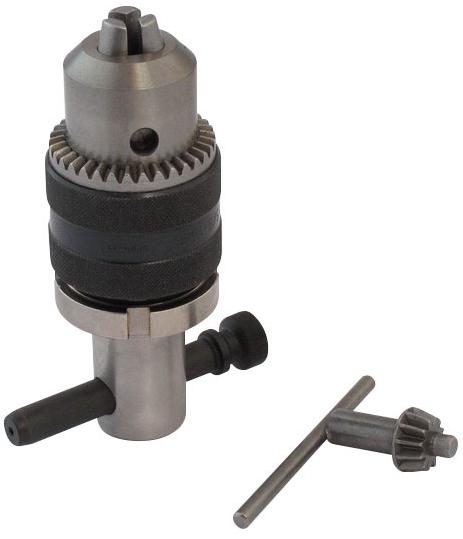

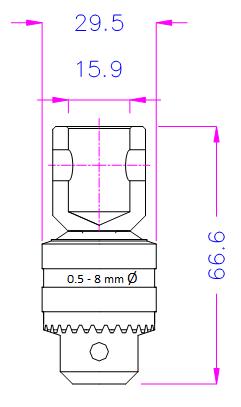

WTS566-8 Drill Chuck Pin Vise
With 15.9 mm coupling adapter
Other couplings available
Opening 0.5 - 8 mm
Includes Key
WTS566 Drill Chuck Pin Vise
For small round samples & light component testing etc.
Key included where applicable
Click here for adapters page
Contact us for application support!











These models open and close like a drill chuck.
Socket connects to anchor pin of machine or load cell eye end.
Purchase includes key, socket and grip Pins.

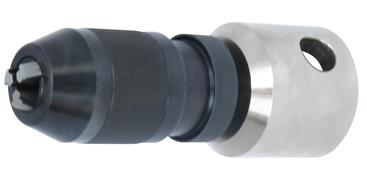

WTS566-16 Drill Chuck Pin VIce
With 31 mm Male Coupling
Other Couplings possible
Opening 3 - 16 mm
Includes Key
Smaller light duty model - Open or close by hand
Call with your requirements for prompt assistance
Return to Top

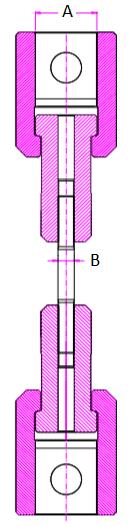

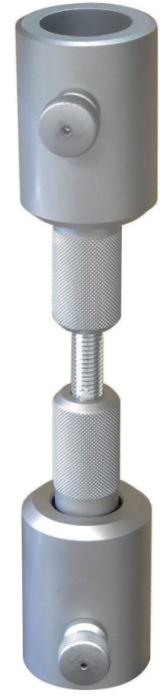

WT179 THREAD HEAD GRIPS
For testing bolts or other threaded items (screws, bolts, studs etc.)
Steel components
See Chart for openings and standard coupling sizes
Click here to see our Adapters Page
Contact us for application support!

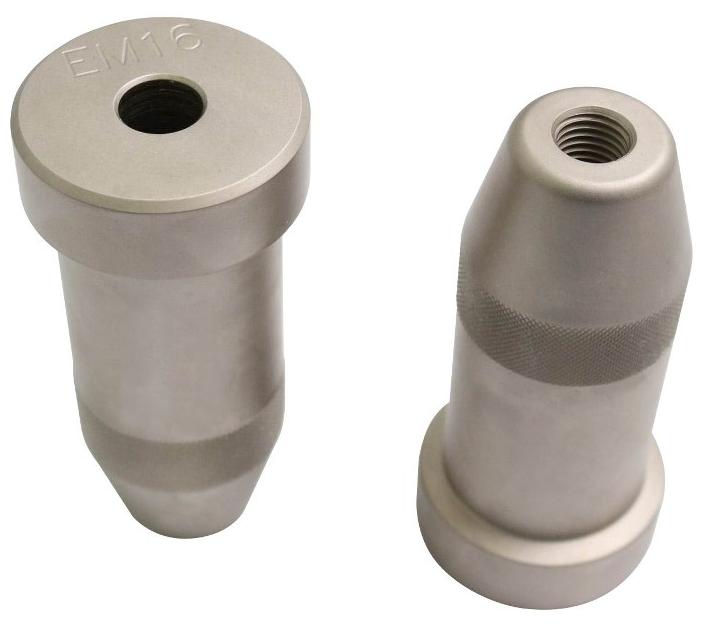

Example:  179-60-EM16
M16 Threads on Insert
Other combinations available (and custom work)

Holder Part Number
(A) Coupling Size
Threaded Insert
Part Number
(B) Thread
Diameter
Max Force for Combination
WT179-159
15.9 mm
WT179-159-Ex*
3 8 mm
20 kN
WT179-20
20 mm
WT179-159-Ex*
3 8 mm
20 kN
WT179-30
30 mm
WT179-30-Ex
3 16 mm
50 kN
WT179-318
31.8 mm
WT179-318-Ex**
3 16 mm
50 kN
WT179-32
32 mm
WT179-318-Ex**
3 16 mm
50 kN
WT179-36
36 mm
WT179-318-Ex**
3 16 mm
50 kN
WT179-38
38 mm
WT179-318-Ex**
3 16 mm
50 kN
WT179-40
40 mm
WT179-40-Ex
3 22 mm
100 kN
WT179-50
50 mm
WT179-50-Ex
3 22 mm
200 kN
WT179-60
60 mm
WT179-60-Ex
3 28 mm
250 kN
WT179-70
70 mm
WT179-70-Ex
3 32 mm
400 kN

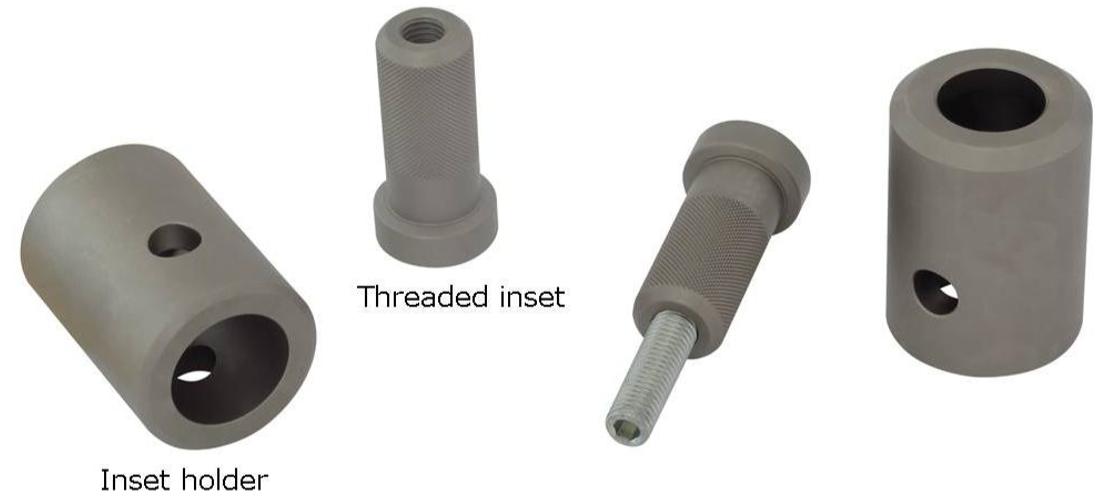

WT179 Holder & Insert Options:

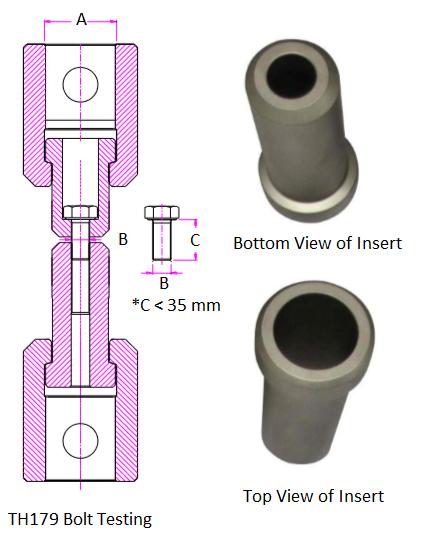

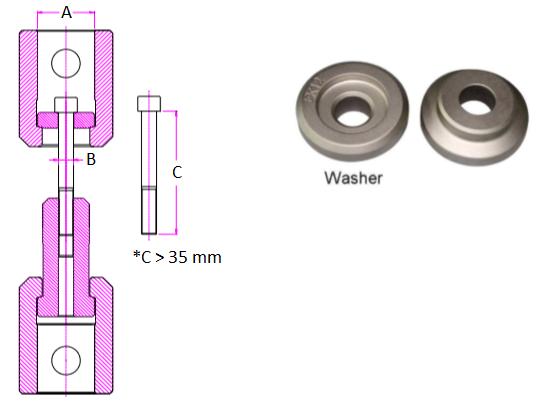

WT179 THREAD HEAD GRIP (BOLT TESTING)
For testing bolts or other threaded items (screws, bolts, studs etc.)
Steel components
See Chart for openings and standard coupling sizes
Click here to see our Adapters Page
Contact us for application support!










Insert Holder
Weight
WT179-159
83 g
WT179-20
108 g
WT179-30
490 g
WT179-318
570 g
WT179-32
554 g
WT179-3618
710 g
WT179-38
693 g
WT179-40
820 g
WT179-50
1.86 kg
WT179-60
4.38 kg
WT179 Holder and Insert (weights):
WT179-159
Threaded Inserts
Weight
WT179-159-EM3
30 g
WT179-159-EM4
28 g
WT179-159-EM5
27 g
WT179-159-EM6
24 g
WT179-159-EM8
22 g
WT179-159-EM10
16 g
WT179-318
Threaded Inserts
Weight
WT179-318-EM3
245 g
WT179-318-EM4
245 g
WT179-318-EM5
245 g
WT179-318-EM6
245 g
WT179-318-EM8
245 g
WT179-318-EM10
235 g
WT179-318-EM12
215 g
WT179-318-EM14x2
200 g
WT179-318-EM16
175 g
WT179-318-E1/4
252 g
WT179-318-E5/8
175 g
WT179-50
Threaded Inserts
Weight
WT179-50-EM5
860 g
WT179-50-EM6
845 g
WT179-50-EM8
842 g
WT179-50-EM10
833 g
WT179-50-EM12
814 g
WT179-50-EM14
831 g
WT179-50-EM16
860 g
WT179-50-EM18
888 g
WT179-50-EM20
890 g
WT179-60
Threaded Inserts
Weight
WT179-60-EM20
1.55 kg
WT179-60-EM24
1.50 kg
At left, recommended
upper fixture (click here)
At right, recommended
upper fixture (click here)
Return to Top
Return to Top
Return to Top
Return to Top
