Capstan & Bollard Roller - Also see Wire & Terminal Grips
If you have a special application please let us know.
We are here to help.  Please feel free to call or email (Click Here).
Note: All fixtures are not listed. Please contact our office if you don't find what you need.

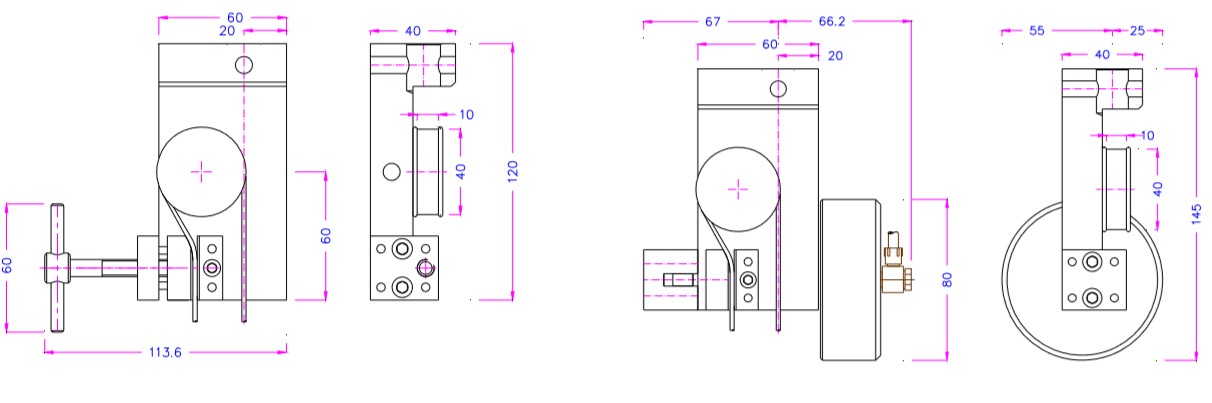

WT76 Series Wire Grips (Manual & Pneumatic Versions)
1kN, 5kN and 20kN

Connection: 5/8" Socket (other connections possible, see our Adapters Page)
Suitable for filaments, cords, yarn, fine wires, narrow ribbons, rope, etc.,
Sample wraps around bollard one or more times, then trailing end of sample is clamped.
Forces transfer around the cicumference of the Bollard, preventing breaking at the clamp.
Please specify face type for clamps: Options are Rubber, Diamond or Pyramid Faces (Call for details).

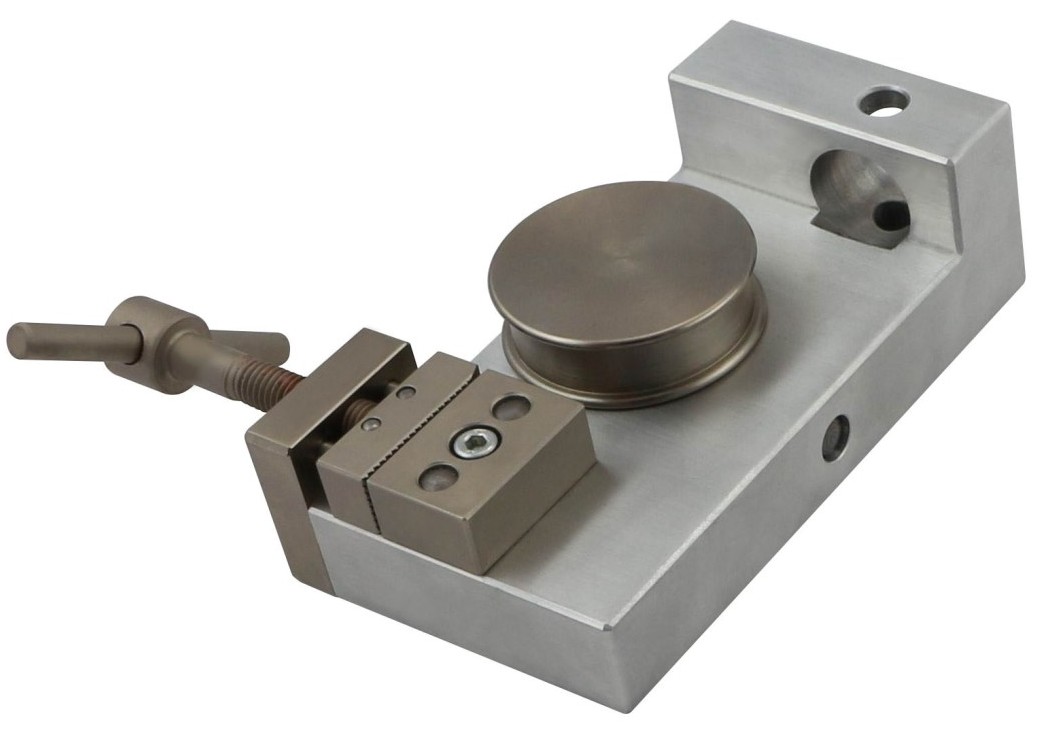

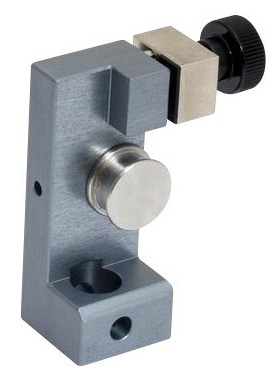

Manually Operated WT76-1 Above
Max Force 1kN
WT76-1 + Ko Pneumatic Version Below

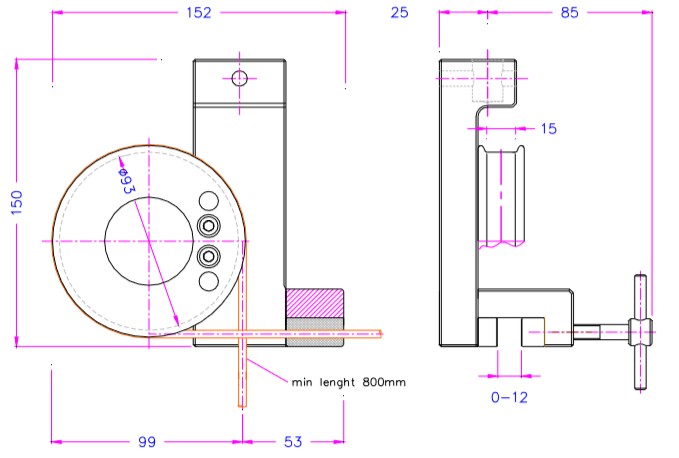

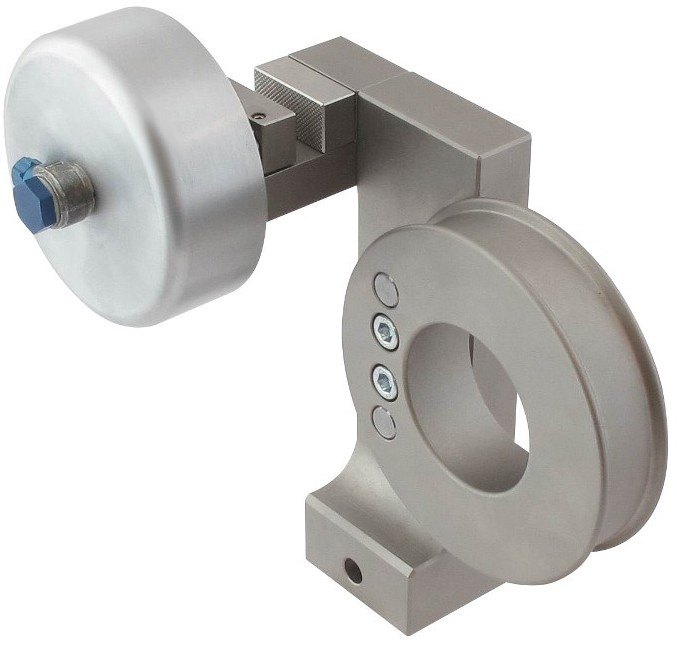

Manually Operated WT76-20 Above
Max Force 20 kN
WT76-20 kN + Ko Pneumatic Version Below
Manually Operated WT76-5 Above
Max Force 5kN
WT76-5kN + Ko Pneumatic Version Below
Part Number
WT76-1
WT76-5
WT76-20
Max Force
1 kN
5 kN
20 kN
Max Sample Diameter
2 mm
5 mm
9 mm
Max Sample Length
240 mm
400 mm
800 mm
Clamping Surface
20 x 10 mm
30 x 12 mm
30 x 15 mm
Bollard Diameter
20 mm
40 mm
93 mm
Body
Andodized Aluminum
Andodized Aluminum
Nickel Plated Steel
Temperature Range
0 +70C*

0 +180C*
0 +180C*
Weight
0.28 kg
0.82 kg
2.74 kg
Weight for
Pneumatic
Version
0.7 kg Upper Grip,
Including
Counter Weight
1.34 kg
Each Grip
3.09 kg
Each Grip
Packaging
Pair
Pair
Pair
*Other Ranges Possible
Specifications WT76 Grips:

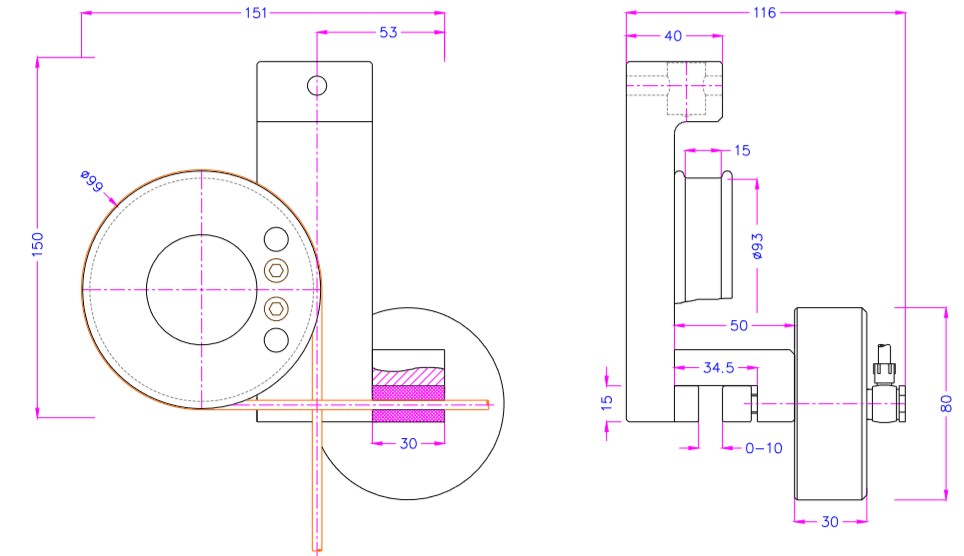

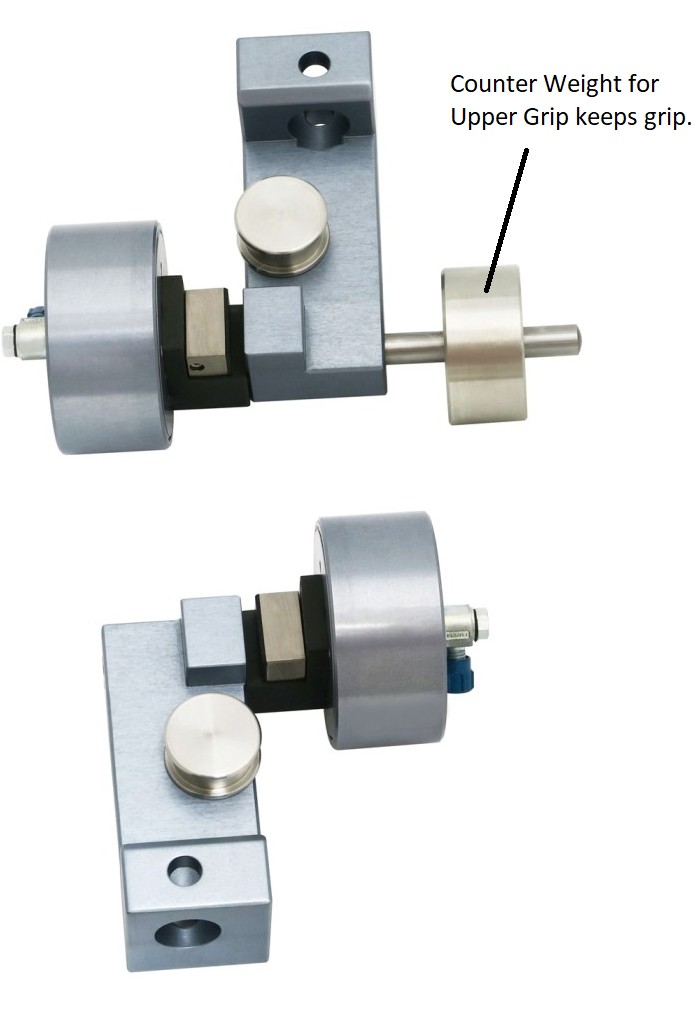

Please Note:  The pneumatic version of WT76 includes a counter weight for the top grip.

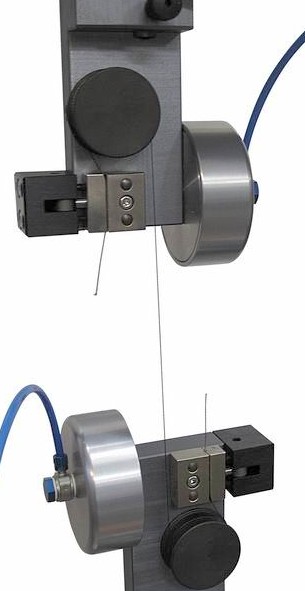

WT76 with Sample Loaded
Pneumatic version can use Micro Switch Controls!
Above: WT76-1kN
Above: WT76-1kN + Ko
Above: WT76-5kN
Above: WT76-5kN + Ko
Above: WT76-5kN
Above: WT76-5kN + Ko

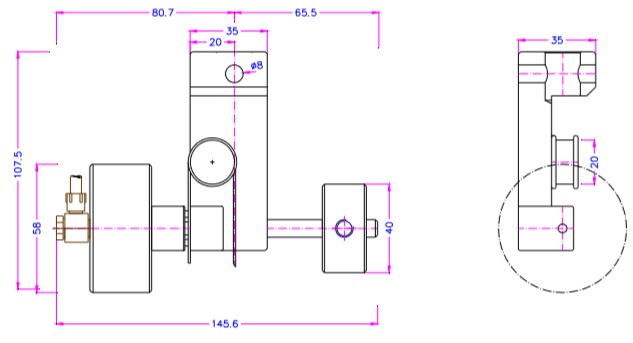

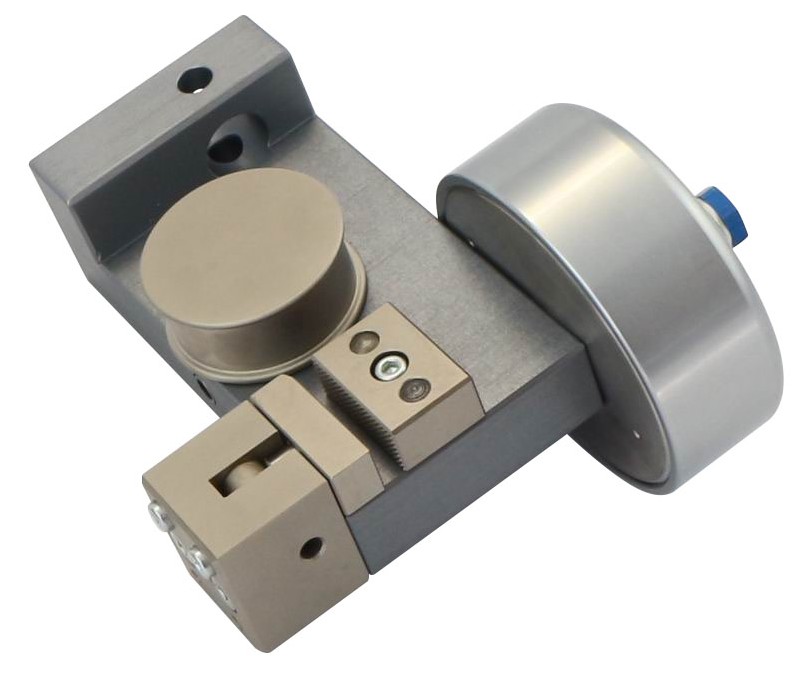

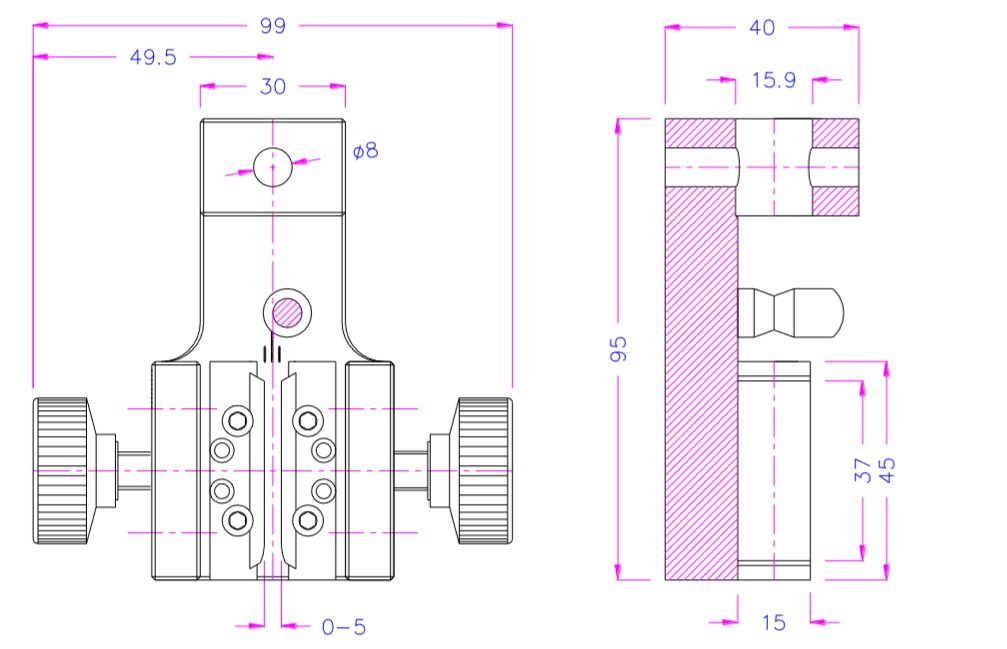

WT9 Series Wire Grips (Manual & Pneumatic Versions)

For Fine Wires, Cords, Etc.,
  Forces up to 2.5 kN, Temperature Range 0C +70  (Other ranges possible)
Opening 0 - 5 mm, Anodized Aluminum Body

Connection: 5/8" Socket (other connections possible, see our Adapters Page)
Suitable for filaments, cords, yarn, fine wires, narrow ribbons, small rope, etc.,
Sample wraps around bollard one or more times, then trailing end of sample is clamped.
Forces transfer around the cicumference of the Bollard, preventing breaking at the clamp.
Important: Faces are ordered separately (See Table). Grips have "carriers" to accept Faces.











Above: WT9

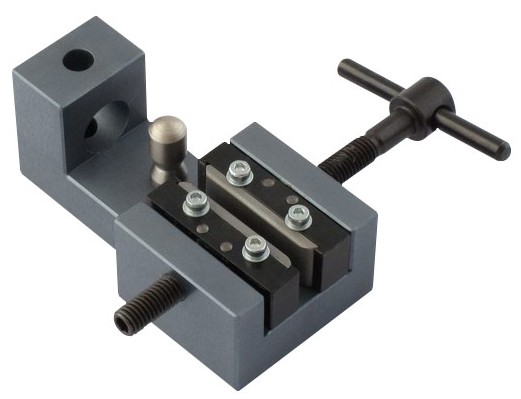

Manually Operated Version

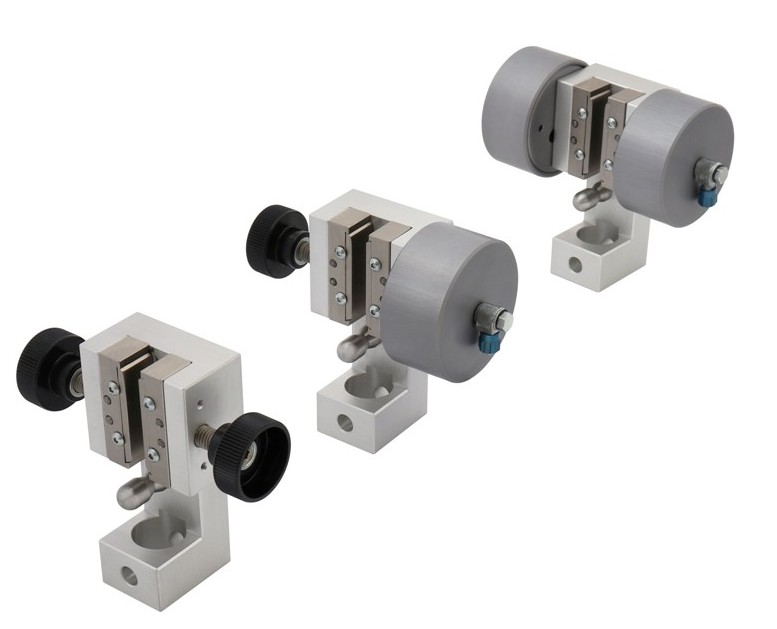

Above: WT9 (Manual & Pneumatic Versions)
  WT9 (Manual) , WT9 + Ko & WT9 + 2Ko
Part Number
WT9
WT9 + Ko
WT9 + 2Ko
Clamping Force
2.5 kN
1.2 kN
1.2 kN
Weight Each
0.38 kg
0.56 kg
0.74 kg
Opening:
5 mm
5 mm
5 mm
Body
Anodized Aluminum
Anodized Aluminum
Anodized Aluminum
Temperature Range
0C +70
0C +70
0C +70
WT9 Grip Specifications:

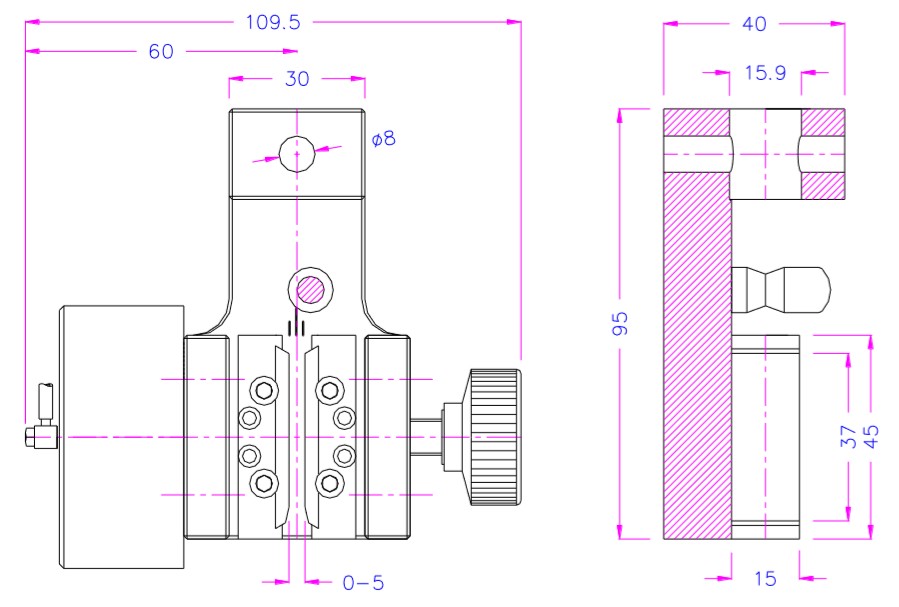

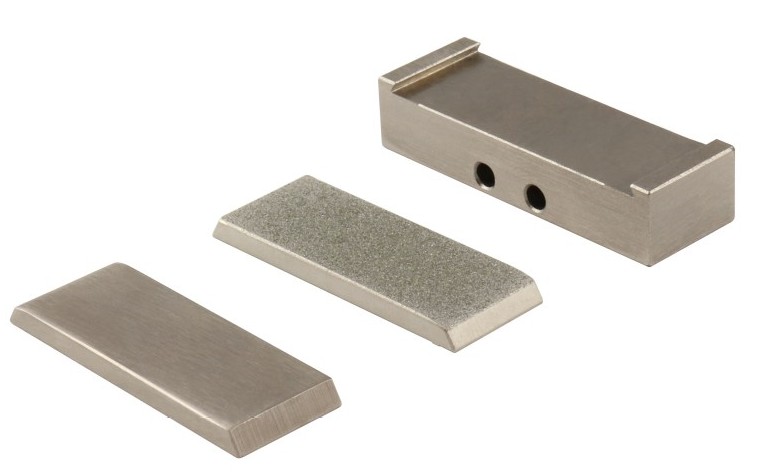

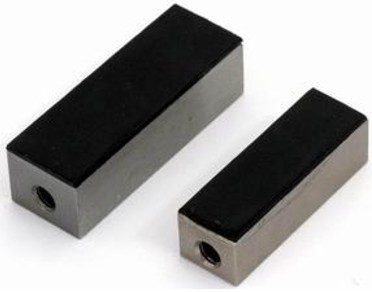

Carrier & Faces Shown Above

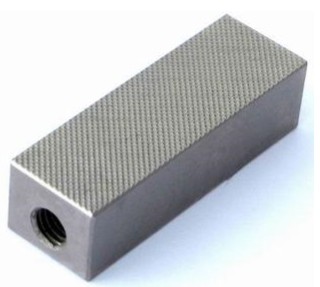

WT9-EB Blank (Left)
WT9-EBD Center Diamond (Center)
WT9-GT Carrier (Right)
Part Number
Surface
Clamping
Area (H x W)
Opening
Weight
WT9-GT
Carrier
N/A
N/A
84 g
WT9-EB
Blank or Smooth
37 x 15 mm
0 - 5 mm
26 g
WT9-EBD
Diamond
37 x 15 mm
0 - 5 mm
26 g
WT9 Face Specifications:
Above: WT9
Manually Operated Version
Above: WT9 + Ko
Pneumatically Operated Version
This Item can use Micro Switch Controls!

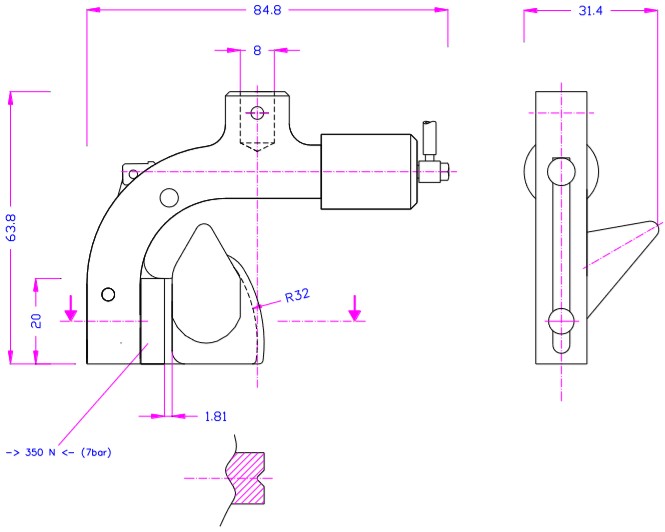

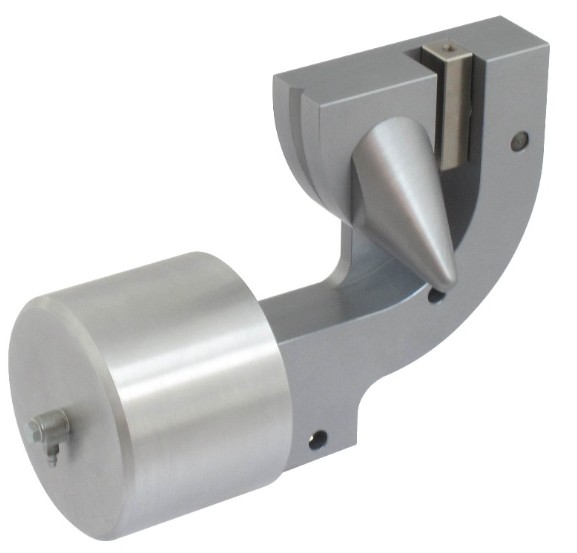

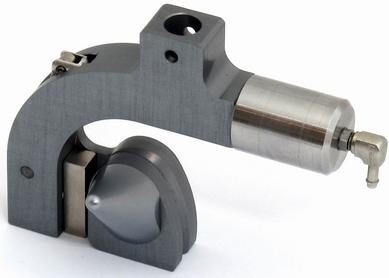

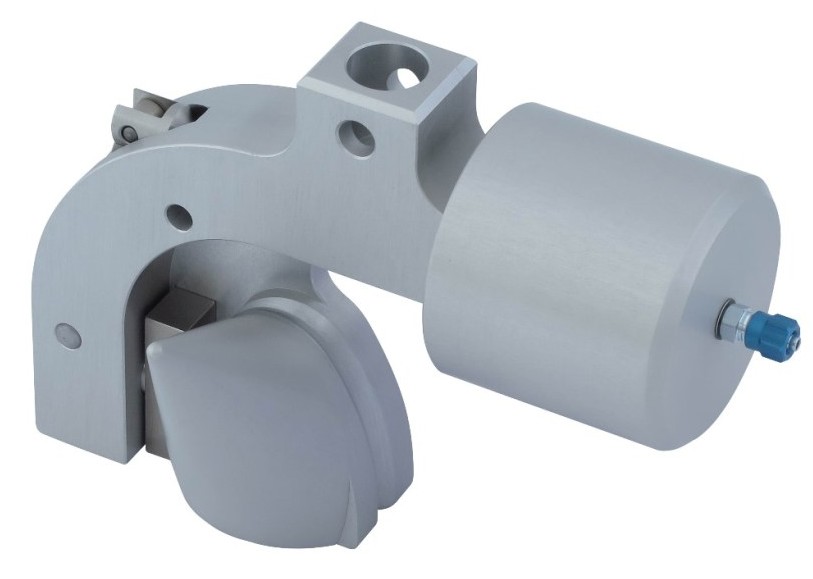

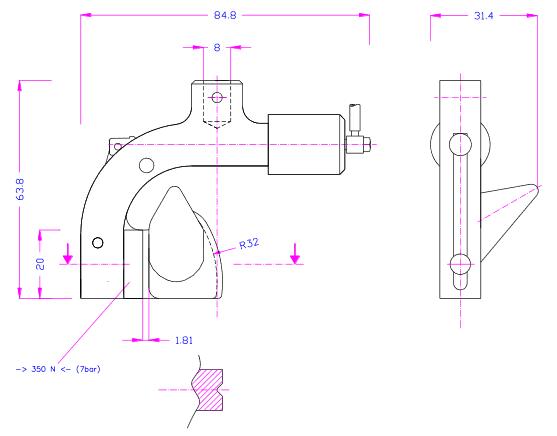

WTS13 Series Pneumatic Wire Grips

For fibers, fine wires, cords, filaments yarns, cord etc.
  200 N, 2 kN and 5 kN Versions
Temperature Range -10C to +80 C

Connection: 5/8" Socket (other connections possible, see our Adapters Page)

Horn on body guides sample into the centering grove (easy loading of sample).
Forces transfer to the groved area preventing breaking at the clamps.
Important: Faces are ordered separately (See Grip Face Table).











WTS13k, 200 N @ 7 Bar, Samples up to 1 mm

Minimum Sample Length: 150 mm
Clamping Area: 6 x 20 mm
Body: Anodized Aluminum
Weight, Including Jaws: 102 grams per Grip
Note:  Grip Faces sold separately
















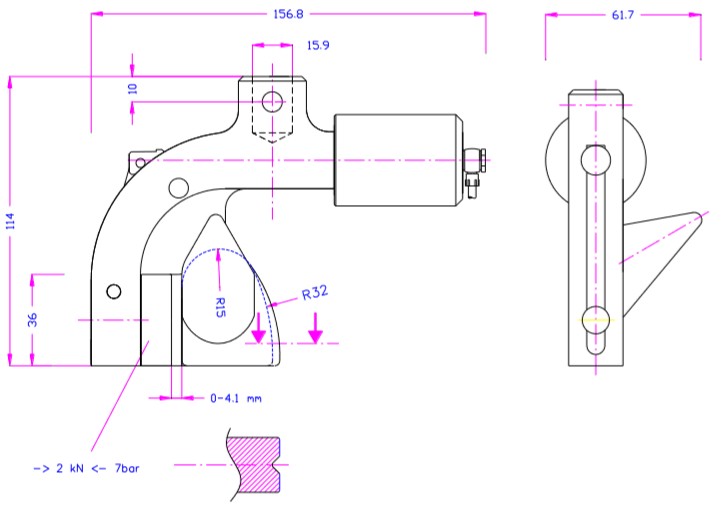

WTS13m, 2 kN @ 7 Bar, Samples up to 2 mm

Minimum Sample Length: 250 mm
Clamping Area: 12 x 36 mm
Body: Anodized Aluminum
Weight, Including Jaws: 0.59 kg per Grip
Note:  Grip Faces sold separately

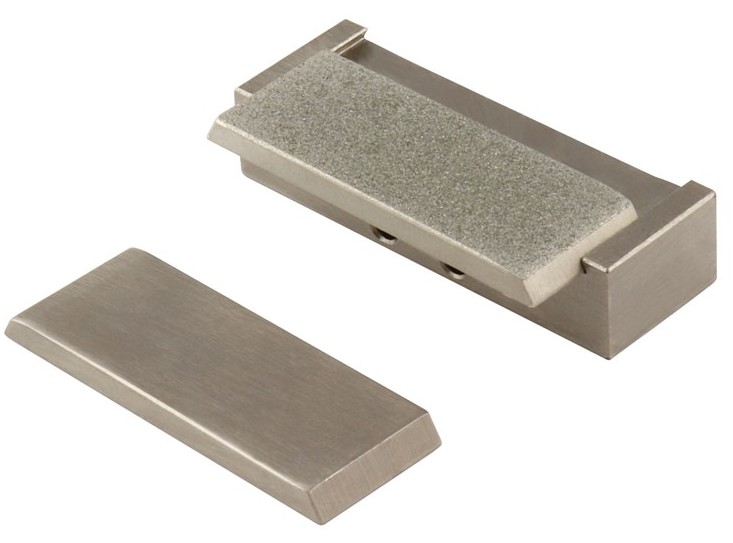

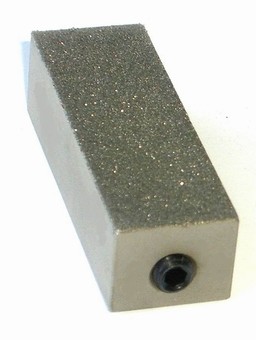

WTS13 Grip Face Options:

















Blank Surface
    (Smooth)



















Diamond Surface
      (Feels like sand paper)



















Pyramid Surface
     (Also called "Cross Cut")



















Rubber Coated Faces




















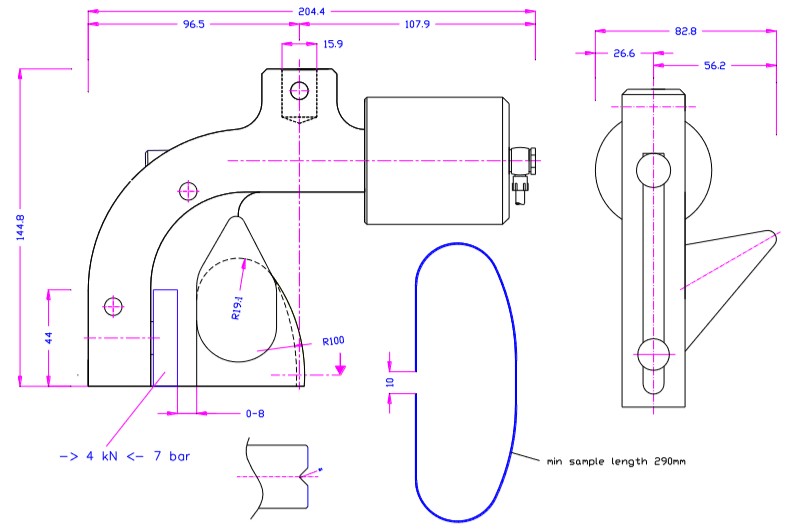

WTS13g, 5 kN @ 7 Bar, Samples up to 3 mm

Minimum Sample Length: 300 mm
Clamping Area: 15 x 44 mm
Body: Anodized Aluminum
Weight, Including Jaws: 1.25 kg per Grip
Note:  Grip Faces sold separately
















Click Here for Sales or Support
