Ribbon Grips - Scroll down to see more.

For testing Metal Foils, Ribbons or Strapping etc.,
If you have a special application please let us know.
We are here to help.  Please feel free to call or email (Click Here).
Note: All fixtures are not listed. Please contact our office if you don't find what you need.



Click Here for Sales or Support

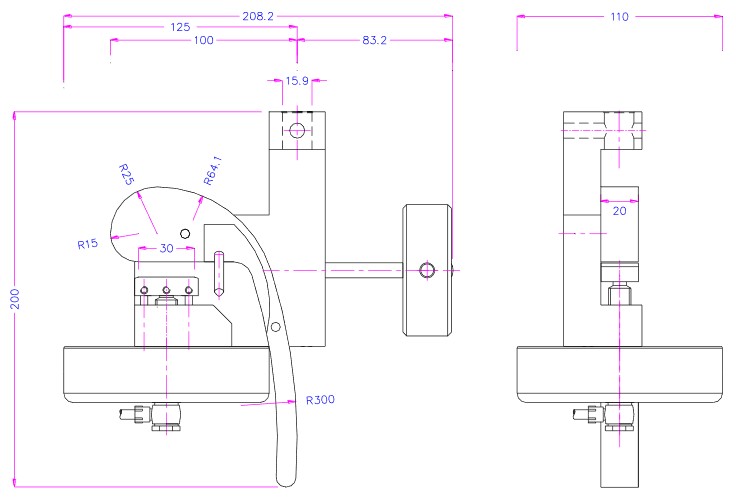

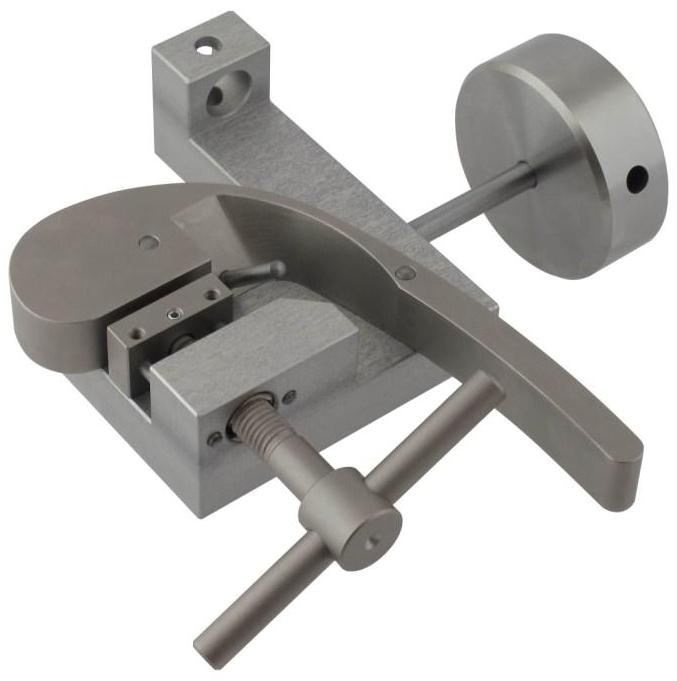

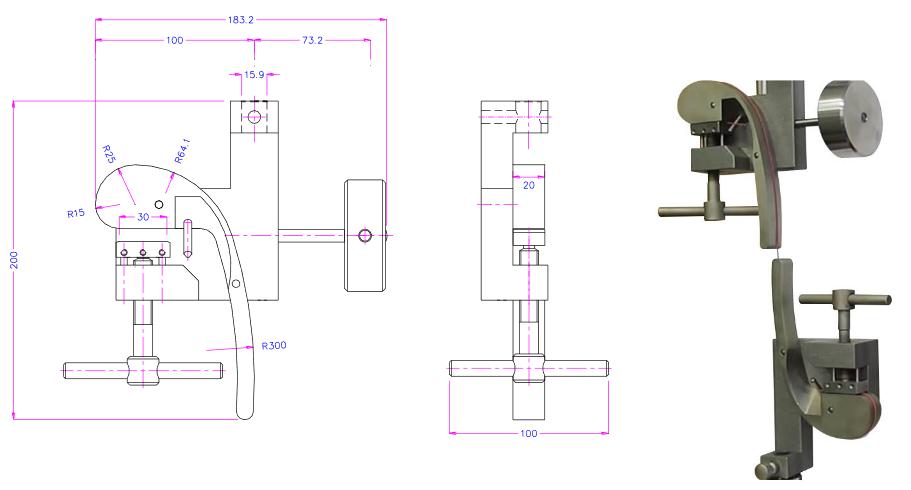

WTS375-5 Small Ribbon Capstan Bollard Grip
Clamping force up to 5 kN

Easy to use /  bollard style mechanical grip for light ropes, cords, yarn, etc.


Part Number
WTS375-5
Clamping Force
5 kN
Samples
Rope : 0 - 3 mm
Ribbon Width Max. 20mm
Temperature Range
* 0C ... +70C
Bollard
Steel
Body
Andodized Aluminum
Weight
Top Grip w/ Counter weight 2.2 kg
Lower Grip 1.3 kg
WTS375-5 Specifications

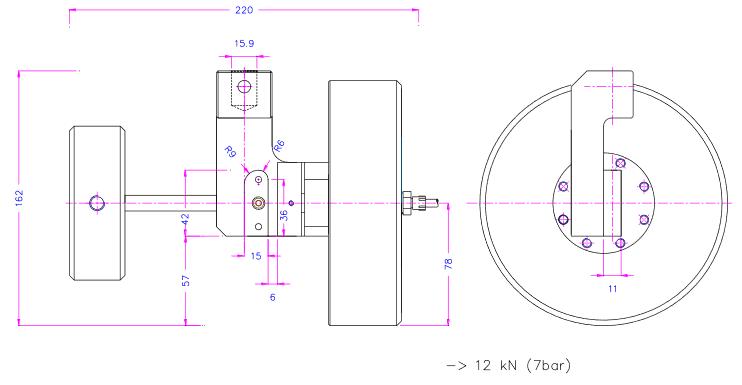

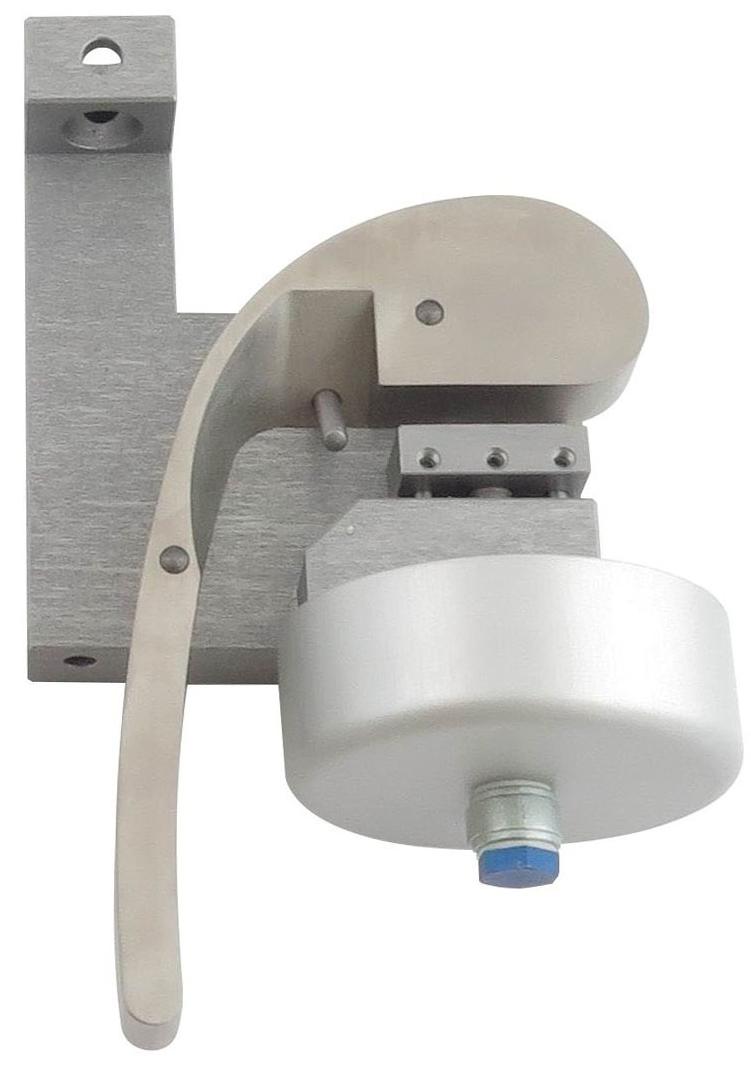

WTS375 - 5 + Ko Small Ribbon Pneumatic Bollard Grip
Clamping force 2.6 kN @ 7 Bar Pressure

Easy to use /  bollard style mechanical grip for light ropes, cords, yarn, etc.,


Part Number
WTS375-5
Clamping Force
5 kN
Samples
Rope : 0 - 3 mm
Ribbon Width Max. 20mm
Temperature Range
* 0C ... +70C
Bollard
Steel
Body
Andodized Aluminum
Weight
Top Grip w/ Counter weight 2.2 kg
Lower Grip 1.3 kg
WTS375-5 + Ko Specifications

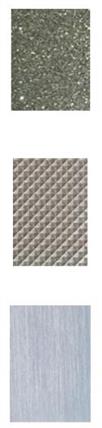

Diamond jaws 30 x 20 mm
30 x 20 mm (0.06 kg / Set)
Pyramid jaws 30 x 20 mm
30 x 20 mm (0.06 kg / Set)
Plain jaws 30 x 20 mm
30 x 20 mm (0.06 kg / Set)
Diamond jaws 30 x 20 mm
30 x 20 mm (0.06 kg / Set)
Pyramid jaws 30 x 20 mm
30 x 20 mm (0.06 kg / Set)
Plain jaws 30 x 20 mm
30 x 20 mm (0.06 kg / Set)
Includes tubing and fittings!

Click here for Pneumatic Accessories

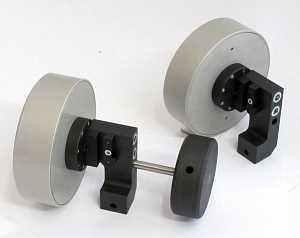

WT77-110 Ribbon Grips









WT77-110 Ribbon Grips

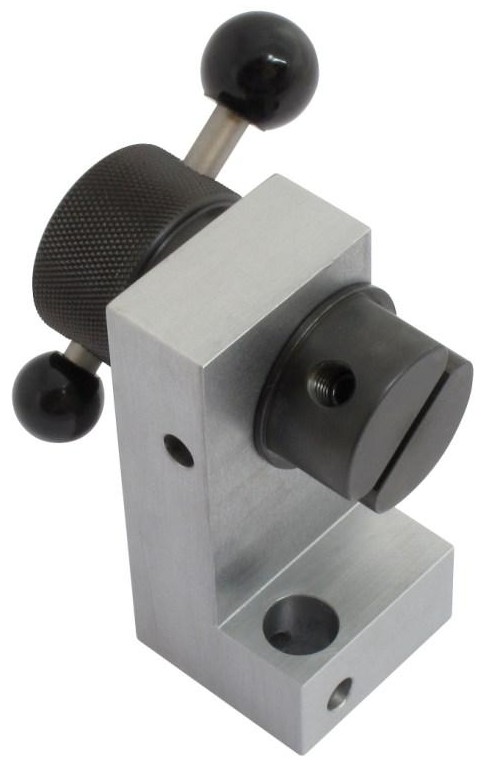

WTS820 Pneumatic Ribbon Grip
For testing plastic or thin steel strips, etc.,

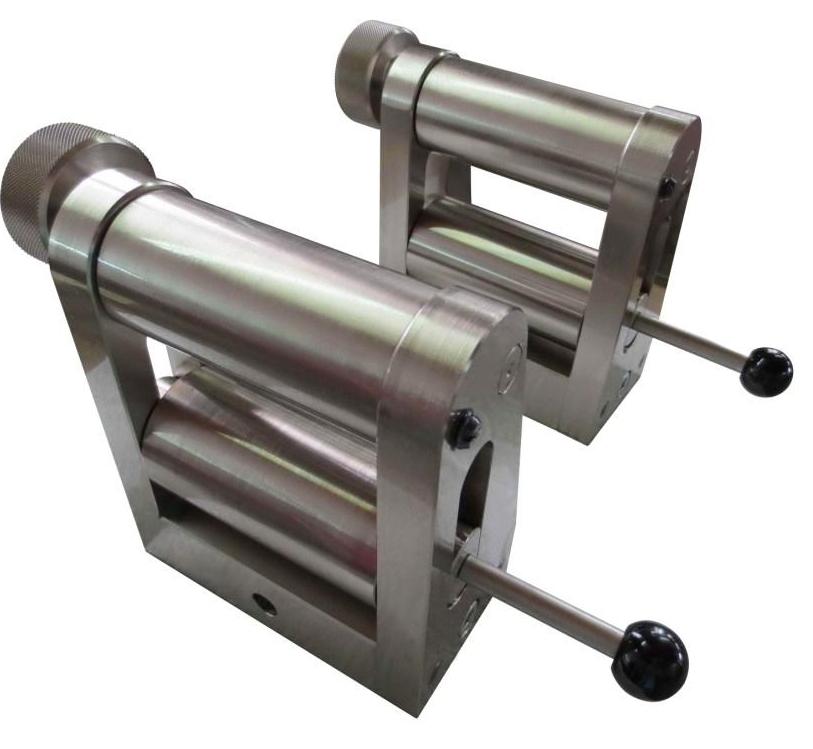

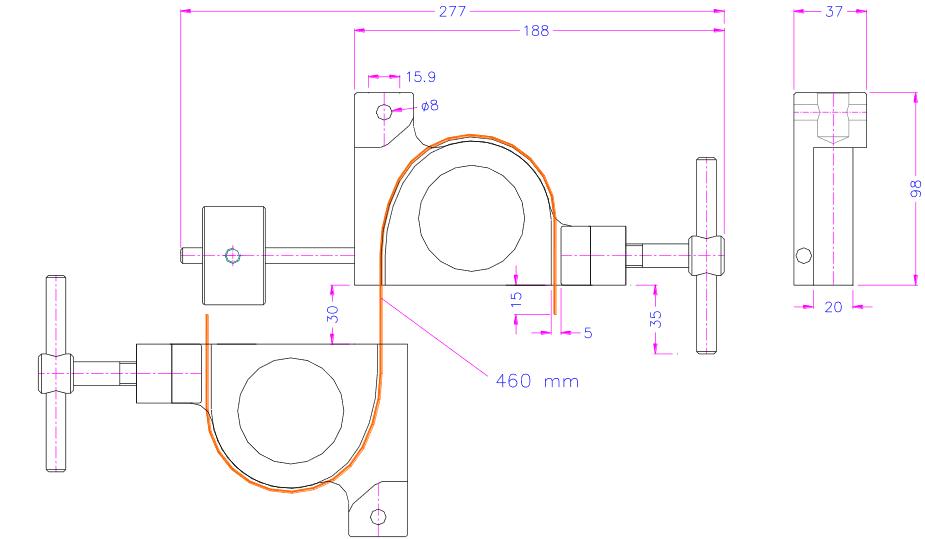

This Section:  WT172 Capstan Ribbon Grips (Manual & Pneumatic)
For testing foils, ribbons, straps, etc.
Available in Manually Operated or Pneumatic Versions
Temperature Range: 0  to +180C







Part Number
WT172-20
Connection
15.9 or 20 mm
Max Sample Width
20 mm
Min Sample Length
460 mm
Jaw Surface
Plain (Smooth) or Diamond Coated
Clamping Area
30 x 20 mm
Body
Nickel Plated Steel
Weight Each Grip
with Jaws
Upper Grip with counter weight 2.3 kg
Lower Grip 1.45 kg

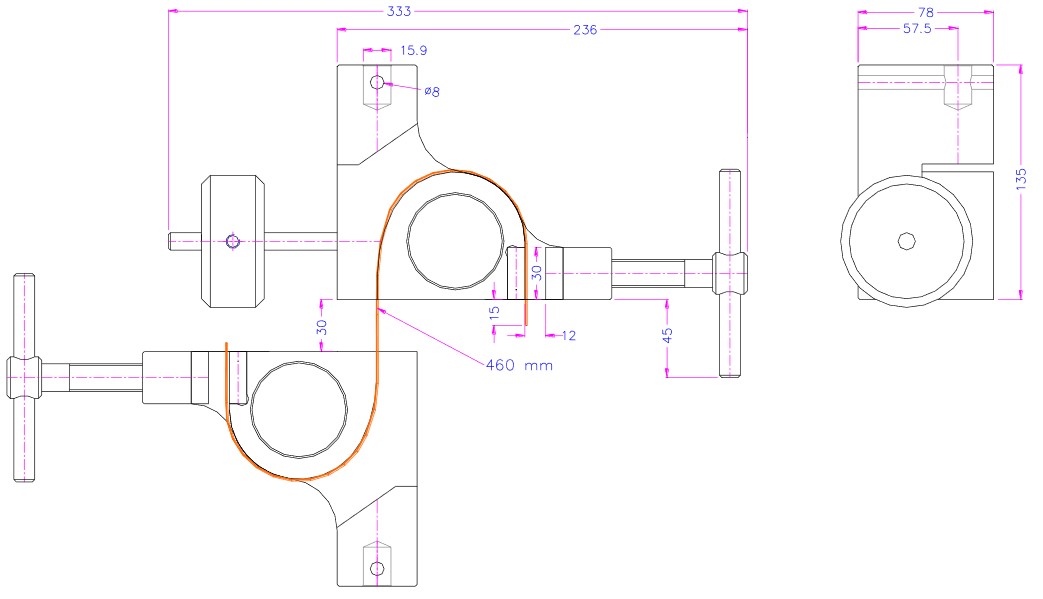

WT172 - 20 Specifications Max Load 20 kN (Manually Operated)
Part Number
WT172-40
Connection
15.9 or 31.8 mm
Max Sample Width
40 mm
Min Sample Length
460 mm
Jaw Surface
Plain (Smooth) or Diamond Coated
Clamping Area
30 x 40 mm
Body
Nickel Plated Steel
Weight Each Grip
with Jaws
Upper Grip with counter weight 6.35 kg
Lower Grip 5.15 kg

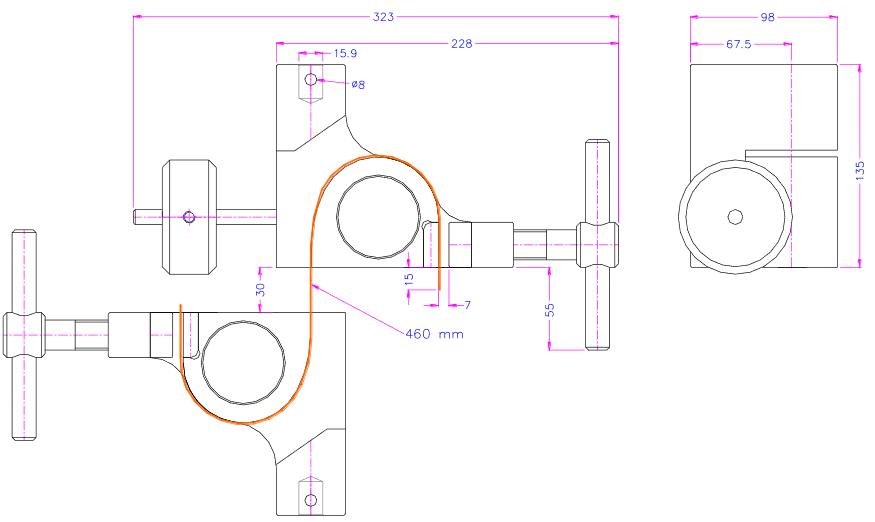

WTS172 - 40 Specifications (2 Coupling Options)
Max Load 20kN  with 15.9 mm Coupling
Max Load 50kN  with 31.8 mm Coupling

Additional Coupling options possible
Click here to see our Adapters Page

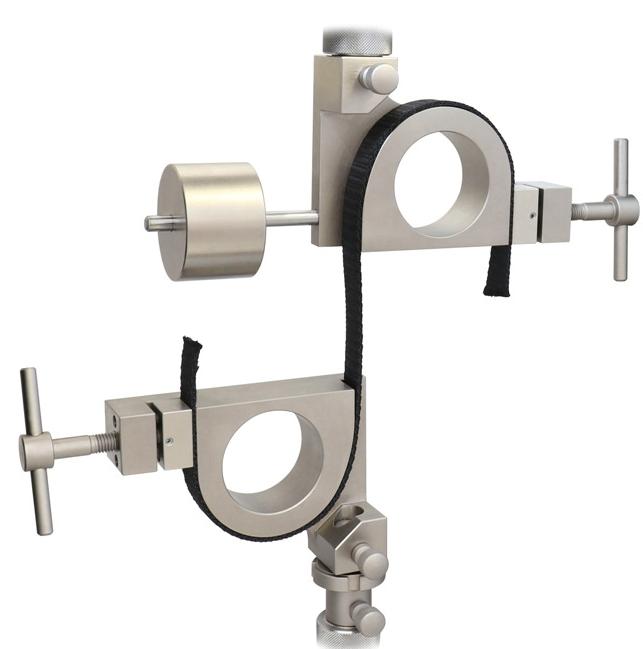

WT172 - 20

WT172 - 40

Part Number
WT172-60
Connection
31.8 mm
Max Sample Width
60 mm
Min Sample Length
460 mm
Jaw Surface
Plain, Pyramid or Diamond Coated
Clamping Area
30 x 60 mm
Body
Nickel Plated Steel
Weight Each Grip
with Jaws
Upper Grip with counter weight 6.78 kg
Lower Grip 5.58 kg

WT172 - 60 Specifications
Max Load 50kN

Additional Coupling options possible
Click here to see our Adapters Page


WT172 - 60

Part Number
WT172-P
Connection
15.9 mm
Max Sample Width
60 mm
Min Sample Length
460 mm
(Max 4 mm Sample Thickness)
Jaw Surface
Plain, Pyramid, Rubber
or Diamond Coated
Clamping Area
30 x 60 mm
Body
Nickel Plated Steel
Weight Each Grip
with Jaws
Upper Grip with counter weight 8.4 kg
Lower Grip 5.7 kg

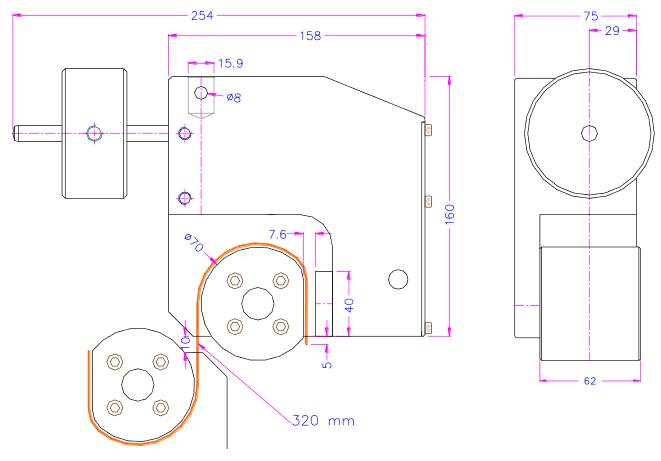

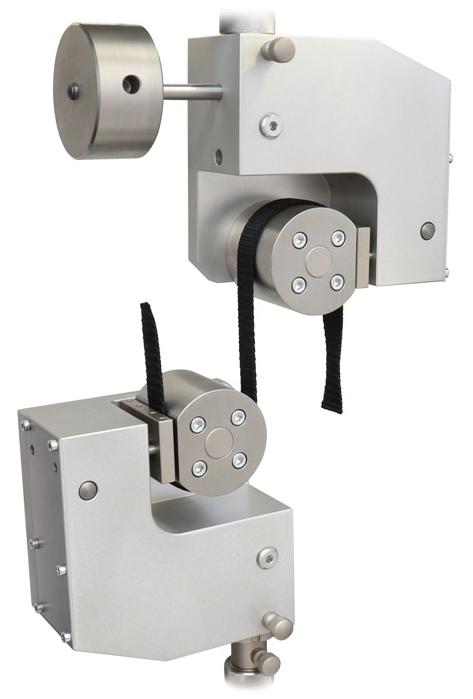

WT172P Specifications Pneumatic Version
Max Clamping Force 7kN @ 7 Bar

Additional Coupling options possible
Click here to see our Adapters Page
