Pneumatic Grips - Scroll down to see more.

Purchase includes tubes, connections, a helpful installation guide and support!
If you have a special application please let us know.
We are here to help.  Please feel free to call or email (Click Here).
Note: All fixtures are not listed. Please contact our office if you don't find what you need.

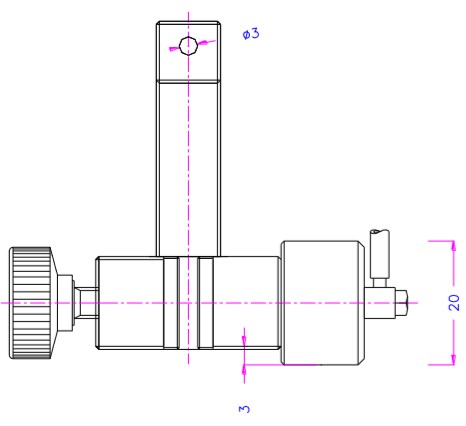

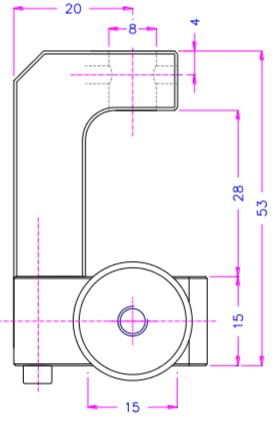

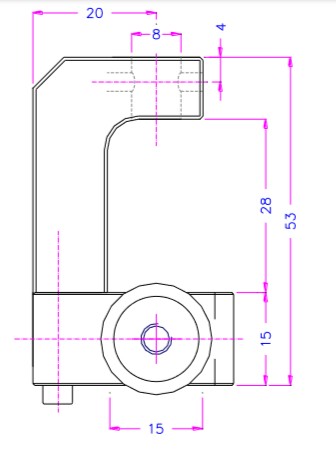

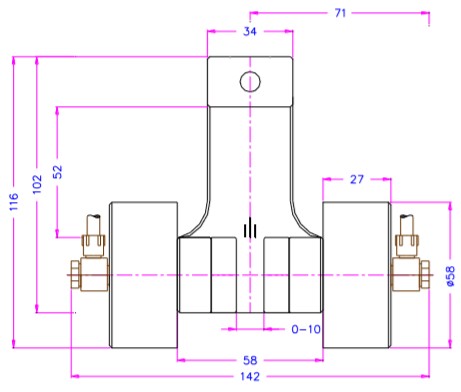

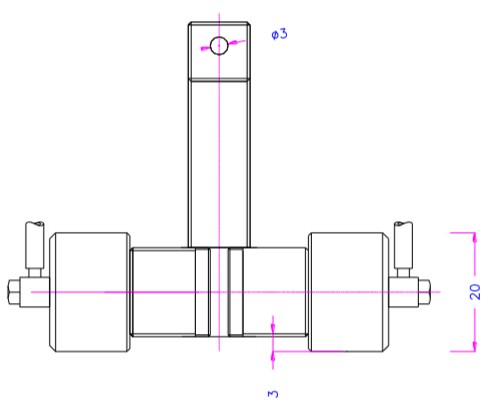

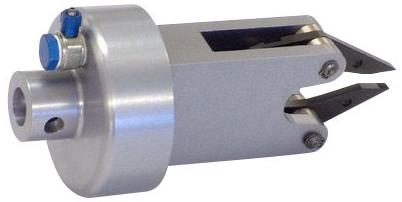

WT140K Pneumatic Grip
Available with one or two cylinders
Clamping force:  140N @ 7 bar (101.5 psi)

Coupling: 8 mm or 15.9 mm socket (other connections possible, Click for Adapters Page)
Jaw size:  15mm x 15mm  Click for Accessories Page
Opening 0-8mm depending on type of faces (pyramid jaws standard)
Body:  anodized aluminum
Weight: About 73g, depending on configuration









WT140k+Ko
WT140k+2Ko

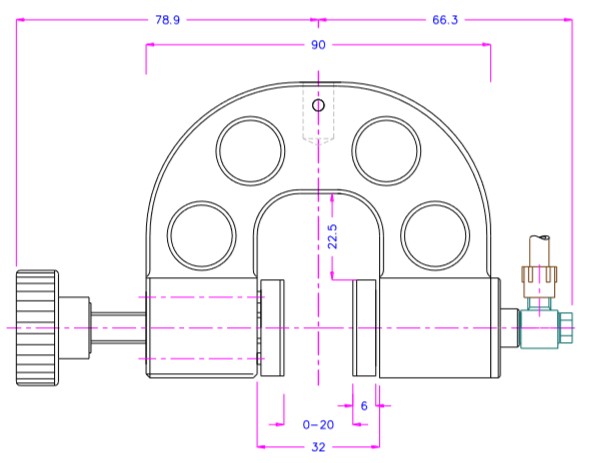

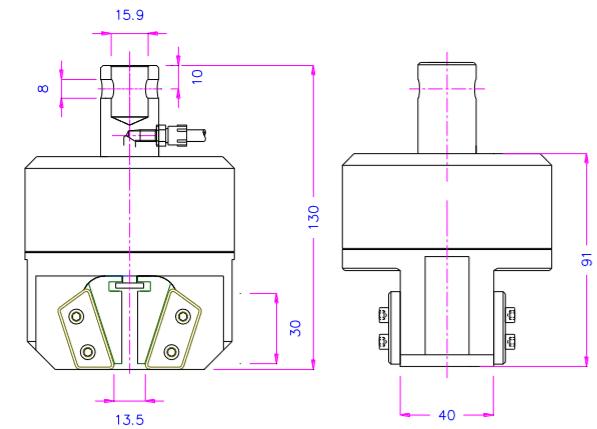

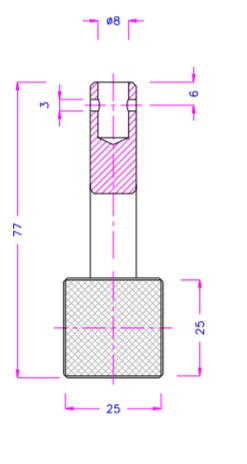

WT94 Pneumatic Grip
Small - light weight
Clamping force:  200N @ 7 bar (101.5 psi)

Connection: 15.9 mm socket (other connections possible, see our Adapters Page)
Body:  anodized aluminum
Weight about 240g each, depending on configuration









Face Part #
Jaw Type
Size (H x W)
Opening
Weight
WT94-B
Blank
25 x 25 mm
0-20 mm
53 gram
WT94-BG
Rubber
25 x 25 mm
0-18 mm
56 gram
WT94-BP
Pyramid
25 x 25 mm
0-20 mm
49 gram
WT94-BD
Diamond
25 x 25 mm
0-20 mm
54 gram
WT94-B
Blank
25 x 50 mm
0-20 mm
111 gram
WT94-BG50
Rubber
25 x 50 mm
0-18 mm
114 gram
WT94-BP50
Pyramid
25 x 50 mm
0-20 mm
104 gram
WT94-BW50
Wave
25 x 50 mm
0-16 mm
128 gram
WT94-BD50
Diamond
25 x 50 mm
0-20 mm
112 gram
WT94-B254x762
Blank
25.4 x 76.2 mm
0-16 mm
234 gram
WT94-B254x762Ni
Blank
(Nickle Plated)
25.4 x 76.2 mm
0-16 mm
234 gram
WT94-BG254x762
Rubber
25.4 x 76.2 mm
0-14 mm
240 gram
WT94-BP254x762
Pyramid
25.4 x 76.2 mm
0-16 mm
216 gram
WT94 Jaw Information:
Click here for Adapter Options
Click here for Adapter Options

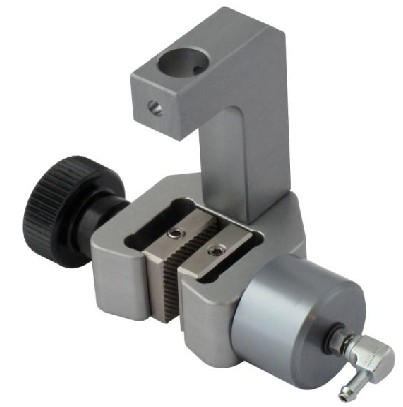

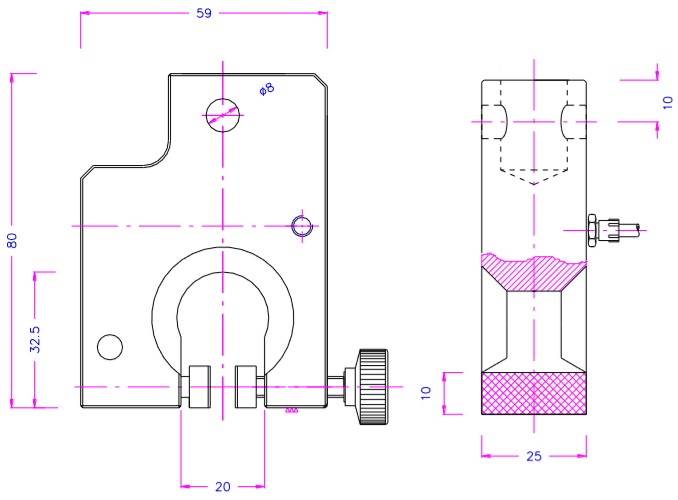

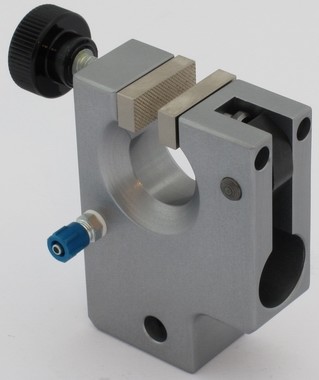

WT229 Pneumatic Grip
Small - light weight
Clamping force:  1KN @ 7 bar (101.5 psi)

Connection: 15.9 mm socket (other connections possible, see our Adapters Page)
Body:  anodized aluminum
Weight About 250g each depending on configuration









Part Number
Jaw Type
Size (H x W)
Opening
Weight per Pair
WT229-B25
Blank
10 x 25 mm
0 - 8 mm
18 grams
WT229-BG25
Rubber
10 x 25 mm
0 - 6 mm
19 grams
WT229-BP25
Pyramid
10 x 25 mm
0 - 8 mm
17 grams
WT229-BW25X25
Wave
25 x 25 mm
0 - 6 mm
48 grams
WT229-BD25
Diamond
10 x 25 mm
0 - 8 mm
18 grams
WT229-B50
Blank
10 x 50 mm
0 - 6 mm
46 grams
WT229-BG50
Rubber
10 x 50 mm
0 - 4 mm
48 grams
WT229-BP50
Pyramid
10 x 50 mm
0 - 6 mm
43 grams
WT229-BW50x25
Wave
25 x 50 mm
0 - 6 mm
100 grams
WT229-BD50
Diamond
10 x 50 mm
0 - 6 mm
46 grams
WT229-B100
Blank
10 x 100 mm
0 - 6 mm
92 grams
WT229-BG100
Rubber
10 x 100 mm
0 - 4 mm
95 grams
WT229-BP100
Pyramid
10 x 100 mm
0 - 6 mm
86 grams
WT229-BD100
Diamond
10 x 100 mm
0 - 6 mm
92 grams
WT229 Jaw Information:

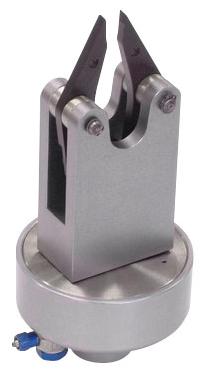

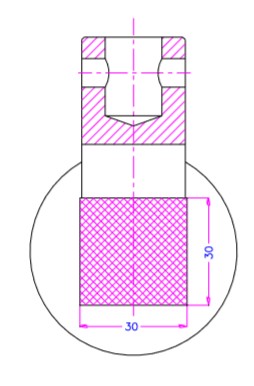

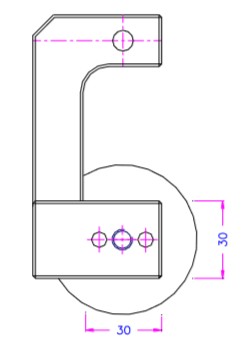

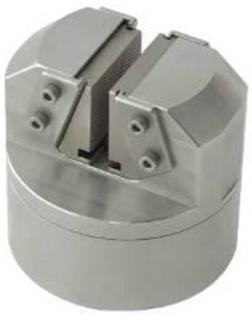

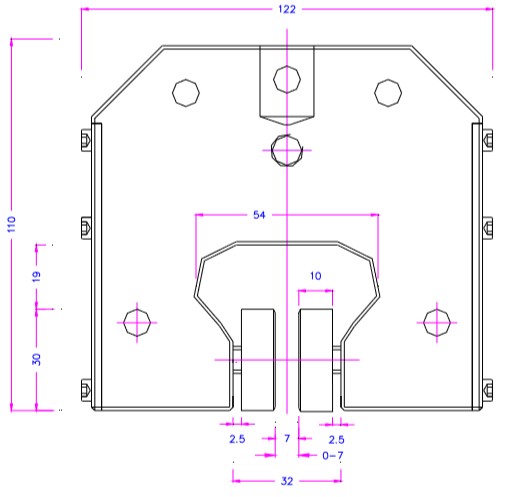

WT56 + Ko And WT56 + 2Ko Pneumatic Grips
Small - light weight
Clamping force:  1.2KN @ 7 bar (101.5 psi)

Connection: 15.9 mm socket (other connections possible, see our Adapters Page)
Body:  anodized aluminum
Weight about 1.02kg or 1.42 kg each, depending on configuration

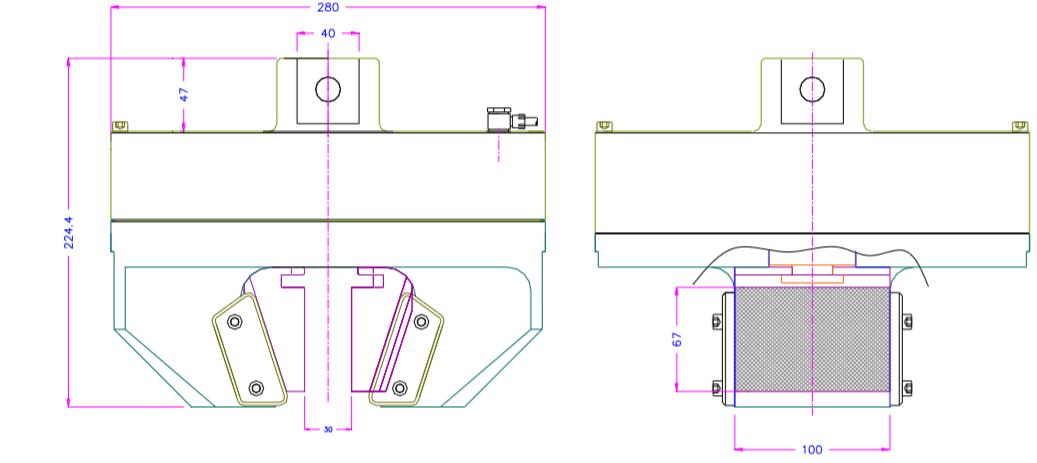

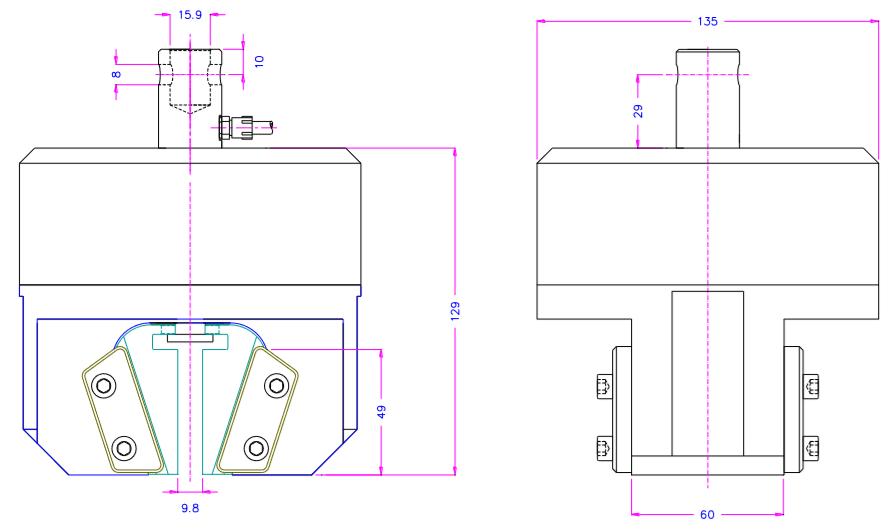

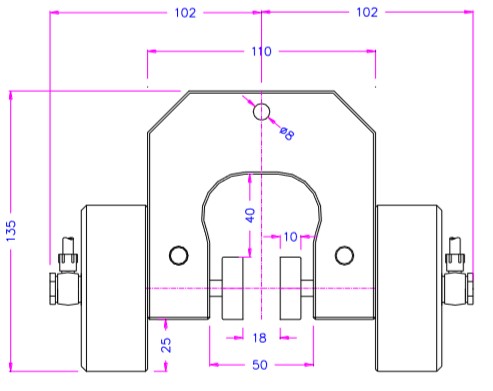

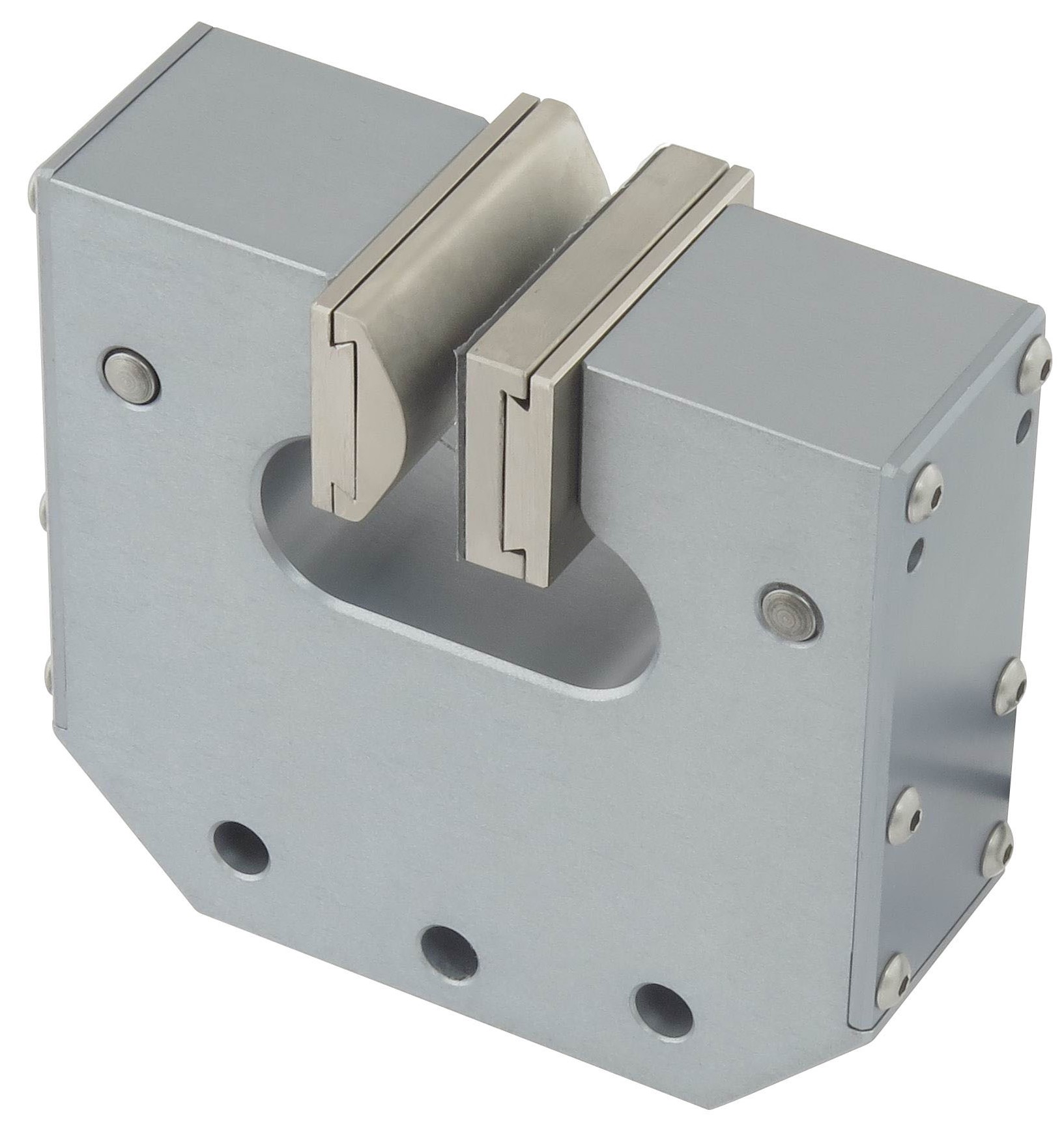

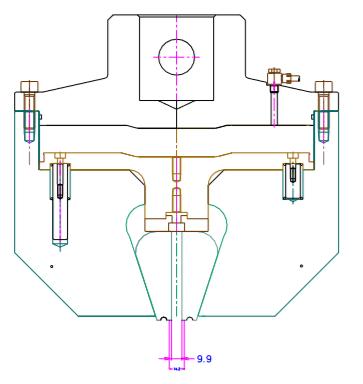

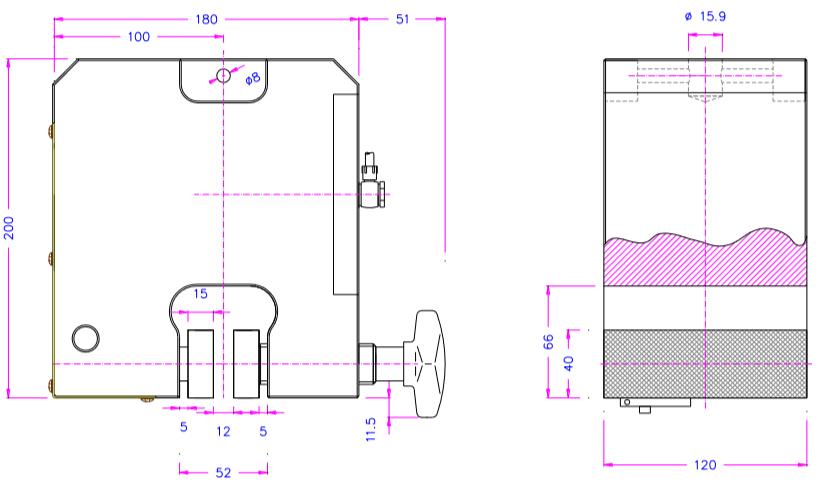

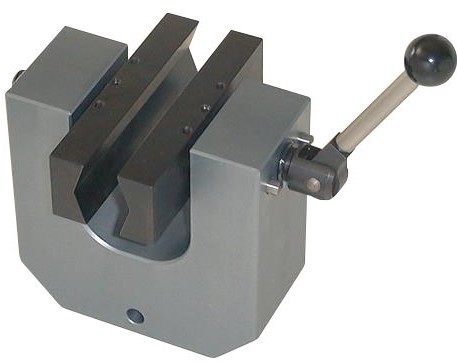

WT240G + Ko And WT240G +2Ko Pneumatic Grips
Open design allows wide faces
Clamping force @ 7 bar (101.5 psi):  2.6 kN
Clamping force @ 16 bar (232 psi): 5.9 kN Click here for WT216 Compressor
Connection: 15.9 mm socket (other connections possible, Click here for Adapters Page
Body:  anodized aluminum
Weight with 1 cylinder is 1.55kg without faces (1.93kg with 2 cylinders)











Part Number
WT140-B
WT140-BG
WT140-BP
Jaw Type
Blank
Rubber
Pyramid
Size (H x W)
15 x 15 mm
15 x 15 mm
15 x 15 mm
Jaw Opening
0 - 8 mm
0 - 6 mm
0 - 8 mm
Weight Per Pair
14 grams
16 grams
14 grams

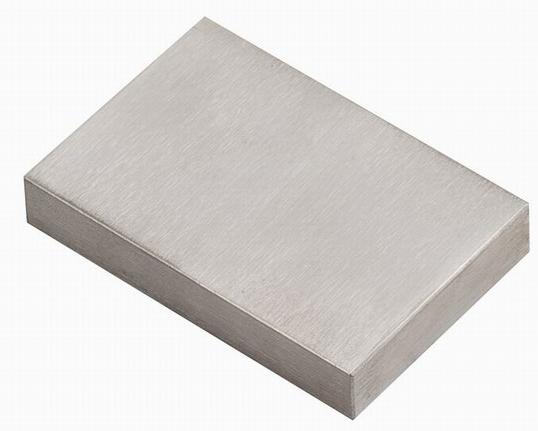

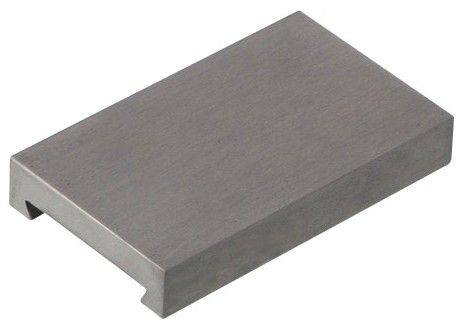

Blank or Smooth Jaws

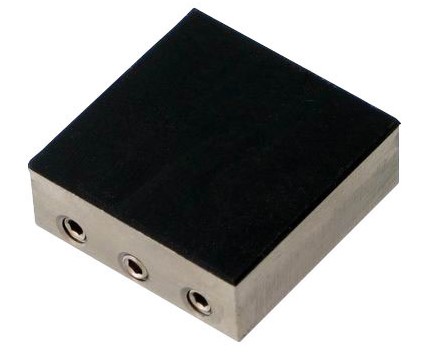

Rubber Jaws

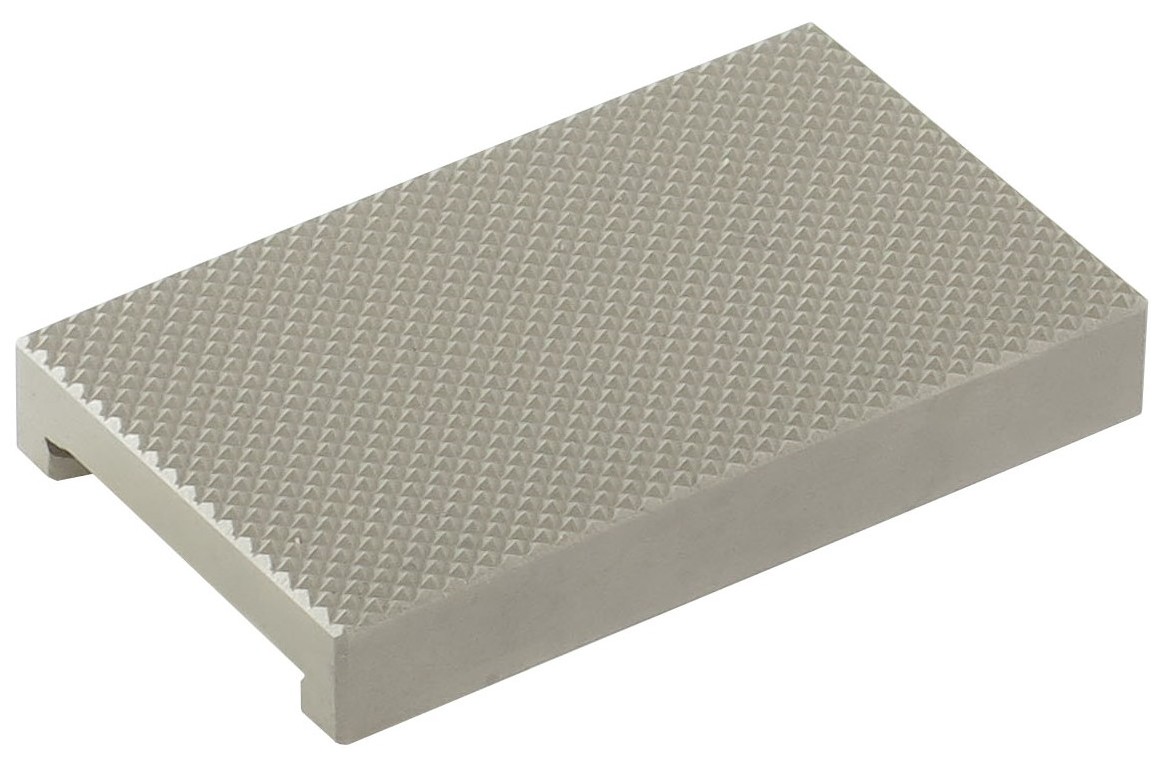

Pyramid Jaws

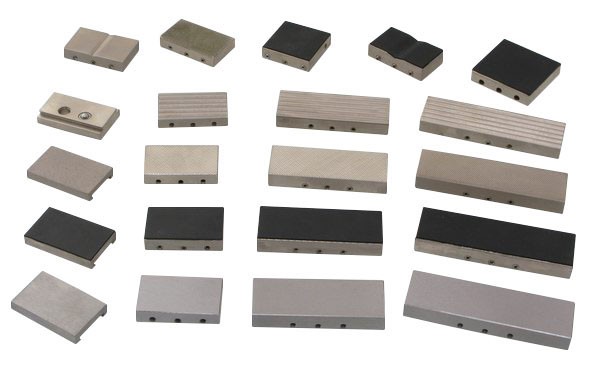

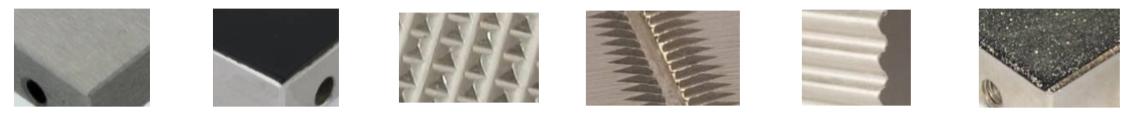

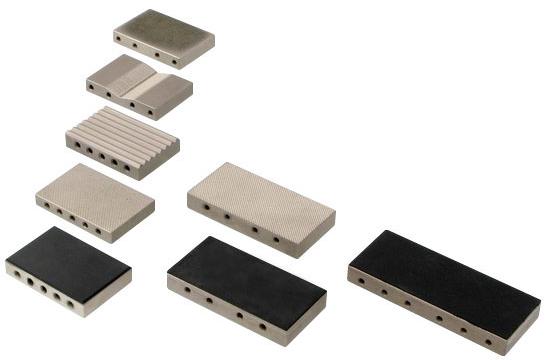

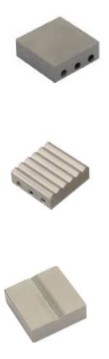

Optional Carrier for Quick changing of Faces  *requires carrier

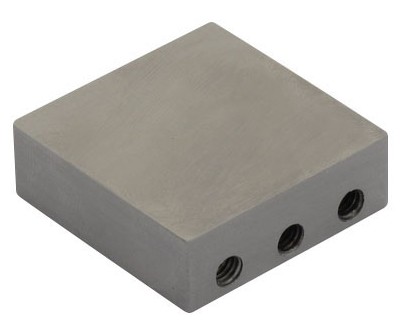

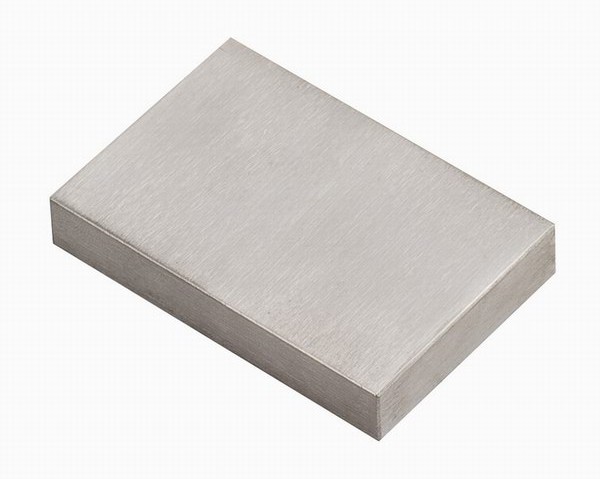

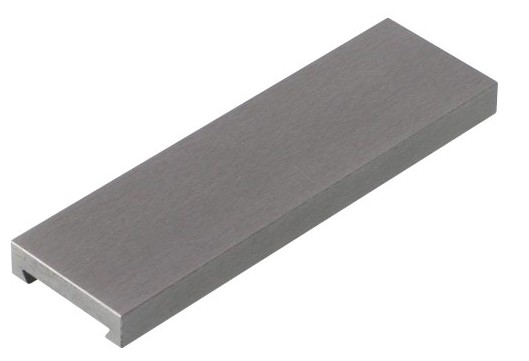

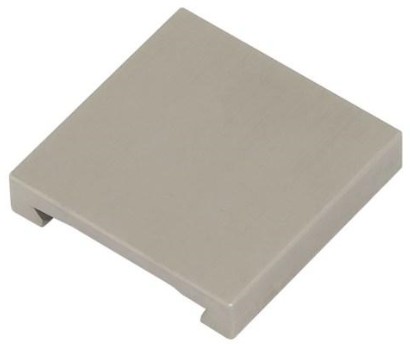

Blank Jaw

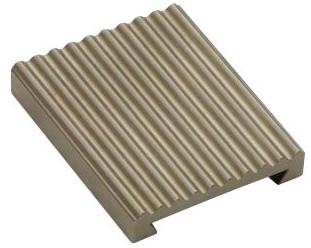

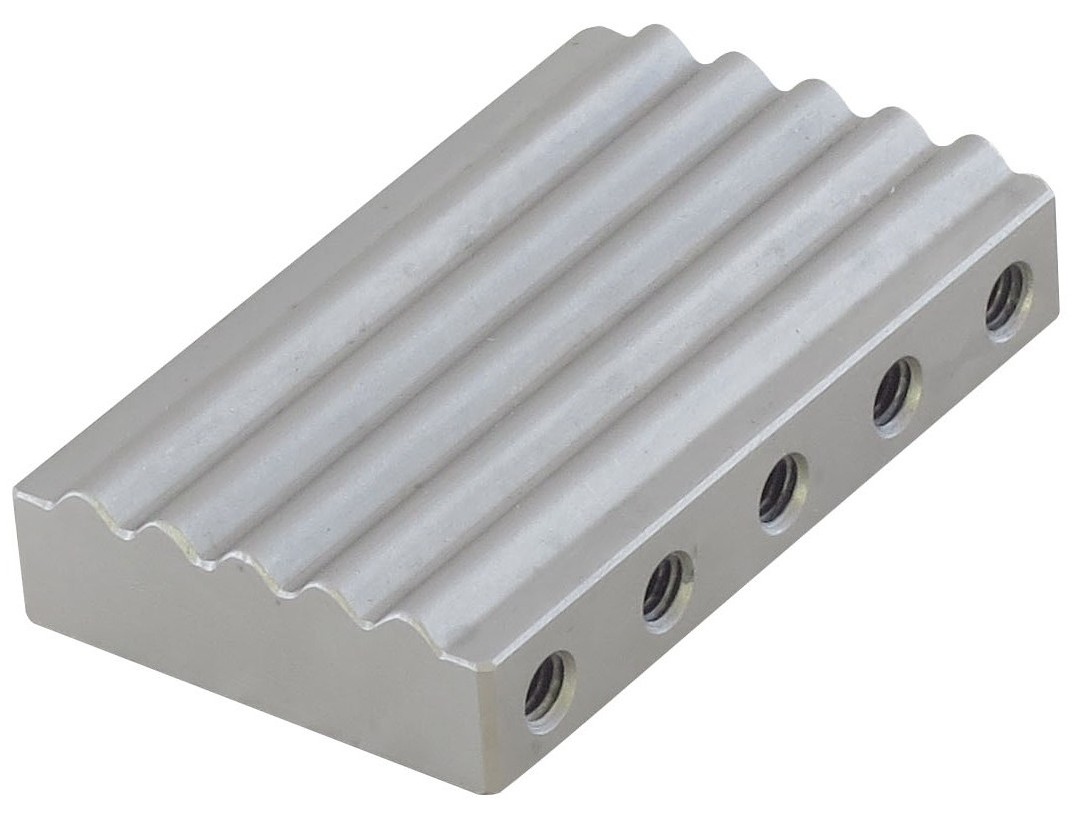

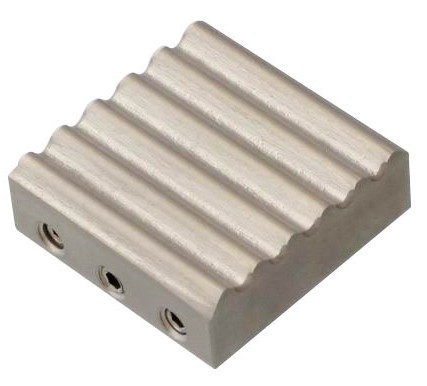

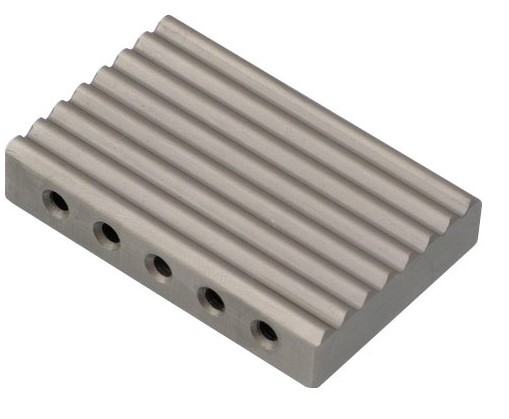

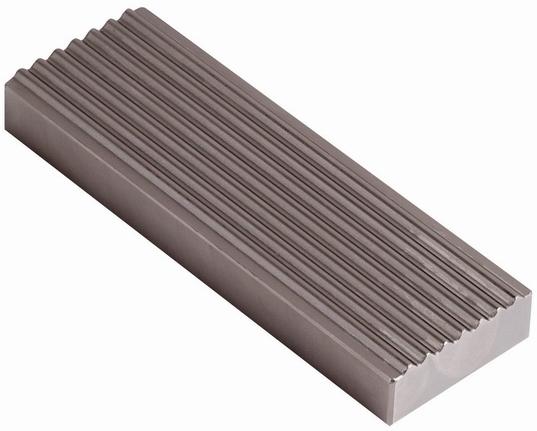

Wave Jaw

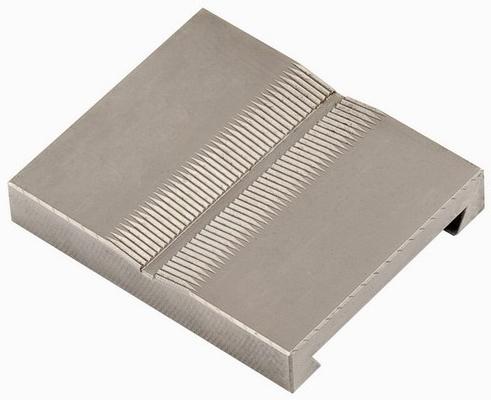

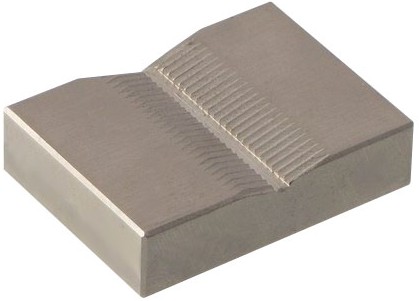

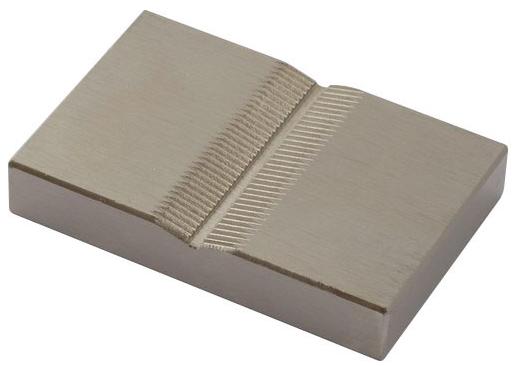

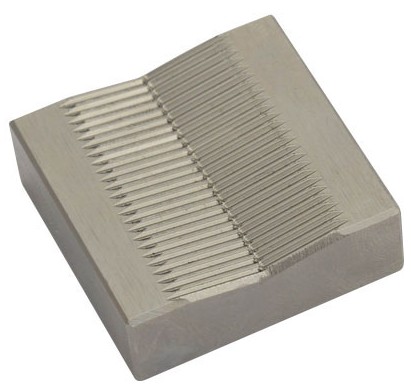

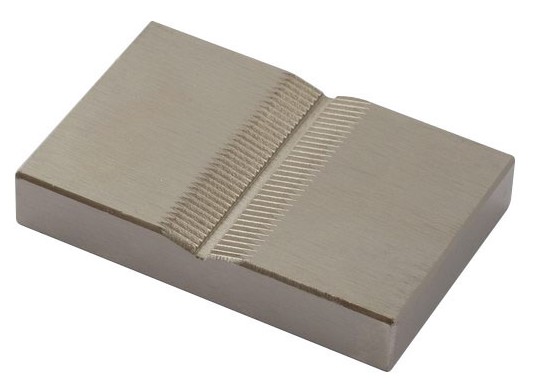

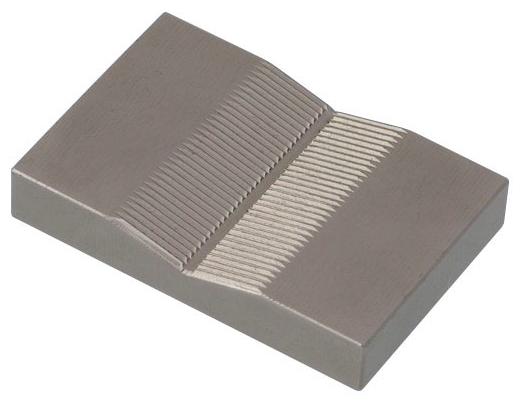

V Notch Jaw
For Round Samples

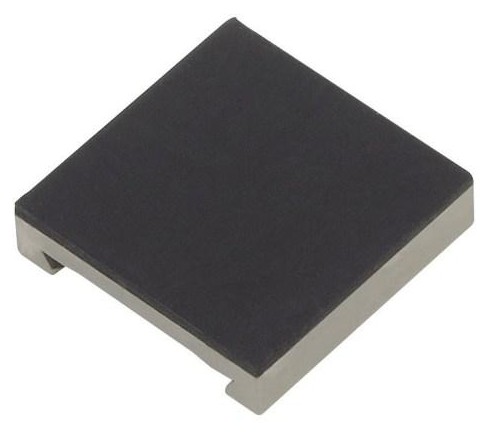

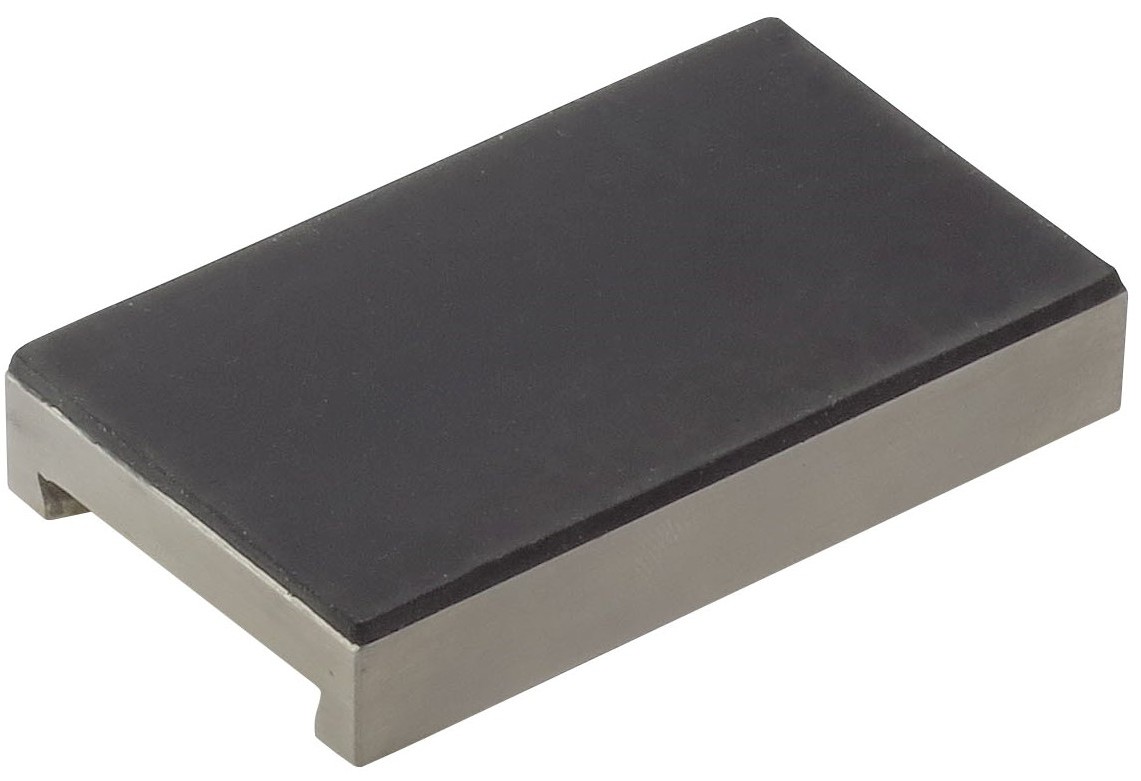

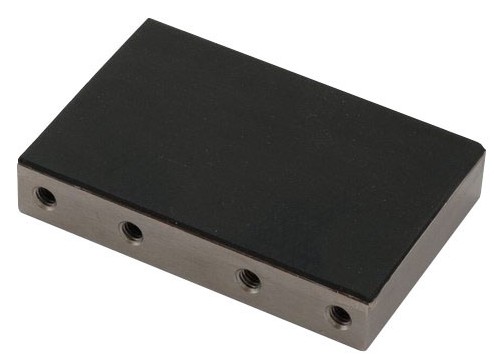

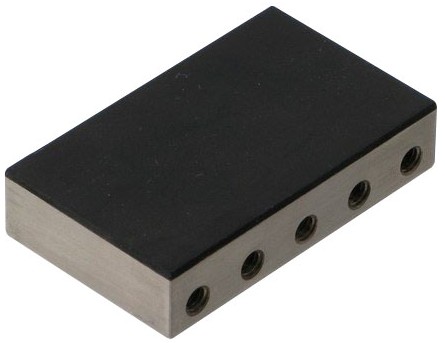

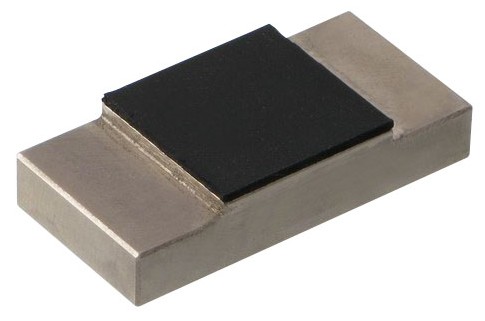

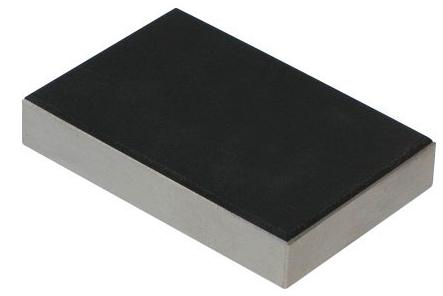

Rubber Jaw

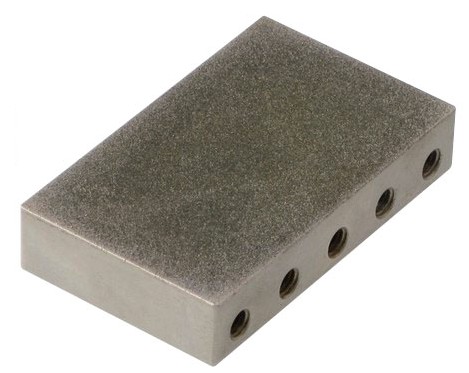

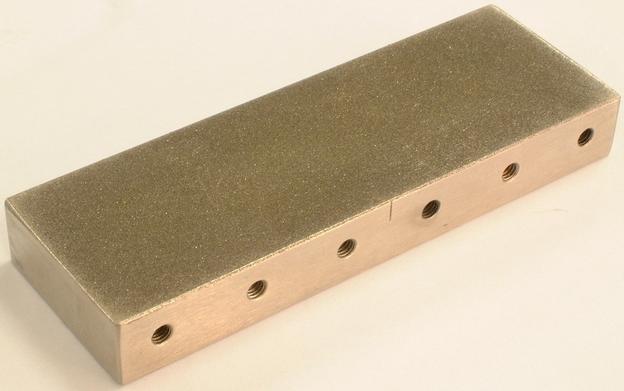

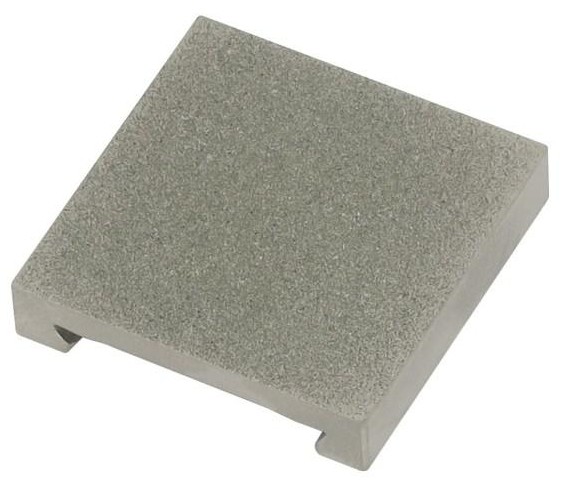

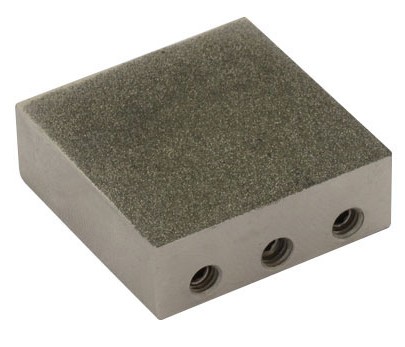

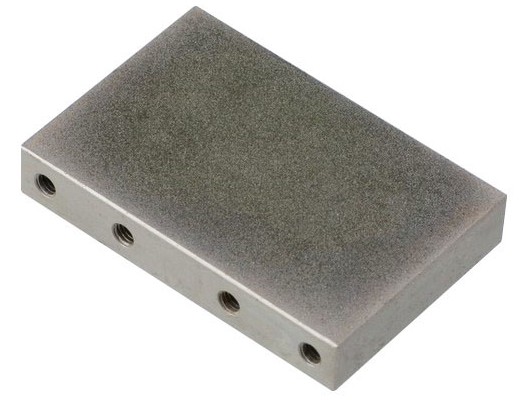

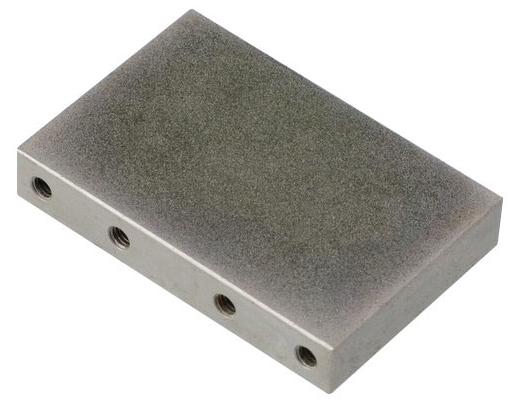

Diamond Coated Jaw

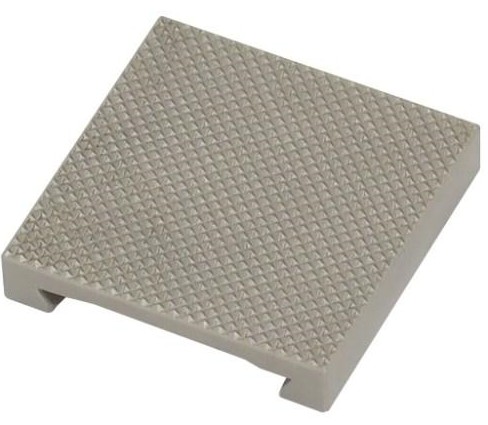

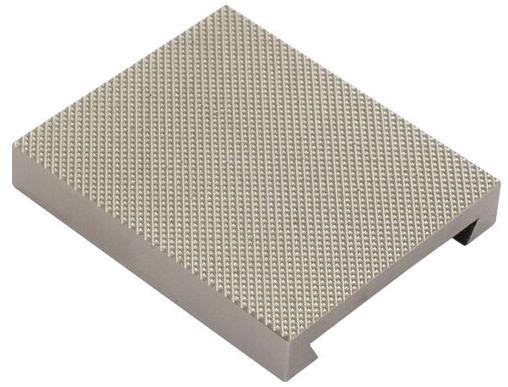

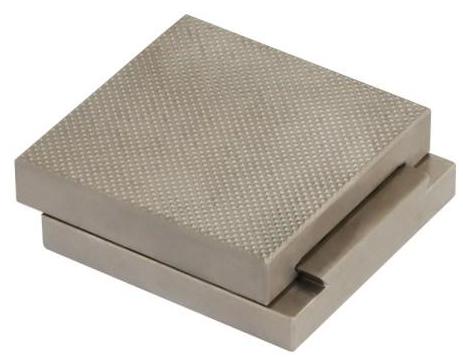

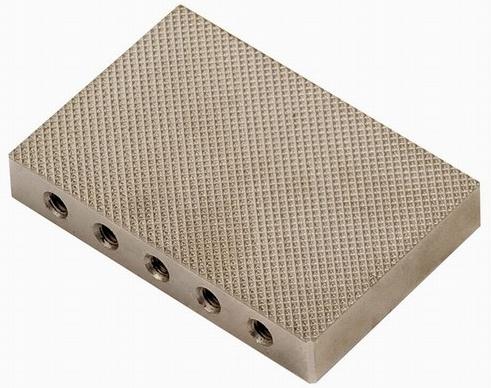

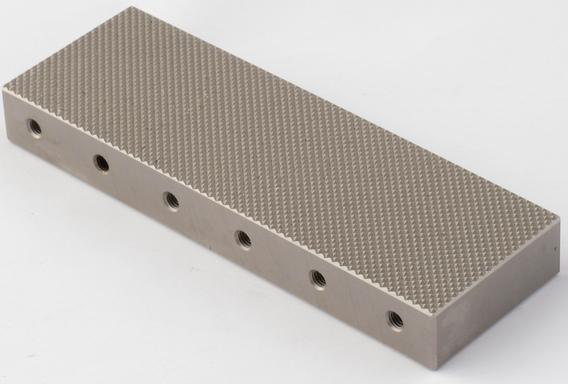

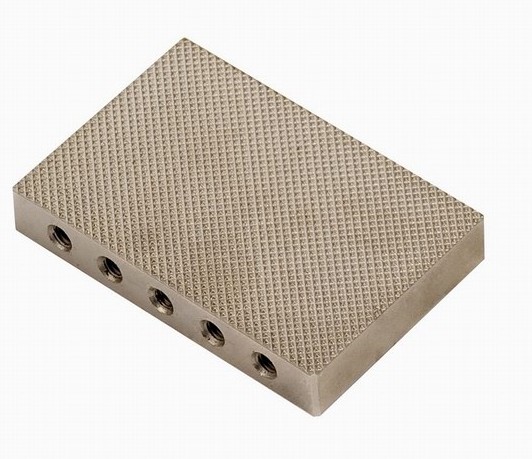

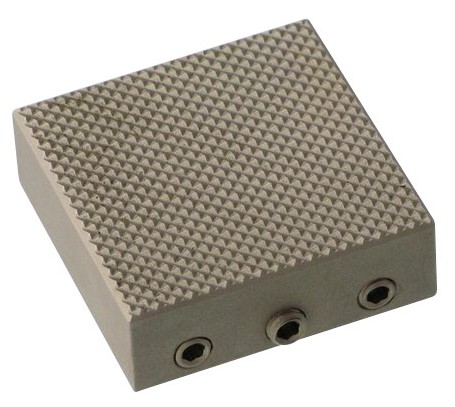

Pyramid Jaw
Part Number
Jaw Type
Size (H x W)
Opening
Weight Per Pair
WT56-B
Blank
30 x 30 mm
0 - 10 mm
130 grams
WT56-BG
Rubber
30 x 30 mm
0 - 8 mm
130 grams
WT56-BP
Pyramid
30 x 30 mm
0 - 10 mm
120 grams
WT56-BV2
V Jaws
30 x 30 mm
2 - 10 mm
130 grams
WT56-BV3
V Jaws
30 x 30 mm
3 - 10 mm
130 grams
WT56-BW
Wave
30 x 30 mm
0 - 10 mm
120 grams
WT56-BD
Diamond
30 x 30 mm
0 - 6 mm
130 grams
WT56 Jaw Information:
Part Number
Jaw Type
Size (H x W)
Opening
Weight Per Pair
WT56-GT30
(Carrier)
-
-
90 grams
WT56-EB
Blank
30 x 30 mm
0 - 7 mm
130 grams
WT56-EBG
Rubber
30 x 30 mm
0 - 5 mm
120 grams
WT56-EBP
Pyramid
30 x 30 mm
0 - 7 mm
120 grams
WT56-EBW
Wave
30 x 30 mm
0 - 7 mm
130 grams
WT56-EBD
Diamond
30 x 30 mm
0 - 7 mm
130 grams
-
-
-
-
-
WT56 Carrier & Insert Jaw Information:

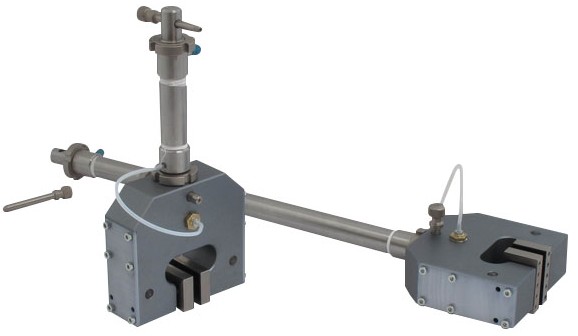

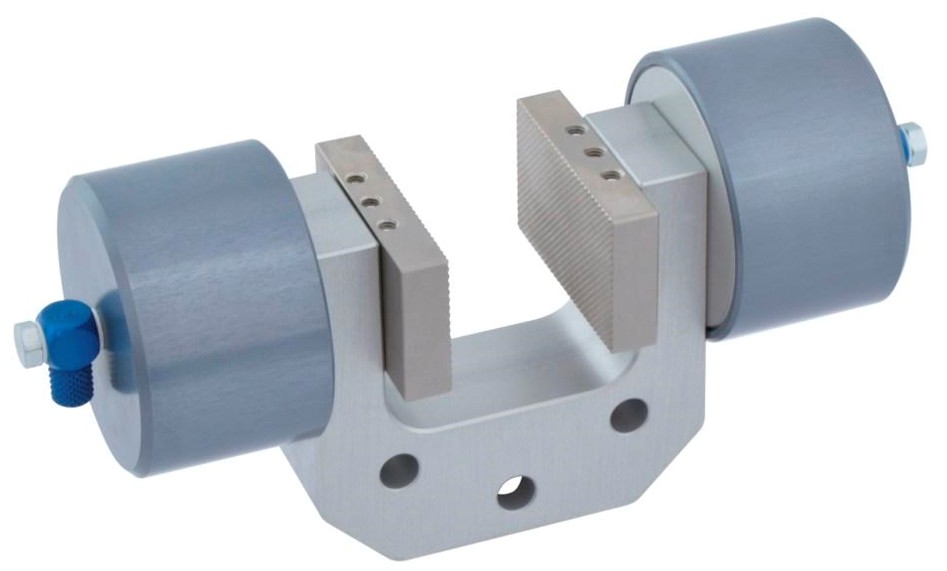

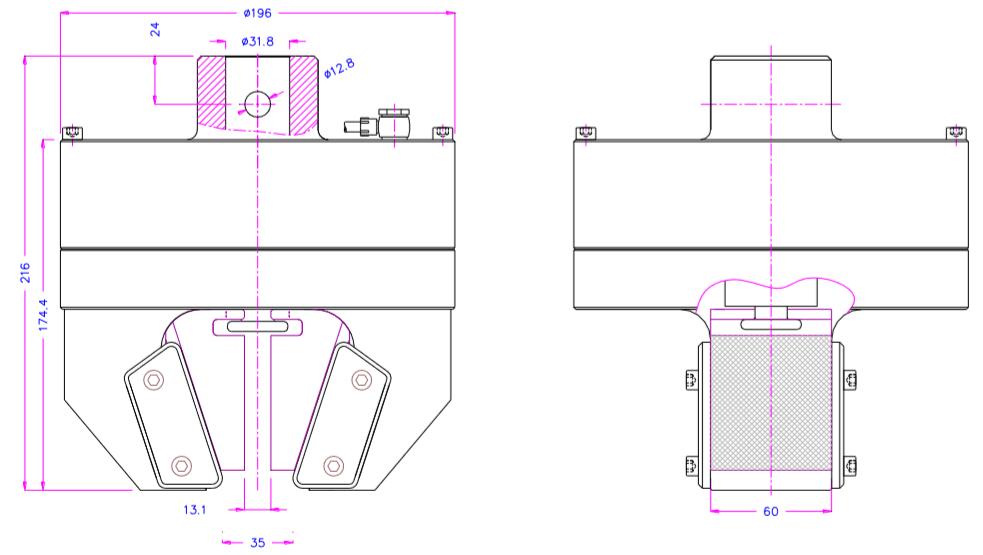

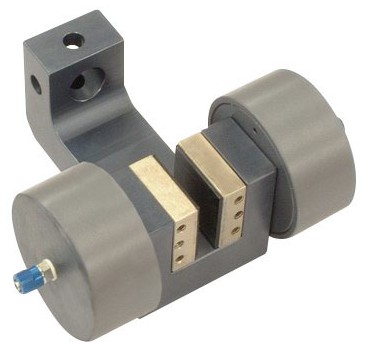

WT240K + Ko And WT240K +2Ko Pneumatic Grip Series
Open design allows wide faces
1 or 2 cylinders / series includes 10, 20, 30 or 50mm opening
Clamping Force @ 101.5 psi: 2.2 kN
Clamping Force @ 232 psi:  5KN Click Here for WT216 compressor
Coupling: 15.9 mm socket (other connections possible, Click here for Adapters Page)
Body:  anodized aluminum
Weight with 1 cylinder is 0.4kg without faces (0.6kg with 2 cylinders)

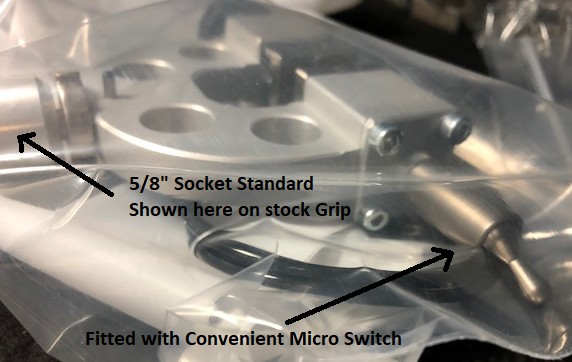

This Item can use Micro Switch Controls!
This Item can use Micro Switch Controls!
This Item can use Micro Switch Controls!

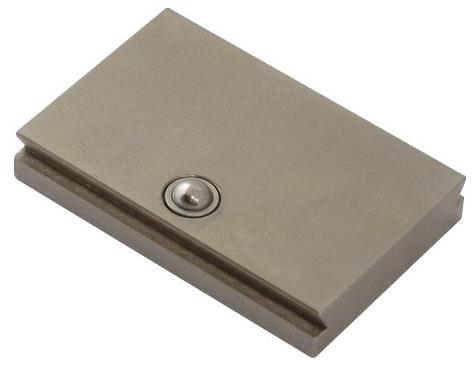

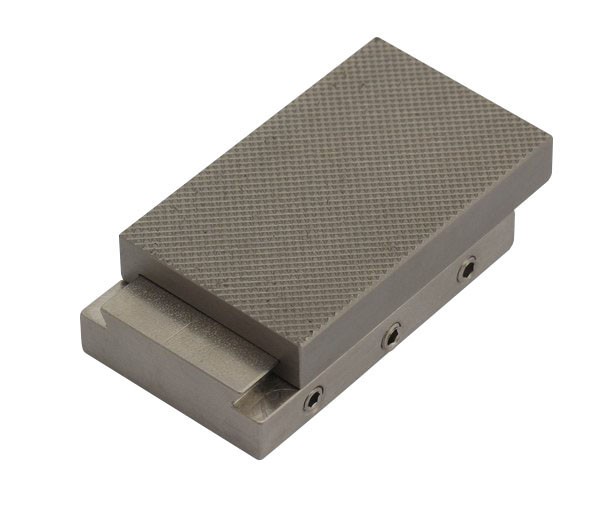

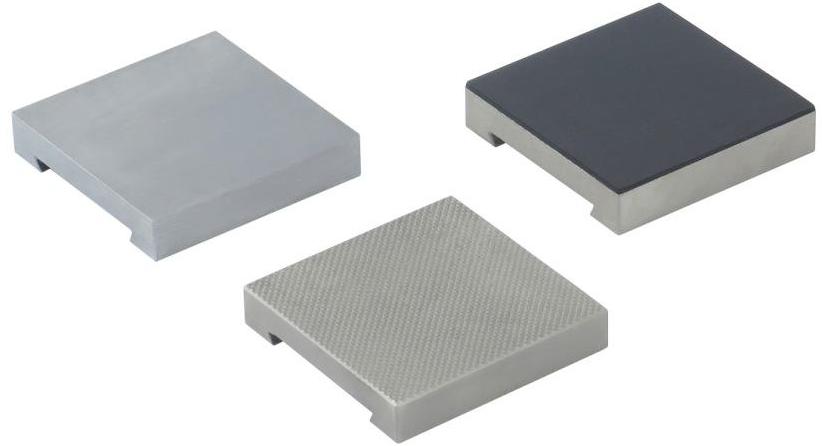

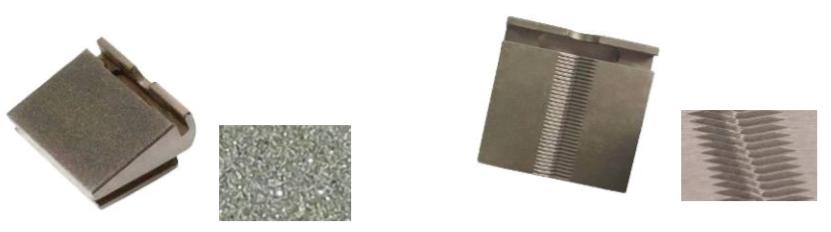

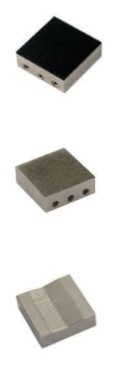

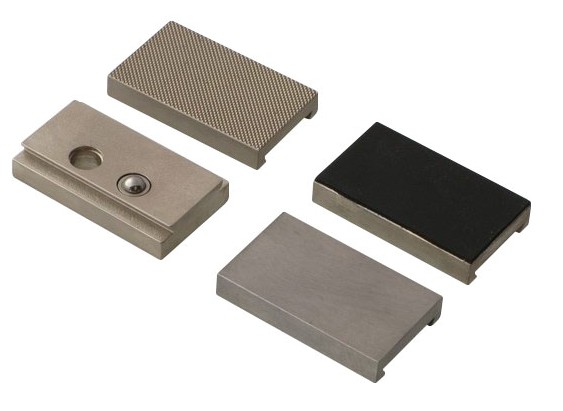

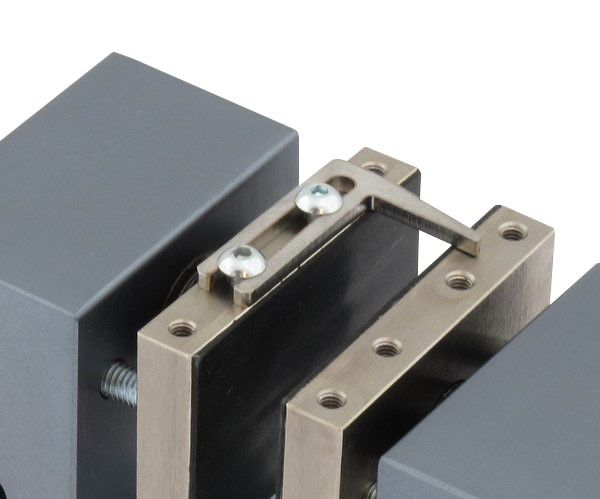

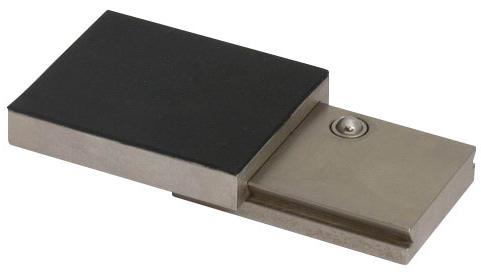

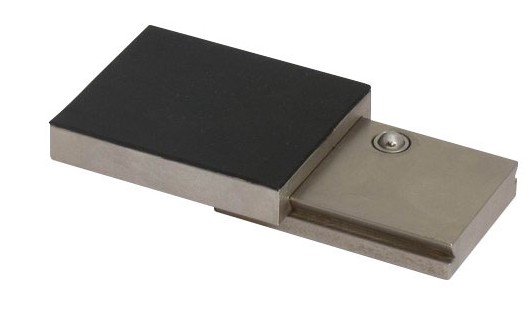

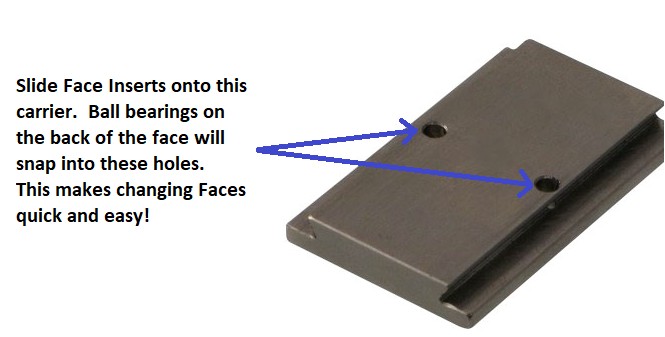

Shown above:  Quick-change carrier
with examples of carrier style jaws
Clockwise from top: diamond,
rubber & smooth
Ball bearings hold face in alignment
Part Number
Jaw Type
Size (H x W)
Opening

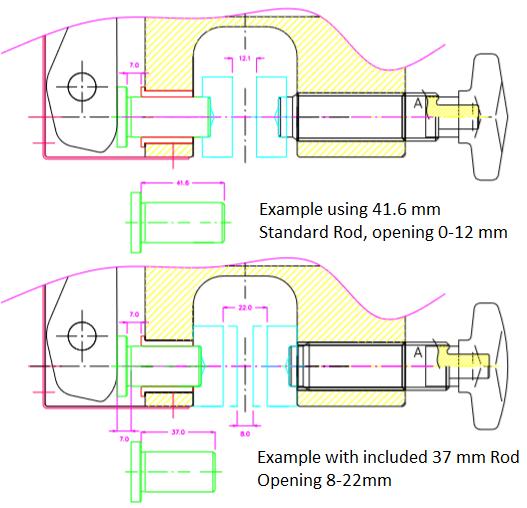

*Opening
(with rod)
Weight Per Pair
WT240G-B
Blank
30 x 50 mm
0 - 18 mm
10 - 28 mm
0.22 kg
WT240G-BG
Rubber
30 x 50 mm
0 - 16 mm
8 - 26 mm
0.22 kg
WT240G-BP
Pyramid
30 x 50 mm
0 - 18 mm
10 - 28 mm
0.21 kg
WT240G-BV2
V Jaw
Height 30 mm
2 - 18 mm
12 - 28 mm
0.22 kg
WT240G-BV5
V Jaw
Height 30 mm
5 - 18 mm
15 - 28 mm
0.25 kg
WT240G-BW
Wave
30 x 50 mm
0 - 18 mm
10 - 28 mm
0.20 kg
WT240G-BD
Diamond
30 x 50 mm
0 - 18 mm
10 - 28 mm
0.22 kg
WT240G-B80
Blank
30 x 80 mm
0 - 18 mm
10 - 28 mm
0.36 kg
WT240G-BG80
Rubber
30 x 80 mm
0 - 16 mm
10 - 26 mm
0.37 kg
WT240G-BP80
Pyramid
30 x 80 mm
0 - 18 mm
10 - 28 mm
0.34 kg
WT240G-BW80
Wave
30 x 80 mm
0 - 18 mm
10 - 28 mm
0.33 kg
WT240G-BD80
Diamond
30 x 80 mm
0 - 18 mm
10 - 28 mm
0.37 kg
WT240G-B100
Blank
30 x 100 mm
0 - 20 mm
10 - 28 mm
0.46 kg
WT240G-BG100
Rubber
30 x 100 mm
0 - 18 mm
10 - 26 mm
0.47 kg
WT240G-BP100
Pyramid
30 x 100 mm
0 - 20 mm
10 - 28 mm
0.44 kg
WT240G-BW100
Wave
30 x 100 mm
0 - 20 mm
10 - 28 mm
0.42 kg
WT240G-BD100
Diamond
30 x 100 mm
0 - 20 mm
10 - 28 mm
0.46 kg
WT240G Jaw Information:
WT240G Carrier & Insert Jaw Information:
Part Number
Jaw Type
Size (H x W)
Opening
Weight per Pair
WT240G-GT
*Carrier
-
-
0.18kg
WT240G-E
Blank
30 x 50 mm
0 - 14 mm
0.14kg
WT240G-E
Rubber
30 x 50 mm
0 - 12 mm
0.14kg
WT240G-E
Pyramid
30 x 50 mm
0 - 14 mm
0.13kg
WT240G-E
V Jaws
Height 30 mm
3 - 14 mm
0.13kg
WT240G-E
Wave
30 x 50 mm
0 - 14 mm
0.12kg
WT240G-E
Diamond
30 x 50 mm
0 - 14 mm
0.14kg
WT240G-E
Blank
30 x 100 mm
0 - 10 mm
0.37kg
WT240G-E
Rubber
30 x 100 mm
0 - 8 mm
0.38kg
WT240G-E
Pyramid
30 x 100 mm
0 - 10 mm
0.35kg
WT240G-E
Wave
30 x 100 mm
0 - 10 mm
0.34kg
WT240G-E
Diamond
30 x 100 mm
0 - 10 mm
0.38kg

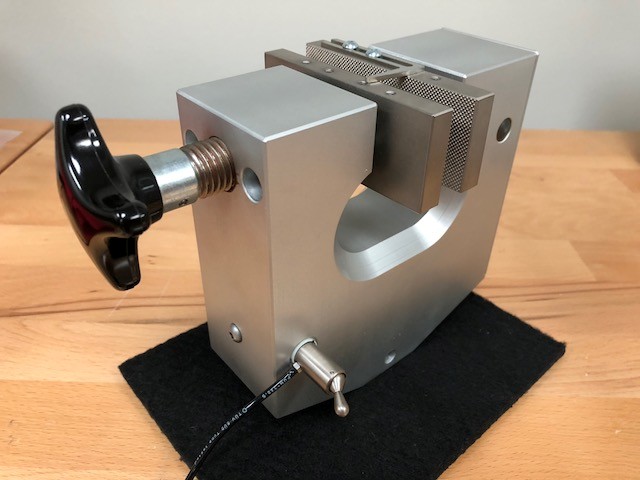

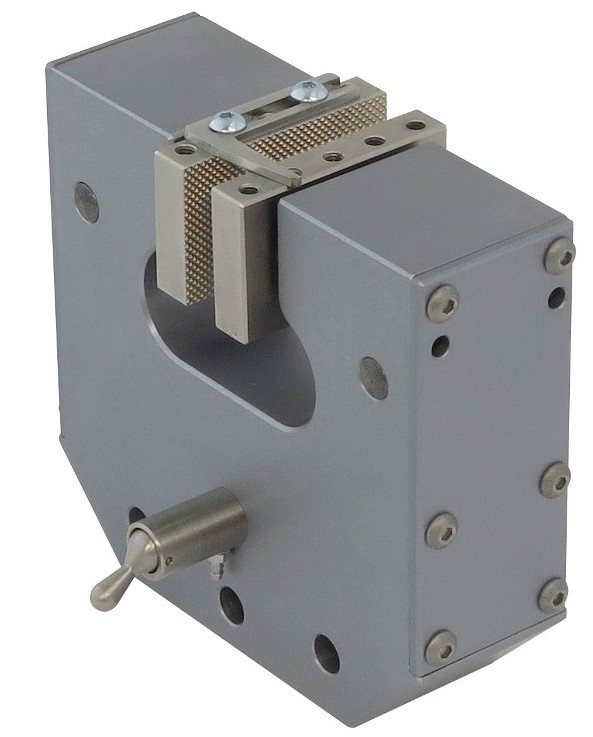

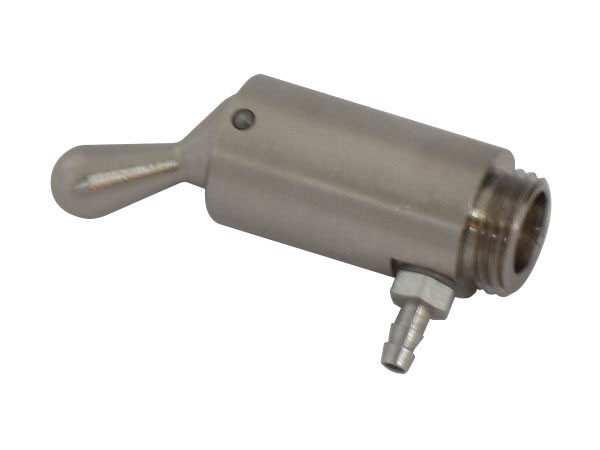

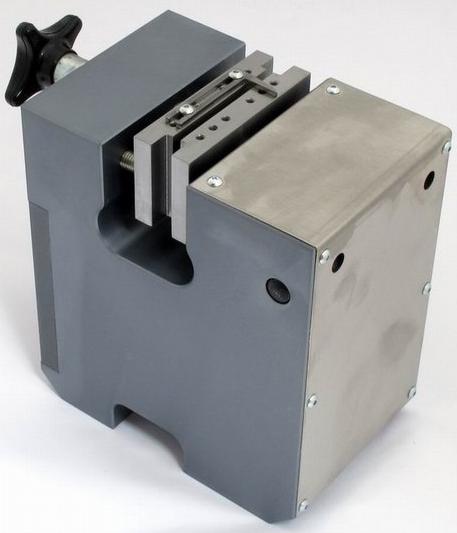

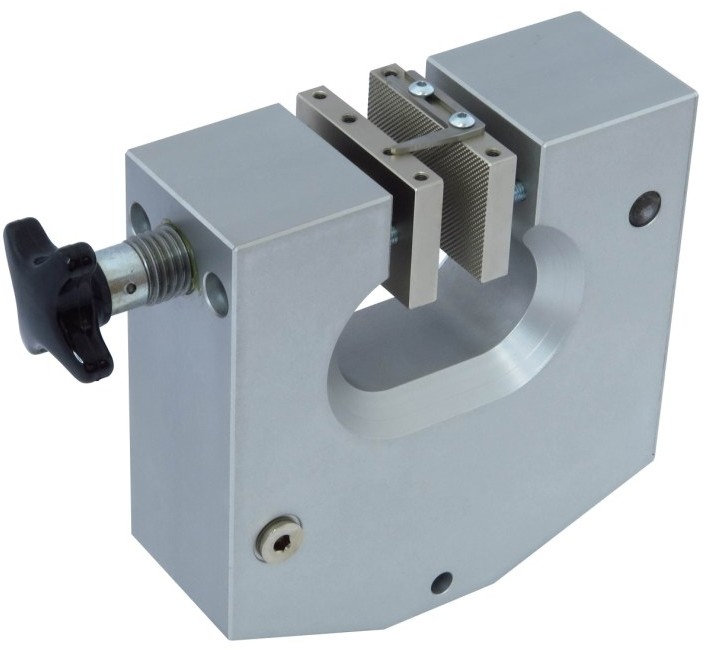

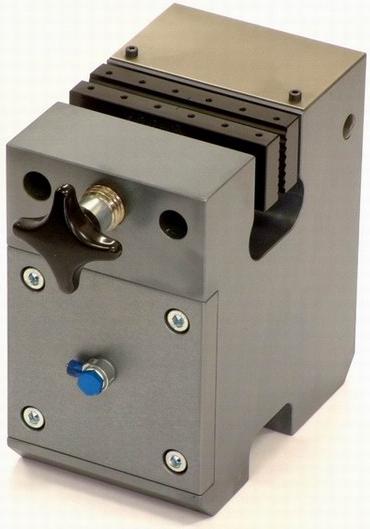

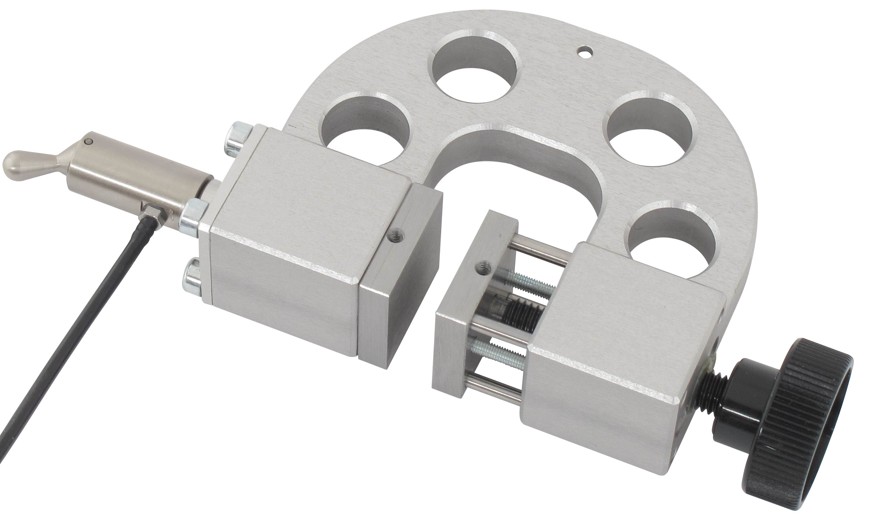

Shown above fitted with Quick Release Handle
(Request when ordering or contact our office)
If you can't find the exact jaw option you need please contact our office.
(Custom jaws available)

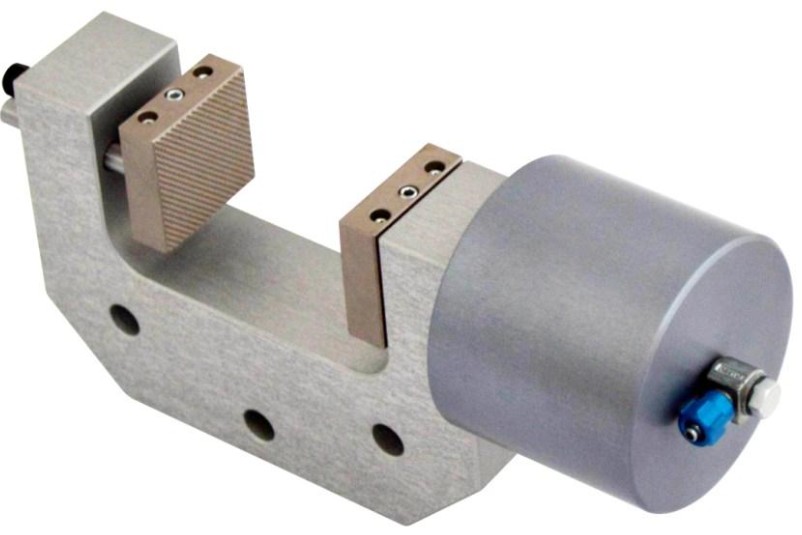

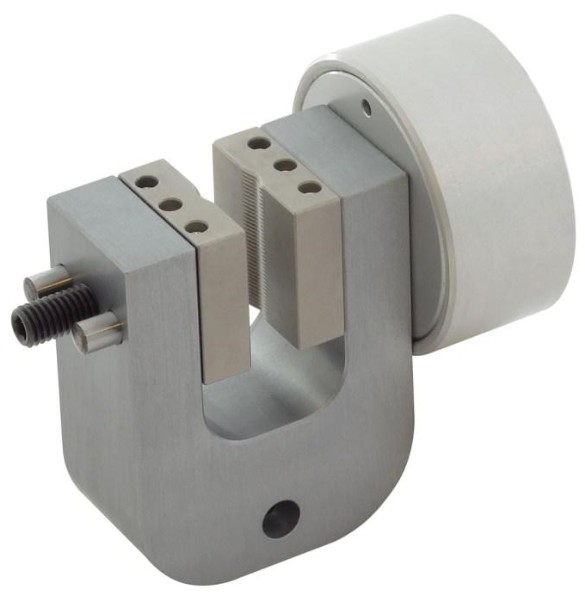

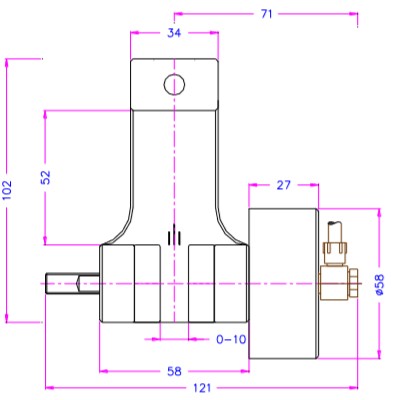

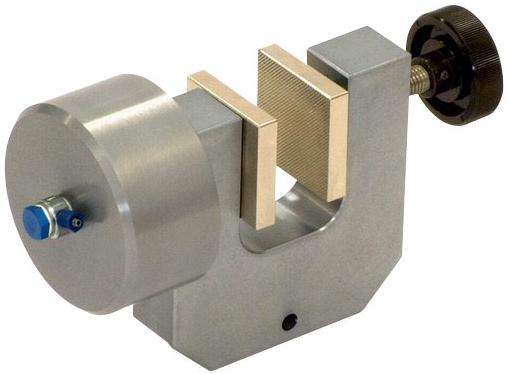

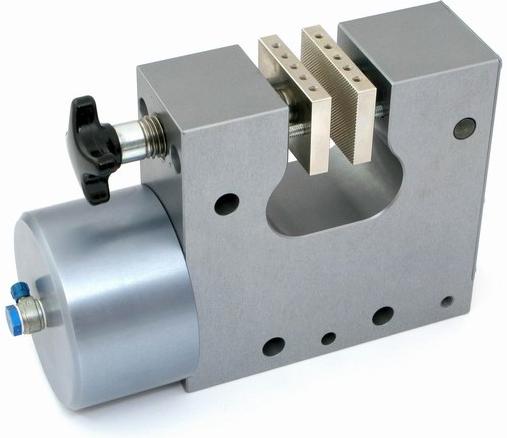

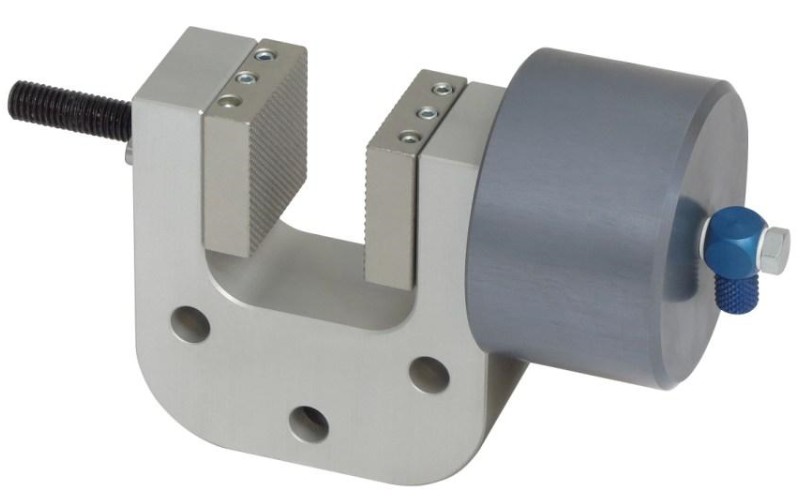

Model WT240K + Ko (1 cylinder and 10mm opening)
Shown with v-notch jaws for round samples

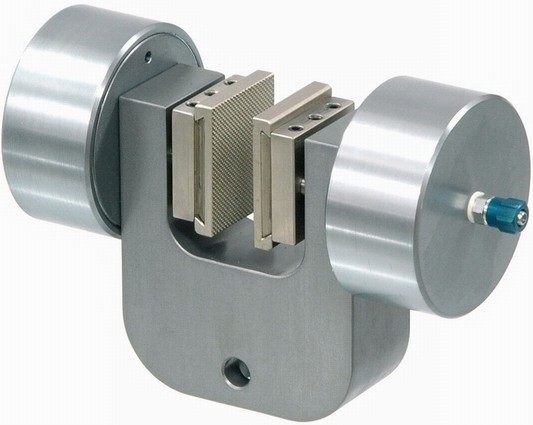

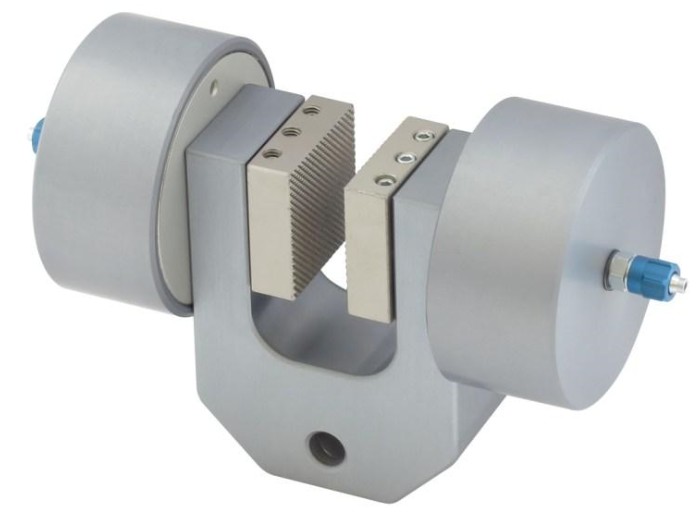

Model WT240K + Ko (2 cylinders and 10mm opening)

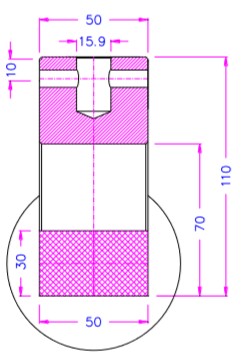

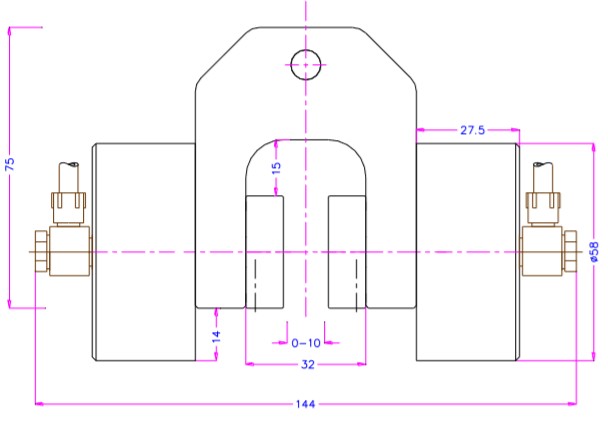

Shown with pyramid jaws (print shown below)
Models with about 10mm opening
Depending on jaw type

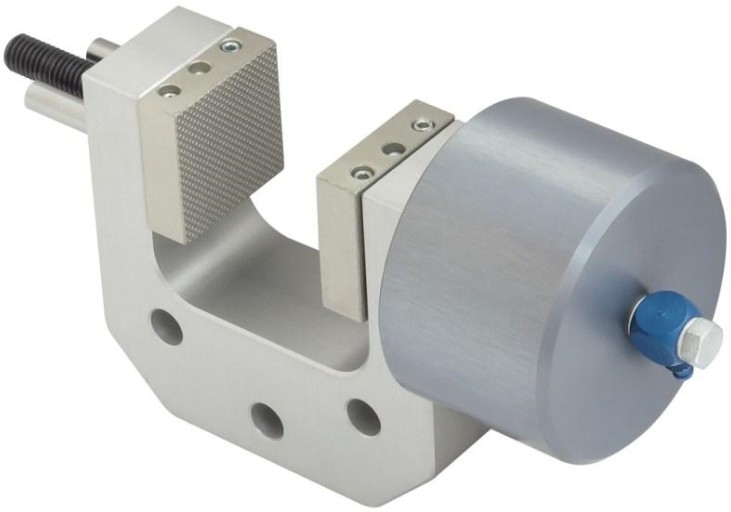

Model WT240K-S20 + Ko (1 cylinder and 20mm opening)

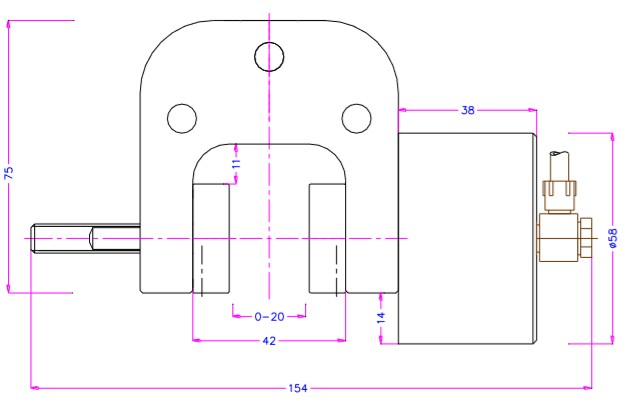

Shown with pyramid jaws (print shown below)

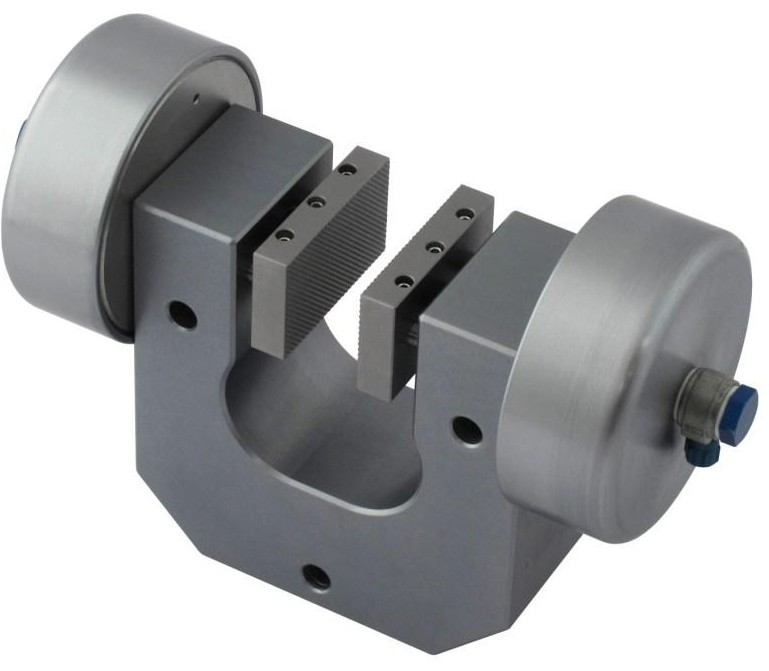

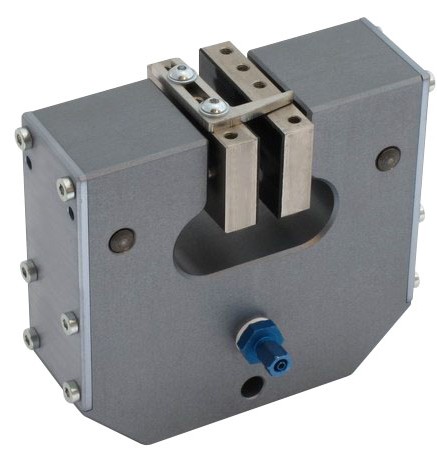

Model WT240K-S20 + Ko (2 cylinder and 20mm opening)
Shown with carrier for quick changing of jaws & pyramid faces

Models with about 20mm opening
Depending on jaw type


Models with about 30mm opening
Depending on jaw type

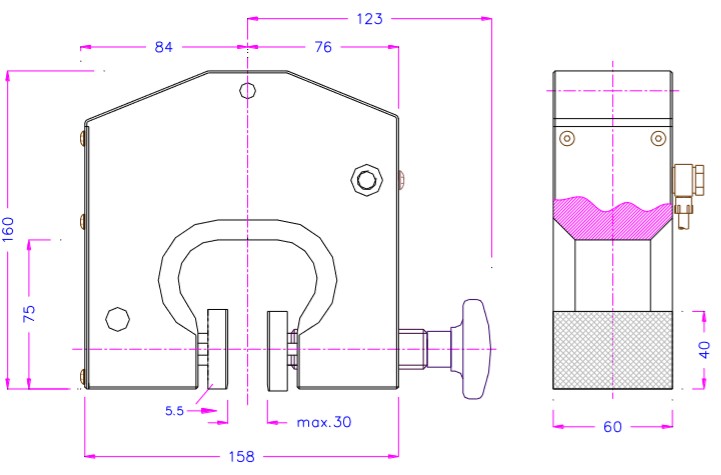

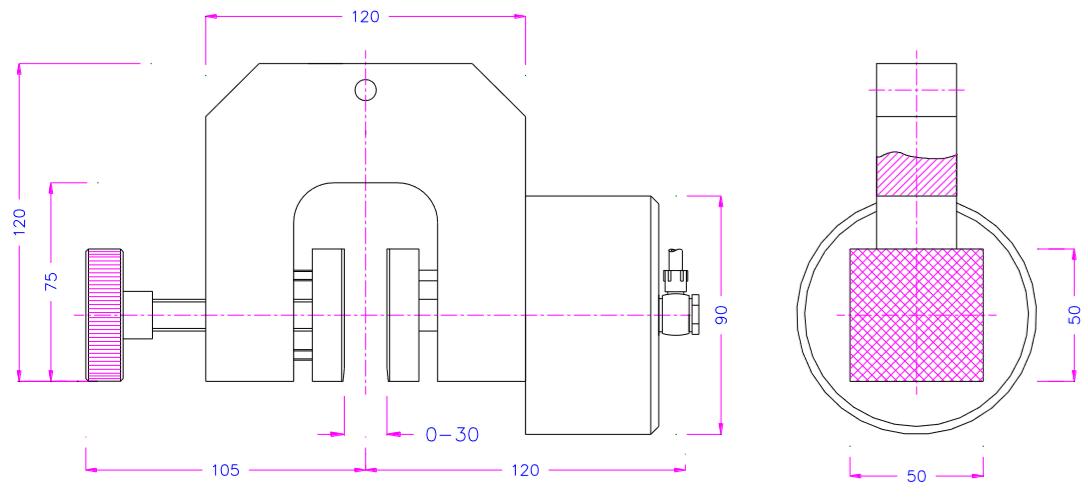

Model WT240K-S30 + Ko (1 cylinder and 30mm opening)

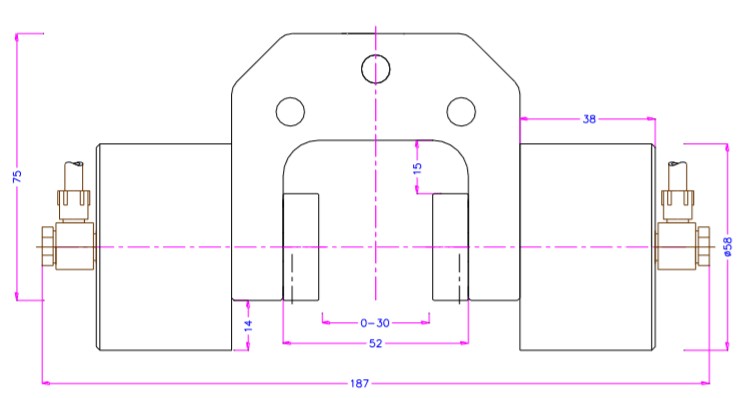

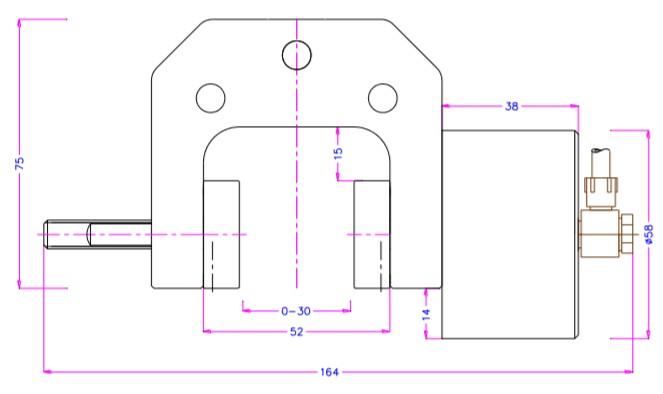

Shown with pyramid faces (print shown below)
Model WT240K-S30 + Ko (2 Cylinder and 30mm Opening)
Shown with Pyramid Faces (Print shown below)

Single cylinder model with about 50mm Opening
Depending on jaw type

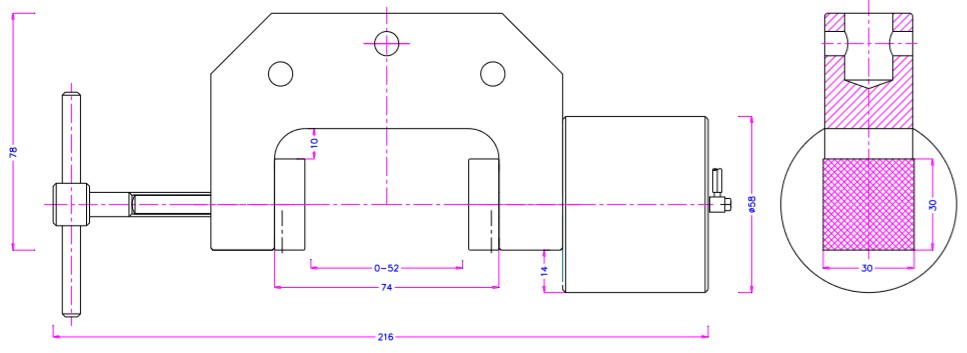

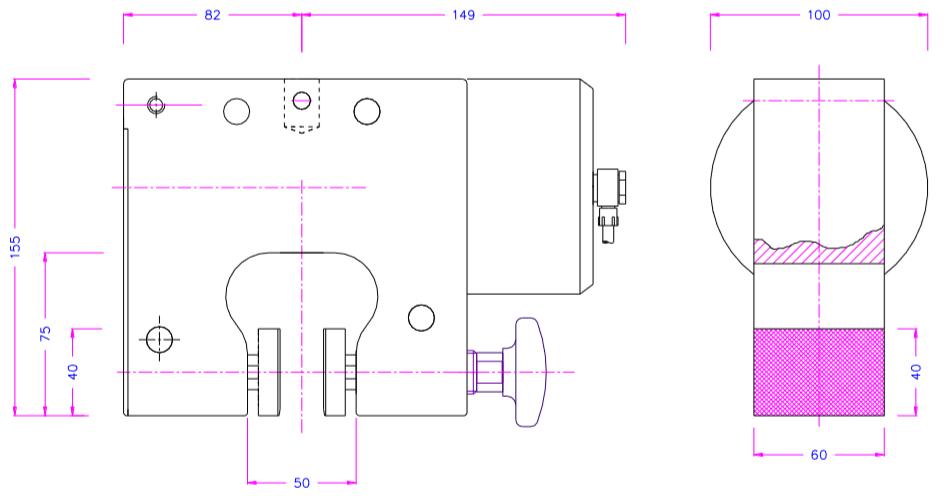

Model WT240K-S50 + Ko (1 cylinder and 50mm Opening)
Shown with pyramid jaws (print shown below)
Dual cylinder model with about 50mm opening
Depending on jaw type

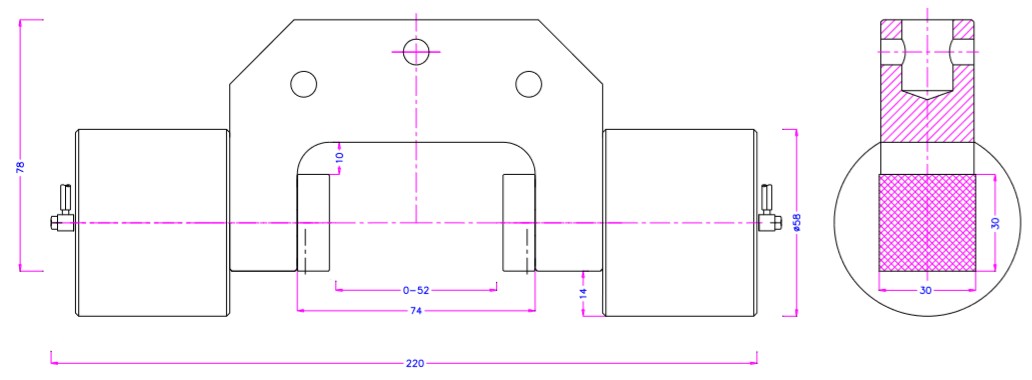

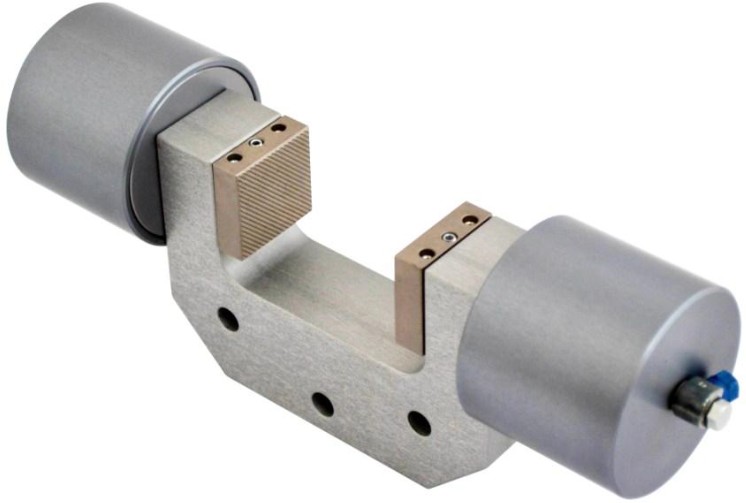

Model WT240K-S50 + 2Ko (2 cylinders and 50mm opening)
Shown with pyramid faces (print shown below)
WT240k Jaw Information:
Part Number
Jaw Type
Size (H x W)
Opening for
WT240K
Opening for
WT240K-S20
Opening for
WT240K-S30
Opening for
WT240K-S50
Weight
Per Pair
WT240K-B
Blank
30 x 30 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.13 kg
WT240K-BG
Rubber
30 x 30 mm
0 -8 mm
0 - 18 mm
0 - 28 mm
0 - 50 mm
0.13 kg
WT240K-BP
Pyramid
30 x 30 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.12 kg
WT240K-BV2
V-Jaws
30 x 30 mm
2 - 9 mm
2 - 20 mm
2 - 30 mm
2 - 52 mm
0.12 kg
WT240K=BV3
V-Jaws
30 x 30 mm
3 - 9 mm
3 - 20 mm
3 - 30 mm
3 - 52 mm
0.13 kg
WT240K-BW
Wave
30 x 30 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.12 kg
WT240K-BD
Diamond
30 x 30 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.13 kg
WT240K-B50
Blank
30 x 50 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.22 kg
WT240K-BG50
Rubber
30 x 50 mm
0 -8 mm
0 - 18 mm
0 - 28 mm
0 - 50 mm
0.23 kg
WT240K-BP50
Pyramid
30 x 50 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.21 kg
WT240K-BW50
Wave
30 x 50 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.20 kg
WT240K-BD50
Diamond
30 x 50 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.22 kg
WT240K-B80
Blank
30 x 80 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.36 kg
WT240K-BG80
Rubber
30 x 80 mm
0 -8 mm
0 - 18 mm
0 - 28 mm
0 - 52 mm
0.37 kg
WT240K-BP80
Pyramid
30 x 80 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 50 mm
0.35 kg
WT240K-BW80
Wave
30 x 80 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.32 kg
WT240K-BD80
Diamond
30 x 80 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.36 kg
WT240K-B100
Blank
30 x 100 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.45 kg
WT240K-BG100
Rubber
30 x 100 mm
0 -8 mm
0 - 18 mm
0 - 28 mm
0 - 50 mm
0.46 kg
WT240K-BP100
Pyramid
30 x 100 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.45 kg
WT240K-BW100
Wave
30 x 100 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.51 kg
WT240K-BD100
Diamond
30 x 100 mm
0 -10 mm
0 - 20 mm
0 - 30 mm
0 - 52 mm
0.45 kg
Carrier Options:
Part Number
Description
Weight
Per Pair
WT240K-GT30
For Faces 30 x 30 mm AND 30 x 50 mm
0.09 kg
WT240K-GT50
For Faces 30 x 50 mm AND 30 x 100 mm
0.18 kg
Insert Face Options:
Part Number
Surface
Size (H x W)
Opening for
WT240K
Opening for
WT240K-S20
Opening for
WT240K-S30
Opening for
WT240K-S50
Weight
Per Pair
WT240K-EB
Blank
30 x 30 mm
0 - 8 mm
0 - 18 mm
0 - 28 mm
0 - 50 mm
0.05 kg
WT240K-EBG
Rubber
30 x 30 mm
0 - 6 mm
0 - 16 mm
0 - 26 mm
0 - 48 mm
0.06 kg
WT240K-EBP
Pyramid
30 x 30 mm
0 - 8 mm
0 - 18 mm
0 - 28 mm
0 - 50 mm
0.05 kg
WT240K-EBW
Wave
30 x 30 mm
0 - 8 mm
0 - 18 mm
0 - 28 mm
0 - 50 mm
0.05 kg
WT240K-EBD
Diamond
30 x 30 mm
0 - 8 mm
0 - 18 mm
0 - 28 mm
0 - 50 mm
0.06 kg
WT240K-EB50
Blank
30 x 50 mm
0 - 4 mm
0 - 14 mm
0 - 24 mm
0 - 46 mm
0.14 kg
WT240K-EBG50
Rubber
30 x 50 mm
0 - 2 mm
0 - 12 mm
0 - 22 mm
0 - 44 mm
0.14 kg
WT240K-EBP50
Pyramid
30 x 50 mm
0 - 4 mm
0 - 14 mm
0 - 24 mm
0 - 46 mm
0.13 kg
WT240K-EBV3
V Jaw
30 x 50 mm
3 - 4 mm
3 - 14 mm
3 - 24 mm
3 - 46 mm
0.13 kg
WT240K-EBW50
Wave
30 x 50 mm
0 - 4 mm
0 - 14 mm
0 - 24 mm
0 - 46 mm
0.12 kg
WT240K-EBD50
Diamond
30 x 50 mm
0 - 4 mm
0 - 14 mm
0 - 24 mm
0 - 46 mm
0.14 kg
WT240K-EB100
Blank
30 x 100 mm
N/A
0 - 6 mm
0 - 16 mm
0 - 38 mm
0.37 kg
WT240K-EBG100
Rubber
30 x 100 mm
N/A
0 - 4 mm
0 - 14 mm
0 - 36 mm
0.38 kg
WT240K-EBP100
Pyramid
30 x 100 mm
N/A
0 - 6 mm
0 - 16 mm
0 - 38 mm
0.34 kg
WT240K-EBW100
Wave
30 x 100 mm
N/A
0 - 6 mm
0 - 16 mm
0 - 38 mm
0.34 kg
WT240K-EBD100
Diamond
30 x 100 mm
N/A
0 - 6 mm
0 - 16 mm
0 - 38 mm
0.37 kg
WT140 Jaw Information:
Use carrier and insert jaws if you need to change faces often.  The insert jaws slide in and "click" into place.  Simply slide them out to change.
Blank (Feels Smooth)
For Carrier Use

Rubber Surface
For Carrier Use

Pyramid  (Cross Cut Points)
For Carrier Use

Diamond (Feels like Sand Paper)
For Carrier Use

Standard Blank Jaw
(Feels Smooth)

Standard RubberJaw
(Slightly less opening)

Standard Pyramid Jaw
(Cross Cut Points)

Standard V-Jaw
For round samples

Standard Wave Jaw
(Corrugated Surface)

Standard Diamond Jaw
*Rod must be ordered separately for this grip (use part number WT240G-L51-5)

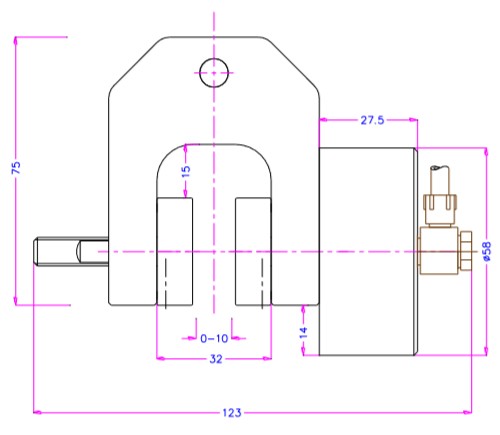

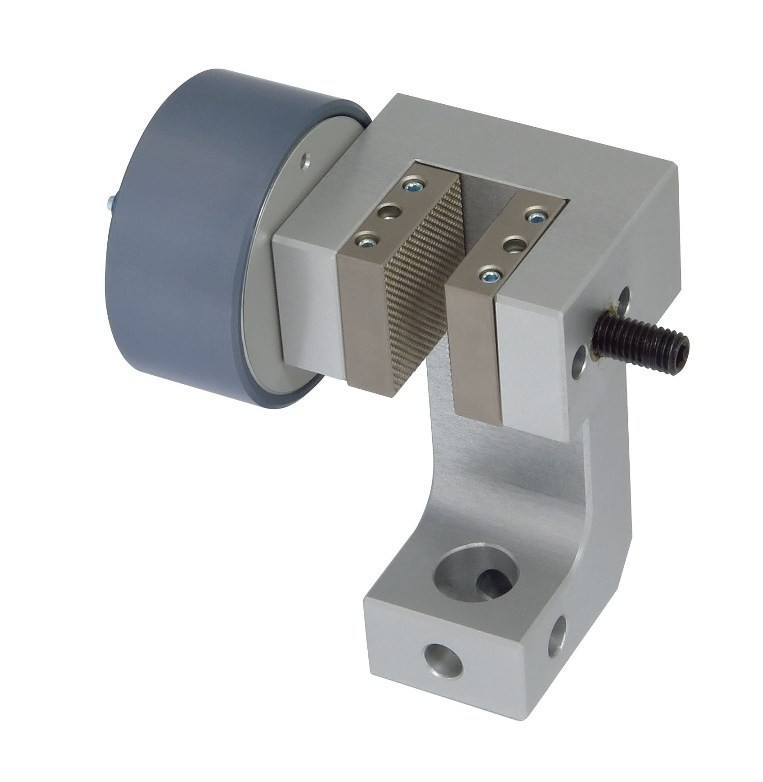

WT149 Pneumatic Grip with Internal
Self centering - open design allows wide faces
Adjustable edge guide to center samples
Clamping force @ 7 Bar (101.5 psi): 2.4 kN
Connection: 15.9 mm socket (other connections possible, Click Here for Adapters Page
Body:  anodized aluminum
Weight: 1.21kg without jaws












Edge Guide adjusts with small hex wrench
to insure Sample is centered
This Item can be used with a convenient
Micro Switch.
Optional Carrier for WT149 Grip
Examples of quick-change jaws
used with WT149 carrier
Clockwise from top:
Blank (smooth) 30 x 100 mm
Blank 30 x 50 mm
Rubber 30 x 50 mm
Pyramid 30 x 50 mm
(Enlarged to show detail)

WT140 Rubber Jaw 30 x 50 mm
WT140 V Notch for Round Samples
WT140 Wave Jaw
WT140 Diamond Jaw
(Feels like sand paper)
WT140 Special Rubber Jaw 25 x 25 mm
Part Number
Jaw Type
Size (H x W)
Opening
(as Shipped)
*Opening
(Use Z7 Rod)
Weight
Per Pair
WT149-GT
(Carrier)
N/A
N/A
N/A
0.12 kg
WT149-EB
Blank
30 x 50 mm
0 - 5 mm
4 - 9 mm
0.14 kg
WT149-EBG
Rubber
30 x 50 mm
0 - 5 mm
2 - 7 mm
0.14 kg
WT149-EBP
Pyramid
30 x 50 mm
3 - 5 mm
4 - 9 mm
0.13 kg
WT149-EBV
V - Jaws
Height 50 mm
0 - 5 mm
4 - 9 mm
0.13 kg
WT149-EBW
Wave
30 x 50 mm
0 - 5 mm
4 - 9 mm
0.12 kg
WT149-EBD
Diamond
30 x 50 mm
0 - 5 mm
4 - 9 mm
0.14 kg
WT149-EB100
Blank
30 x 100 mm
0 - 5 mm
0 - 2 mm
0.37 kg
WT149-EBG100
Rubber
30 x 100 mm
0 - 5 mm
N/A
0.38 kg
WT149-EBP100
Pyramid
30 x 100 mm
0 - 5 mm
0 - 6 mm
0.35 kg
WT149-EBW100
Wave
30 x 100 mm
0 - 5 mm
0 - 6 mm
0.34 kg
WT149-EBD100
Diamond
30 x 100 mm
0 - 5 mm
0 - 6 mm
0.38 kg
Special solution
shown for use with
environmental chamber
& teflon tubing for high temperatures
WT149 Carrier & Insert Jaw Information:
WT149 Jaw Information:
Part Number
Jaw Type
Size (H x W)
Opening
(As Shipped)
*Opening
(Use Z7 Rod)
Weight
Per Pair
WT149-B
Blank
30 x 50 mm
0 - 7 mm
4 - 11 mm
0.22 kg
WT149-BG
Rubber
30 x 50 mm
0 - 5 mm
2 - 9 mm
0.22 kg
WT149-BP
Pyramid
30 x 50 mm
0 - 7 mm
4 - 11 mm
0.22 kg
WT149-BV
V - Jaws
Height 30 mm
4 - 7 mm
7 -11 mm
0.18 kg
WT149-BW
Wave
30 x 50 mm
0 - 7 mm
4 - 11 mm
0.22 kg
WT149-BD
Diamond
30 x 50 mm
0 - 7 mm
4 - 11 mm
0.22 kg
* Rods are included with purchase: reorder if lost WT149-Z7 for more opening or WT149-Z11
* Rods are included with purchase: reorder if lost WT149-Z7 for more opening or WT149-Z11

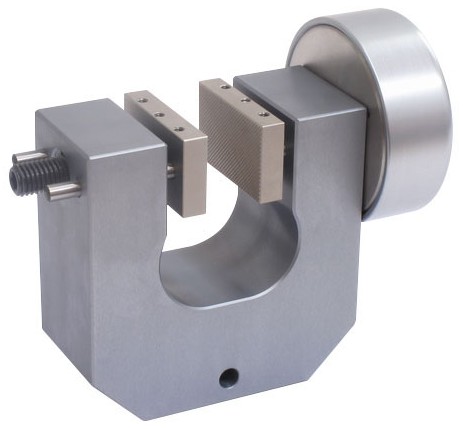

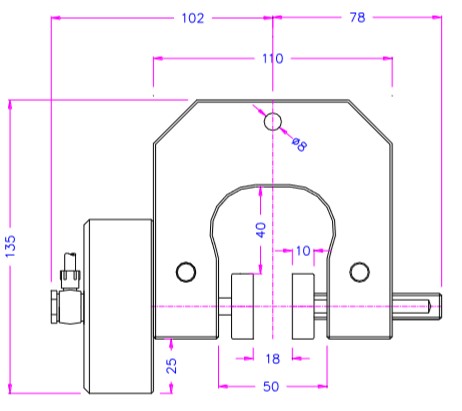

WT83 Pneumatic Grip
Self-centering - open design allows wide jaws
Adjustable edge guide to center samples
Clamping force @ 7 bar (101.5 psi):  7 kN
Clamping force @ 16 bar (232 psi): 16 kN  Click Here for WT216 compressor
Connection: 15.9 mm socket (other connections possible, Click Here for Adapters Page
Body:  anodized aluminum
Weight: 3.2kg without jaws












This Item can be used with a
convenient Micro Switch.
Edge Guide adjusts with small hex wrench
to insure Sample is centered

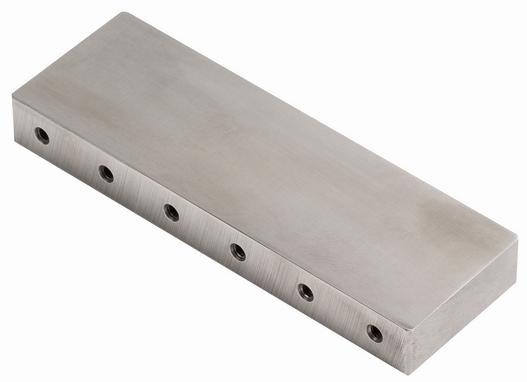

Plain Face 40 x 60 mm
Smooth Surface

Pyramid 40 x 60 mm
Crosscut Surface

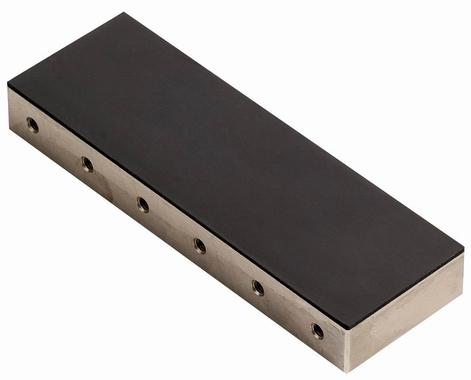

Rubber 40 x 60 mm
Coated Surface

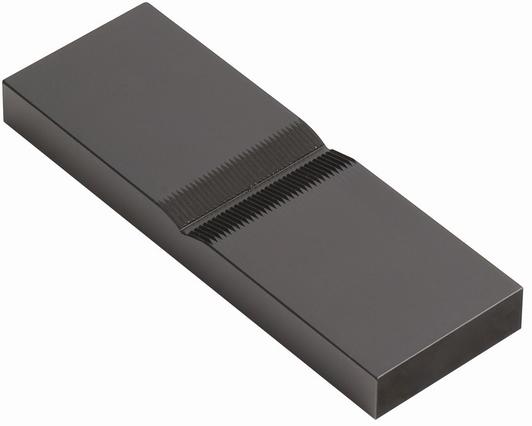

V - Notch 40 mm Height
For Round Samples

Wave 40 x 60 mm
Corrugated Surface

Diamond 40 x 60 mm
Feels like Sand Paper

Optional carrier shown with insert jaw
Used for quick changoing of jaws

WT83 Shown with Carrier installed
and Rubber Coated Insert Jaws
Please see Carrier & Insert Jaw Information

WT83 Jaw Information:
Part Number
Jaw Type
Size (H x W)
*Opening
(See Note)
Temperature
Range
Weight
Per Pair
WT83-B
Blank
40 x 60 mm
0 - 10 mm
+20 C to +180 C
0.35 kg
WT83-BG
Rubber
40 x 60 mm
0 - 8 mm
-70 C to +70 C
0.36 kg
WT83-BP
Pyramid
40 x 60 mm
0 - 10 mm
-70 C to +180 C
0.33 kg
WT83-BV4
V - Jaws
Height 40 mm
4 - 12 mm
-70 C to +180 C
0.35 kg
WT83-BV6
V - Jaws
Height 40 mm
4 - 12 mm
-70 C to +180 C
0.34 kg
WT83-BW
Wave
40 x 60 mm
0 - 10 mm
-70 C to +180 C
0.40 kg
WT83-BD
Diamond
40 x 60 mm
0 - 10 mm
-70 C to +180 C
0.35 kg
WT83-B100
Blank
40 x 100 mm
0 - 10 mm
+20 C to +180 C
0.72 kg
WT83-BG100
Rubber
40 x 100 mm
0 - 8 mm
-70 C to +70 C
0.74 kg
WT83-BP100
Pyramid
40 x 100 mm
0 - 10 mm
-70 C to +180 C
0.69 kg
WT83-BW100
Wave
40 x 100 mm
0 - 10 mm
-70 C to +180 C
0.66 kg
WT83-BD100
Diamond
40 x 100 mm
0 - 10 mm
-70 C to +180 C
0.72 kg
WT83-BW200
Wave
40 x 200 mm
0 - 10 mm
0 C to +180 C
3.00 kg
*Note:  Included Rods can increase opening to approximately 10 - 20 mm or to 20 - 30 mm depending on Faces.  Please contact our office for additional information on use of Rods.

WT83 Carrier & Insert Jaw Information:
Part Number
Jaw Type
Size (H x W)
*Opening

Temperature Range
Weight
Per Pair
WT83-GT
(Carrier)
-
-
-70 C to +180 C
0.33 kg
WT83-EBB
Blank
50 x 60 mm
0 - 9 mm
+20 C to +180 C
0.29 kg
WT83-EBG
Rubber
50 x 60 mm
0 - 7 mm
-70 C to +70 C
0.30 kg
WT83-EBP
Pyramid
50 x 60 mm
0 - 9 mm
-70 C to +180 C
0.28 kg
WT83-EBW
Wave
50 x 60 mm
0 - 9 mm
-70 C to +180 C
0.26 kg
WT83-EBD
Diamond
50 x 60 mm
0 - 9 mm
-70 C to +180 C
0.29 kg
WT83-GT100
(Carrier)
-
-
-70 C to +180 C
0.69 kg
WT83-EB100
Blank
50 x 100 mm
0 - 9 mm
+20 C to +180 C
0.63 kg
WT83-EBG100
Rubber
50 x 100 mm
0 - 7 mm
-70 C to +70 C
0.65 kg
WT83-EBP100
Pyramid
50 x 100 mm
0 - 9 mm
-70 C to +180 C
0.60 kg
WT83-EBW100
Wave
50 x 100 mm
0 - 9 mm
-70 C to +180 C
0.57 kg
WT83-EBD100
Diamond
50 x 100 mm
0 - 9 mm
-70 C to +180 C
0.63 kg
*Note:  Included Rods can increase opening to approximately 9 - 19 mm.
Please contact our office for additional information on use of Rods.

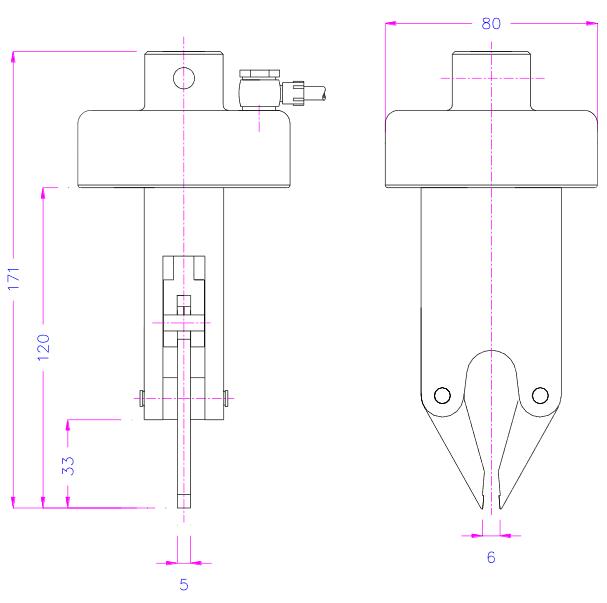

WT108  Pneumatic Wedge Grip
3.5KN  Opening 0 - 34mm

Click Here for Sales or Support
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories
Click here for Pneumatic Accessories

Return to Top


WT175 Pneumatic Grip Series (10, 20, 50, 100 & 300 kN Versions)
Low air pressure initiates grips, then self-tightening
Recommended for samples with low coefficient of friction (hard metals, etc.)
Available with pull rods for use in environmental chambers
Increase clamping force by using our (Click Here) WT216 compressor













Part Number
WT175-10
Maximum Load
10kN Maximum
with 20kN Clamping force @ 7 Bar
Clamping Surface H x W
30 x 40 mm
Temperature Range
-70 to 280C
Standard Coupling
*15.9 or 20 mm
Body
Stainless Steel
Jaws
Hardened steel 58HRC
Weight Each Grip
(without Jaws)
2.8 kg
WT175-10

Part Number
Jaw Type
Opening
Surface Area
Weight
Per Pair
WT175-10-BP6
Pyramid
0 -6 mm
30 x 40 mm
0.3 kg
WT175-10-BP6
Pyramid
6 - 12 mm
30 x 40 mm
0.2 kg
WT175-10-BP6
Pyramid
10 - 16 mm
30 x 40 mm
0.2 kg
Diamond Coated

V Notch for Round Samples

Custom Jaw Options:

Standard Pyramid Faces

WT175-10 Jaw Information:

Jump to Item (Click Below)







WT175 Pneumatic Grip Series (10, 20, 50, 100 & 300 kN Versions)
Low air pressure initiates grips, then self-tightening
Recommended for samples with low coefficient of friction (hard metals, etc.)
Available with pull rods for use in environmental chambers
Increase clamping force by using our (Click Here) WT216 compressor
Part Number
WT175-20
Maximum Load
20kN Maximum
with 43kN Clamping force @ 7 Bar
Clamping Surface H x W
49 x 60 mm
Temperature Range
-70 to 280C
Standard Coupling
*15.9 or 20 mm
Body
Steel
Jaws
Hardened steel 58HRC
Weight Each Grip
(without Jaws)
8.9 kg
WT175-20

Part Number
Jaw Type
Opening
Surface Area
Weight
Per Pair
WT175-20-BP8
Pyramid
0 - 8 mm
49 x 60 mm
1 kg
WT175-20-BP14
Pyramid
5  - 14 mm
49 x 60 mm
0.9 kg
WT175-20-BP20
Pyramid
10 - 16 mm
49 x 60 mm
0.8 kg
WT175-20-BV8
V-Notch
3 - 8 mm
49 mm Height
1 kg
WT175-20-BV15
V-Notch
8 - 15 mm
49 mm Height
0.9 kg
WT175-20-BV20
V-Notch
13 - 20 mm
49 mm Height
0.8 kg
Diamond Coated

V Notch for Round Samples

Custom Jaw Options:

Standard Pyramid Face





WT175-20 Jaw Information:

WT175 Pneumatic Grip Series (10, 20, 50, 100 & 300 kN Versions)
Low air pressure initiates grips, then self-tightening
Recommended for samples with low coefficient of friction (hard metals, etc.)
Available with pull rods for use in environmental chambers
Increase clamping force by using our (Click Here) WT216 compressor
Part Number
WT175-50
Maximum Load
50kN Maximum
with 103kN Clamping force @ 7 Bar
Clamping Surface H x W
67 x 60 mm
Temperature Range
0 to +70C
Standard Coupling
*31.8 mm
Body
Steel
Jaws
Hardened steel 58HRC
Weight Each Grip
(without Jaws)
20.5 kg
WT175-50

Part Number
Jaw Type
Opening
Surface Area
Weight
Per Pair
WT175-50-BP12
Pyramid
0 - 8 mm
67 x 60 mm
2.2 kg
WT175-50-BP22
Pyramid
5  - 14 mm
67 x 60 mm
1.9 kg
WT175-50-BP32
Pyramid
10 - 16 mm
67 x 60 mm
1.5 kg
WT175-50-BV12
V-Notch
3 - 8 mm
67 mm Height
2.2 kg
WT175-50-BV22
V-Notch
8 - 15 mm
67 mm Height
1.9 kg
WT175-50-BV32
V-Notch
13 - 20 mm
67 mm Height
1.5 kg
WT175-50 Jaw Information:



WT175 Pneumatic Grip Series (10, 20, 50, 100 & 300 kN Versions)
Low air pressure initiates grips, then self-tightening
Recommended for samples with low coefficient of friction (hard metals, etc.)
Available with pull rods for use in environmental chambers
Increase clamping force by using our (Click Here) WT216 compressor
WT175-100

Part Number
WT175-100
Maximum Load
100kN Maximum
with 210kN Clamping force @ 7 Bar
Clamping Surface H x W
67 x 100 mm
Temperature Range
0 to +70C
Standard Coupling
*40 mm
Body
Steel
Jaws
Hardened steel 58HRC
Weight Each Grip
(without Jaws)
42 kg
Part Number
Jaw Type
Opening
Surface Area
Weight
Per Pair
WT175-100-BP12
Pyramid
0 - 12 mm
67 x 100 mm
3.8 kg
WT175-100-BP22
Pyramid
10  - 22 mm
67 x 100 mm
3.3 kg
WT175-100-BP32
Pyramid
20 - 32 mm
67 x 100 mm
2.7 kg
WT175-100-BV15
V-Notch
5 - 15 mm
67 mm Height
3.7 kg
WT175-100-BV24
V-Notch
14 - 24 mm
67 mm Height
3.2 kg
WT175-100-BV33
V-Notch
23 - 33 mm
67 mm Height
2.9 kg
WT175-100 Jaw Information:



WT175 Pneumatic Grip Series (10, 20, 50, 100 & 300 kN Versions)
Low air pressure initiates grips, then self-tightening
Recommended for samples with low coefficient of friction (hard metals, etc.)
Available with pull rods for use in environmental chambers
Increase clamping force by using our (Click Here) WT216 compressor
WT175-300

Part Number
WT175-300
Maximum Load
300kN Maximum
with 517 kN Clamping force @ 7 Bar
Clamping Surface H x W
84 x 120 mm
Temperature Range
0 to +70C
Standard Coupling
*70 mm
Body
Nickel-plated steel 1.2711
Jaws
Hardened steel 58HRC
Weight Each Grip
(without Jaws)
100 kg
Part Number
Jaw Type
Opening
Surface Area
Weight
Per Pair
WT175-300-B25
Blank
10 - 25 mm
84 x 120 mm
3.9 kg
WT175-300-BP25
Pyramid
10 - 25 mm
84 x 120 mm
3.9 kg
WT175-300-BW25
Wave
10 - 25 mm
84 x 120 mm
3.8  kg
WT175-300-BD25
Diamond
10 - 25 mm
84 x 120 mm
3.9  kg
WT175-300-BV15
V-Notch
5 - 15 mm
Height 84 mm
4.4 kg
WT175-300 Jaw Information:

Return to Top
Return to Top
Return to Top
Return to Top
Return to Top
Return to Top
Return to Top
Return to Top
Return to Top
Return to Top
Return to Top
Return to Top
Return to Top

WT232 Pneumatic Grip
Self-centering - open design allows wide jaws
Adjustable edge guide to center samples
Clamping force @ 7 Bar (101.5 psi):  16 kN
Clamping force @ 16 bar (232 psi): 36 kN Click Here for WT216 compressor
Connection: 31.9 mm socket (other connections possible), Click Here for Adapters Page
Body:  anodized aluminum
Weight: 4.5 kg without jaws


WT232 with Pyramid Jaws
WT232-B Plain (Blank) Jaw
40 x 60 mm
WT232-BV4 V-Notch Jaw
For Round Samples 4-12 mm
WT232-BD Diamond Jaw
Feels like Sandpaper
WT232-P Pyramid Jaw
40 x 60 mm
WT232-BV6 V-Notch Jaw
For Round Samples 4-12 mm
WT232-BG Rubber Jaw
40 x 60 mm
WT232-GT Carrier
For use with Quick-Change Jaw
WT232-EBG Rubber Jaw
with WT232-GT Carrier
Change Faces Fast!
WT232-EB Plain Jaw
For use with Carrier
WT232-EBP Pyramid Jaw
For use with Carrier
WT232-EBV V-Notch Jaw
For use with Carrier
WT232-EBW Wave Jaw
For use with Carrier
Many more configurations available.
Please contact our office for details.
Edge Guide adjusts with small hex wrench
to insure Sample is centered
Part Number
Jaw Type
Size ( H x W )
Opening
Tempurature Range
Weight
Each Pair
WT232-B
Blank / Plain
40 x 60 mm
0 - 10 mm *
+20 C  to + 180 C
0.35 kg
WT232-BG
Rubber
40 x 60 mm
0 - 10 mm *
- 70 C  to + 70 C
0.36 kg
WT232-BP
Pyramid
40 x 60 mm
0 - 10 mm *
- 70 C  to + 180 C
0.33 kg
WT232-BV4
V-Notch
Height 40 mm
4 - 10 mm *
- 70 C  to + 180 C
0.35 kg
WT232-BV6
V-Notch
Height 40 mm
6 - 10 mm *
- 70 C  to + 180 C
0.35 kg
WT232-BW
Wave
40 x 60 mm
0 - 10 mm *
- 70 C  to + 180 C
0.40 kg
WT232-BD
Diamond
40 x 60 mm
0 - 10 mm *
- 70 C  to + 180 C
0.35 kg
WT232-B100
Blank / Plain
40 x 100 mm
0 - 10 mm *
- 70 C  to + 180 C
0.72 kg
WT232-BG100
Rubber
40 x 100 mm
0 - 10 mm *
- 70 C  to + 70 C
0.74 kg
WT232-BP100
Pyramid
40 x 100 mm
0 - 10 mm *
- 70 C  to + 180 C
0.69 kg
WT232-BW100
Wave
40 x 100 mm
0 - 10 mm *
- 70 C  to + 180 C
0.66 kg
WT232-BD100
Diamond
40 x 100 mm
0 - 10 mm *
- 70 C  to + 180 C
0.72 kg
WT232-BW200
Wave
40 x 200 mm
0 - 10 mm *
0 C  to + 180 C
3.00 kg
WT232 Jaw Information:

Part Number
Face Type
Size ( H x W )
Opening  *
Tempurature Range
Weight
Each Pair
WT232-GT
Carrier
-
=
- 70 C  to  +180C
0.33 kg
WT232-EB
Blank / Plain
50 x 60 mm
0 - 9 mm *
+ 20 C  to  +180C
0.29 kg
WT232-EBG
Rubber
50 x 60 mm
0 - 9 mm *
- 70 C  to  +70C
0.30 kg
WT232-EBP
Pyramid
50 x 60 mm
0 - 9 mm *
- 70 C  to  +180C
0.28 kg
WT232-EBW
Wave
50 x 60 mm
0 - 9 mm *
- 70 C  to  +180C
0.26 kg
WT232-EBD
Diamond
50 x 60 mm
0 - 9 mm *
- 70 C  to  +180C
0.29 kg
WT232-GT100
Carrier
-
-
- 70 C  to  +180C
0.69 kg
WT232-EB100
Blank
50 x 100 mm
0 - 9 mm *
- 70 C  to  +180C
0.63 kg
WT232-EBG100
Rubber
50 x 100 mm
0 - 9 mm *
- 70 C  to  +70C
0.65 kg
WT232-EBP100
Pyramid
50 x 100 mm
0 - 9 mm *
- 70 C  to  +180C
0.60 kg
WT232-EBW100
Wave
50 x 100 mm
0 - 9 mm *
- 70 C  to  +180C
0.57 kg
WT232-EBD100
Diamond
50 x 100 mm
0 - 9 mm *
- 70 C  to  +180C
0.63 kg
WT232 Carrier & Insert Jaw Information

*Rods for openings 10-20 mm and 20-30 mm are included
*Rods for openings 10-20 mm and 20-30 mm are included
Example of Carrier with Jaw Insert:
WT232-EBG Rubber Face
with WT232-GT Carrier
Change Jaws Fast!

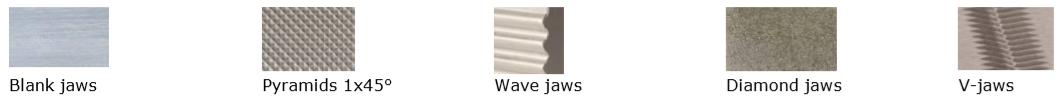

Assortment of standard jaws:
Choices include plain (smooth), rubber,
pyramid (cross cut), v-notch for round samples,
diamond coated & wave
(60, 100 and 200 mm versions)

WT126 Pneumatic Grip with Internal Lever
Self-centering - open design allows wide jaws
Adjustable edge guide to center samples
Very high clamping forces ( 30 to 60 kN )
Clamping force @ 7 bar (101.5 psi):  30 kN
Clamping force @ 16 bar (232 psi): 60 kN Click Here for WT216 Compressor
Connection: 15.9 mm Socket (other connections possible, Click Here for Adapters Page)
Body:  anodized aluminum
Weight: 10 kg without jaws

WT126-B Blank (Smooth) Surface
WT126-BG Rubber Surface
WT126-BP Pyramid Surface
WT126-BW Wave Surface
.
WT126-BD Diamond Surface
WT126 with WT126BW Wave Jaws
WT126 with custom jaws
blank (smooth) 2" x 3"
w/ adjustable guide to center samples
Part Number
Jaw Type
Clamping Area Size
Opening Options
(Please Specify)
Weight
Per Pair
WT126-B
Blank (Smooth)
40 x 120 mm
0-12 or 5-17 or 10-22 mm
1.08 kg
WT126-BG
Rubber
40 x 120 mm
0-10; 3-15; 8-20
1.09 kg
WT126-BP
Pyramid
40 x 120 mm
0-12; 5-17; 10-22
1.04 kg
WT126-BV
V - Notch
40 x 120 mm
6-17;    12-22
0.83 kg
WT126-BW
Wave
40 x 120 mm
0-12; 7-17; 12-22
1.02 kg
WT126-BD
Diamond
40 x 120 mm
0-12; 5-17; 10-22
1.08 kg
WT126-BW200
Wave
40 x 200 mm
0-12; 5-17; 10-22
3.61 kg
WT126-BW210
Wave
40 x 210 mm
0-12; 5-17; 10-22
3.76 kg
WT126 Carrier & Insert Jaw Information:



WT108 Pneumatic Vice Grip
Open design allows wide jaws
Universal pneumatic grip - 30 mm opening
Clamping force @ 7 bar (101.5 psi): 3.5 kN
Clamping force @ 16 bar (232 psi): 60 kN Click Here for WT216 Compressor
Connection: 15.9 mm Socket (other connections possible, Click Here for Adapters Page)
Body:  anodized aluminum
Temperature range: 0 to 70C
Weight: 1.3 kg each grip without jaws
Part Number
Jaw Type
Area ( H x W )
Opening
Weight
Per Pair
WT108-B
Blank (Smooth)
50 x 50 mm
0 - 30 mm
0.38 kg
WT108-BG
Rubber
50 x 50 mm
0 - 28 mm
0.38 kg
WT108-BV4
V - Notch
Height 50 mm
4-26 mm
0.45 kg
WT108-BP
Pyramid
50 x 50 mm
0 - 30 mm
0.36 kg
WT108-BW
Wave
50 x 50 mm
0 - 30 mm
0.34 kg
WT108-BD
Diamond
50 x 50 mm
0 - 30 mm
0.38 kg
WT108-B100
Blank ( Smooth )
50 x 100 mm
0 - 30 mm
0.76 kg
WT108-BG100
Rubber
50 x 100 mm
0 - 28 mm
0.78 kg
WT108-BP100
Pyramid
50 x 100 mm
0 - 30 mm
0.72 kg
WT108-BW100
Wave
50 x 100 mm
0 - 30 mm
0.69 kg
WT108-BD100
Diamond
50 x 100 mm
0 - 30 mm
0.76 kg
WT108 Jaw Information:

Part Number
Jaw Type
Area ( H x W )
Opening
Weight
Per Pair
WT108-GT
Carrier
-
-
0.32 kg
WT108-EB
Blank (Smooth)
50 x 50 mm
0 -16 mm
0.32 kg
WT108-EBG
Rubber
50 x 50 mm
0 -14 mm
0.33 kg
WT108-EBP
Pyramid
50 x 50 mm
0 -16 mm
0.29 kg
WT108-EBD
Diamond
50 x 50 mm
0 -16 mm
0.30 kg
WT108 Carrier & Insert Jaw Information:

Quick Change Carrier & Inserts
At left: WT108-GT carrier with pyramid insert.
At right, clockwise from top: plain (smooth),
rubber coated and pyramid inserts.
The insert quickly slides onto carrier and snaps into place.
Inserts are easy to install and easy to remove.
Return to Top
Return to Top
Blank (Smooth) Jaw
Rubber Coated Jaw
Pyramid Jaw
V - Notch Jaw
For round samples
Wave Jaw
Diamond Jaw
(Feels like Sand Paper)

WTS501 Pneumatic Pincer Grip with Pyramid (serrated) Jaws
Ideal for small parts - clamping surface 5 x 5 mm - opening 0 - 6 mm
Clamping force @ 7 bar (101.5 psi): 2 kN
Connection: 15.9 mm socket (other connections possible, Click Here for Adapters Page)
Body:  anodized aluminum
Temperature range: 0 to 70C
Weight: 0.8 kg each grip including Jaws
Return to Top
Return to Top


Fixtures for Quality Lab Testing, Research Applications, Production Testing and Much More!
Click category below

  Sales & Services    Phone: 336-882-4931



  Sales@TesterGrips.com



  Accredited Member Better Business Bureau



W. D. Turner Company, Inc.


   Materials Testing Products
