Peel Fixtures (Scroll down to see more...)

Wheel Type (with or without holder), Floating Roller & 90 - 180 Peel Fixtures
If you have a special application please let us know.
We are here to help.  Please feel free to call or email (Click Here).
Note: All fixtures are not listed. Please contact our office if you don't find what you need.

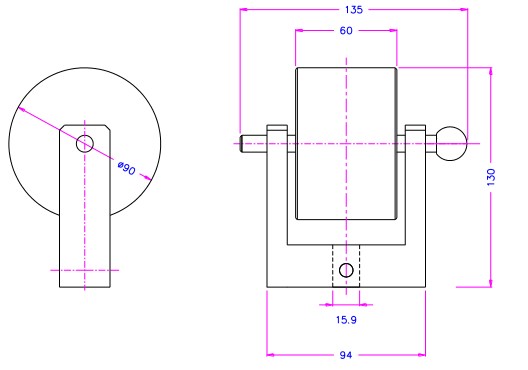

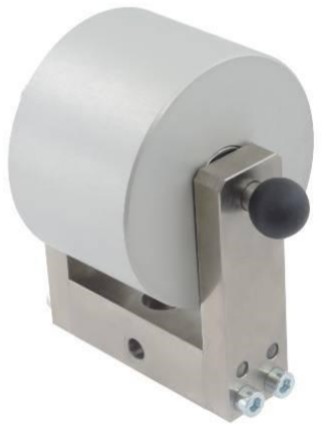

WT3-90  Without Holder
Testing of Plastic Sheets, Adhesion
Maximum load capacity: 4 kN
Wheel : 90 mm (3.54 in)
5/8" (15.9mm) socket is standard
Adapters available for other connection types
Weight: 2 kg
Body: Anodized aluminium / Holder: Steel
Standard temperature range: 0 +70C
Other temperatures possible
(Please call for more information)



Rotating wheel for testing bond strength of tape, plastic, etc.,
This fixture works well with labels for jars or other curved surfaces.

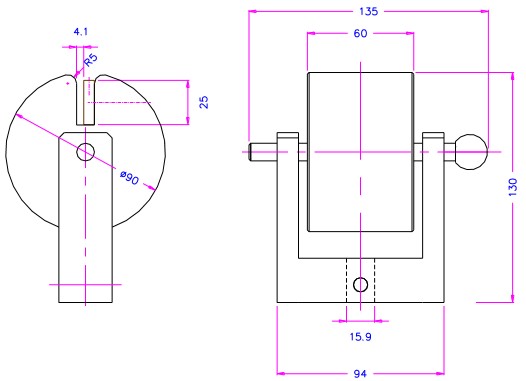

WT3-90-KL With Holder

Testing of Plastic Sheets, Adhesion
Maximum load capacity: 4 kN
Wheel : 90 mm (3.54 in)
5/8" (15.9mm) Socket is standard
(adapters available for other type connection)
Weight: 2.05 kg
Body: Anodized aluminum
Holder: Steel
Standard temperature range: 0 +70C  Other ranges possible.
Maximum Sample Thickness:  4mm

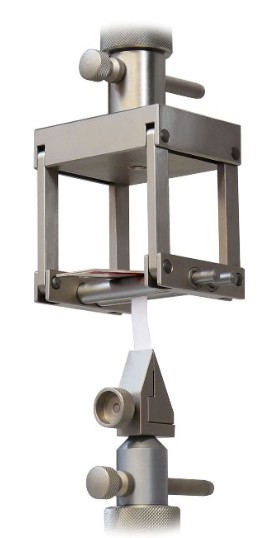

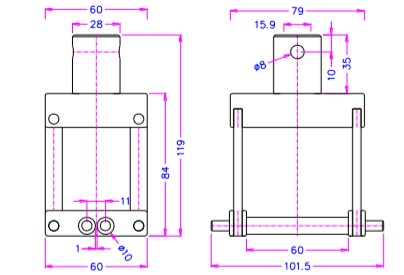

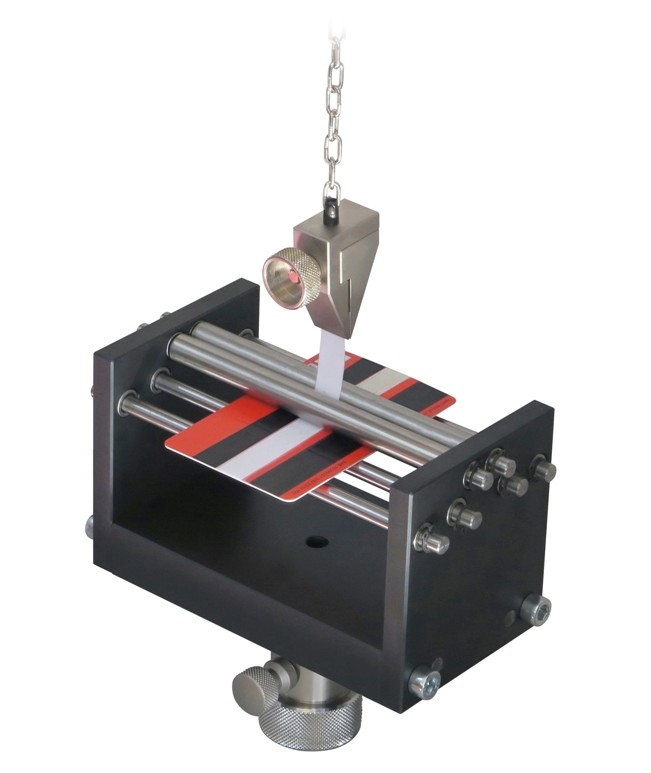

WT104-60

90 Degree Peel Fixture
Nickel Plated Steel
Two 10mm diameter rollers
5/8" (15.9mm) socket is standard
adapters available for
most machines


Lower fixture sold separately.

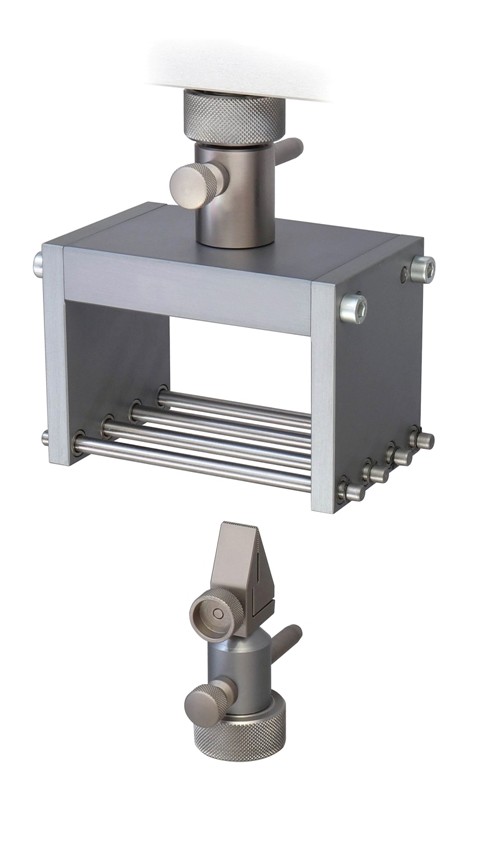

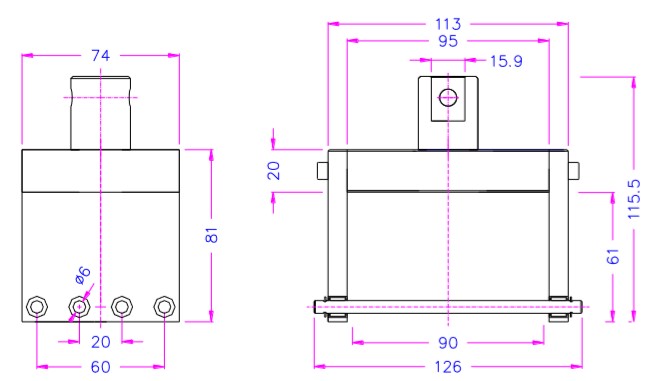

WT104-90
90 Degree Peel Fixture   (Lower fixture sold separately)
Nickel Plated Steel
Four 6mm diameter rollers
5/8" (15.9mm) socket is standard (adapters available for most machines)









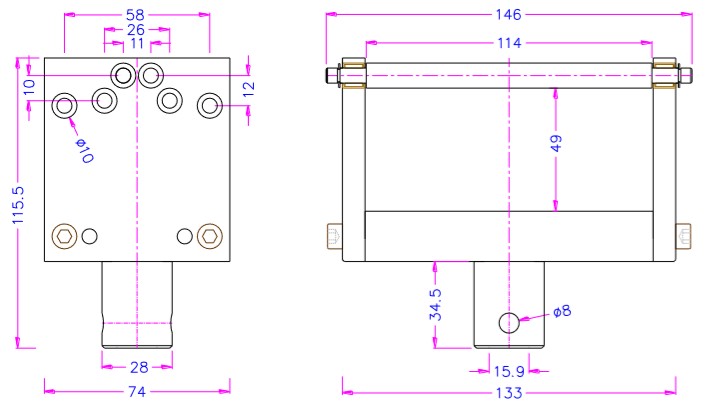

WT104-110
90 Degree Peel Fixture
(Lower fixture sold separately)
Nickel Plated Steel
Four 6mm diameter rollers
5/8" (15.9mm) socket is standard (adapters available for most machines)

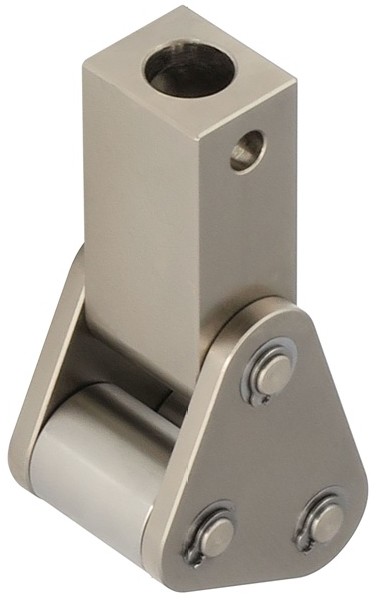

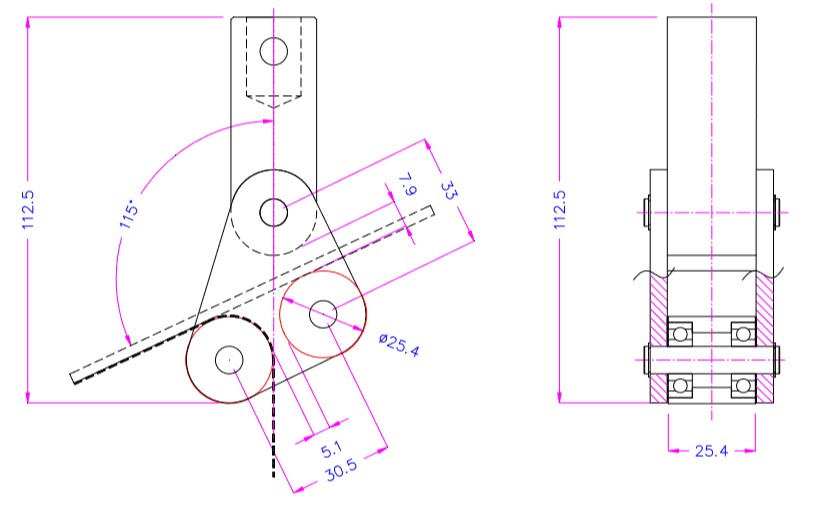

WT105-D254-B254

10KN Peel Fixture   Roller Diameter 25.4mm   Roller Width 25.4mm
Floating roller for adhesive testing
5/8" (15.9mm) socket is standard (adapters available for most machines)

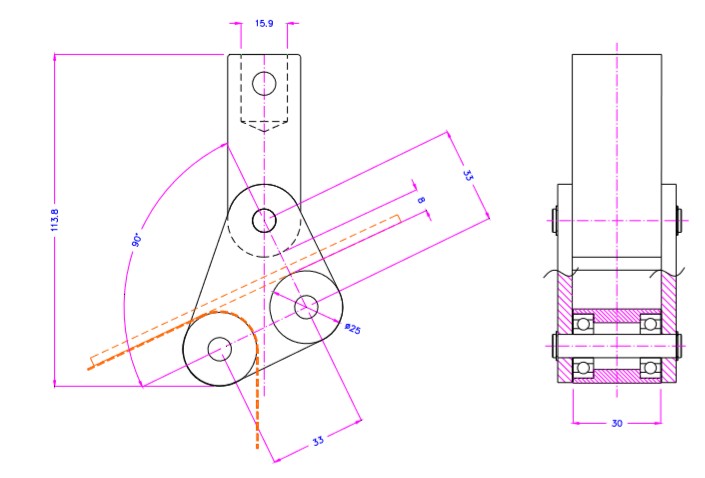

WT105-D25-B30

10KN Peel Fixture   Roller Diameter 25mm   Roller Width 30mm
Floating roller for adhesive testing
5/8" (15.9mm) socket is standard (adapters available for most machines)









Please see Eccentric Roller, Pincer or Vice Grips for use with these fixtures.
WT3-90 Models shown with or without Holders
More options are available for special use
Please call for details
Lower fixture sold separately.
Upper fixture sold separately.

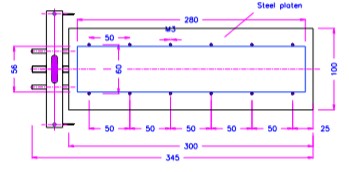

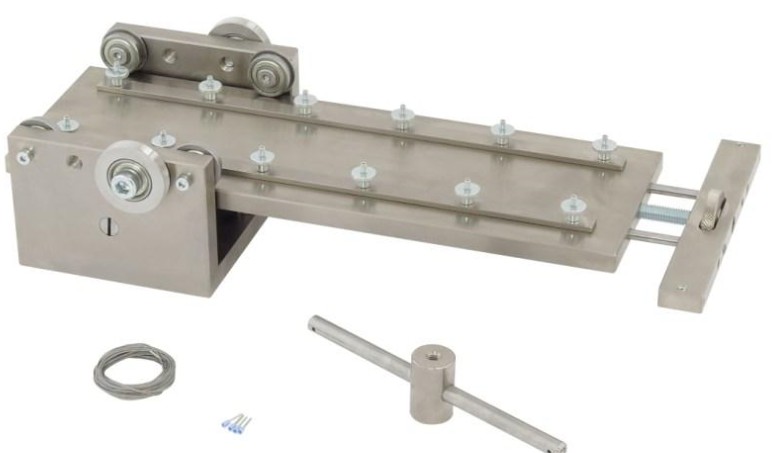

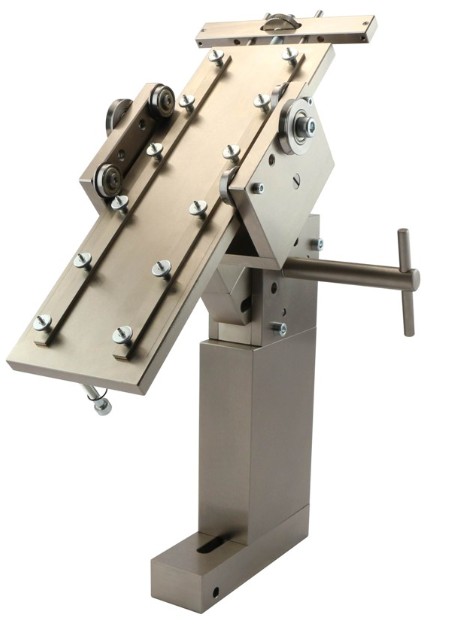

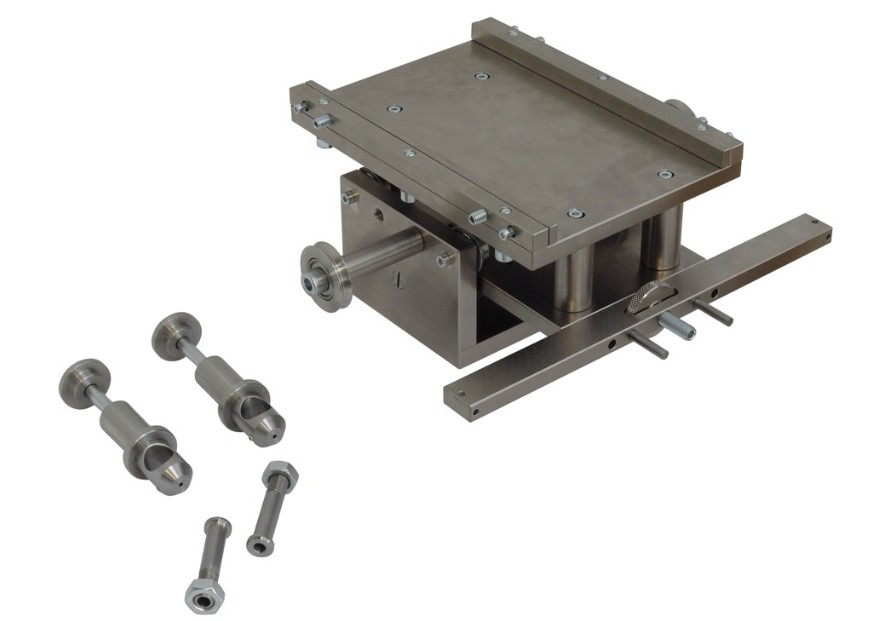

WT50  (Also available for samples up to 130mm wide!)

90 Degree Peel Test Fixture, 5KN Capacity, 5/8" (15.9mm) Socket is standard, adapters available for other sizes or types. For Samples up to 50mm x 280mm.

Description of Operation:  The included "T-Bar" mounts between the load cell and the crosshead of the machine.

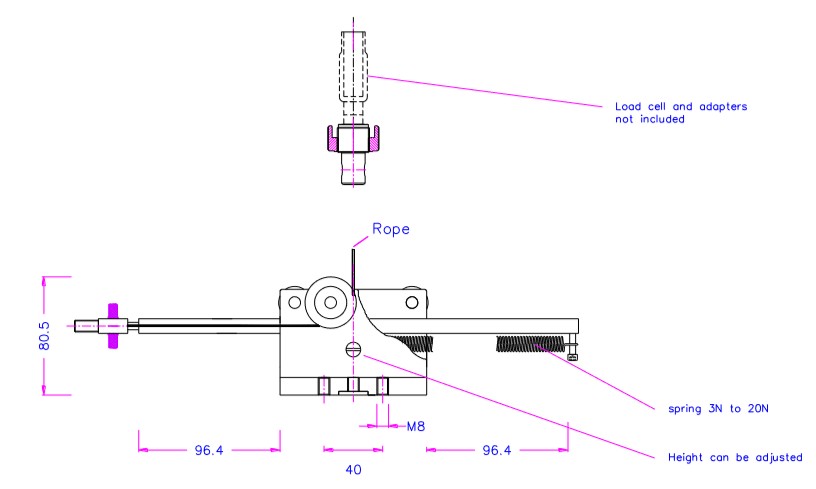

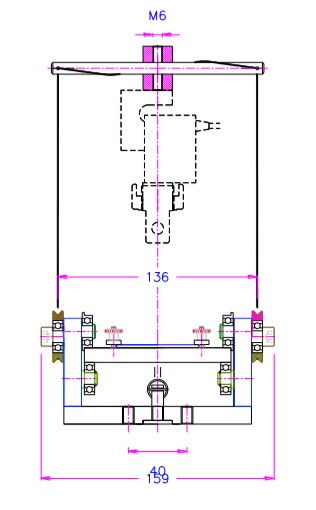

Two wires connected to the "T-Bar" (See Diagram) pull the Carriage horizontally while the load cell pulls the sample from plate at 90 degrees.  Only the peeling force of the sample is applied to the load cell.


Since the Carriage is moving at the same rate as the crosshead, the sample is pulled upward at a steady 90 degree angle.  The Carriage is spring loaded to return automatically when the crosshead is lowered for the next sample.

Upper fixtures are sold separately.   Note: We carry a broad range of fixtures for many sample types.

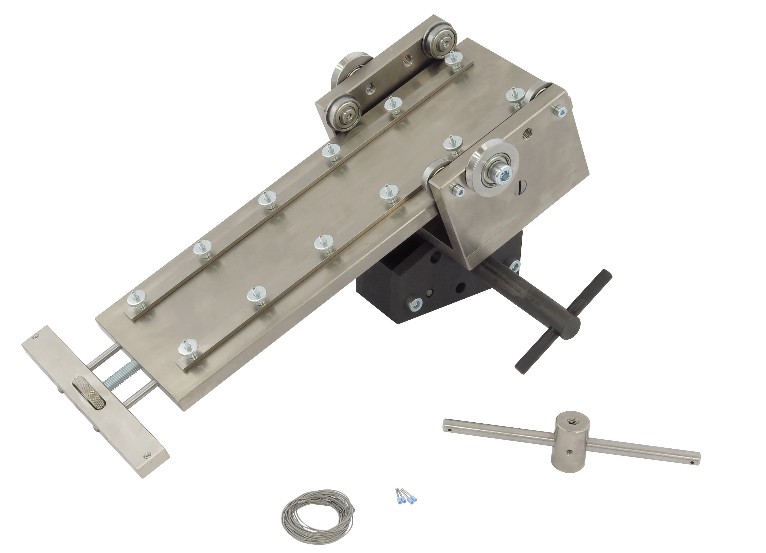

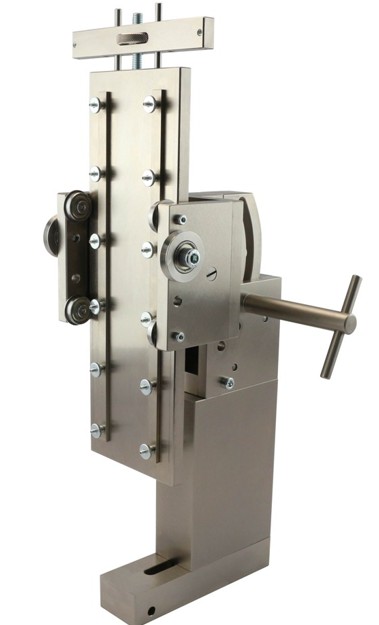

WT50-W130 (Also available for samples up to 130mm wide!)

90 Degree Peel Test Fixture, 5KN Capacity, 5/8" (15.9mm) Socket is standard, adapters available for other sizes or types. Sample sizes up to 50mm x 280mm. Same as WT50 but with adjustable peel angle 30

Description of Operation:  The included "T-Bar" mounts between the load cell and the crosshead of the machine.
Two wires connected to the "T-Bar" (See Diagram) pull the Carriage horizontally while the load cell pulls the sample from plate.  Only the peeling force of the sample is applied to the load cell.


Since the Carriage is moving at the same rate as the crosshead, the sample is pulled upward at the "desired" angle.
The Carriage is spring loaded to return automatically when the crosshead is lowered for the next sample.

Upper fixtures are sold separately.   Note: We carry a broad range of fixtures for many sample types.

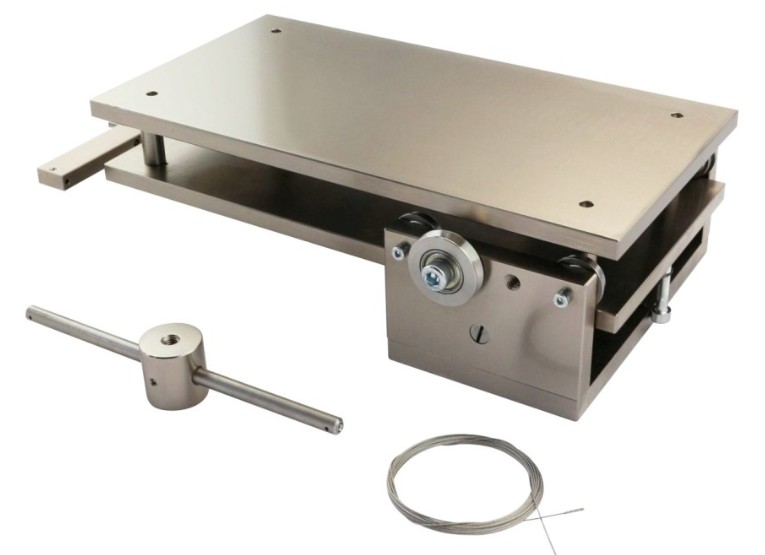

WTPL-50-2 Plate Not Included
WTPL-50-2 Plate
WTPL-50-2 Plate
Also available for this series:
