Bending Fixtures - Scroll down to see more.

Used for modulus of elasticity in bending, flexural stress, flexural strain etc.,
If you have a special application please let us know.
We are here to help.  Please feel free to call or email (Click Here).
Note: All fixtures are not listed. Please contact our office if you don't find what you need.

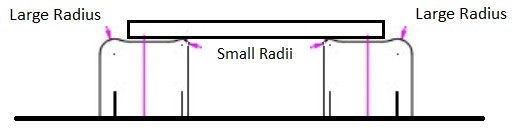

In above diagram the small radii are used (notice large radii on outsides).
Rotating the supports would allow the large radii to be used.

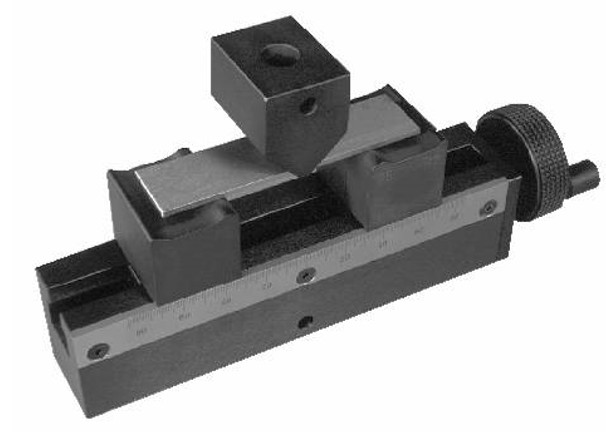

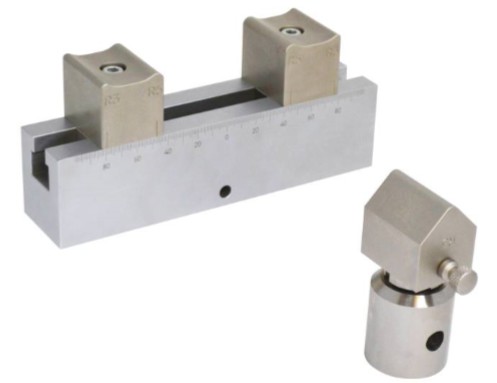

WT103   Steel Bending Fixtures
Universal Bending Jig
Span 10mm-140mm
50mm Width 50kN  Steel, Nickel Plated











WT103-H-220
Bending Fixture 50kN  / Body 220mm long / Span 10mm-100mm
Features:

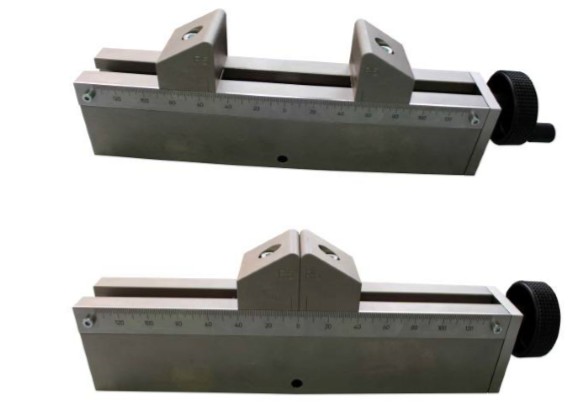

Central adjustment with milled supports
Dual Radii Lower Supports
Crank Spindle for easy adjustment of supports.
Temperature Range: 0-70C








With Optional 31.8mm
Socket Adapter
300mm Span Version

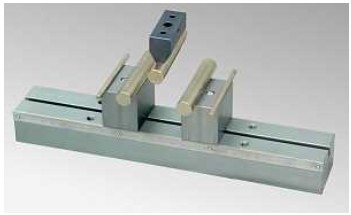

Shown above with interchangeable Rollers
& Upper Loading Noses

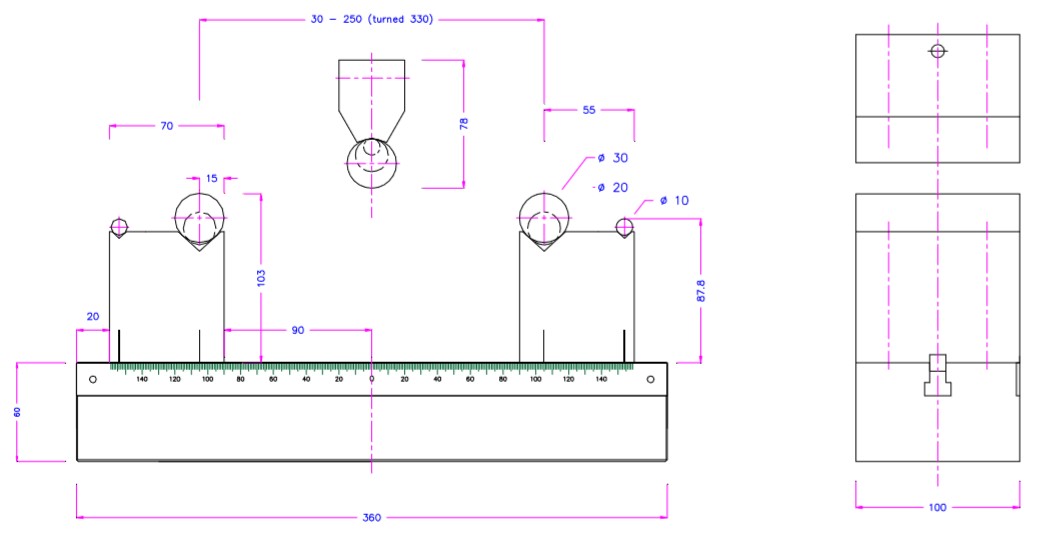

SECTION 4:  WT22   Bending Fixtures  Anodized Aluminum or Steel Versions
Heavy Duty 50KN (Anodized Aluminum) or 100KN (Steel)
Body lengths from 360mm to 1200mm & Optional 4 Point Bend Upper Fixture
Available connections (Female): 15.9, 20, 31.8, 40 mm or with adapters
Includes 1 set each of (100 mm long) 10 mm, 20 mm & 30 mm diameter rollers.











Conceptual diagram for using dual radii lower supports:
The upper anvil shown at right connects to a load cell and moves down to bend the sample.
SAMPLE

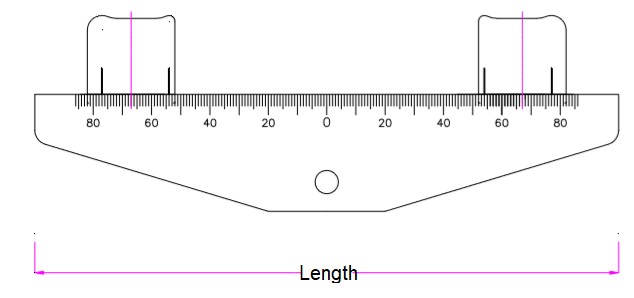

Body Type
Length
Max Force
Aluminum
200 mm
2.5 kN
Steel
200 mm
10 kN
Steel
300 mm
10 kN
Steel
350 mm
10 kN
Steel
400 mm
10 kN
Steel
430 mm
10 kN
for WT238: Choose your Lower Fixture (Choose one)
Radius
0.5 mm
1 mm
1.5 mm
2 mm
3 mm
3.2 mm
4 mm
5 mm
10 mm

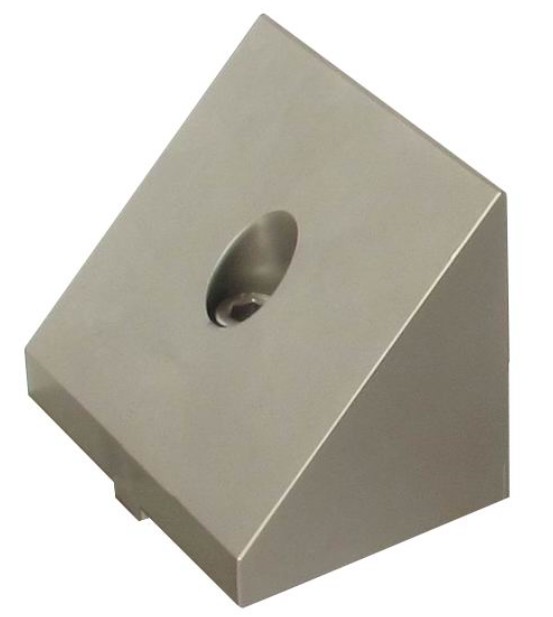

Step 2 for WT238: Upper Anvil (Choose One)
Radii
1.5 mm + 2.5 mm
2 mm + 3 mm
2 mm + 5 mm
3.2 mm + 5 mm
4 mm + 5 mm
Step 3: Choose Type of Lower Suppports (Part Number is for 2 each)

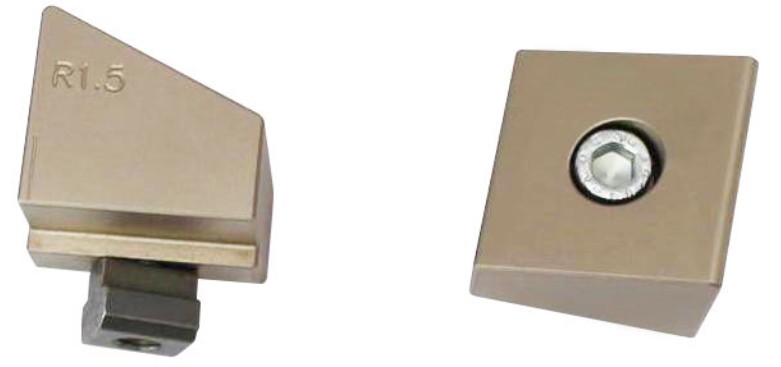

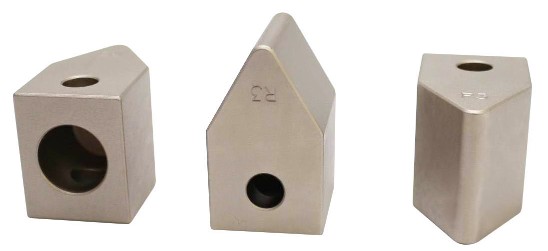

Dual Radii Lower Supports

Radius
1mm
1.5mm
2mm
2.5mm
3mm
3.2mm
3.5mm
4mm
5mm
10mm
Single Lower Supports

Single Radius Upper Supports

Ordering Information for WT238 in Three Steps

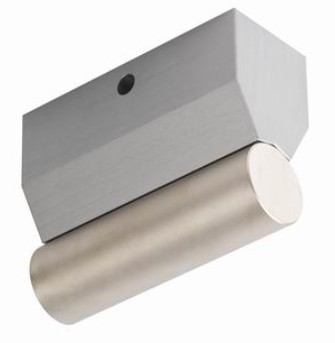

Upper Anvil
Adapters available for other mount Sizes
(5mm Radius Shown)
SECTION 2: WT238 4 Point Bend Fixtures

Ordering details below for 4 point version of WT238, See entire section for customizing details.
Also adaptable to many machine types!




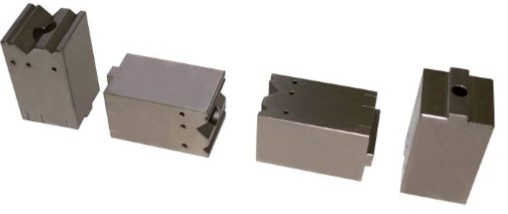

Additional Lower Supports for WT238 Fixtures
WT238-SXT
Tall Support
Height: 130mm
Radius: 1mm
Set of 2 each
WT238-SMR
2 Each Supports for Rollers
Rollers 1mm to 15mm Dia.
5 pins, Set of 2 each
See Diagram
WT238-SRR
Reversable Support
Insert is flipped
for small or large roller.
See Diagram

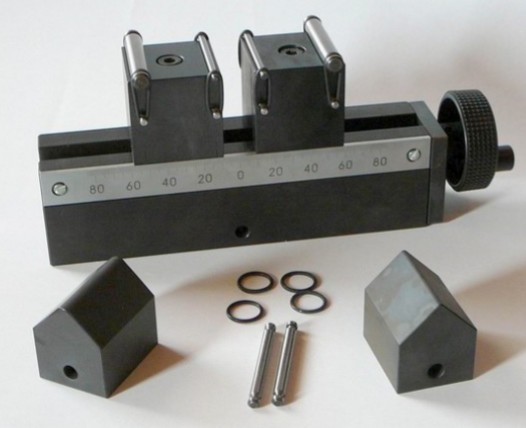

Flexible Use
Rollers for WT238-SMR

WT238-SR
Supports for Single Roller
Rollers 1mm to 7mm Dia.
5 pins, Set of 2 each
Rollers on WT238-SRR
Note insert has two ends
for small or large rollers

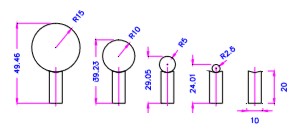

Roller Options for Upper Anvils

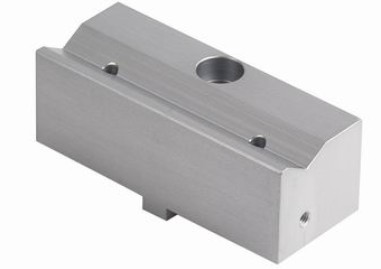

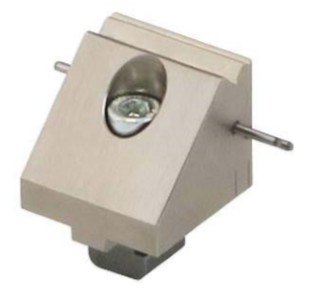

WT238-AV
V Notch Anvil
Use Various Size Rollers
Pin is for O Rings
1 each
WT238-AC
For Carrier Rollers
1 each
Many roller sizes and types for your application!

Call our office for sales support.


Movable anvil, fixable..
With prism &
Exchangeable Roller

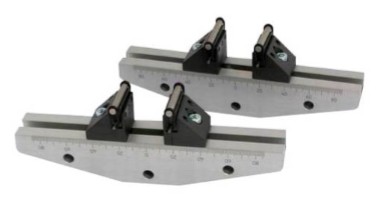

WT238-QA
4 Point Bend Fixture,
Max Load 2.5kN

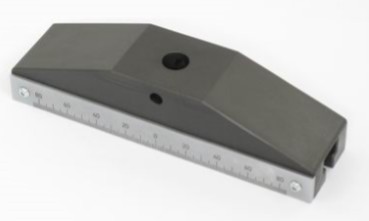

Includes 2 aluminum bodies (200mm)
Span 4mm-150mm
1 Set


Upper Radii Options
Lower Radii Options
1 mm
1.5 mm + 2.5 mm
2 mm
2 mm + 5 mm
3.2 mm
3.2 mm + 5 mm
5 mm
(Specials Available)
WT238-QD
4 Point Bend Fixture
Max Load 2.5kN
Includes 2 aluminum bodies (200mm),
Supports & 2 sets exchangeable rollers
See Roller Sizes


Roller Sizes:
More Sizes:
1 mm
6.35 mm
2 mm
8 mm
3 mm
10 mm
4 mm
12 mm
5 mm
12.7 mm
6 mm
(Specials Available)

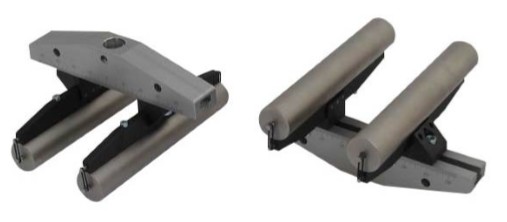

WT238-QG
4 Point Bend Fixture, Max Load 2.5kN
Articulating Inserts
Includes 2 aluminum bodies (200mm),
2 sets exchangeable rollers


Roller Sizes:
More Sizes:
1 mm
6.35 mm
2 mm
8 mm
3 mm
10 mm
4 mm
12 mm
5 mm
12.7 mm
6 mm
(Specials Available)
WT238-QJ (Steel Version)
4 Point Bend Fixture, Max Load 10kN
Includes 2 steel bodies (200mm),
2 sets exchangeable rollers


WT238-Specials

Please contact our office with
special requests for parts & fixtures.
Examples are shown here:


With Wide Lower Supports (or Rollers)


With "Near Zero" Span Supports


Speical Roller Options
Standard & Custom


With Large Rollers


Adaptable for mounting non standard machines...
Please contact our office for more information.

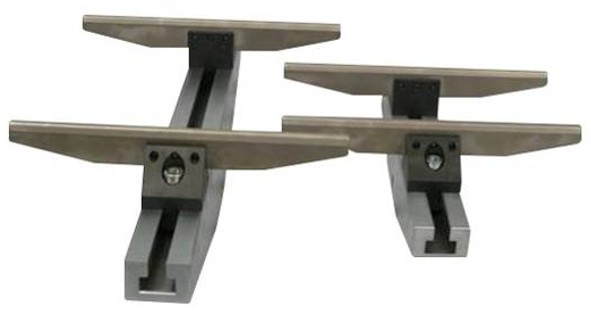

Extra High Supports
(Custom sizes avaialble)


Lower Support Options
Upper Radius Options
2mm & 4mm
3mm
2mm & 5mm
5mm
3mm & 5mm

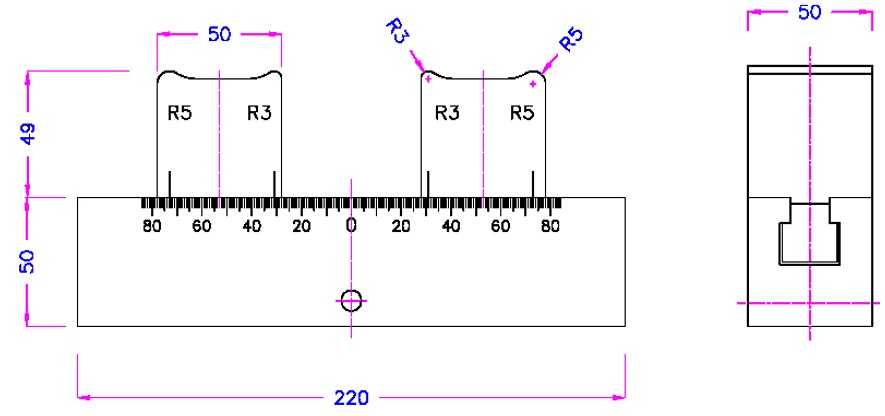

Example (Print) below, upper anvil 3mm radius
with 3mm & 5mm radii lower supports...
Lower Support Options
Upper Radius Options
2mm & 4mm
3mm
2mm & 5mm
5mm
3mm & 5mm

Support Roller Diameters
Upper Anvil Radius Options
3mm
2mm
5mm
3mm
WT103-HR-220
Bending Fixture 50kN  / Body 220mm long / Span 10mm-100mm
Features:
Central adjustment with milled supports
Dual Radii Lower Supports
Crank Spindle for easy adjustment of supports.
Temperature Range: 0-70C








WT103-H-300
Bending Fixture 50kN  / Body 300mm long
Features:
Central adjustment with milled supports
Dual Radii Lower Supports
Crank Spindle for easy adjustment of supports.
Temperature Range: 0-70C








Lower Support Options
Upper Radius Options
2mm & 4mm
3mm
2mm & 5mm
5mm
3mm & 5mm

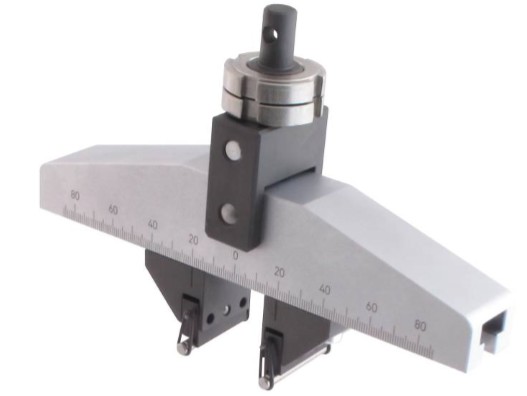

WT103-4P
Upper Fixture for 4 point bend

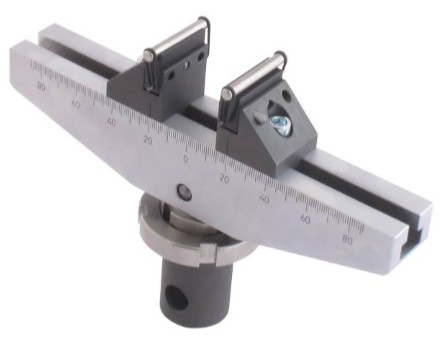

SECTION 3:  WT103 Medium 3 Point Bend Fixtures
Ordering details immediately below for WT103, See entire section for customizing details.






Body
Length
WT103-220
220 mm
WT103-300
300 mm
Part Number
Body Length
WT22-A360
360 mm
WT22-A400
400 mm
WT22-A500
500 mm
WT22-A600
600 mm
WT22-A700
700 mm
WT22-A800
800 mm
WT22-A900
900 mm
WT22-A1000
1000 mm
WT22-A1100
1100 mm
WT22-A1200
1200 mm

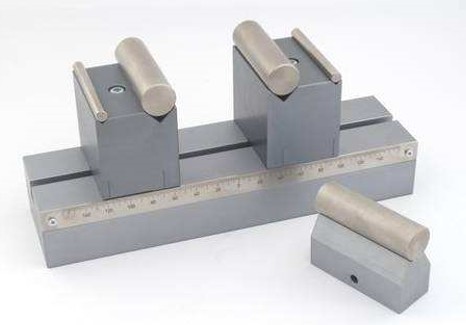

3 Point Bend Fixture (select body length)
Anodized Aluminum, Max Load 50KN    10mm, 20mm and 30mm Rollers Included  Add WT22-A4P to use for 4 Point Bending

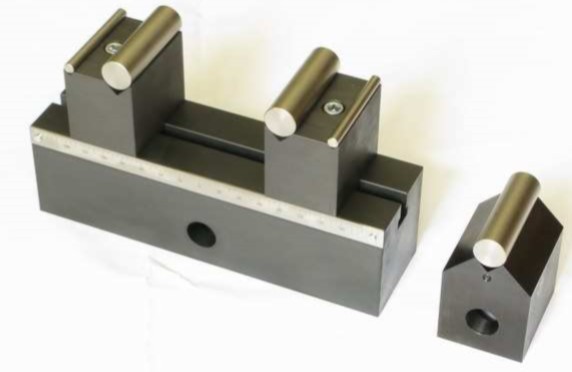

3 Point Bend Fixture (select body length)
Steel, Max Load 100KN
10mm, 20mm and 30mm Rollers Included  Add WT22-S4P to use for 4 Point Bending
Part Number
Body Length
WT22-S360
360 mm
WT22-S400
400 mm
WT22-S360
500 mm
WT22-S360
600 mm
WT22-S360
700 mm
WT22-S360
800 mm
WT22-S360
900 mm
WT22-S360
1000 mm
WT22-S1100
1100 mm
WT22-S1200
1200 mm
Add 4 Point Bend Body (Aluminum)
Add 4 Point Bend Body (Steel)
Part Number
Body Length
WT22A-4P-240
240 mm
WT22A-4P-500
500 mm
Part Number
Body Length
WT22S-4P-240
240 mm
WT22S-4P-360
360 mm
WT22A-360
WT22S-360 w/ 60mm Female Connections
WT22S-360
OR
Part Number
WT22 Accessories
WT22-UA
Additional 3-point nose (upper anvil) incl. 100mm rollers : 10, 20, 30 mm
Note:  One 3-point nose is included with each WT22 body purchased.
WT22-U159
Upper anvil with adapter 15.9 mm Socket and 8 mm Grip Pin Hole
WT22-U20
Upper anvil with adapter 20 mm Socket and /8 mm Grip Pin Hole
WT22-U30
Upper anvil with adapter 30 mm Socket and/12 mm Grip Pin Hole
WT22-U318
Upper anvil with adapter 31.8 mm Socket and/12.8 mm Grip Pin Hole
WT22-U16
Upper anvil with adapter 32 mm Socket and/16 mm Grip Pin Hole
WT22-U36
Upper anvil with adapter 36 mm Socket and/18 mm Grip Pin Hole
WT22-U40
Upper anvil with adapter 40 mm Socket and 16 mm Grip Pin Hole
WT22-U50
Upper anvil with adapter 50 mm Socket
WT22-U60
Upper anvil with adapter 60 mm Socket
WT22-RS
1 set of long rollers 10,20,30 mm each, 100mm width, 9 pcs
WT22-UC
Custom round supports (Specify) 8-29 mm diameter, 100 mm width 3 pcs
WT22-WS1
Extra long supports, 30 mm diameter, 160 mm width
WT22-WS2
Extra long supports, 30 mm diameter, 300 mm width
WT22-V1S
Support with 1 V Grooves for 8 to 35 mm diameter rollers, 1 pair
WT22-V2S
Support with 2 V Grooves for 8 to 35 mm diameter rollers, 1 pair

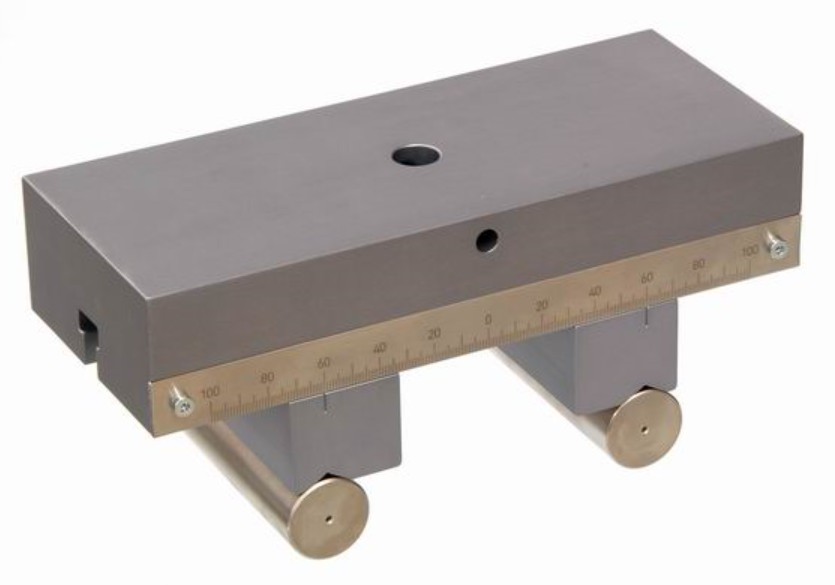

WT22A-4P-240
4 Point Bend Upper Fixture
WT22 100KN Steel 600mm body with
30mm diameter, 160mm wide supports

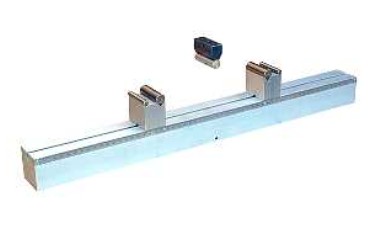

WT22 Aluminum 50KN 1000mm body with
30mm diameter, 100mm long supports
Many more accessories are available for WT22 and other models, please contact our office for more details.

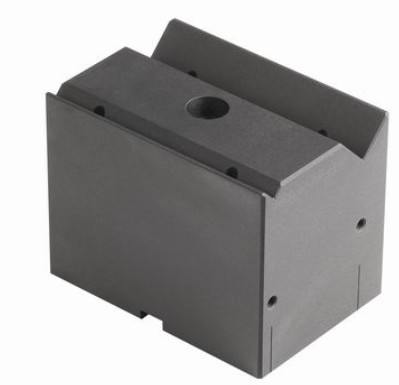

WT22-V2S Lower support
Available in Aluminum or Steel
For 10, 20 & 30 mm Rollers

WT22-U159
Upper Anvil with
30 mm Diameter 100mm wide Support

WT22-V1S Lower Support
Available in Aluminum or Steel

WT22-M2 Lower Support
Nickel Plated Steel
2mm Contacting Radius

WT22-H100 Lower Support
100mm Height
Shown with 30mm Roller

WT22-V2S Lower support
Shown with included
10, 20 & 30 mm Rollers

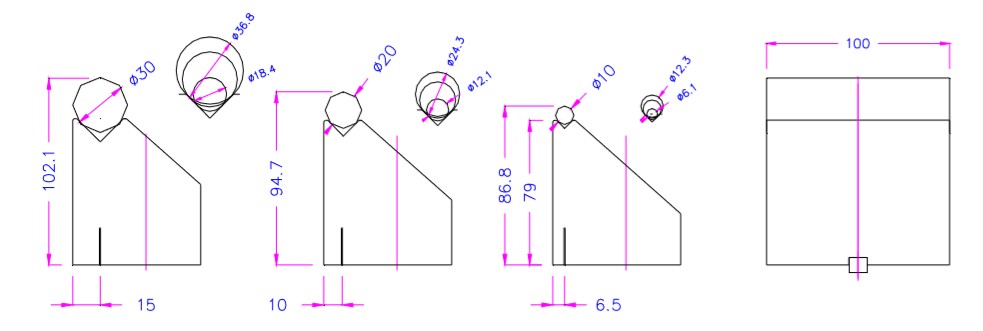

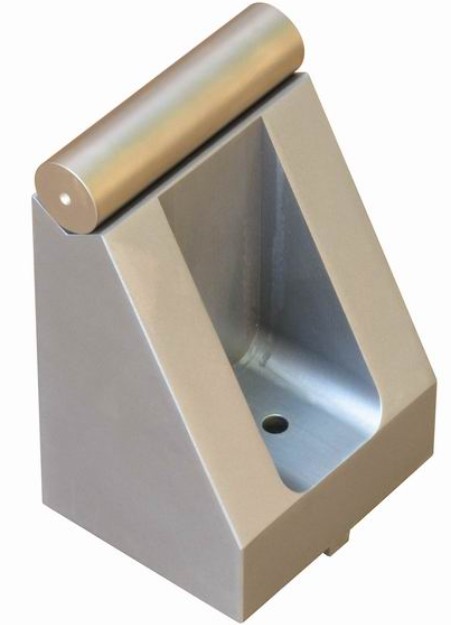

WT22-H30 Lower Support
Tall Support
with 30 mm Roller

WT22-H20 Lower Support
Tall Support
with 20mm Roller

WT22-H10 Lower Support
Tall Support
with 10mm Roller
