Eccentric Roller Grips - Scroll down to see more.

Eccentric Roller Grips are lever activated and spring loaded for self closing.
If you have a special application please let us know.
We are here to help.  Please feel free to call or email (Click Here).
Note: All fixtures are not listed. Please contact our office if you don't find what you need.

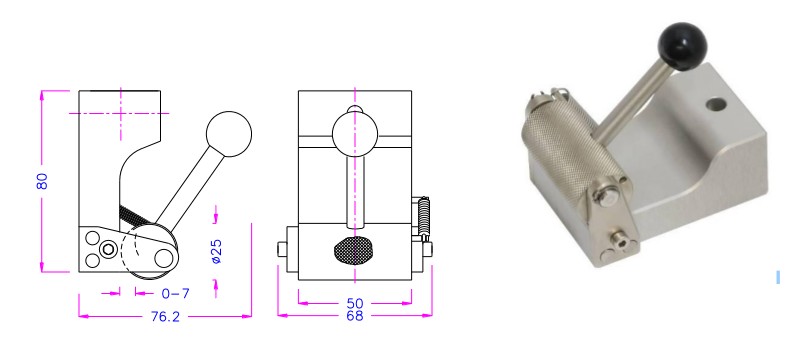

WT7-A-1KN   Eccentric Roller Grip Aluminum

Easy to use and self-tightening. Applicable for soft and flexible samples, foils, plastics, rubber, etc.
Scope of delivery: 1 pair of grips

Body: anodized aluminum
Roller: nickel plated steel with Pyramid (serrated) face, 25 mm Diameter
Base Plate: None
Tensile force: 1 kN
Max sample width: 50 mm, max sample thickness: 0 7 mm
Temperature range: 0 +130C    (Other temperature ranges, contact our office)
Weight: 0.5 kg each grip

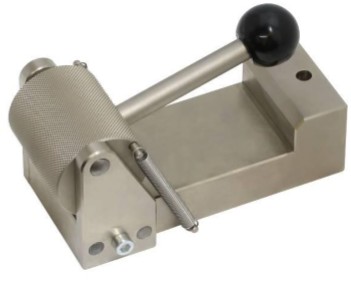

WT7-A4-1KN Eccentric Roller Grip (Stainless Steel)

Same as WT7-A-1KN but made of A4 stainless steel
Teflon knob
Pyramid (serrated) or smooth roller.
Tensile force: 1 kN
Max sample width: 50 mm, max sample thickness: 0 7 mm
High Temperature range: -70 +280C
Weight 0.97 kg each grip







WT7-ASR-1KN  (With Smooth Roller)

Body: anodized aluminum
Roller: nickel plated steel with smooth face, 25 mm Diameter
Base Plate: Rubber
Tensile force: 1 kN
Max sample width to 50 mm, max sample thickness 0 7 mm
Temperature range: 0 +70C    (Other ranges possible)
Weight 0.5 kg each grip







WT7-A-5KN Eccentric Roller Grip

Body: anodized aluminum
Roller: nickel plated steel pyramid (serrated), 30mm Diameter
Base Plate: None
Tensile force: 5 kN
Max sample width 50 mm, max sample thickness 0 7 mm

Temperature range: 0 +130C  (Other ranges possible)
Weight 0.5 kg each grip







WT7-A4-5KN Eccentric Roller Grip

Same as WT7-A-5KN but made of stainless steel A4
Teflon knob
Pyramid (serrated) or blank roller.
Tensile force: 5 kN
Max sample width 50 mm, max sample thickness 0 7 mm
Temperature range: -70 +280C
Weight 1.23 kg each grip

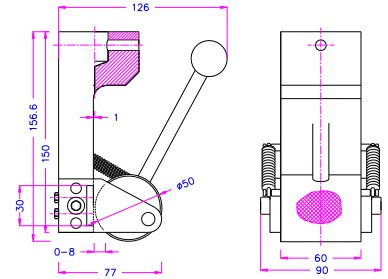

WT7-NP-10KN Eccentric Roller Grip
Nickel Plated
Body: steel, nickel-plated
Roller: steel, pyramid (serrated) faced roller, 50 mm diameter
Tensile force: 10 kN
Max sample width 60 mm, max sample thickness 0 8 mm
Temperature range: 0 +130C   (Other ranges possible)
Weight: 3.35 kg each grip

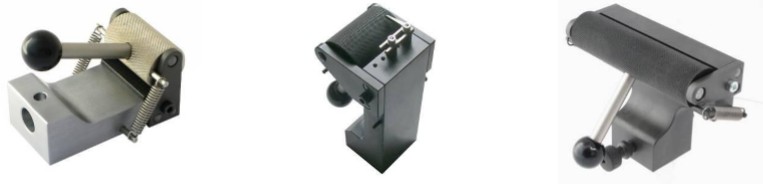

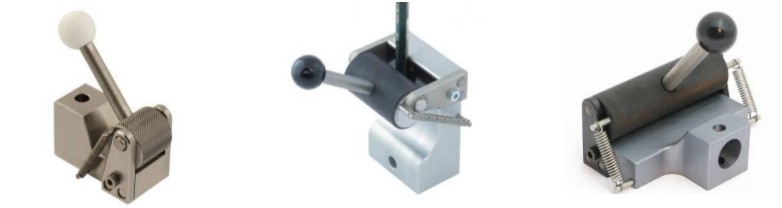

WT7 Custom versions:
1KN / 25mm Wide Stainless to 280C
1KN / Rubber Contact Surfaces
1KN / 80mm Wide
5KN / Pyramid Base Plate
10KN / With Centering Device
5KN / With 100mm Roller

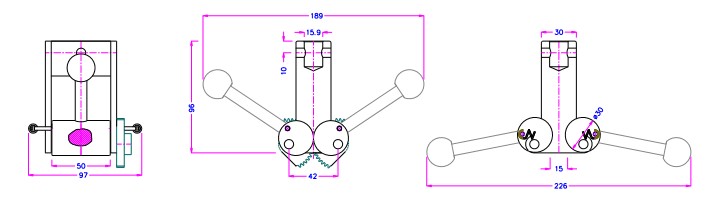

WT766-NP-5KN   Eccentric Roller Grip

Symmetric design
Self-tightening non-slip gripping action
Body:  nickel plated steel
Roller: pyramid (serrated) faced, 30 mm Diameter
Tensile force: 5 kN
Opening: 0-15 mm
Max Sample Width 50mm
Temperature range: 0 +70C  Other ranges possible
Standard coupling: 15.9 mm (5/8") or 20mm Female (Other couplings possible)
Weight: 1.4 kg per grip
Scope of delivery: 1 pair of grips
